New MF60152 V1-1000C-A99 SUNON
New MF60152 V1-1000C-A99 SUNON

New MF60152 V1-1000C-A99 SUNON

$2.86

SKU: 700020780727 Brand:

Description

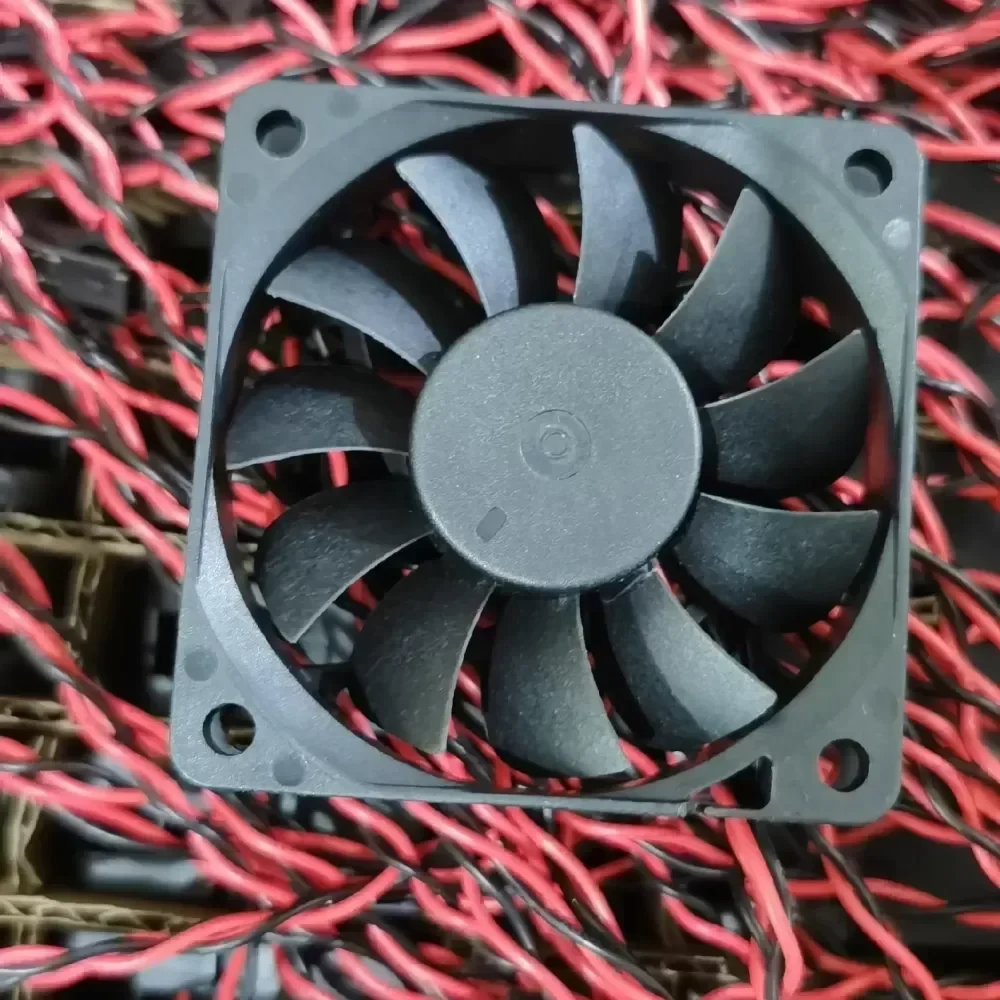

The SUNON MF60152V1-1000C-A99 is a premium-grade, original engineering DC axial fan specifically engineered for high-density thermal management in industrial inverters and variable frequency drives (VFDs). Utilizing SUNON’s proprietary MagLev (Magnetic Levitation) motor technology combined with a Vapo bearing system, this 6015-series cooling fan eliminates physical friction between the shaft and bearing. This results in exceptional rotational stability, significantly extended lifecycle value, and reduced acoustic noise, making it a critical component for continuous-duty industrial environments.

Technical Specifications:
Manufacturer: SUNON
Model Number: MF60152V1-1000C-A99
Frame Dimensions: 60 x 60 x 15 mm
Rated Voltage: 24V DC
Operating Voltage Range: 8.0V to 27.6V DC
Bearing Type: Vapo Bearing (MagLev)
Speed Configuration: High Speed
Nominal Speed: 4700 RPM ± 15%
Maximum Airflow: 27.0 CFM (0.76 m³/min)
Static Pressure: 0.18 Inch-H2O
Acoustic Noise Level: 34.2 dB(A)
Rated Current: 0.068 A
Power Consumption: 1.63 W
Operating Temperature: -10°C to +70°C
Frame Material: Thermoplastic PBT of UL 94V-0
Impeller Material: Thermoplastic PBT of UL 94V-0
Weight: 35.0 g
Protection: Auto-Restart / Impedance Protected

Application and Technical Compatibility:
This compact 15mm profile fan is highly optimized for space-constrained industrial enclosures. Its primary application involves active heat dissipation for power electronics, specifically serving as an OEM replacement inverter fan for CNC machinery, telecom cabinets, and automated control panels. The Vapo bearing ensures reliable orientation-free installation, while the high-speed impeller guarantees rapid thermal extraction from critical heat sinks. By maintaining strict original engineering standards, this SUNON fan ensures seamless technical compatibility with existing 24V control loops. With optimized supply chain logistics, we ensure minimal lead time for both bulk procurement and emergency spare parts replacement, safeguarding your facility against thermal-induced downtime.

New MF60152 V1-1000C-A99 SUNON

New MF60152 V1-1000C-A99 SUNON

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
