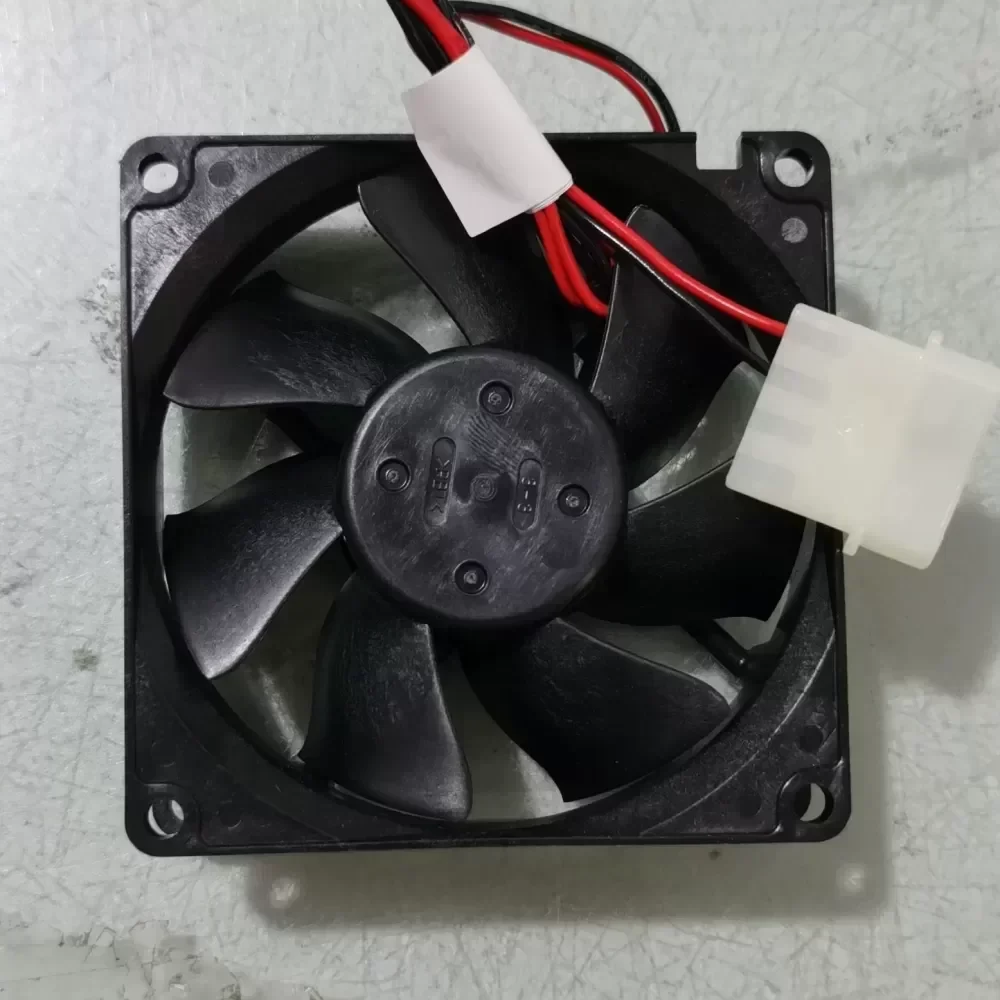

NM B3110 RL-04W-B20 computer silent fan
NM B3110 RL-04W-B20 computer silent fan

NM B3110 RL-04W-B20 computer silent fan

$2.57

SKU: 684909074837 Brand:

Description

The NMB 3110RL-04W-B20 is a precision-engineered industrial DC axial cooling fan designed for continuous, low-noise operation in thermally sensitive environments. Manufactured by MinebeaMitsumi, this 80x80x25mm unit delivers reliable thermal management with an optimized acoustic profile, making it a critical component for high-density electronics and automated control systems.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 3110RL-04W-B20
Frame Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Nominal Current: 0.10 A
Power Consumption: 1.2 W
Rotational Speed: 2150 RPM ± 10%
Maximum Airflow: 26.1 CFM (0.74 m³/min)
Static Pressure: 14.7 Pa
Acoustic Noise: 22.0 dB(A)
Bearing System: High-Precision Dual Ball Bearing
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Weight: 95 g

Application and Integration:
This silent cooling fan is specifically deployed in scenarios requiring strict acoustic control without compromising continuous thermal dissipation. The dual ball bearing architecture ensures a prolonged operational lifespan, effectively reducing maintenance intervals in server racks, medical diagnostic equipment, and industrial control panels. The Original Engineering of the 3110RL-04W-B20 guarantees exact Technical Compatibility with OEM systems requiring a 12V DC 8025 form factor, preventing system throttling and hardware degradation.

Procurement and Logistics:
We maintain strict quality control to ensure all units meet factory specifications. Please contact our technical sales team to confirm current inventory levels and establish an accurate Lead Time for your facility’s maintenance schedule.

NM B3110 RL-04W-B20 computer silent fan

NM B3110 RL-04W-B20 computer silent fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
