$6.54

SKU: 1601293907238 Brand:

Description

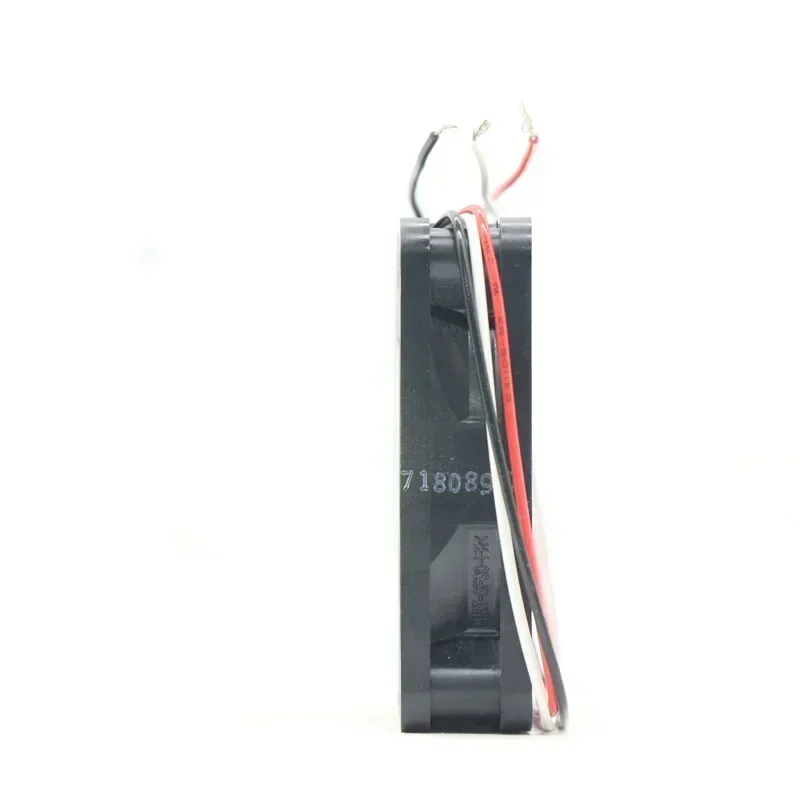

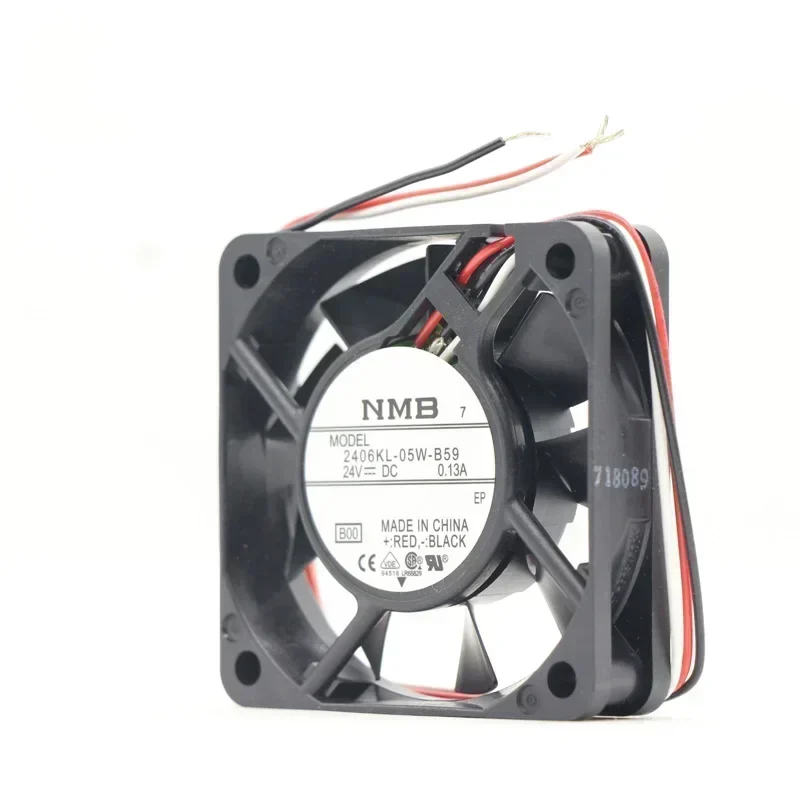

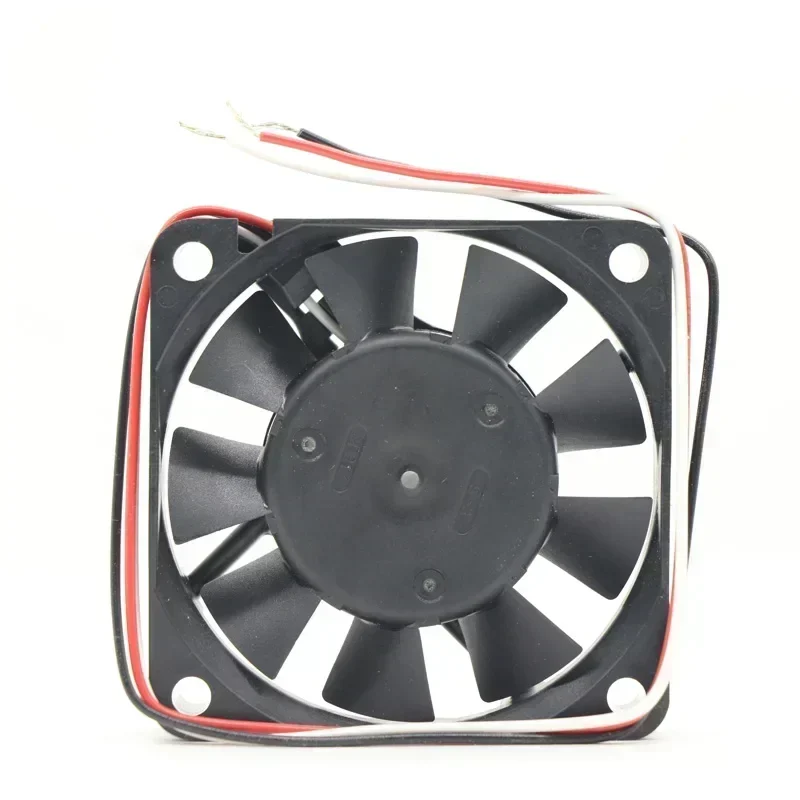

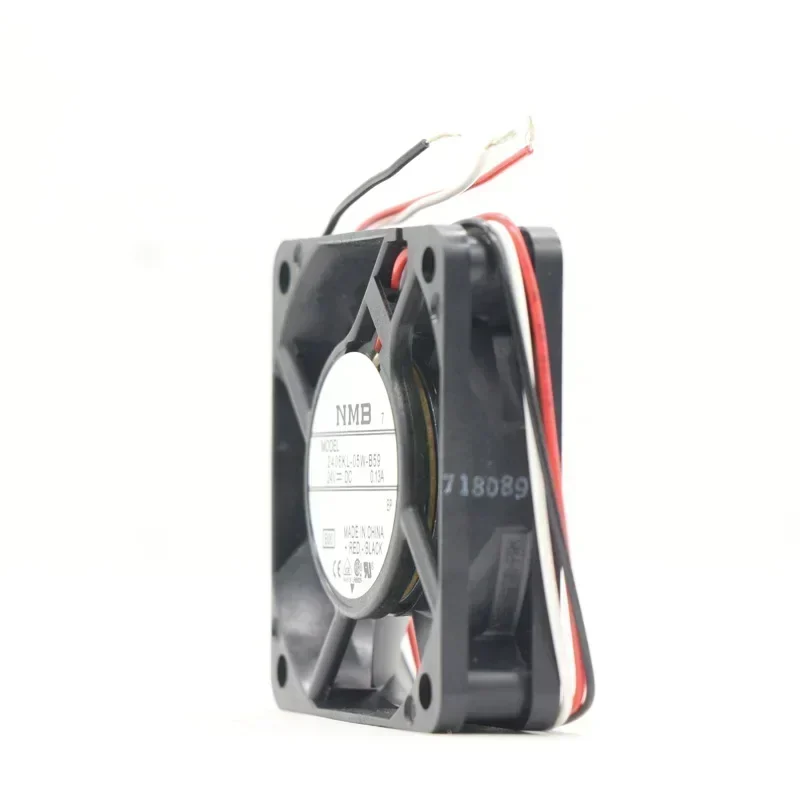

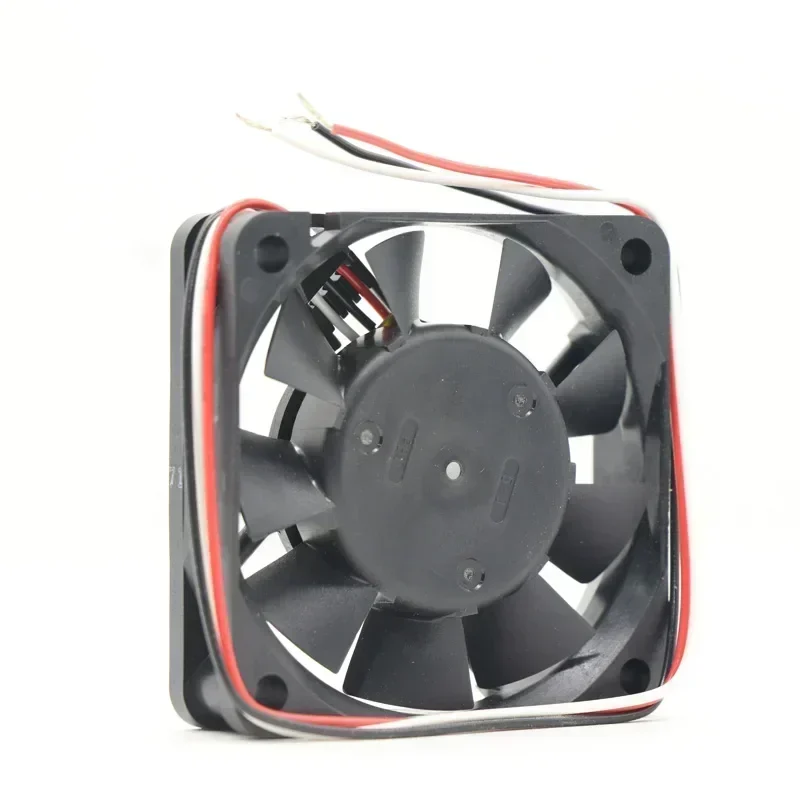

The NMB 2406KL-05W-B59-B00 is a high-performance DC axial cooling fan engineered for continuous operation in demanding thermal management applications. Manufactured by NMB Technologies, this compact 60x60x15mm unit delivers optimized airflow and static pressure, ensuring thermal stability for critical electronic assemblies. Built with Original Engineering standards, it guarantees exact Technical Compatibility for drop-in replacement in existing industrial architectures.

Technical Specifications
Manufacturer: NMB Technologies
Model Number: 2406KL-05W-B59-B00
Fan Type: DC Axial Cabinet Cooling Fan
Frame Dimensions: 60 x 60 x 15 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Rated Current: 0.13A
Nominal Power: 0.5W
Rotational Speed: 4000 RPM ± 10%
Maximum Airflow: 15.9 CFM (0.45 m³/min)
Bearing System: Precision Dual Ball Bearing
Housing Material: Black Plastic (UL94V-0)
Impeller Material: Black Plastic (UL94V-0)
Termination: 3-Wire Lead (Tachometer/Sensor output included)
Operating Temperature: -10°C to +70°C
Weight: 25g

Industrial Application
This specific axial fan is critical for thermal regulation in compact telecom cabinets, variable frequency drives (VFDs), and programmable logic controller (PLC) enclosures. The 15.9 CFM airflow capacity combined with a 24V DC input makes it an ideal solution for industrial control panels where space constraints dictate a 15mm profile. The precision ball bearing system extends the operational lifecycle, preventing premature thermal throttling of adjacent microprocessors.

Procurement and Lifecycle
Sourcing this component ensures adherence to OEM thermal specifications. We maintain optimized Lead Time protocols to minimize facility downtime, ensuring that your automated systems receive reliable cooling solutions without extended maintenance delays.

Key Attributes
Voltage: DC 24 V
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Size: 60*60*15mm
Voltage: 24V
Power: 0.5W
Speed: 4000RPM
Air flow: 15.9CFM
Current: 0.13A

Packaging and Delivery
Selling Units: Single item
Single package size: 15X11X11 cm
Single gross weight: 0.500 kg

NMB 2406KL-05W-B59-B00 60x60x15mm 24V DC 0.5W 4000RPM 15.9CFM 0.13A Axial Fan

NMB 2406KL-05W-B59-B00 60x60x15mm 24V DC 0.5W 4000RPM 15.9CFM 0.13A Axial Fan

NMB 2406KL-05W-B59-B00 60x60x15mm 24V DC 0.5W 4000RPM 15.9CFM 0.13A Axial Fan

NMB 2406KL-05W-B59-B00 60x60x15mm 24V DC 0.5W 4000RPM 15.9CFM 0.13A Axial Fan

NMB 2406KL-05W-B59-B00 60x60x15mm 24V DC 0.5W 4000RPM 15.9CFM 0.13A Axial Fan

NMB 2406KL-05W-B59-B00 60x60x15mm 24V DC 0.5W 4000RPM 15.9CFM 0.13A Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
