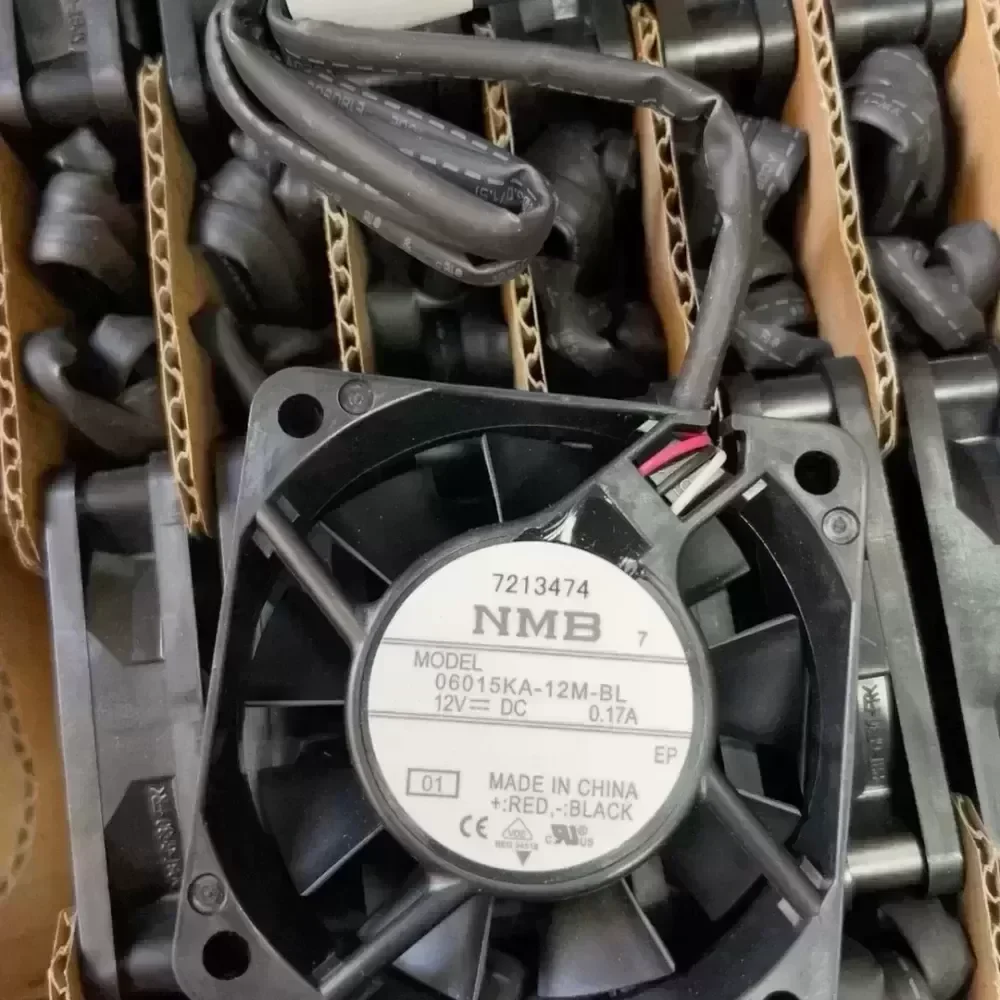

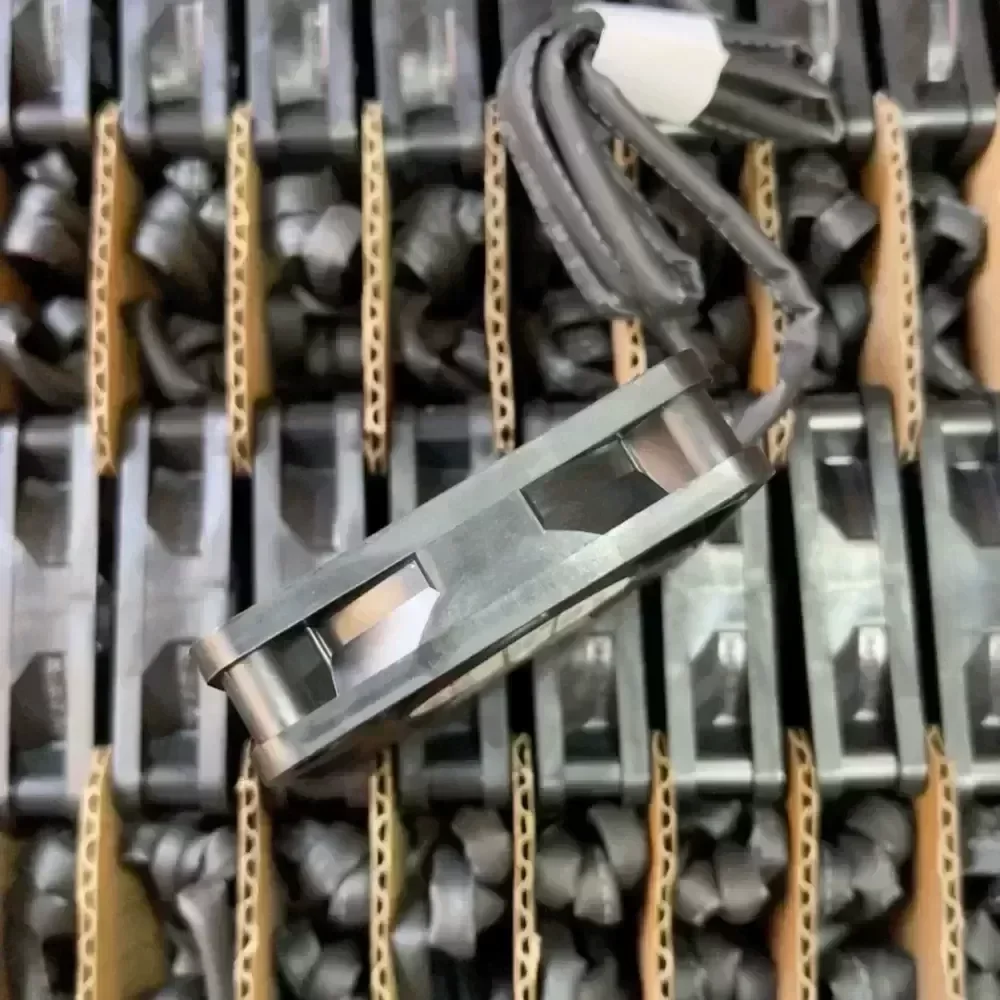

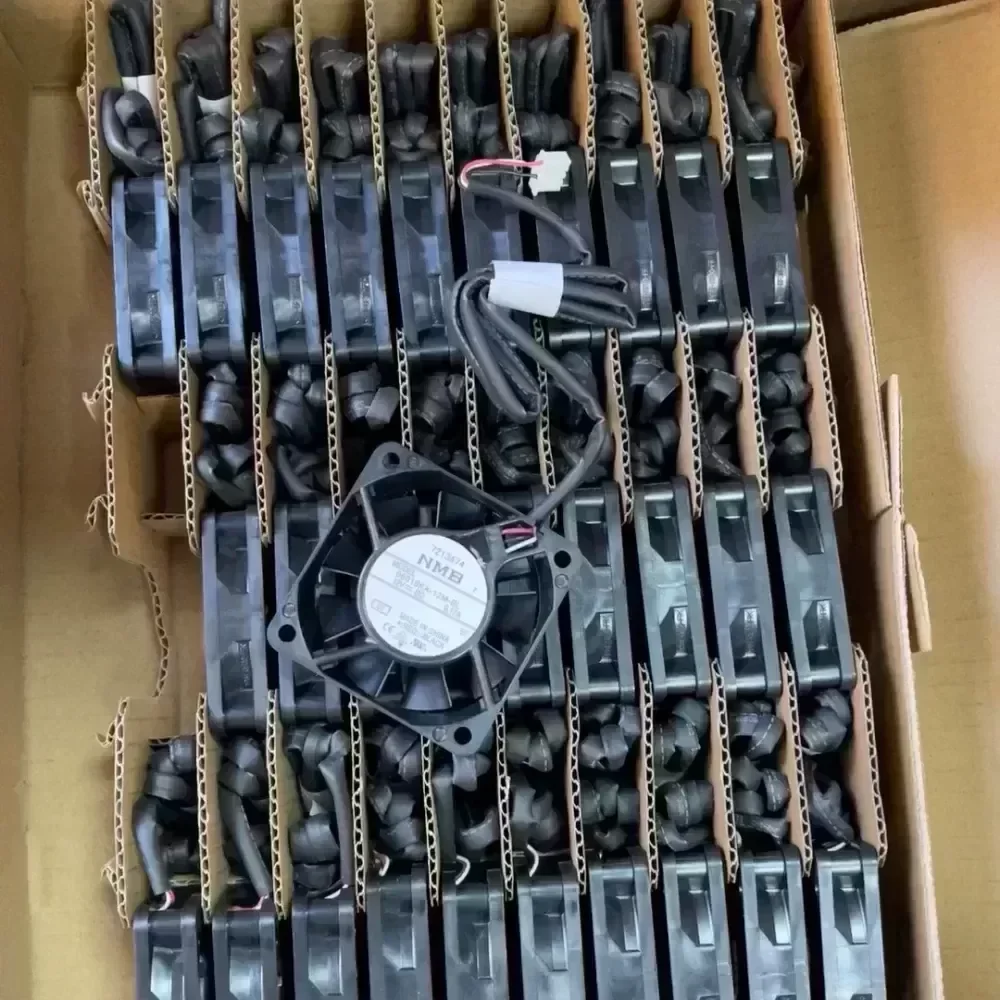

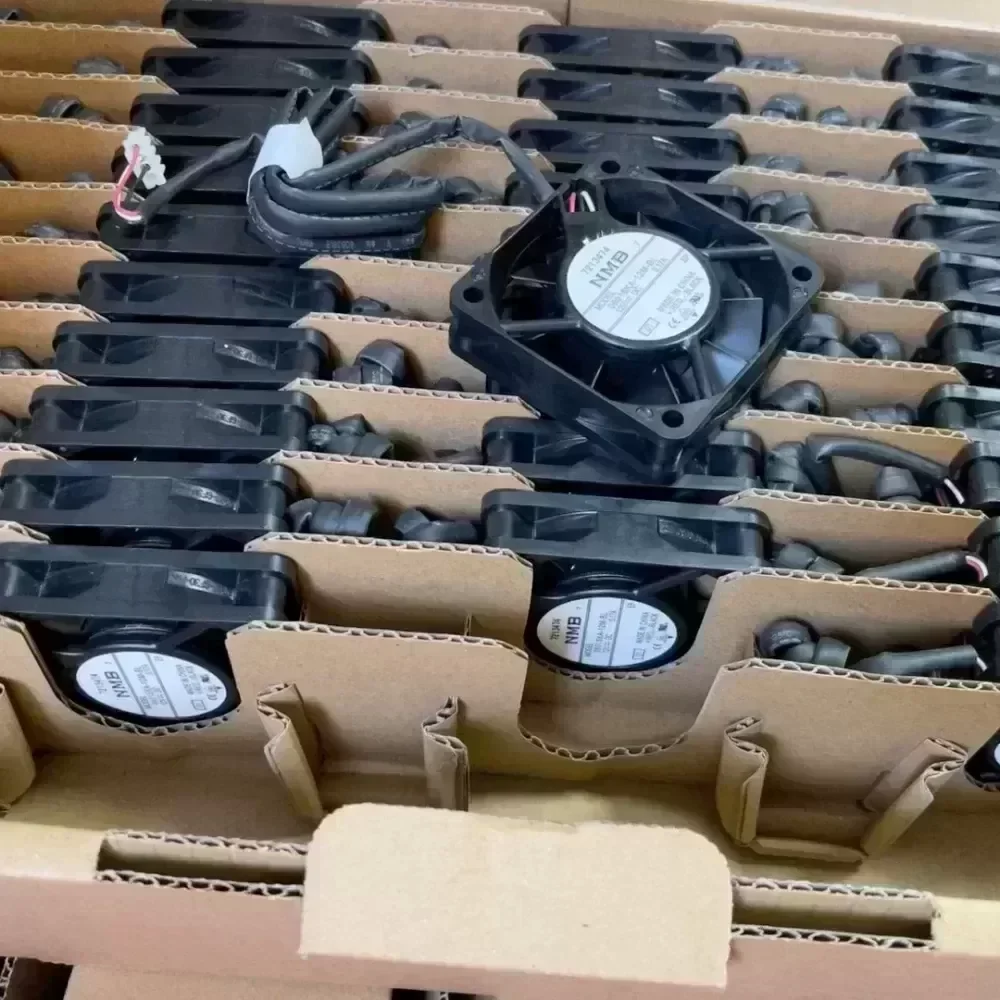

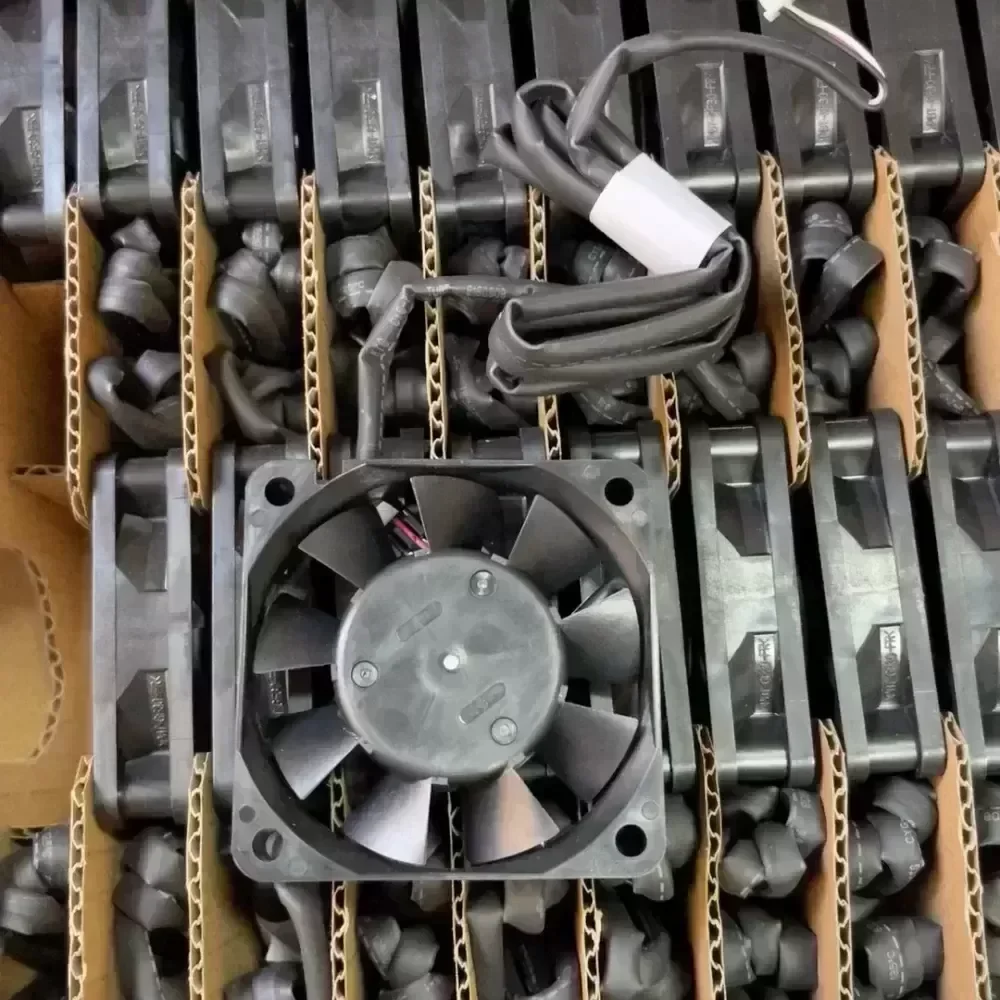

NMB fan 06015KA-12M-BL 12V

Description

This premium axial cooling fan represents the pinnacle of thermal management, utilizing Original Engineering from NMB (MinebeaMitsumi) to deliver high-reliability heat dissipation in space-constrained industrial systems. Engineered specifically for high-demand environments, this unit features a dual precision ball bearing system that ensures continuous operation under elevated thermal loads. Its primary application lies in the active cooling of frequency inverters, servo drives, and power supply units where maintaining Technical Compatibility and consistent airflow is critical to preventing component failure and extending overall machine lifecycle.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 06015KA-12M-BL
Frame Dimensions: 60 mm x 60 mm x 15 mm
Rated Voltage: 12 V DC
Operating Voltage Range: 6.0 V to 13.8 V DC
Rated Current: 0.17 A
Input Power: 2.04 W
Nominal Speed: 4000 RPM
Maximum Airflow: 0.44 m³/min
Maximum Static Pressure: 34.3 Pa
Noise Level: 29.0 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (Black) UL94V-0
Impeller Material: Plastic (Black) UL94V-0
Termination: 3-Lead Wire
Sensor Output: Locked Rotor Alarm
Dielectric Strength: AC 500V for 1 minute
Insulation Resistance: Minimum 10M Ohm
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Expected Life: 40,000 Hours at 40 °C
Weight: 45 g
Certifications: UL, CSA, VDE, CE, RoHS

Application and Integration:
The 06015KA-12M-BL model is designed for seamless integration into industrial automation panels, compact inverter cabinets, and server racks. In high-density power electronics, thermal buildup can cause rapid performance degradation. This fan mitigates thermal risk by providing targeted, high-pressure airflow directly over heatsinks and critical semiconductors. Its 15mm low-profile depth makes it ideal for dense PCB layouts where standard 25mm fans cannot fit. The locked rotor sensor output provides real-time system monitoring, allowing the host PLC or controller to detect fan failure immediately and initiate a safe shutdown sequence, avoiding catastrophic equipment damage.

Procurement and Supply Chain:
Lead Time: Ex-stock items typically ship within 24 to 48 hours. For high-volume production run orders, please contact our sales desk for scheduled factory lead times.
Packaging: Factory-sealed anti-static B2B packaging to preserve component integrity during transit.
