Description

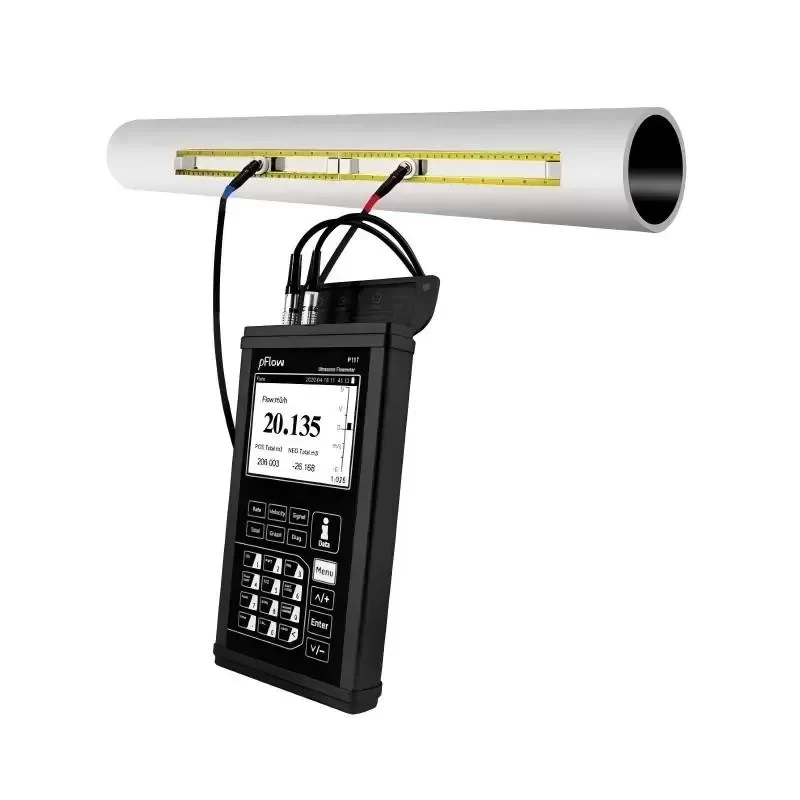

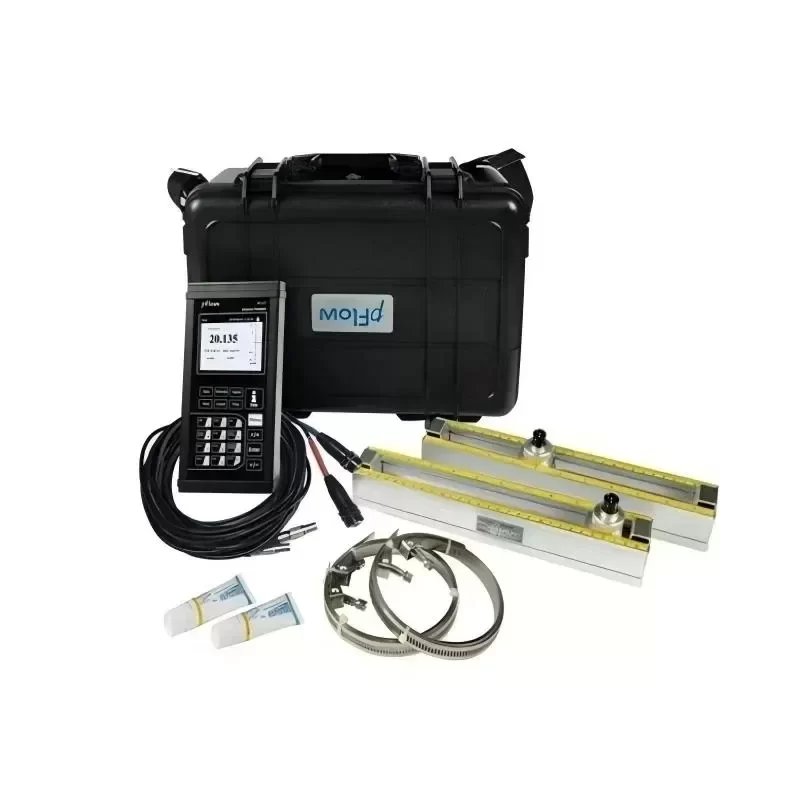

The PFlow P117 is a high-precision handheld transit-time ultrasonic flow meter engineered for non-invasive fluid measurement in complex industrial environments. Designed specifically for water and clean liquid applications, this portable unit delivers laboratory-grade accuracy without interrupting process operations. Backed by Original Engineering standards and comprehensive OEM customization support, the P117 ensures seamless Technical Compatibility across diverse piping infrastructures.
Technical Specifications:
Measuring Principle: Transit-time ultrasonic
Fluid Types: Water, wastewater, HVAC chilled water, and other acoustically conductive liquids
Pipe Size Compatibility: DN25 to DN1200
Velocity Range: ±32 m/s
Accuracy: ±1.0% of reading
Repeatability: 0.2%
Transducer Type: Clamp-on (non-intrusive)
Medium Temperature Range: -30°C to 90°C (Standard), up to 160°C (High-Temp configuration)
Transmitter Enclosure: High-impact ABS with protective silicone boot
Display: 4-line alphanumeric LCD with backlight
Power Supply: Built-in rechargeable Lithium-ion battery (12-hour continuous operation)
Data Storage: Built-in data logger with SD card support
Protection Rating: IP65 (Transmitter), IP68 (Transducers)
Output Interfaces: RS232, optional 4-20mA
Weight: 0.5 kg (Transmitter only)
Industrial Application & Deployment:
The PFlow P117 is specifically designed for mobile diagnostics, energy auditing, and temporary flow verification in municipal water treatment facilities and industrial HVAC systems. Its clamp-on architecture eliminates the need for pipe cutting or process shutdown, solving the critical problem of flow verification in continuous-process plants. By providing rapid, non-invasive measurements, maintenance engineers can validate inline meter performance, detect pump inefficiencies, and optimize fluid distribution networks. With optimized manufacturing processes, we ensure a minimal Lead Time for both standard units and customized OEM configurations, maximizing lifecycle value and operational uptime.
Key Attributes
Medium: Water
Type: Flow Meter
Place of origin: Guangdong, China
Material: Iron
Model number: P117
Brand name: PFlow
Customized support: OEM, ODM
Warranty: 1 years
Flow range: ±0.03 ~ ±20 ft/s (±0.01~ ±6 m/s)
Accuracy: ±1%
Pipe Size: Clamp-on:1~ 48 in(25mm~1200mm)
Humidity: 0 to 99% RH,non-condensing
Transmitter: NEMA13 (IP54)
Analog output: 4~20mA, Max 750 Ω.
Accuracy: ±1%
Temperature: -40℃~80℃
Connection: (-40℃~80℃
Pressure: ±0.01~ ±6 m/s
Packaging and Delivery
Selling Units: Single item
Single package size: 50X40X25 cm
Single gross weight: 6.000 kg
