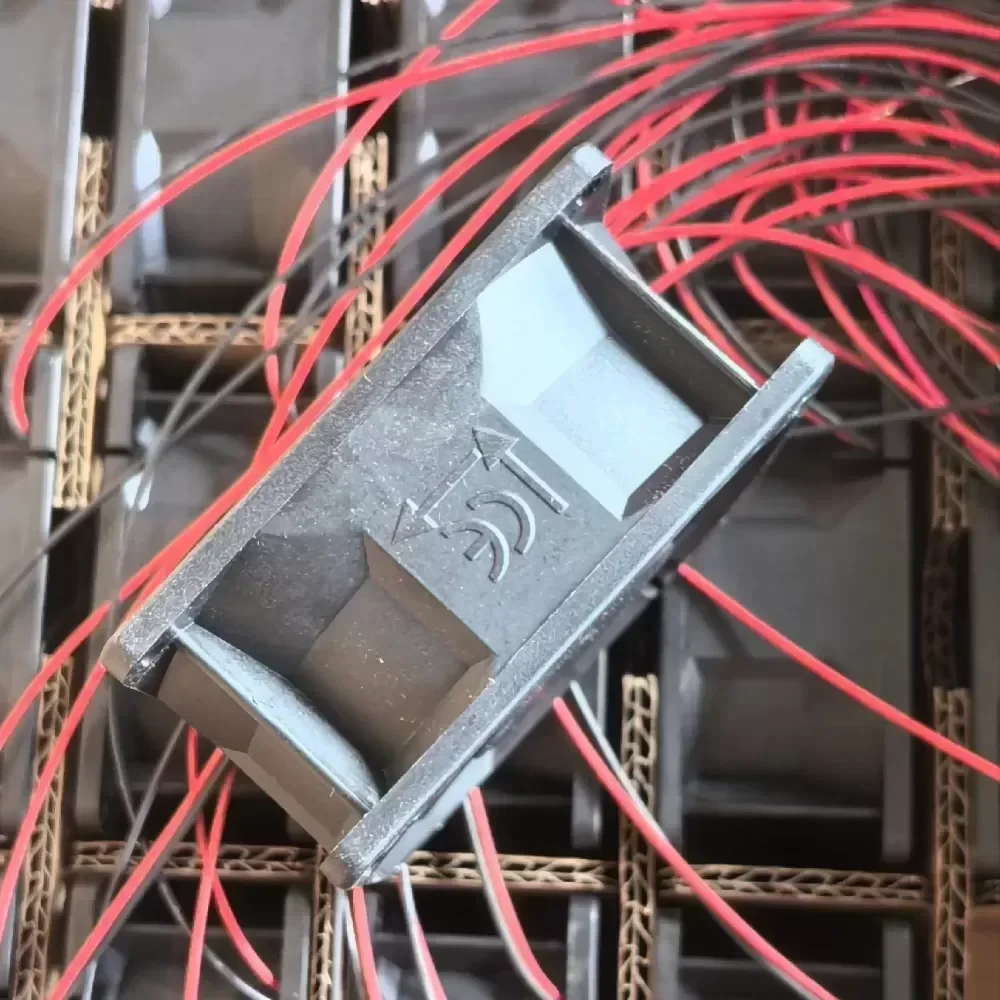

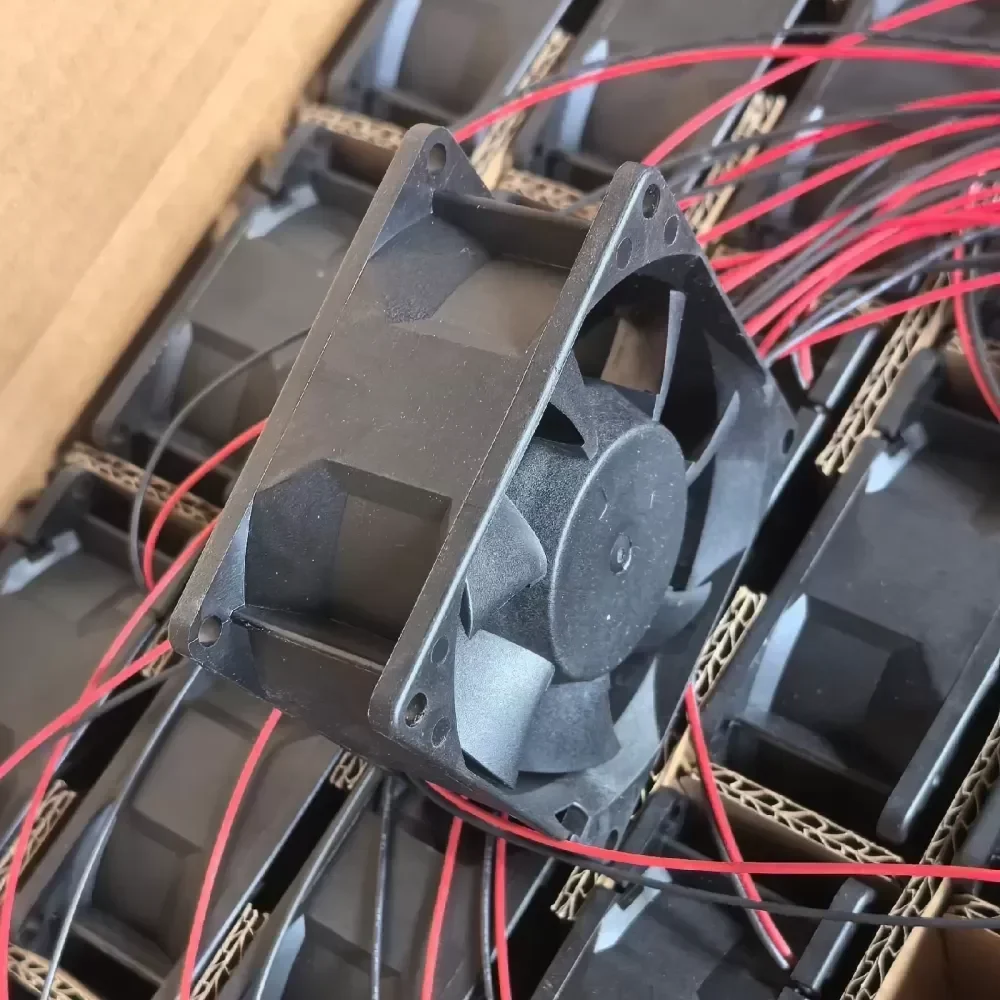

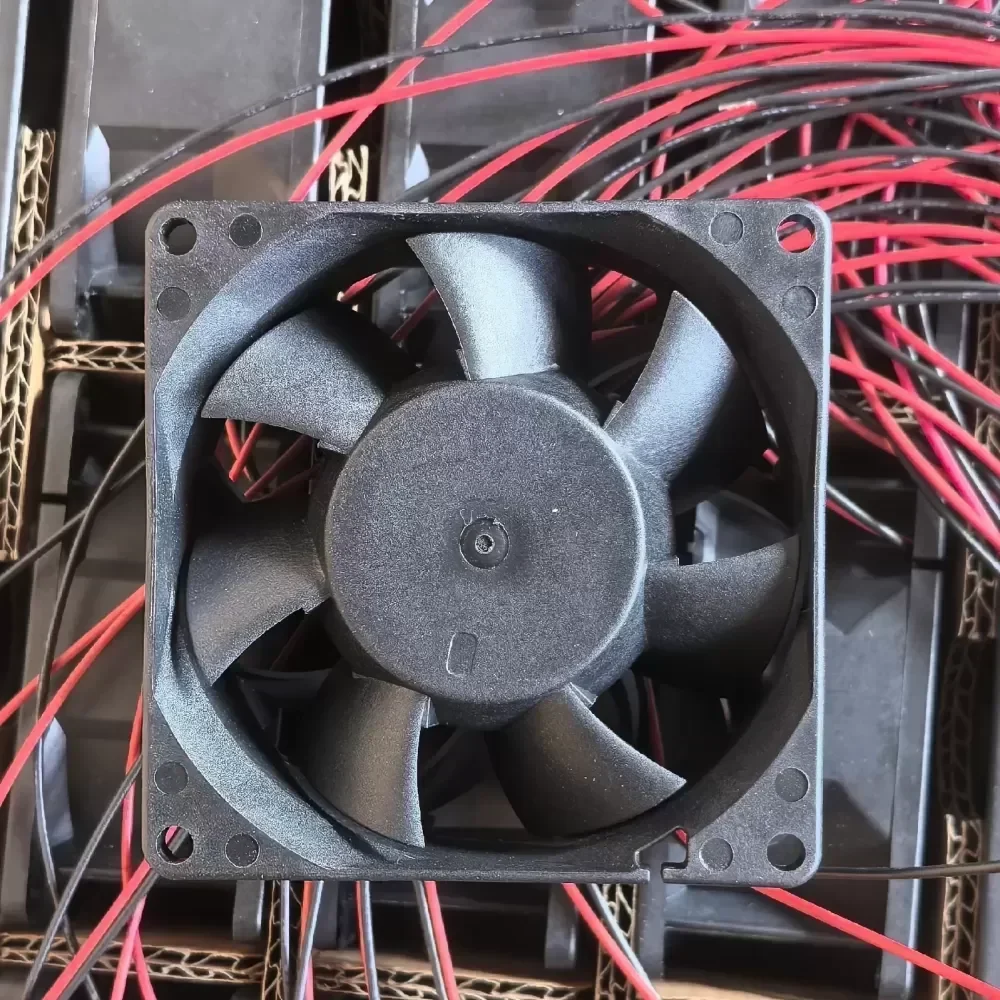

PMD2408PMB1-A(2)GN SUNON fan
PMD2408PMB1-A(2)GN SUNON fan
PMD2408PMB1-A(2)GN SUNON fan
PMD2408PMB1-A(2)GN SUNON fan

PMD2408PMB1-A(2)GN SUNON fan

$7.43

SKU: 884775807123 Brand:

Description

The SUNON PMD2408PMB1-A(2)GN is a high-performance DC axial cooling fan engineered for demanding thermal management applications. Designed with Original Engineering standards, this 8038 form factor fan delivers exceptional airflow and static pressure, making it an essential component for industrial inverters, telecommunications equipment, and high-density server racks. The integration of precision dual ball bearings ensures a prolonged operational lifecycle and reliable performance under continuous load.

Technical Specifications:
Manufacturer: SUNON
Model Number: PMD2408PMB1-A(2)GN
Fan Dimensions: 80 x 80 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Power Consumption: 9.6W
Rated Current: 0.40A
Bearing System: Precision Dual Ball Bearing
Nominal Speed: 5700 RPM ± 10%
Maximum Airflow: 84.1 CFM
Static Pressure: 0.74 in-H2O
Acoustic Noise: 55.2 dB(A)
Motor Protection: Auto Restart and Polarity Protection
Housing Material: Thermoplastic PBT UL94V-0
Impeller Material: Thermoplastic PBT UL94V-0
Weight: 175 g
Operating Temperature: -10°C to +70°C
Life Expectancy: 70000 hours at 40°C
Environmental Compliance: RoHS

Application and Integration:
This cooling fan is specifically designed to resolve critical thermal bottlenecks in variable frequency drives, industrial power inverters, and automated control cabinets. In these environments, rapid heat dissipation is required to prevent component degradation and thermal throttling. The PMD2408PMB1-A(2)GN provides the high static pressure necessary to force air through densely packed heat sinks and restrictive enclosures. Technical Compatibility is guaranteed for standard 8038 mounting profiles, allowing for seamless drop-in replacement during maintenance cycles. With an optimized Lead Time for procurement, facility managers can ensure minimal downtime for critical automated systems.

PMD2408PMB1-A(2)GN SUNON fan

PMD2408PMB1-A(2)GN SUNON fan

PMD2408PMB1-A(2)GN SUNON fan

PMD2408PMB1-A(2)GN SUNON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
