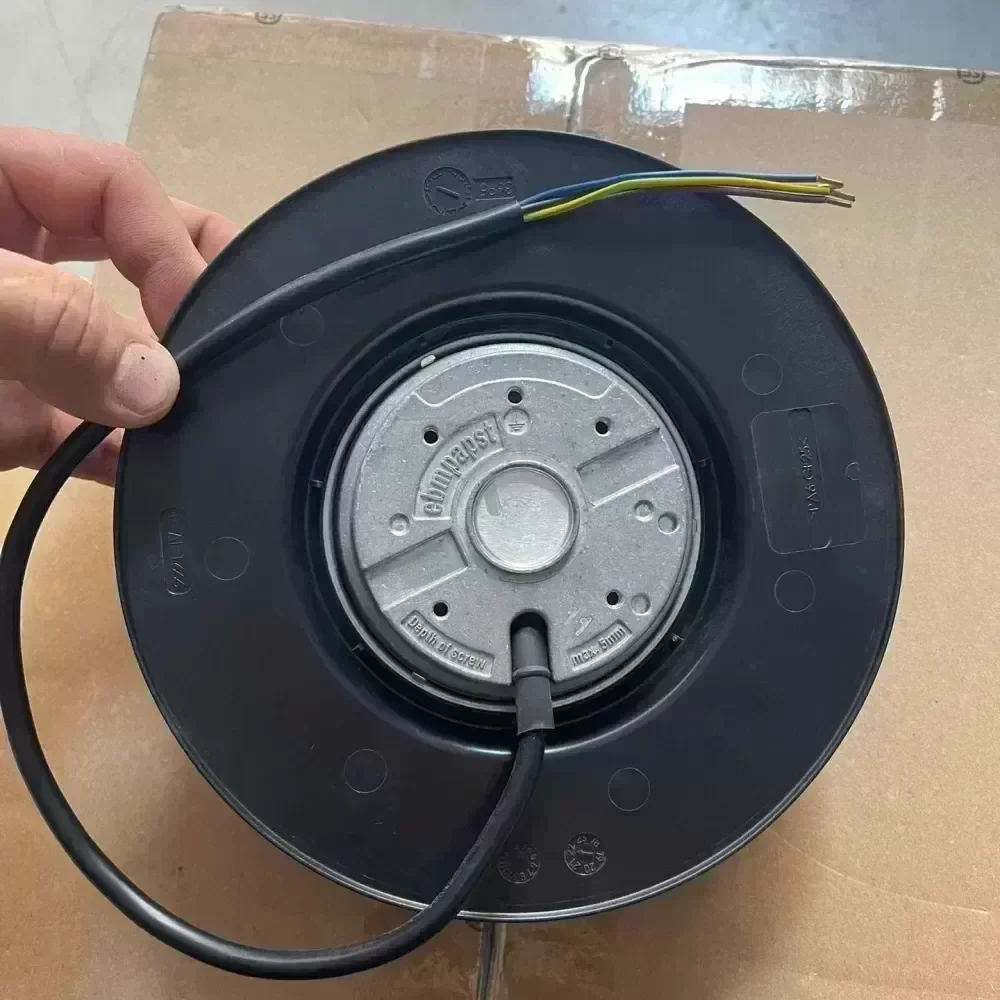

R2E190-AO26-05 ebmpapst 230V fan
R2E190-AO26-05 ebmpapst 230V fan

R2E190-AO26-05 ebmpapst 230V fan

$37.14

SKU: 743817063891 Brand:

Description

The ebm-papst R2E190-AO26-05 is a high-performance industrial backward-curved motorized centrifugal fan engineered for demanding thermal management and process ventilation systems. Utilizing an integrated external rotor motor topology, this unit delivers high aerodynamic efficiency and pressure stability in compact spatial envelopes. Designed for continuous, maintenance-free duty, it provides high airflow against elevated system backpressures without requiring an external scroll housing.

TECHNICAL SPECIFICATION MATRIX
Manufacturer: ebm-papst
Part Number: R2E190-AO26-05
Motor Designation: M2E068-BF
Impeller Diameter: Ø 190 mm
Nominal Voltage: 230 VAC
Phase: 1~ (Single-Phase AC)
Frequency: 50 / 60 Hz
Nominal Speed: 2350 RPM (50 Hz) / 2500 RPM (60 Hz)
Airflow Volume: 570 m³/h (50 Hz) / 610 m³/h (60 Hz)
Power Input: 58 W (50 Hz) / 75 W (60 Hz)
Current Draw: 0.26 A (50 Hz) / 0.34 A (60 Hz)
Required Operating Capacitor: 1.5 µF / 450 VDB
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing Type: Sealed, maintenance-free precision ball bearings
Impeller Material: Glass-fiber reinforced plastic (PA)
Rotor Surface: Galvanized / Black electrophoretic coating
Degree of Protection: IP44 (IEC 60529)
Insulation Class: Class B
Motor Protection: Thermal Overload Protector (TOP) internally wired
Permissible Ambient Temperature Range: -25 °C to +55 °C
Installation Position: Any (Shaft horizontal or vertical)
Weight: 1.25 kg
Compliance Standards: CE, EAC, VDE, UL, CSA, RoHS

ENGINEERING ARCHITECTURE & PERFORMANCE
The backward-curved impeller geometry of the R2E190-AO26-05 provides optimized flow mechanics, generating uniform laminar air distribution while minimizing aerodynamic noise and turbulence losses. Dynamic balancing in two planes ensures low-vibration operation across the entire operational frequency range, safeguarding delicate surrounding instrumentation and prolonging bearing lifespan. Direct motor-impeller integration delivers superior thermal dissipation directly through the moving air stream, ensuring thermal equilibrium during prolonged duty cycles.

APPLICATION & INTEGRATION PROFILE
This model is specifically engineered for thermal mitigation in high-impedance environments where standard axial fans fail due to backpressure stall. Typical deployment scenarios include:
– Industrial power electronic cabinets and variable frequency drive (VFD) enclosures
– Telecom base station cooling modules
– Centralized Heat Recovery Ventilation (HRV) units and cleanroom air recirculation systems
– Medical diagnostic imaging equipment and laboratory fume extraction assemblies
– Closed-loop electrical panel heat exchangers

PROCUREMENT, QUALITY & COMPATIBILITY
Sourced with certified Original Engineering integrity, each fan conforms strictly to factory mechanical and electrical tolerances to ensure full Technical Compatibility with OEM drop-in replacement protocols and new hardware designs. Standardized wiring terminations and universal mounting hole configurations reduce installation overhead. Reliable inventory management protocols ensure minimized Lead Time for scheduled preventative maintenance and critical unscheduled MRO deployments.

R2E190-AO26-05 ebmpapst 230V fan

R2E190-AO26-05 ebmpapst 230V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
