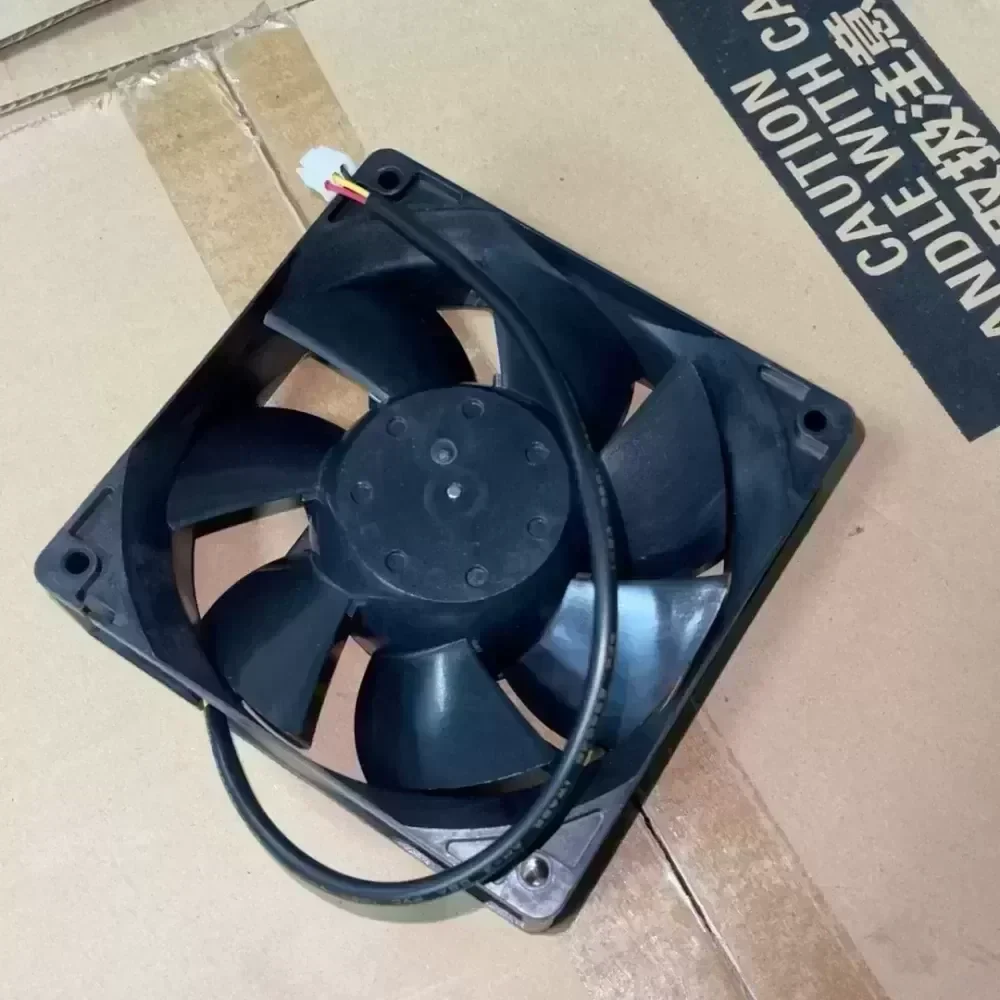

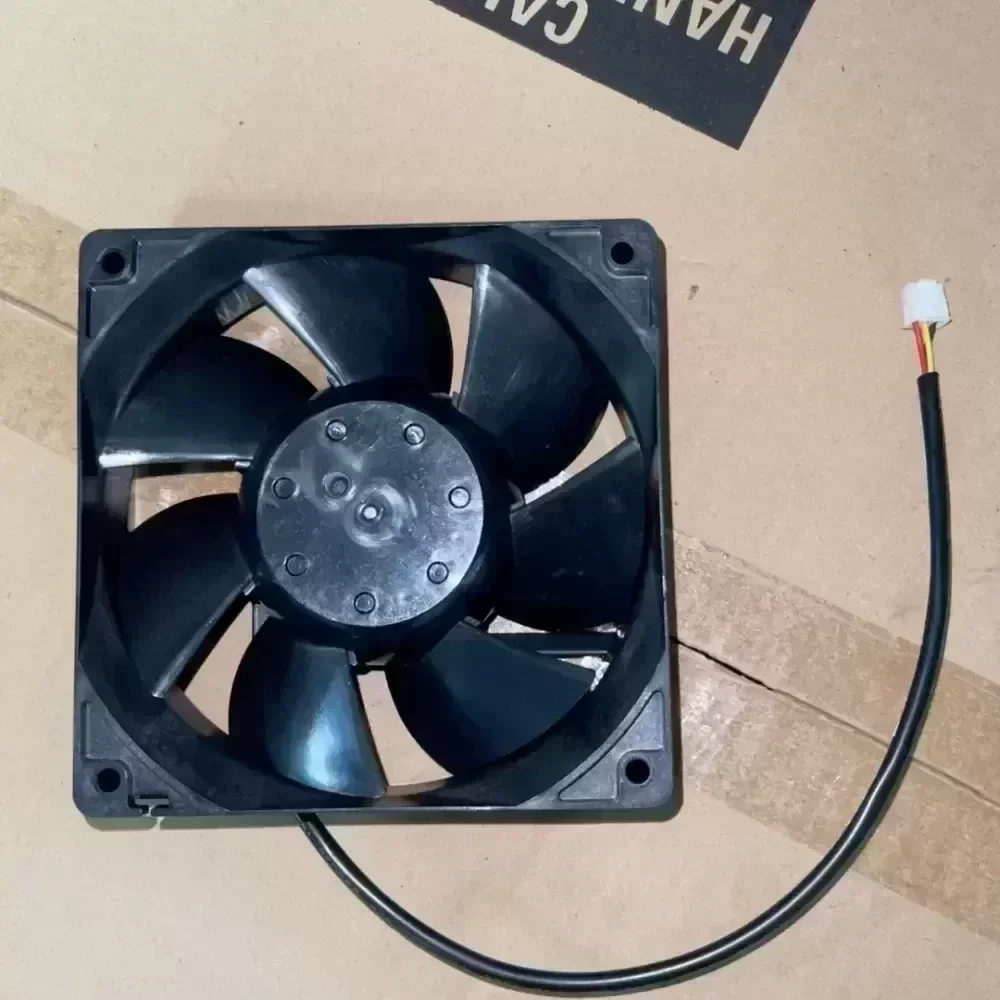

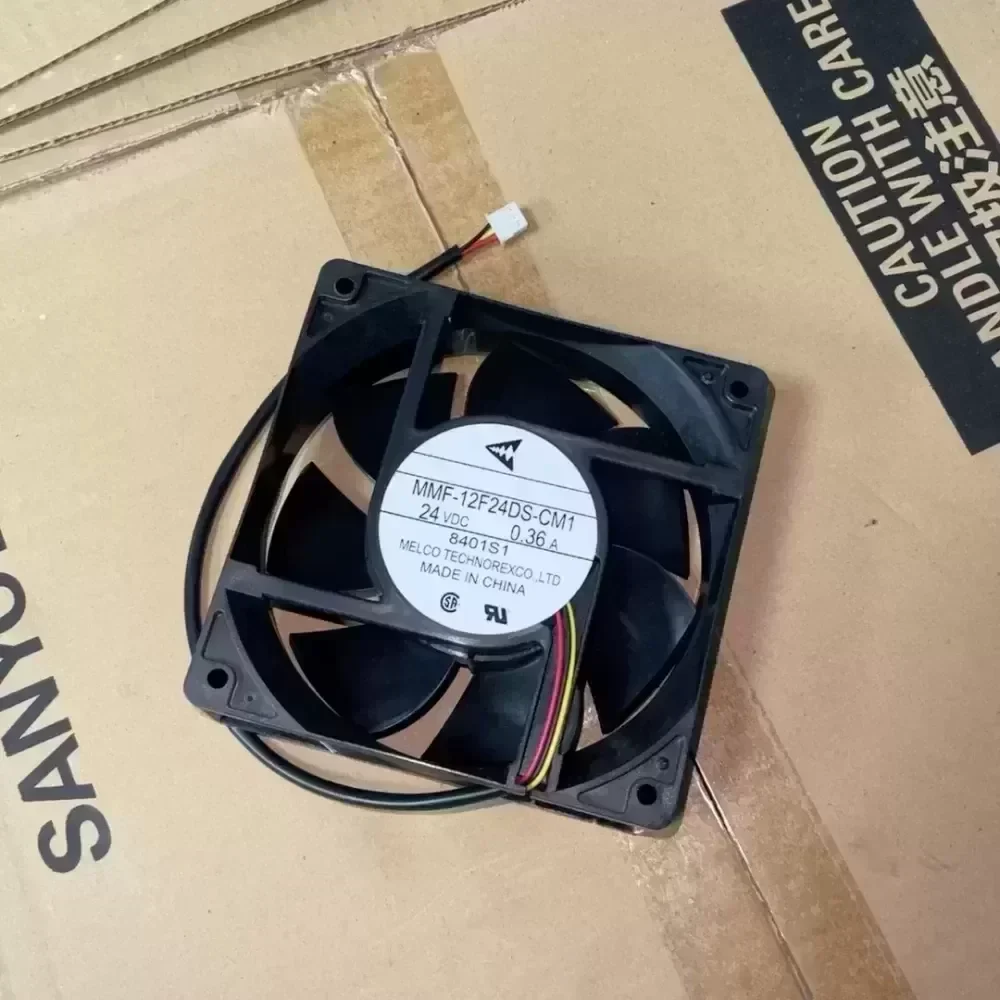

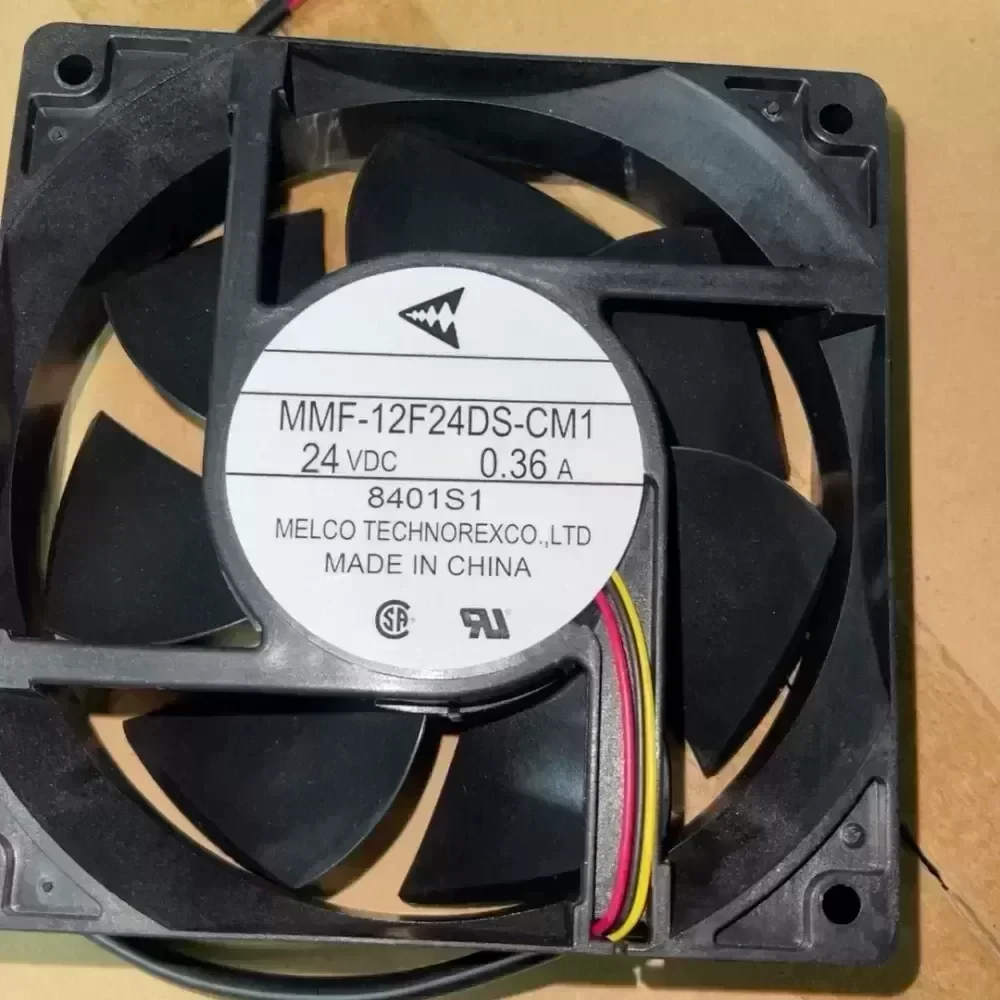

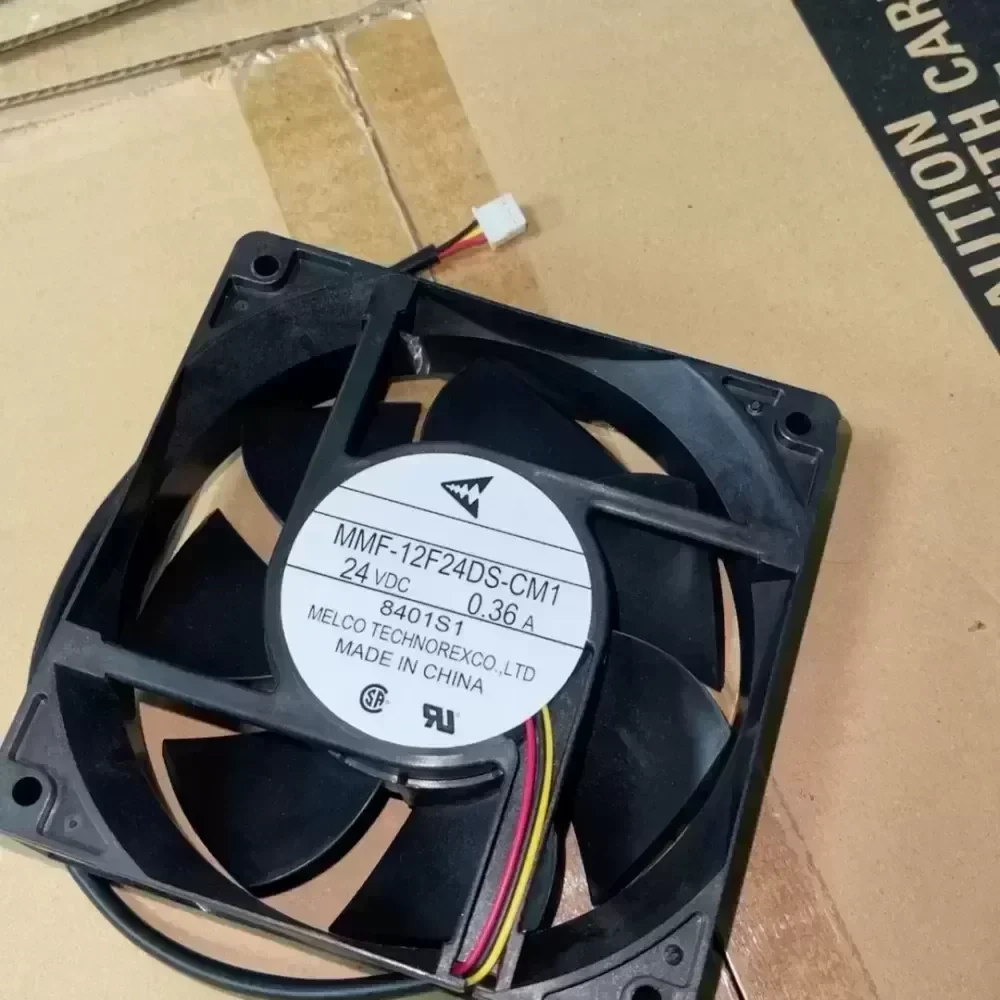

MMF-12F24DS-CM1 Mitsubishi Fan
MMF-12F24DS-CM1 Mitsubishi Fan
MMF-12F24DS-CM1 Mitsubishi Fan
MMF-12F24DS-CM1 Mitsubishi Fan
MMF-12F24DS-CM1 Mitsubishi Fan
MMF-12F24DS-CM1 Mitsubishi Fan

MMF-12F24DS-CM1 Mitsubishi Fan

$11.43

SKU: 907982377977 Brand:

Description

Manufacturer: Mitsubishi Electric
Model: MMF-12F24DS-CM1
Part Type: Industrial DC Axial Cooling Fan
Equipment Classification: VFD Thermal Management Component

TECHNICAL SPECIFICATIONS
Frame Dimensions: 120 mm x 120 mm x 38 mm (12038)
Nominal Voltage: 24 VDC
Operating Voltage Range: 20.4 VDC – 27.6 VDC
Rated Current: 0.36 A
Power Consumption: 8.64 W
Bearing System: Dual Precision Ball Bearings
Rated Speed: 3200 RPM
Maximum Airflow: 3.10 m³/min (109.5 CFM)
Static Pressure: 82 Pa (0.33 in-H2O)
Noise Level: 44.0 dBA
Frame Material: Glass-fiber reinforced PBT (UL94V-0)
Impeller Material: Glass-fiber reinforced PBT (UL94V-0)
Lead Wire Configuration: Specialized harness with locking connector (Power, Ground, Speed/Alarm Sensor)
Insulation Resistance: Minimum 10 MΩ at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Expected Operational Life (L10): 50000 hours at 60 °C
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -30 °C to +75 °C
Weight: 0.31 kg
Certifications: UL, CE, RoHS Compliant

ENGINEERING PROFILE & SYSTEM ARCHITECTURE
The Mitsubishi MMF-12F24DS-CM1 is an authentic factory cooling assembly designed specifically to match the internal aerodynamics and electrical characteristics of industrial power electronics. Engineered with a dedicated locked-rotor and tachometer feedback signal, this unit interfaces directly with drive microcontrollers to prevent thermal throttling or fault trips. The dual ball-bearing assembly provides high radial and axial stability under continuous duty cycles, ensuring sustained static pressure across dense IGBT heatsinks.

TECHNICAL COMPATIBILITY & INDUSTRIAL APPLICATIONS
This cooling unit provides exact-fit Technical Compatibility with Mitsubishi Electric variable frequency drives, including FR-A700, FR-F700, FR-A800, and FR-F800 chassis frames, as well as select servo amplifiers and automation power supply enclosures. In industrial manufacturing environments where drive cabinets operate under elevated ambient temperatures and continuous loads, maintaining adequate heat dissipation across the power modules prevents premature gate driver failure and thermal runaway.

PROCUREMENT SPECIFICATIONS
Condition: Brand New, Original Engineering specification
Packaging: Industrial individual ESD packaging
Verification: 100% factory pre-tested for rotational speed, current draw, and sensor integrity
Lead Time: In-stock units ship within 24-48 business hours

MMF-12F24DS-CM1 Mitsubishi Fan

MMF-12F24DS-CM1 Mitsubishi Fan

MMF-12F24DS-CM1 Mitsubishi Fan

MMF-12F24DS-CM1 Mitsubishi Fan

MMF-12F24DS-CM1 Mitsubishi Fan

MMF-12F24DS-CM1 Mitsubishi Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
