$6.57

SKU: 908400820385 Brand:

Description

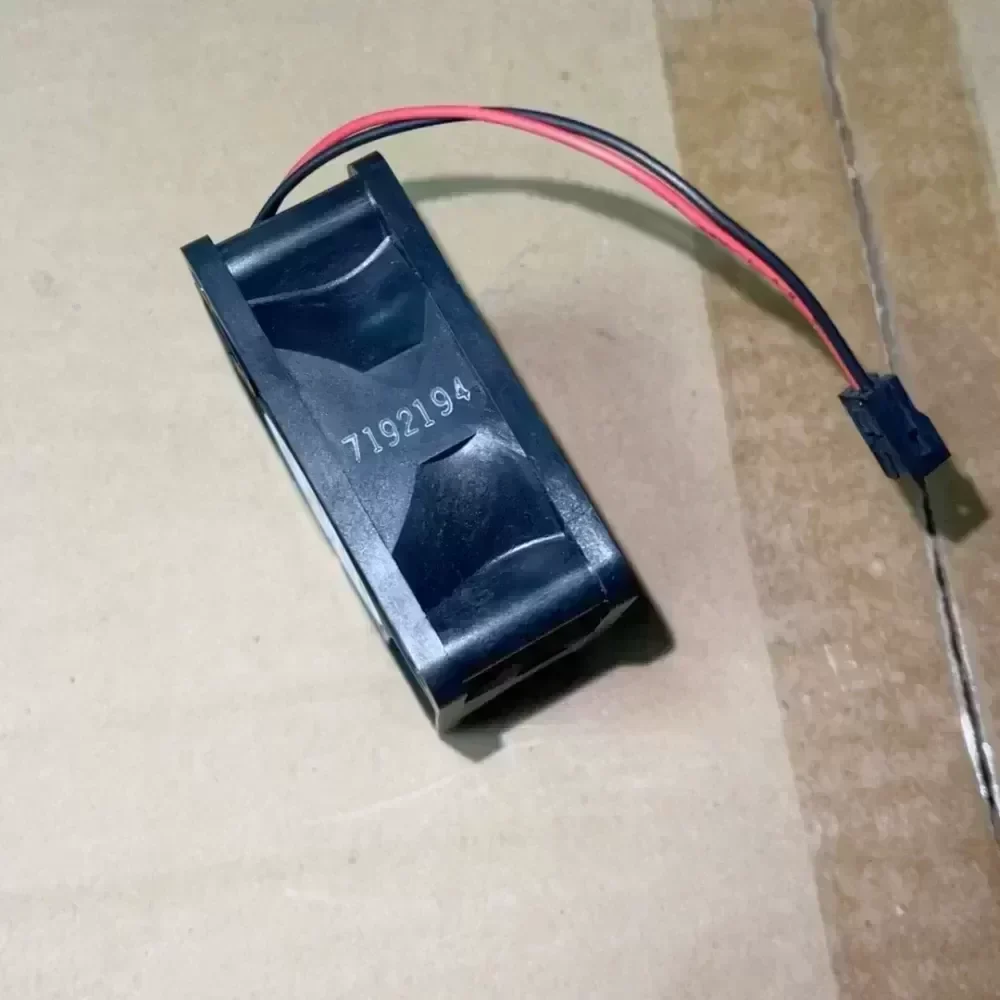

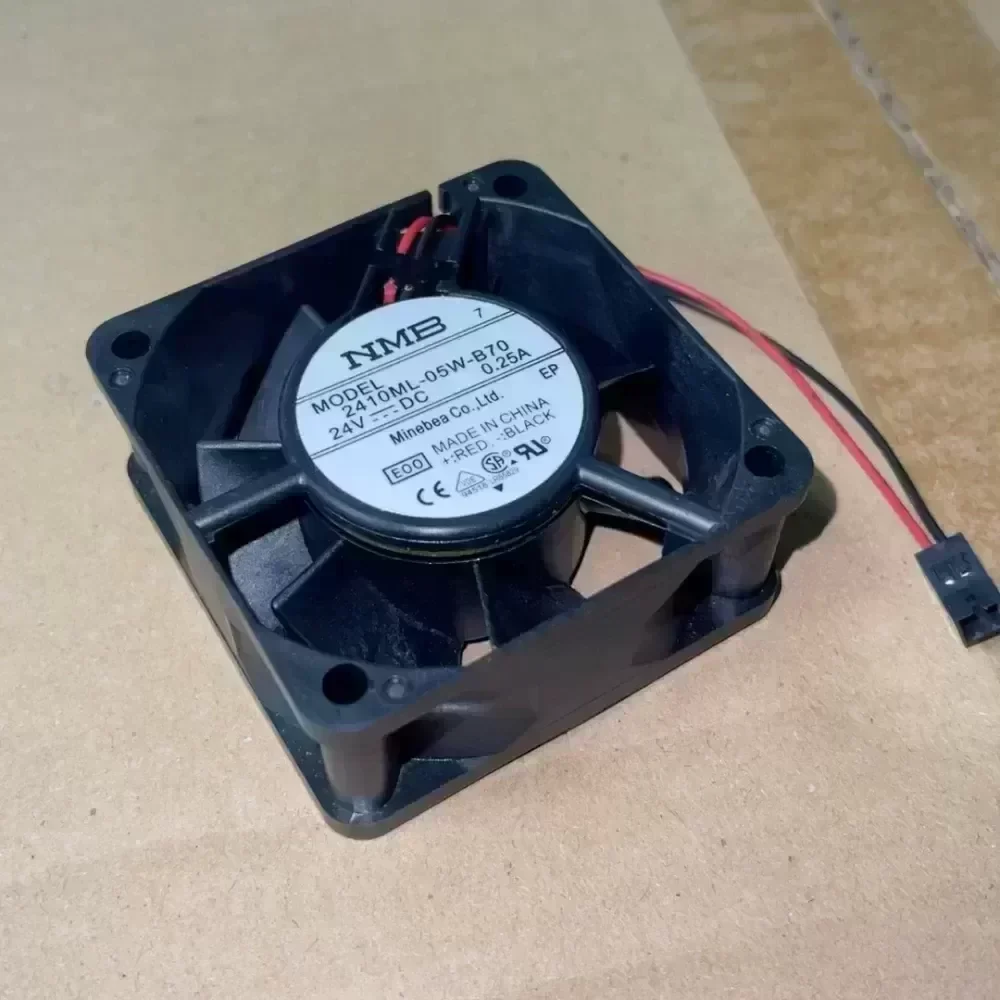

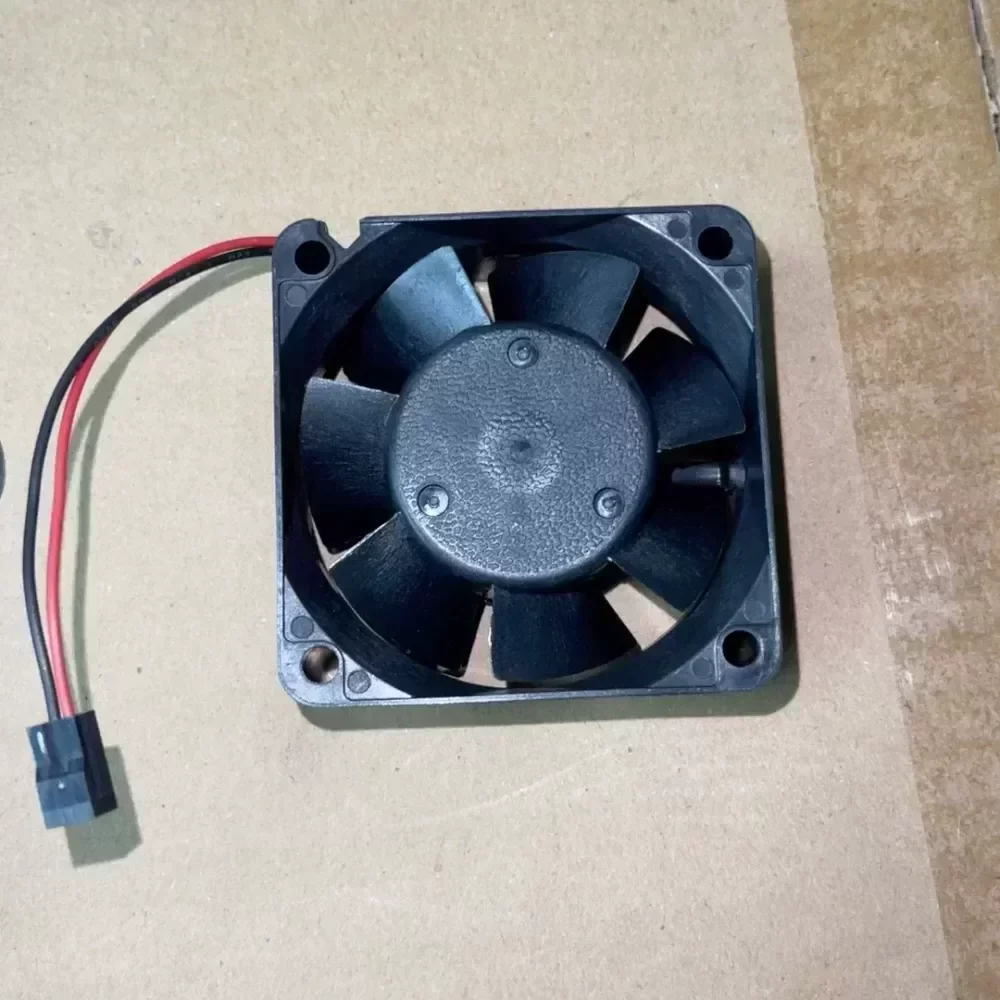

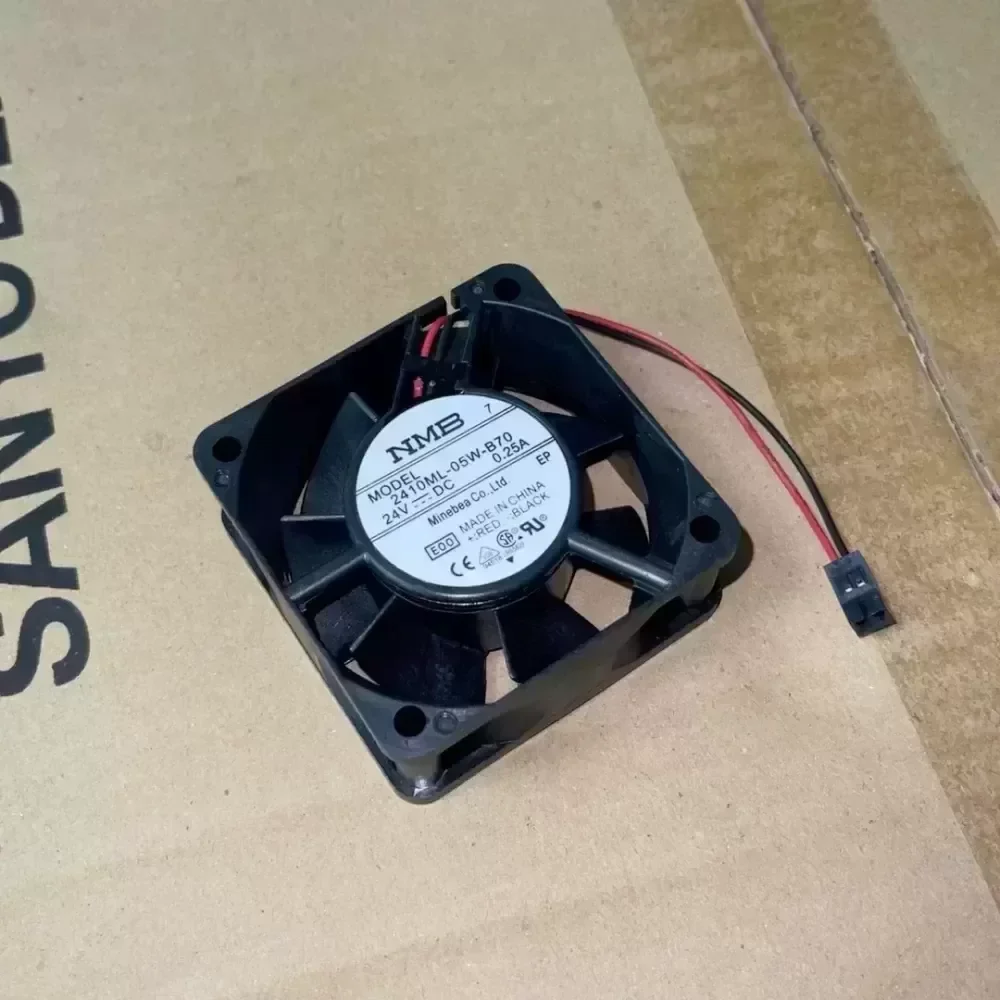

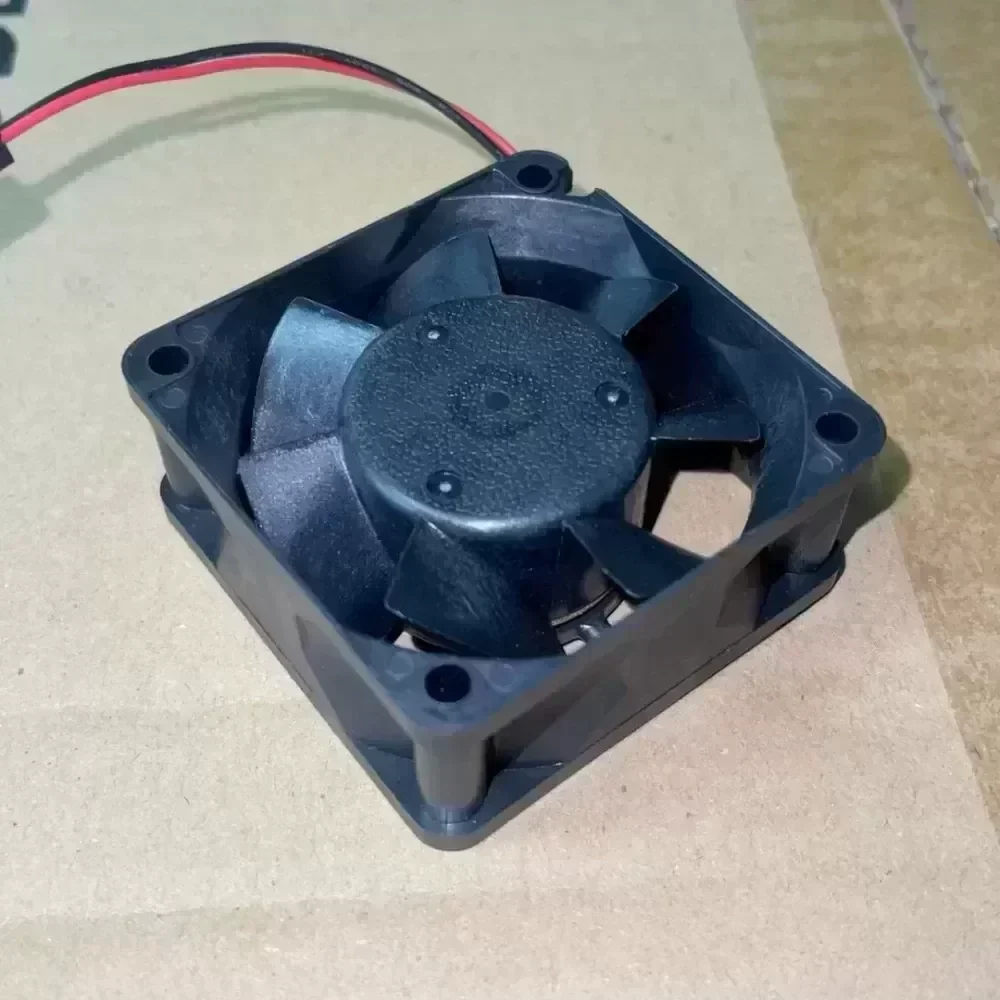

The NMB 2410ML-05W-B70 is a high-density, industrial-grade DC axial fan engineered by MinebeaMitsumi (NMB Technologies) for precision thermal management. Featuring Original Engineering build standards, this 60mm x 25mm cooling fan incorporates precision-machined dual ball bearings and optimized blade geometry to deliver high static pressure and continuous operational stability across high-impedance industrial power enclosures.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Series: 2410ML
Full Part Number: 2410ML-05W-B70
Device Type: Brushless DC Axial Cooling Fan
Frame Dimensions: 60 mm x 60 mm x 25 mm
Mounting Hole Pitch: 50.0 mm ± 0.3 mm (Ø 4.3 mm mounting holes)
Nominal Rated Voltage: 24 V DC
Operating Voltage Range: 12.0 V to 27.6 V DC
Rated Operating Current: 0.25 A
Rated Input Power: 6.00 W
Nominal Rotational Speed: 5300 RPM
Maximum Air Volume: 0.72 m³/min (25.4 CFM)
Maximum Static Pressure: 76.5 Pa (0.307 in H2O)
Acoustic Noise Rating: 38.0 dBA
Bearing System: Dual Precision Miniature Ball Bearings
Frame Construction: Glass-Fiber Reinforced PBT Resin (UL 94V-0)
Impeller Construction: Glass-Fiber Reinforced PBT Resin (UL 94V-0)
Motor Protection: Locked Rotor Protection and Reverse Polarity Protection
Insulation Resistance: 10 MΩ minimum at 500 V DC
Dielectric Withstand Voltage: 500 V AC for 1 minute
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Life Expectancy (L10): 100000 Hours at 25 °C / 40000 Hours at 60 °C
Termination Type: UL1007 Lead Wires (Stripped and Tinned)
Certifications and Compliance: UL, CSA, VDE, CE, RoHS Compliant
Weight: 65 g

Industrial Applications and Technical Compatibility:
The 2410ML-05W-B70 delivers focused airflow designed to penetrate dense component arrangements and heat sink fins where backpressure causes standard fans to stall. Technical Compatibility covers variable frequency drives (VFDs), AC motor frequency converters, industrial servo drives, modular DC power supplies, robotics control cabinets, and telecom rectifier modules. It serves as a direct replacement component to maintain plant uptime and prevent thermal fault shutdowns in mission-critical automation systems.

Logistics and Supply Support:
Original Engineering verification ensures adherence to factory performance curves and pin configurations.
Lead Time: In-stock inventory dispatched within standard commercial turnaround; expedited global dispatch options available for line-down maintenance operations.

2410ML-05W-B70 NMB fan

2410ML-05W-B70 NMB fan

2410ML-05W-B70 NMB fan

2410ML-05W-B70 NMB fan

2410ML-05W-B70 NMB fan

2410ML-05W-B70 NMB fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
