Description

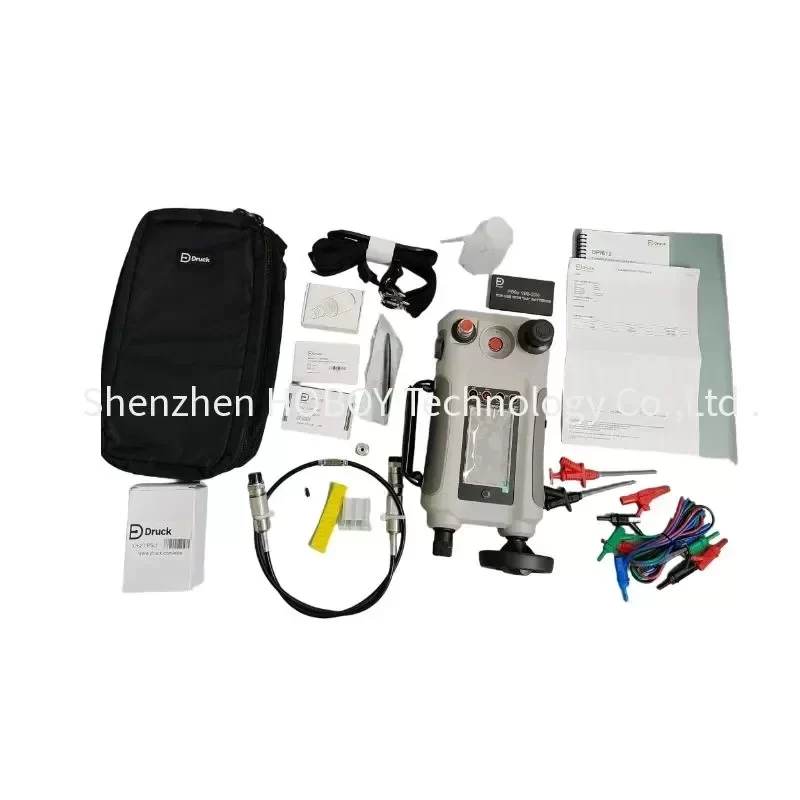

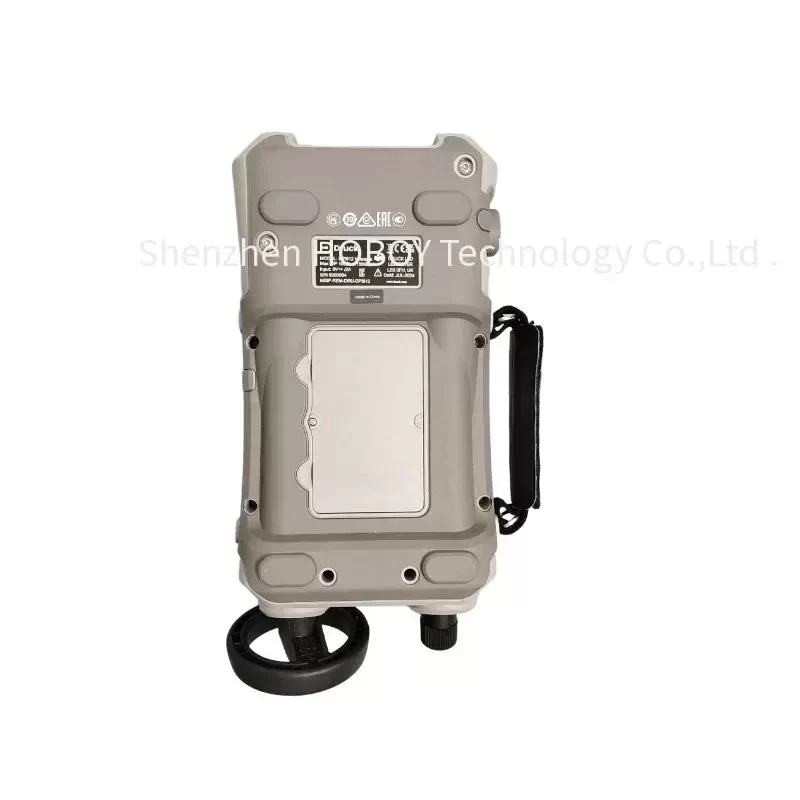

The Druck DPI 612-HFP-200G is a fully self-contained, high-pressure hydraulic electronic pressure calibrator designed for advanced process instrumentation diagnostics. Engineered to succeed the legacy DPI 610 and DPI 611 series, this Flexis system integrates pressure generation, signal measurement, and loop power into a single portable architecture. The HFP designation indicates a hydraulic fluid-based generation mechanism capable of reaching ultra-high pressures with minimal physical effort, while the 200G suffix specifies the inclusion of a 200 bar gauge pressure module.
TECHNICAL SPECIFICATIONS
Manufacturer: Druck (Baker Hughes)
Model Number: DPI 612-HFP-200G
Equipment Type: Electronic Pressure Calibrator
Pressure Generation: Hydraulic (Water or Mineral Oil)
Pressure Range: 0 to 200 bar (3000 psi) Gauge
Pressure Accuracy: ±0.018% Full Scale (1-year uncertainty)
Electrical Measurement Range: 0 to 55 mA, 0 to 30 VDC
Electrical Source Range: 0 to 24 mA, 0 to 10 VDC
Loop Power Supply: 24 VDC
Display: 4.3-inch high-resolution color touchscreen
Data Interfaces: USB 2.0 (Type A and Mini B)
Ingress Protection Rating: IP54
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Power Supply: 110/220V AC adapter and rechargeable Li-ion battery
Weight: 4.7 kg
SYSTEM ARCHITECTURE AND INTEGRATION
The DPI 612-HFP-200G utilizes the PM620 interchangeable pressure module system, allowing field technicians to swap pressure ranges dynamically without tools or recalibration of the base unit. The hydraulic generation block features a fast-priming pump, volume adjuster, and precision release valve, enabling rapid pressure stabilization. Its electrical measurement circuit provides simultaneous readout of pressure and mA/V signals, streamlining the calibration of 4-20mA transmitters and switches.
INDUSTRIAL APPLICATION
This calibrator is critical for heavy industrial environments such as petrochemical refineries, offshore oil platforms, and power generation facilities. Specifically, the 200 bar hydraulic capability is optimized for calibrating high-pressure pipeline transmitters, hydraulic control valves, and blowout preventer (BOP) monitoring sensors. The integrated 24V loop power eliminates the need for external power supplies during field diagnostics in remote locations.
LIFECYCLE AND PROCUREMENT
Maintaining Technical Compatibility with existing PM620 modules and legacy DPI 610/611 procedures ensures seamless integration into established maintenance protocols. Sourced through Original Engineering channels, this calibrator guarantees factory-certified accuracy and traceability. Contact your procurement specialist to confirm current Lead Time and availability for immediate deployment in critical turnaround operations.
Key Attributes
Type: Pressure Calibrators
Place of origin: Guangdong, China
Customized support: OEM, ODM
Power: Electronic
Voltage: 220 V
Brand name: Druck
Application: Auto Testing
Warranty: 1 years
Model: DPI 612-HFP-200G
Maximum Pressure Measurement: 200bar
Pressure Port Type: Gauge
Maximum Operating Temperature: +50°C
Minimum Operating Temperature: -10°C
Dimensions: 350 x 170 x 145mm
Weight: 3.5kg
Power: Electronic
Packaging and Delivery
Selling Units: Single item
Single package size: 51X31X26 cm
Single gross weight: 4.500 kg
