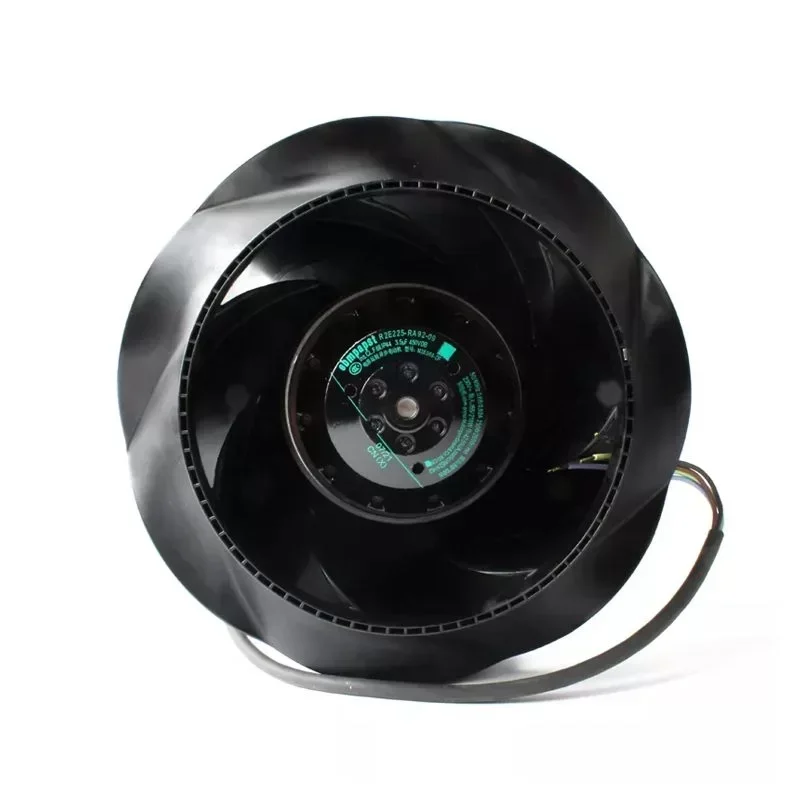

R2E225-RA92-09 ebmpapst 230v 0.68A air Purifier Centrifugal Fan
R2E225-RA92-09 ebmpapst 230v 0.68A air Purifier Centrifugal Fan

R2E225-RA92-09 ebmpapst 230v 0.68A air Purifier Centrifugal Fan

$50.00

SKU: 1600987332871 Brand:

Description

Technical Specifications for ebm-papst R2E225-RA92-09 Centrifugal Fan
Manufacturer: ebm-papst
Model Series: R2E225
Model Number: R2E225-RA92-09
Motor Type: M2E068-DF
Motor Logic: 1-phase AC external rotor motor

Electrical Parameters:
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Input Power: 155 W (50Hz) / 210 W (60Hz)
Current Draw: 0.68 A (50Hz) / 0.92 A (60Hz)
Capacitor Requirement: 5.0 µF / 450 VDB
Speed: 2500 RPM (50Hz) / 2600 RPM (60Hz)

Mechanical and Physical Data:
Impeller Diameter: 225 mm
Impeller Material: PA plastic 6.6, fiberglass-reinforced
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Bearing Type: Maintenance-free ball bearings
Weight: 2.3 kg
Surface of Rotor: Uncoated

Performance and Environmental Ratings:
Max Airflow: 1200 m³/h (50Hz) / 1250 m³/h (60Hz)
Max Back Pressure: 500 Pa
Degree of Protection: IP44
Insulation Class: F
Operating Temperature Range: -25 °C to +55 °C
Protection Class: I (if protective earth is connected by customer)

Compliance and Certifications:
Standard Compliance: EN 60335-1, CE
Approval: CCC, EAC, VDE
Motor Protection: Thermal overload protector (TOP) internally connected

Industrial Application and Technical Compatibility:
The R2E225-RA92-09 is an Original Engineering component designed for high-efficiency air filtration and thermal management. Its backward-curved centrifugal design allows for operation without a scroll housing, making it ideal for compact integration in medical-grade disinfection cabinets and high-volume air purifiers. The aerodynamic blade geometry is optimized for high static pressure environments, ensuring consistent airflow even as filter resistance increases over the lifecycle. This model is a direct replacement part for ebm-papst systems requiring precise 230V AC modulation. Lead Time for this specialized industrial unit is subject to current inventory cycles for global B2B procurement.

Key Attributes
Mounting: Free Standing
Voltage: 230v
Blade Material: Plastic
Electric Current Type: AC
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R2E225-RA92-09
Place of origin: Germany
Brand name: Ebmpapst
Current: 0.68/0.92A
Power: 155/210W
Air volume: 1300m³/h
Speed: 2500/2600RPM
Operating Temperature: -25℃ to 70℃
Bearing Type: Ball bearing
Weight: 2.28KG

Packaging and Delivery
Selling Units: Single item
Single package size: 21X14X20 cm
Single gross weight: 1.500 kg

R2E225-RA92-09 ebmpapst 230v 0.68A air Purifier Centrifugal Fan

R2E225-RA92-09 ebmpapst 230v 0.68A air Purifier Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
