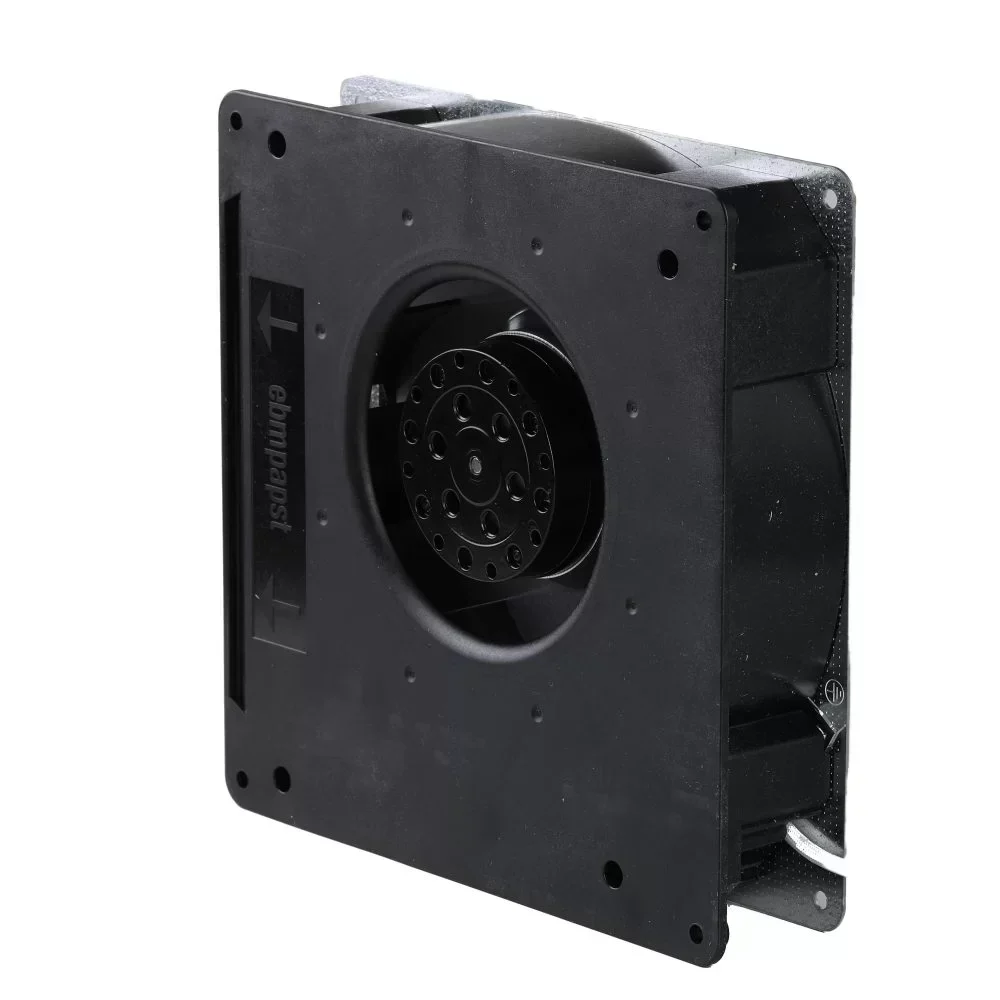

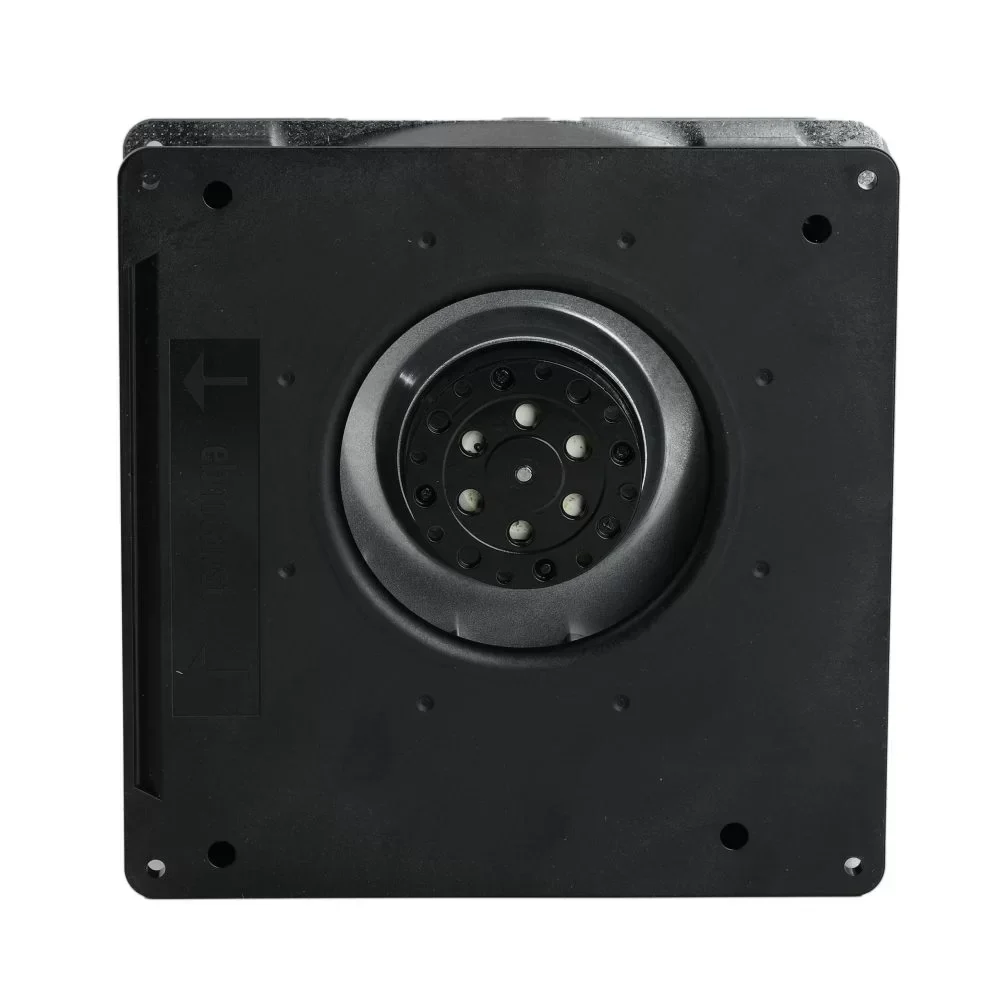

RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V
RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V
RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V

RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V

$39.00

SKU: 60819575644 Brand:

Description

Manufacturer: ebm-papst
Model: RG125-19/56
Product Type: Centrifugal Compact Fan (Single Inlet)

Technical Specifications:
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Input Power: 20.0 W
Speed: 2350 RPM
Air Flow: 135.0 m³/h
Pressure Increase: 180 Pa
Sound Power Level: 5.8 B
Bearing Type: Ball Bearing
Direction of Rotation: Clockwise (viewed toward rotor)
Motor Type: M2E052-BA
Capacitance: 1.5 µF / 400 VDB
Weight: 1.25 kg

Physical Dimensions and Material:
Housing Material: Die-cast aluminum
Impeller Material: Plastic, PA 6.6, fiberglass-reinforced
Dimensions: 180 x 180 x 40 mm
Electrical Connection: 2 single wires, stripped and tinned ends

Environmental and Safety Ratings:
Protection Class: I
Degree of Protection: IP20
Insulation Class: B
Permissible Ambient Temperature: -25 °C to +55 °C
Approval Certifications: VDE, CE, UL, CSA

Industrial Application and Strategic Value:
The ebm-papst RG125-19/56 is engineered for high-pressure requirements in space-constrained environments. Its centrifugal design allows for a 90-degree air deflection, making it critical for cooling high-density server racks, power supply cabinets, and medical diagnostic equipment where axial space is limited. The integration of high-precision ball bearings ensures long-term Technical Compatibility with 24/7 industrial duty cycles.

Procurement Data:
Condition: Original Engineering Standard
Lead Time: Inquire for current stock availability
Lifecycle: Active production model for long-term spare part reliability

Mounting: Free Standing
Voltage: 230V
Blade Material: Plastic
Electric Current Type: AC
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: RG125-19/56
Place of origin: Germany
Brand name: Ebmpapst
Application: General industry
Product name: Ebmpapst centrifugal compact fan
Size: 180 x 180 x 40 mm
Bearing Type: Ball bearing
Impeller: Impeller material Glass-fiber reinforced PA plastic
Weight: 0.850 kg
Frequency: 50HZ
Phase: 1~
Noise level: 5.8B
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 3.000 kg

RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V

RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V

RG125-19/56 ebmpapst Centrifugal Compact Fan ebmpapst TYPE:RG 125-19/56 230V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
