Sanwa DCM600DR Clamp Meter for Automotive Hybrid Electric Vehicle DC Current DMM Functionality Alternative DCM60R DCM400

Description

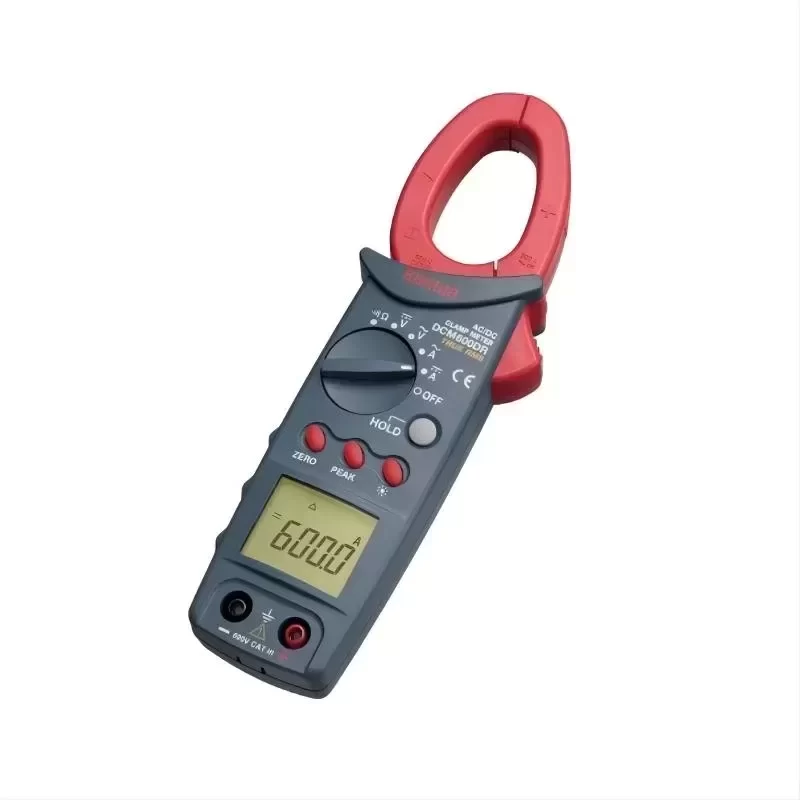

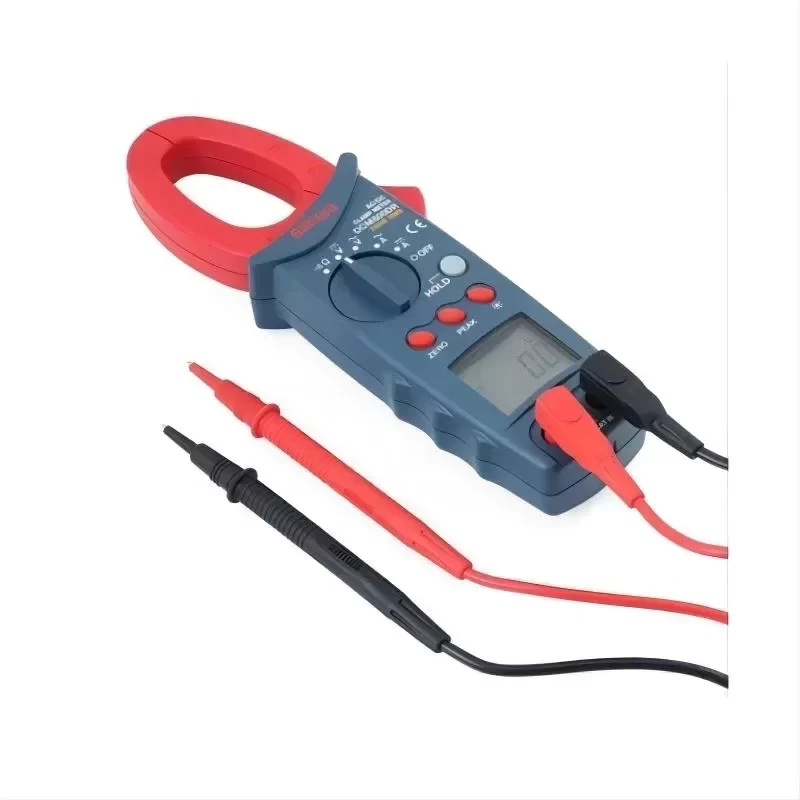

Sanwa DCM600DR Digital Clamp Meter
Manufacturer: Sanwa Electric Instrument Co., Ltd.
Model: DCM600DR
Product Category: High-Precision Industrial Clamp Meter / Automotive Diagnostic Tool

Technical Specifications:
AC/DC Current Measurement: 60.00A / 600.0A
AC/DC Voltage Measurement: 600.0V
Resistance Range: 999.9Ω
Continuity Buzzer: Threshold between 10Ω and 300Ω
Frequency Response: 50Hz to 500Hz
Display: 6000 Count LCD with Backlight
Sampling Rate: 3 times per second
Clamp Diameter: Ø30mm
Battery Type: 2x 1.5V R03 (AAA)
Dimensions: 208mm x 69mm x 38mm
Weight: Approximately 260g

Advanced Functionality and Engineering Logic:
The Sanwa DCM600DR is an advanced True RMS (TRMS) diagnostic instrument specifically engineered for the high-voltage requirements of Hybrid Electric Vehicles (HEV) and Battery Electric Vehicles (BEV). Unlike standard AC-only clamps, the DCM600DR utilizes a Hall Effect sensor to provide precision DC current readings, essential for monitoring battery discharge rates and inverter performance. The integrated Digital Multimeter (DMM) functionality allows for simultaneous voltage and resistance verification without switching instruments, optimizing workflow efficiency in complex electrical environments.

Industrial Application and Technical Compatibility:
This model is the designated high-performance alternative to the DCM60R and DCM400 series, offering superior resolution and a higher safety rating for industrial maintenance. It is optimized for measuring high-current DC busbars in automotive power units and troubleshooting variable frequency drives (VFDs). The Peak Hold and Data Hold functions allow technicians to capture inrush currents during motor startup sequences, ensuring Original Engineering standards are maintained during system calibration.

Certifications and Safety Standards:
Safety Rating: IEC61010-1 CAT III 600V
Environmental Compliance: RoHS Certified
Operating Temperature: 5°C to 40°C
Storage Temperature: -10°C to 50°C

Logistics and Procurement:
Condition: New, Original Equipment
Technical Compatibility: Universal Automotive and Industrial Power Systems
Lead Time: Inquire for current regional availability

Key Attributes
Max. Ac Current: 600 A
Max. DC Current: 600 A
Measuring Voltage Range: 600V
Place of Origin: Japan
Model Number: DCM600DR
Brand Name: Sanwa
Dimensions: 28*18*15cm
Display Type: Digital Only
Max. Ac Voltage: 600V
Max. DC Voltage: 600 V
Measuring Capacitance Range: ,
Measuring Current Range: 60/600A
Measuring Inductance Range: ,
Measuring Resistance Range: 999.9Ω
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Parameters Measured: DC Current, AC Voltage, DC Voltage, AC Current
Weight: 1.6
Product name: Sanwa
Model: DCM600DR
AC/DC A: 60/600A
AC/DC V: 600V
Resistance: 999.9Ω
Sampling rate: 3 times/sec.
Bandwidth: 50-500Hz
Display: 6000

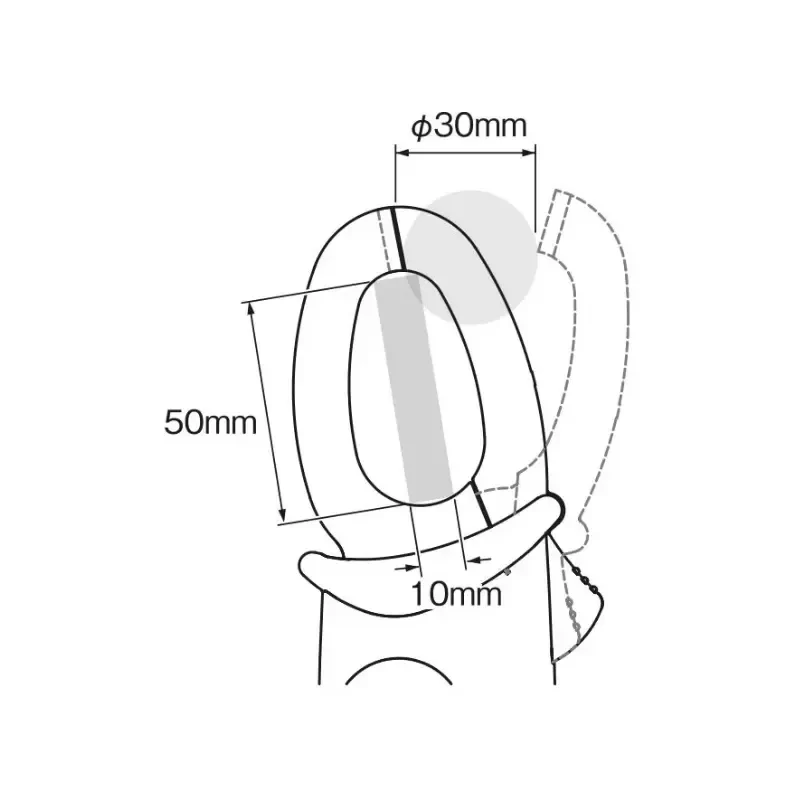

Clamp diameter/Conductor size: 30mm/10x50mm
Battery: 1.5VX2

Packaging and Delivery
Selling Units: Single item
Single package size: 28X20X15 cm
Single gross weight: 2.000 kg
