Description

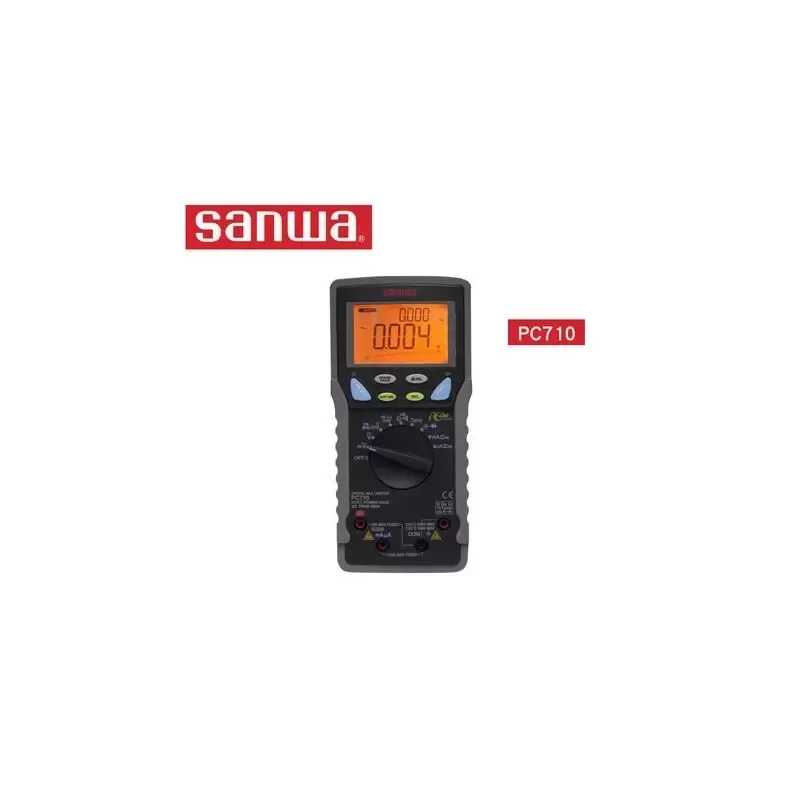

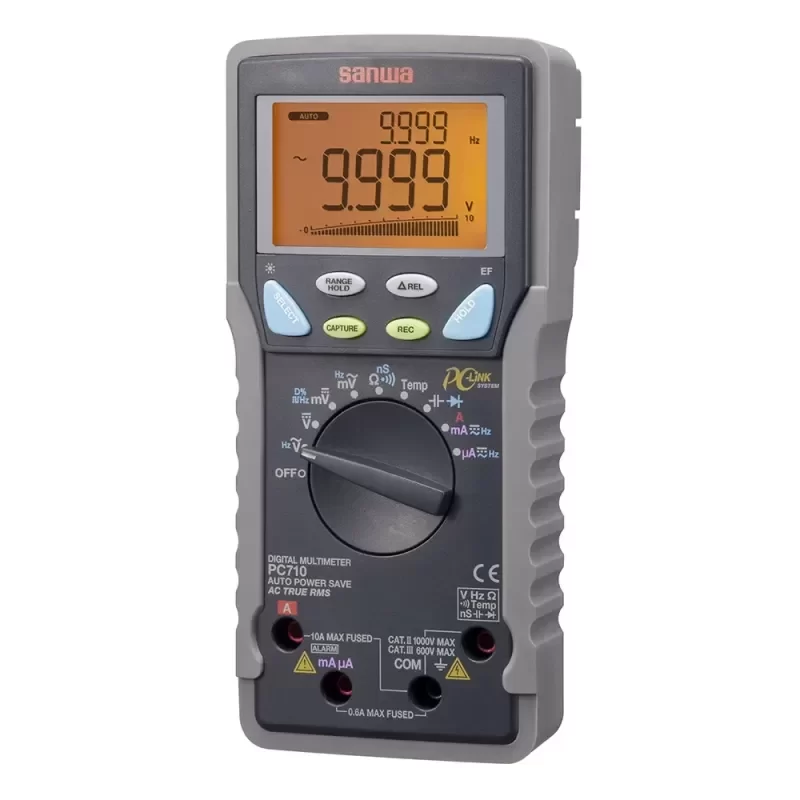

The Sanwa PC710 is a high-precision, professional-grade portable digital multimeter engineered for complex electrical and electronic diagnostics. Utilizing True RMS measurement technology, this unit ensures accurate readings of non-linear AC signals, making it indispensable for modern industrial environments. The device features a dual 9999-count display with a high-speed bar graph, delivering exceptional resolution and a basic DC voltage accuracy of ±0.06%. Built with Sanwa’s Original Engineering standards, the PC710 integrates advanced safety protocols and an optical USB PC Link interface for secure, isolated data logging and real-time monitoring.
Technical Specifications
Brand: Sanwa
Model: PC710
Measurement Method: True RMS
Display: 9999 counts dual display with backlight
Basic DCV Accuracy: ±0.06% + 2 digits
DC Voltage Range: 60.00mV to 1000V
AC Voltage Range: 60.00mV to 1000V
DC/AC Current Range: 600.0µA to 10.00A
Resistance Range: 600.0 Ohm to 60.00 Megaohm
Capacitance Range: 60.00nF to 25.00mF
Frequency Range: 15.00Hz to 50.00kHz
Temperature Range: -50°C to 1000°C (K-type thermocouple)
Continuity Buzzer: Sounds between 20 Ohm and 300 Ohm
Safety Rating: IEC61010-1 CAT.III 600V, CAT.II 1000V
Data Interface: Optical USB PC Link (isolated)
Power Supply: 9V battery (6F22 or equivalent)
Dimensions: 184 x 86 x 52 mm
Weight: 430g (including holster)
Industrial Application
The Sanwa PC710 is specifically designed for troubleshooting variable frequency drives (VFDs), automated motor control centers, and precision HVAC systems. In environments where harmonic distortion compromises standard meter readings, the True RMS capability of the PC710 guarantees precise voltage and current diagnostics. The integrated K-type thermocouple input allows technicians to simultaneously monitor electrical parameters and thermal performance, streamlining predictive maintenance protocols on industrial switchgear and power distribution panels.
Procurement and Lifecycle Value
Offering excellent Technical Compatibility, the PC710 serves as a superior upgrade or direct alternative to legacy models such as the PC700, PC720M, and PC773. Its robust construction and isolated data logging capabilities ensure long-term reliability in harsh factory conditions. Please contact our technical sales team to confirm current Lead Time and request calibration certificates for ISO-compliant facility integration.
Key Attributes
Measuring Current Range: 600μ/6000μ/60m/600m/6/10A
Measuring Voltage Range: 60m/600m/9.999/99.99/999.9V
Parameters Measured: DC Current, AC Voltage, Temperature, DC Voltage, Duty Cycle, AC Current
Place of Origin: Japan
Model Number: PC710 PC700 PC720M PC773
Brand Name: Sanwa
Dimensions: 26*15*12cm
Feature: Data Logging
Low Battery Indicator: Yes
Max. AC Current: 10A
Max. AC Voltage: 1000V
Max. DC Current: 10A
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 60n/600n/6μ/60μ/600μ/6m/25mF
Measuring Inductance Range: 60n/600n/6μ/60μ/600μ/6m/25mF
Measuring Resistance Range: 600/6k/60k/600k/6M/60MΩ
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Product Name: Sanwa
Model: PC710
AC/DC V: 60m/600m/9.999/99.99/999.9V
DC A: 600μ/6000μ/60m/600m/6/10A
AC A: 600μ/6000μ/60m/600m/6/10A
Accuracy: ±(0.06%+2)
Resistance: 600/6k/60k/600k/6M/60MΩ
Capacitance: 60n/600n/6μ/60μ/600μ/6m/25mF
Frequency: 15Hz~50kHz
Sampling rate: 5 times/sec.
Packaging and Delivery
Selling Units: Single item
Single package size: 28X18X14 cm
Single gross weight: 2.000 kg
