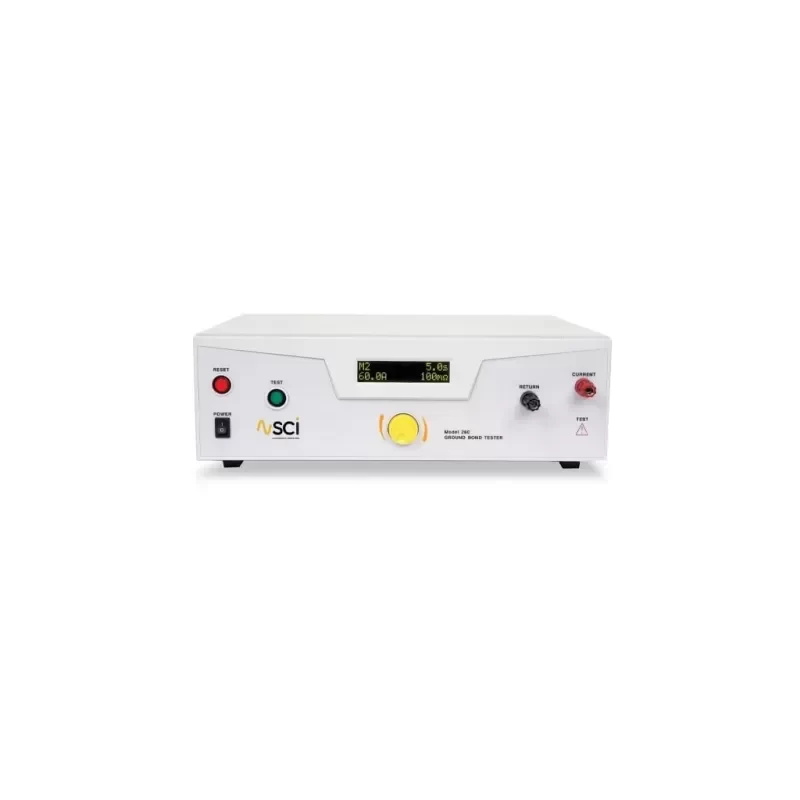

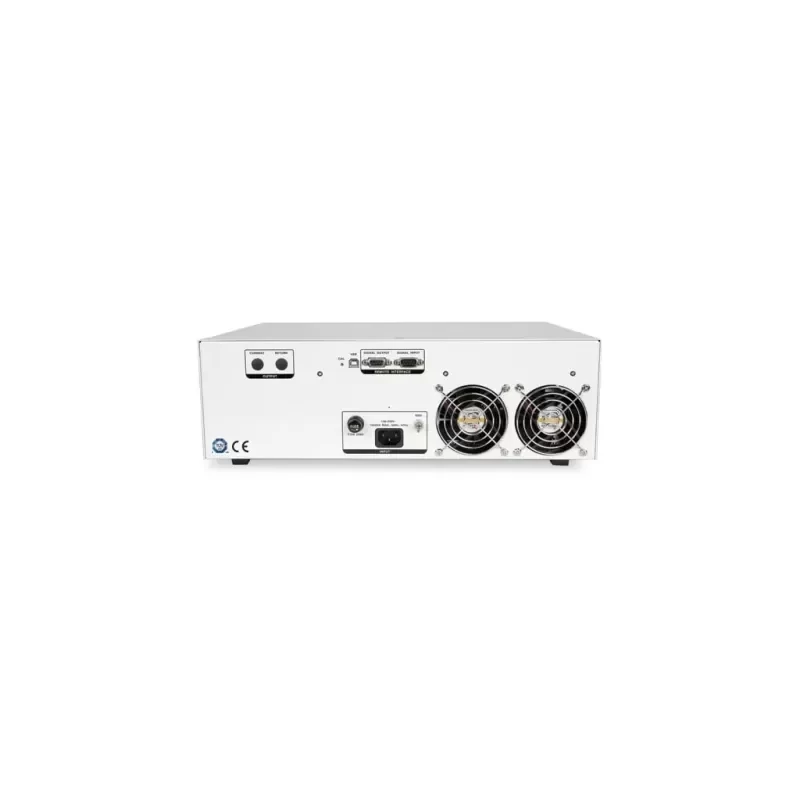

SCI 266 Digital Ground Bond Tester with 60A Display

Description

Manufacturer: Slaughter Company Inc. (SCI)
Model Number: 266
Equipment Type: High Current Digital Ground Bond Tester
Output Current Range: 1.0 to 60.0 Amperes AC
Output Current Resolution: 0.1 Amperes
Output Current Accuracy: ± (2% of setting + 0.02 A)
Resistance Measurement Range: 0 to 600 mΩ
Resistance Resolution: 1 mΩ
Resistance Accuracy: ± (2% of reading + 2 mΩ)
Input Voltage: 115 / 230 V AC ± 15%, 50 / 60 Hz
Test Time Range: 0, 0.5 to 999.9 seconds
Memory Capacity: 5 Programmable Test Sequences
Display Interface: High-Visibility Digital LED
Remote Interface: PLC Remote Input/Output (Start, Stop, Interlock)
Safety Logic: Electronic Ramp and Dwell Control
Dimensions: 280 x 89 x 370 mm
Weight: 5.25 kg
Operating Temperature: 0 to 40 °C
Environmental Humidity: 0 to 80% RH
Compliance Certifications: CE Mark, TUV SUD, UL Listed

The SCI 266 utilizes Original Engineering to provide high-density ground integrity verification for heavy-duty industrial apparatus. This model is engineered for Technical Compatibility with high-speed production environments, allowing for seamless integration into automated testing racks via the standard PLC interface. By providing precise resistance measurements at 60A, it ensures compliance with international safety standards for large appliances and industrial machinery, effectively reducing Lead Time in the quality assurance cycle. The robust architecture is designed for continuous duty cycles in demanding manufacturing scenarios where ground circuit reliability is a critical safety parameter.

Key Attributes
Accuracy Class: ± 5%
Measuring Range: 0 - 600 mΩ
Testing Voltage: 100 - 240 V
Place of Origin: China
Model Number: 266
Brand Name: SCI
Dimensions: 430 x 132 x 300 mm
Display Type: Digital Only
Operating Temperature: -10 to 50
Product name: SCI Ground Bond Tester
Model: 266
Voltage: 100 - 240 VAC ± 10% Full Range
Frequency: 50/60 Hz ± 5%
Output Rating: 3.0 - 60.0 AAC
Resolution: 0.1 A
Resistance Limit Settings: 0 - 600 mΩ
Dimensions: 430 x 132 x 300 mm
Weight: 20.25 lbs. (9.2 Kg)

Packaging and Delivery
Selling Units: Single item
Single package size: 45X34X14 cm
Single gross weight: 10.000 kg
