Description

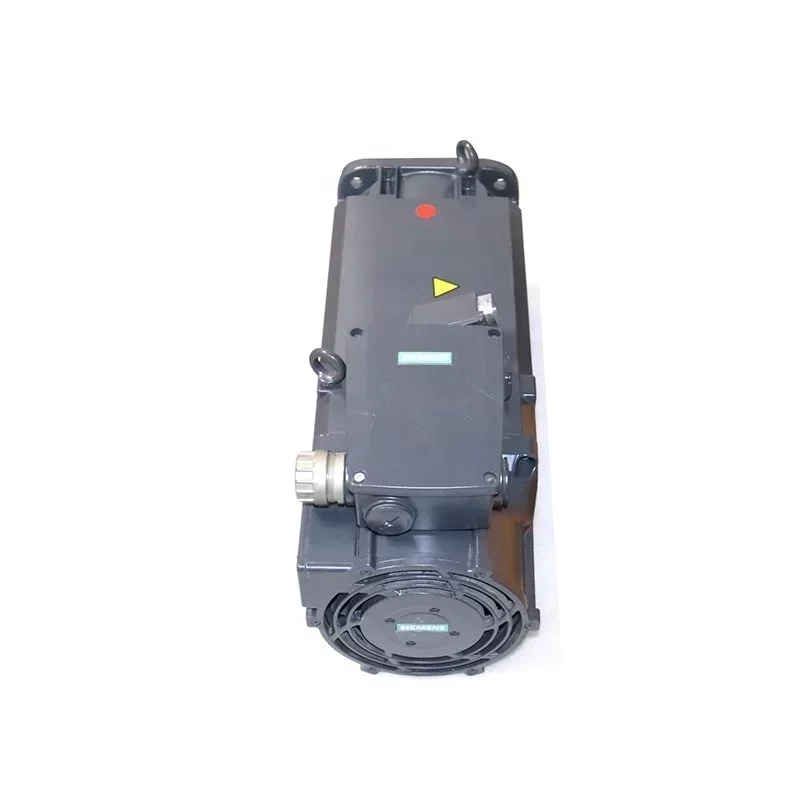

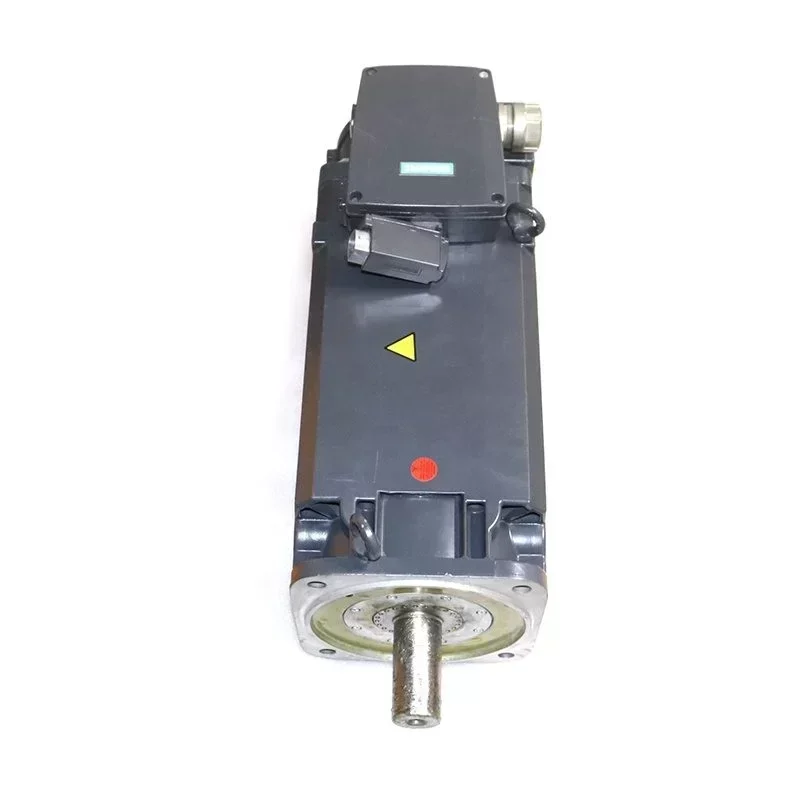

The Siemens 1PH8107-1DF02-0LA1 is a high-performance SIMOTICS M compact asynchronous motor engineered specifically for demanding main drive applications. Designed to operate seamlessly with SINAMICS S120 drive systems, this motor delivers exceptional dynamic response, high rotational precision, and robust power density within a compact physical footprint.
Technical Specifications:
Manufacturer: Siemens
Model Number: 1PH8107-1DF02-0LA1
Product Family: SIMOTICS M
Motor Technology: Squirrel-Cage Asynchronous
Shaft Height: 100 mm
Cooling Method: Forced Ventilation (External Fan)
Degree of Protection: IP55
Rated Power: 9.0 kW
Rated Speed: 1500 RPM
Maximum Speed: 9000 RPM
Rated Torque: 57.0 Nm
Vibration Severity Grade: R/A (Standard)
Shaft Extension: Plain Shaft
Insulation Class: F (155 °C)
Ambient Temperature Range: -15 °C to +40 °C
Paint Finish: Anthracite Grey (RAL 7016)
Weight: 45.0 kg
Original Engineering and Technical Compatibility:
This unit represents Siemens Original Engineering, ensuring exact Technical Compatibility with existing SINAMICS S120 converter architectures. The integration of advanced stator windings and optimized rotor dynamics minimizes torque ripple and maximizes thermal efficiency during continuous operation.
Industrial Application:
The 1PH8107-1DF02-0LA1 is purpose-built for high-speed, high-torque industrial scenarios. It is highly effective as a main spindle drive in CNC milling and turning centers, where precise speed control and thermal stability are critical for machining accuracy. Additionally, its robust construction makes it ideal for rotary printing presses, packaging machinery, and sophisticated hoisting gear requiring rapid acceleration and deceleration cycles.
Procurement and Lead Time:
We maintain streamlined supply chain protocols to minimize Lead Time for this critical drive component, ensuring your production facilities experience minimal downtime during maintenance or machine upgrades.
Key Attributes
AC Voltage: 208–230/240 V
Rated Power: 9KW
Rated Speed: 1500 RPM
Model Number: 1PH8107-1DF02-0LA1
Brand Name: Siemens
Place of Origin: Germany
Motor Mounting Type: Standard
Warranty: 3 months ~ 1 year
Frame: Standard
Product name: Siemens Motor
Payment method: Western Union&T/T& Paypal
Quality: Original new
Payment term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of export: ShenZhen
MOQ: 1 Piece
Lead time: In stock
Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 50X50X40 cm
Single gross weight: 80.000 kg
