Description

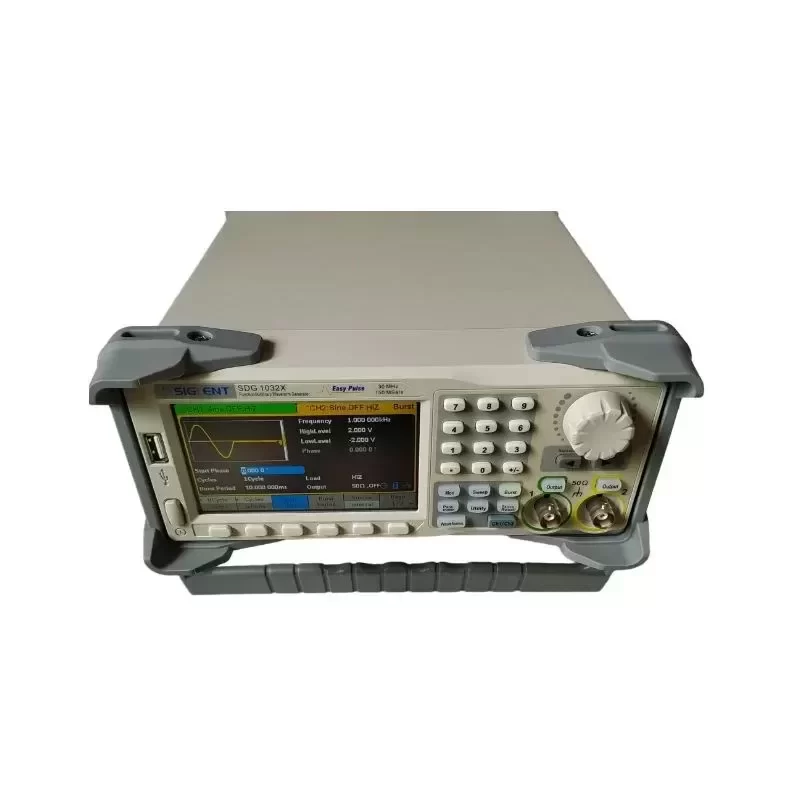

The Siglent SDG1032X is a dual-channel function/arbitrary waveform generator engineered for high-fidelity signal synthesis in advanced diagnostic and automated test environments. Utilizing Original Engineering architectures such as TrueArb and EasyPulse technology, this unit overcomes the inherent weaknesses of traditional DDS generators by delivering low-jitter square and pulse waveforms, alongside point-by-point arbitrary waveform generation that guarantees zero skipped or repeated data points.
Technical Specifications:
Brand: Siglent
Model: SDG1032X
Equipment Type: Function/Arbitrary Waveform Generator
Bandwidth: 30 MHz
Output Channels: 2
Sampling Rate: 150 MSa/s
Vertical Resolution: 14-bit
Waveform Memory Depth: 16 kpts per channel
Maximum Output Amplitude: 20 Vpp (High Impedance)
Jitter (Square/Pulse): < 150 ps
Frequency Counter Range: 0.1 Hz to 200 MHz
Modulation Capabilities: AM, DSB-AM, FM, PM, FSK, ASK, PSK, PWM
Display: 4.3-inch TFT-LCD

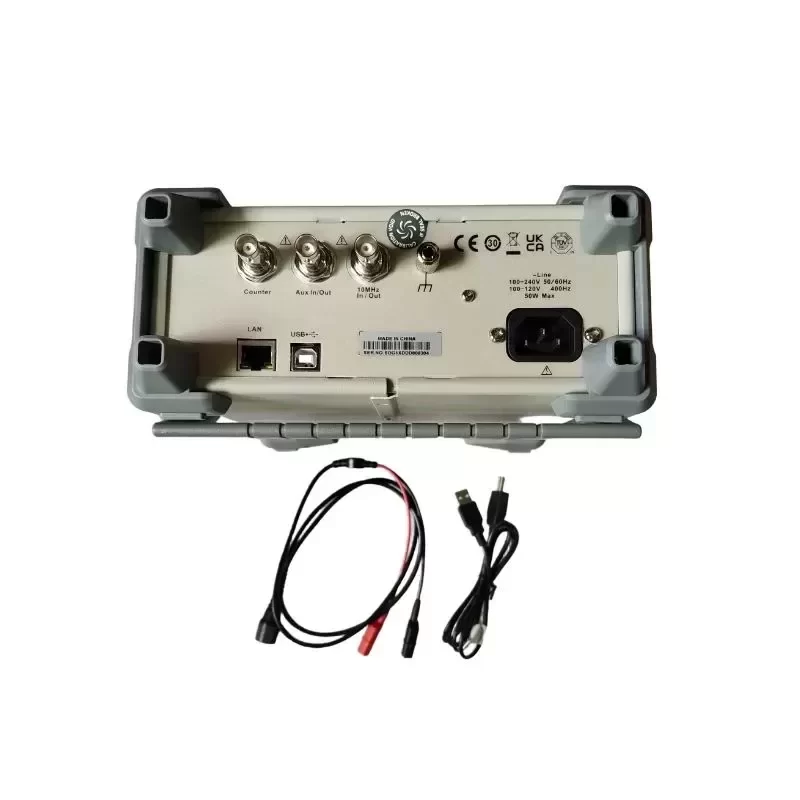

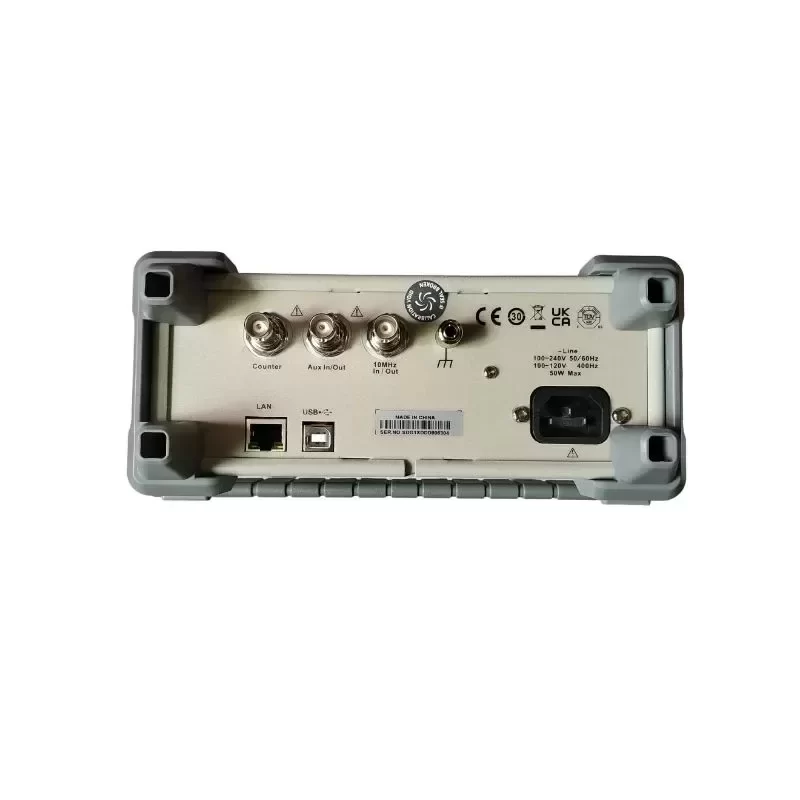

Interfaces: USB Host, USB Device, LAN
Operating Temperature: 0°C to 40°C
Dimensions: 260.3 mm x 107.2 mm x 295.7 mm
Weight: 3.43 kg
Industrial Application:
The SDG1032X is highly specified for automotive electronic control unit (ECU) testing and industrial sensor simulation. In these environments, the generator provides precise pulse width modulation (PWM) and low-jitter square waves required to simulate encoder signals or variable reluctance sensors. Its Technical Compatibility with standard SCPI commands ensures seamless integration into existing automated test equipment (ATE) racks, reducing setup complexity.
Procurement and Lifecycle:
Designed for continuous operation in demanding laboratory and production environments, this instrument ensures reliable signal generation with minimal drift over time. Standard Lead Time applies for global distribution, ensuring rapid deployment for critical testing infrastructure upgrades.
Key Attributes
Amplitude resolution: 1.0 mV
Type: Waveform Generator
Waveform: Square
Place of origin: China
Frequency resolution: 0.1 Hz
Frequency (Hz): 30MHz/150MSa/s
Brand name: Siglent
Customized support: OEM
Size: 35 * 23 *13CM
Warranty: 1 years
Model number: SDG1032X
Channels: 2
Frequency Maximum: 30 MHz
Sampling rate: 150 MSa/s
Waveform Length: 16 kpts
Max. amplitude: ±10 V
Packaging and Delivery
Selling Units: Single item
Single package size: 45X31X28 cm
Single gross weight: 3.300 kg
