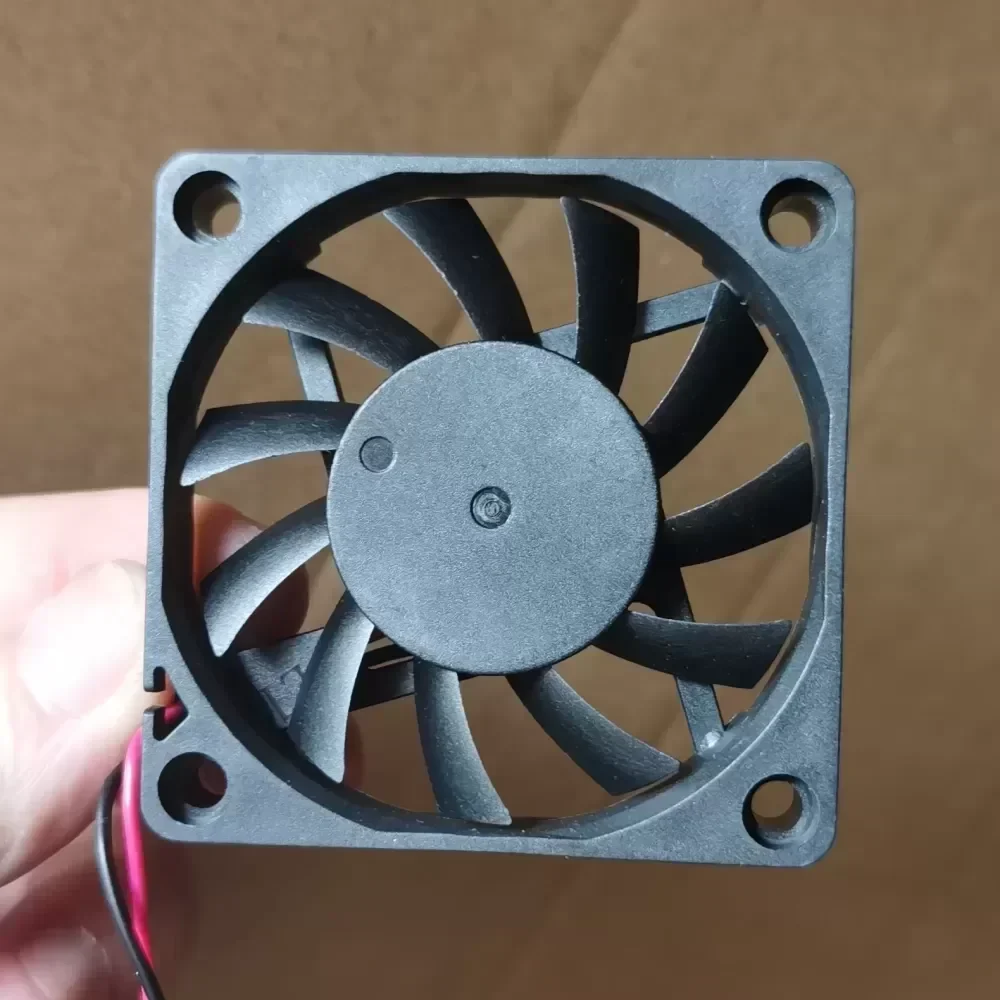

SJ6010HD2 Sanju 6010/24V ultra-thin 6CM cm
SJ6010HD2 Sanju 6010/24V ultra-thin 6CM cm

SJ6010HD2 Sanju 6010/24V ultra-thin 6CM cm

$2.14

SKU: 681098578824 Brand:

Description

Manufacturer: Taiwan Sanju Electric Machinery
Model Number: SJ6010HD2
Product Category: DC Axial Cooling Fan
Original Engineering: Precision-balanced impeller with ultra-thin profile

Technical Specifications:
Dimensions: 60 x 60 x 10 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.10A
Power Consumption: 2.40W
Rated Speed: 4500 RPM ±10%
Maximum Airflow: 16.5 CFM
Static Pressure: 3.82 mmH2O
Noise Level: 33.5 dB(A)
Bearing Type: Dual Ball Bearing
Service Life: 50,000 Hours at 40°C

Mechanical and Material Data:
Frame Material: Reinforced Thermoplastic PBT (UL 94V-0)
Impeller Material: Reinforced Thermoplastic PBT (UL 94V-0)
Termination: 2-Wire Lead (UL1007 AWG#26)
Weight: 35g
Insulation Class: Class A
Dielectric Strength: 500V AC / 1 Minute
Insulation Resistance: 10MΩ at 500V DC

Environmental Ratings:
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Operating Humidity: 5% to 95% RH
Certifications: CE, RoHS, TUV, UL

Industrial Application:
The SJ6010HD2 is specifically engineered for thermal management in space-constrained industrial environments. Its 10mm ultra-thin profile allows for seamless integration into 1U server chassis, compact frequency converters, and high-density LED driver housings. The dual ball bearing architecture provides superior Technical Compatibility with 24V industrial control systems, ensuring long-term reliability and reduced maintenance cycles in mission-critical hardware.

Procurement Information:
Lead Time: Standard stock item; contact for volume-based delivery schedules.
Authenticity: Guaranteed Original Engineering from Taiwan Sanju Electric Machinery.

SJ6010HD2 Sanju 6010/24V ultra-thin 6CM cm

SJ6010HD2 Sanju 6010/24V ultra-thin 6CM cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
