$6.43

SKU: 684979374598 Brand:

Description

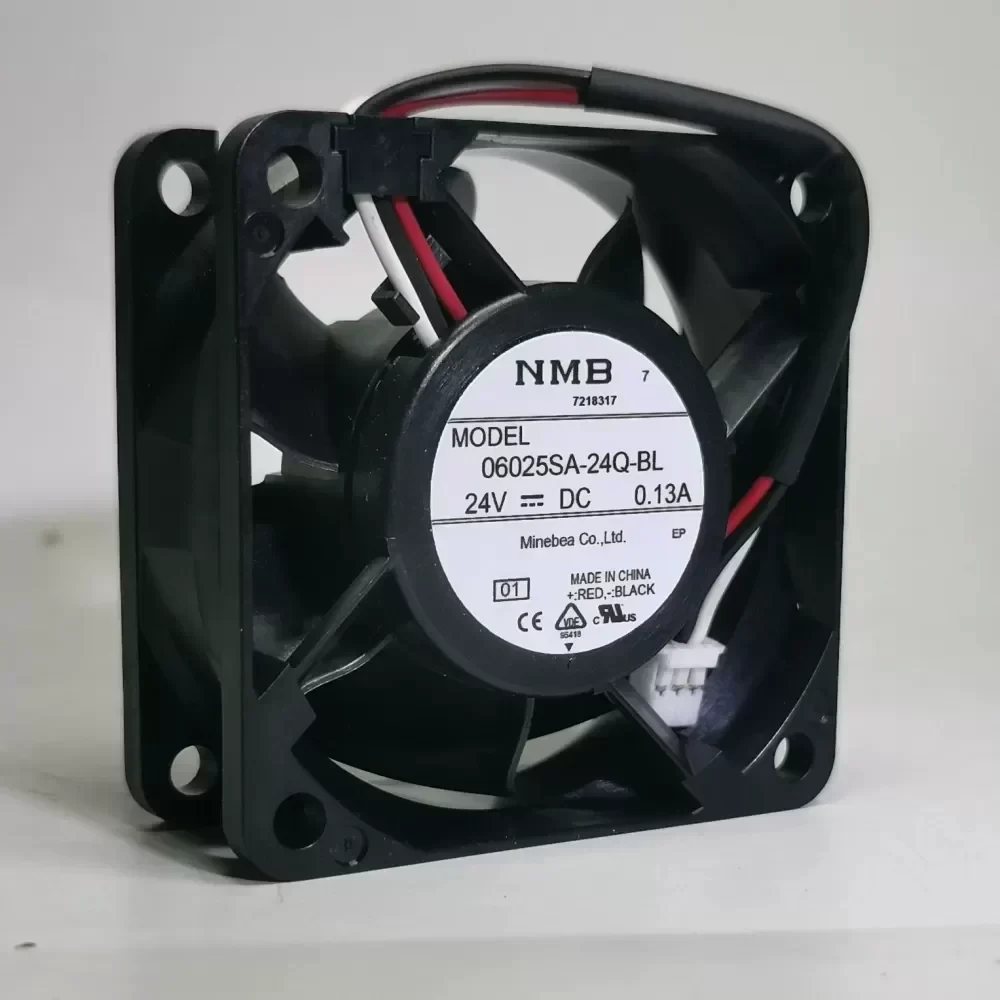

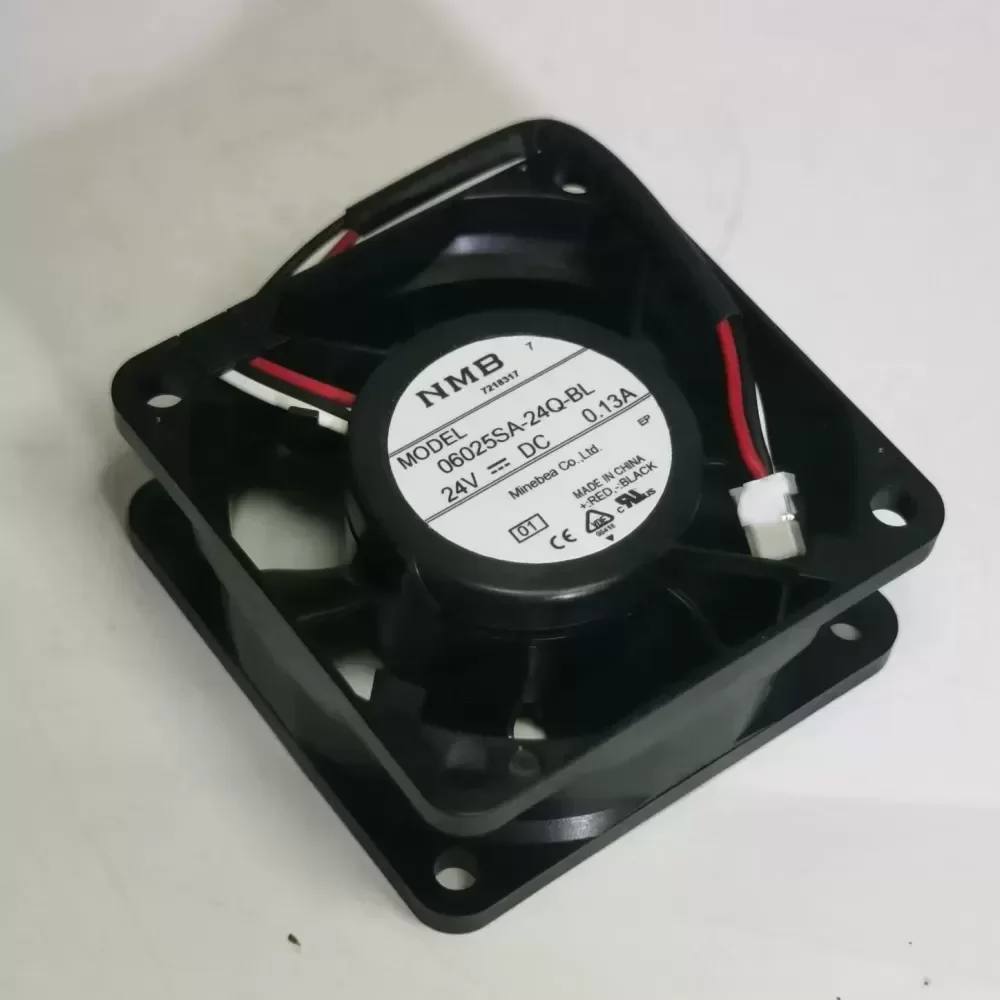

The NMB-MAT 06025SA-24Q-BL is a high-performance industrial axial cooling fan engineered specifically for thermal management within Yaskawa AC Drives and Servo Amplifiers. Manufactured by NMB Technologies (MinebeaMitsumi), this unit utilizes a precision dual ball bearing system to ensure extended service life and reliability in high-duty cycle industrial environments.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Series: 06025SA
Full Part Number: 06025SA-24Q-BL
Frame Size: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V – 27.6V DC
Rated Current: 0.13A
Input Power: 3.12W
Rated Speed: 4700 RPM
Maximum Air Flow: 23.3 CFM (0.66 m³/min)
Maximum Static Pressure: 58.0 Pa
Noise Level: 34.0 dB(A)
Bearing Type: Dual Precision Ball Bearing
Termination: 3-Wire Lead (compatible with Yaskawa drive headers)
Weight: 65g

Material and Environmental Ratings:
Casing Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Withstand Voltage: AC 700V 1s
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Life (L10): 70,000 hours at 40°C
Certifications: UL, CSA, VDE, CE

Industrial Application and Compatibility:
This model is primarily utilized as a critical cooling component for Yaskawa variable frequency drives (VFDs) and motion controllers. The 06025SA-24Q-BL ensures optimal heat dissipation for internal power modules, preventing thermal throttling and hardware failure. Its Technical Compatibility with Yaskawa drive logic allows for precise RPM monitoring and alarm signaling. This is an Original Engineering component, ensuring exact fitment and electrical synchronization with OEM hardware. Replacing worn fans with this specific model minimizes Lead Time during maintenance cycles and maintains the integrity of the drive’s thermal management system.

06025SA-24Q-BL New NMB fan 6025/

06025SA-24Q-BL New NMB fan 6025/

06025SA-24Q-BL New NMB fan 6025/

06025SA-24Q-BL New NMB fan 6025/

06025SA-24Q-BL New NMB fan 6025/

06025SA-24Q-BL New NMB fan 6025/

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
