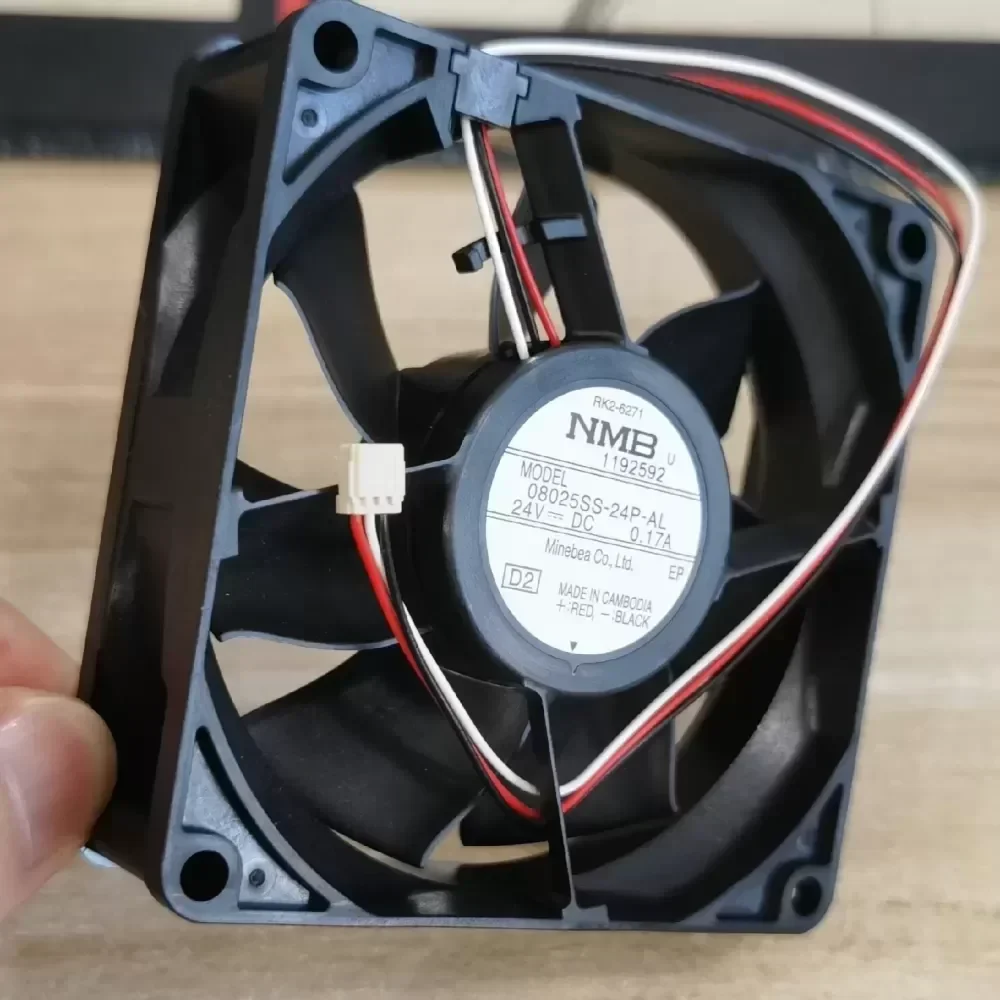

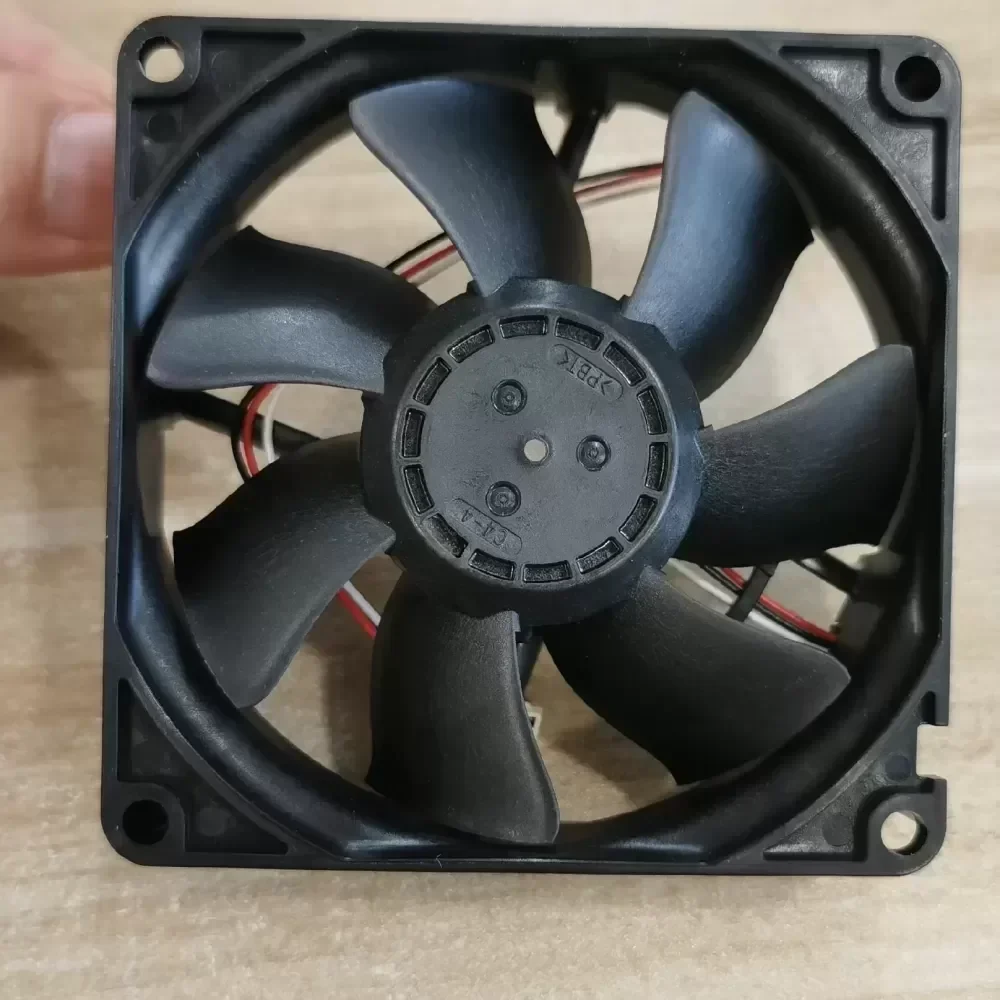

08025SS-24P-AL NMB Original printer fan
08025SS-24P-AL NMB Original printer fan
08025SS-24P-AL NMB Original printer fan

08025SS-24P-AL NMB Original printer fan

$5.00

SKU: 732627121729 Brand:

Description

The NMB-MAT 08025SS-24P-AL is a high-performance axial cooling fan engineered for critical thermal management in industrial automation and power electronics. This unit is specifically designed for integration into frequency converters and high-end printing systems where precise airflow and system health monitoring are mandatory.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Series: 08025SS
Part Number: 08025SS-24P-AL
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V – 27.6V
Rated Current: 0.08A to 0.15A (Model dependent)
Input Power: 1.92W – 3.60W
Bearing Type: NMB Precision Dual Ball Bearing
Rotational Speed: 3200 RPM ±10%
Airflow Volume: 38.8 CFM (1.10 m³/min)
Static Pressure: 37.2 Pa
Noise Level: 33.0 dB(A)
Signal Output: 3-Wire with Fault Alarm (Locked Rotor Sensor)
Termination: 3-Pin Lead Wire
Frame Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Withstand Voltage: AC 700V 1s
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours (L10 at 40°C)
Weight: 85g
Certifications: UL, CSA, VDE, CE

Industrial Application and Technical Compatibility:
This fan is a critical component for the thermal regulation of variable frequency drives (VFDs) and large-format industrial printers. The AL designation indicates a specialized fault alarm circuit that provides real-time feedback to the host controller. In the event of a rotor stall or significant RPM drop, the sensor triggers a system alert, preventing catastrophic overheating of IGBT modules and power semiconductors. This Original Engineering solution ensures seamless Technical Compatibility with OEM cooling profiles, maintaining the required static pressure to move air through dense heatsink fins.

Reliability and Lead Time:
Utilizing NMB’s proprietary stainless steel ball bearings, this model is optimized for 24/7 continuous operation in harsh industrial environments. Its high MTBF (Mean Time Between Failure) reduces maintenance cycles and total cost of ownership. We maintain consistent stock levels to ensure competitive Lead Time for urgent repair and overhaul requirements in the global B2B market.

08025SS-24P-AL NMB Original printer fan

08025SS-24P-AL NMB Original printer fan

08025SS-24P-AL NMB Original printer fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
