Description

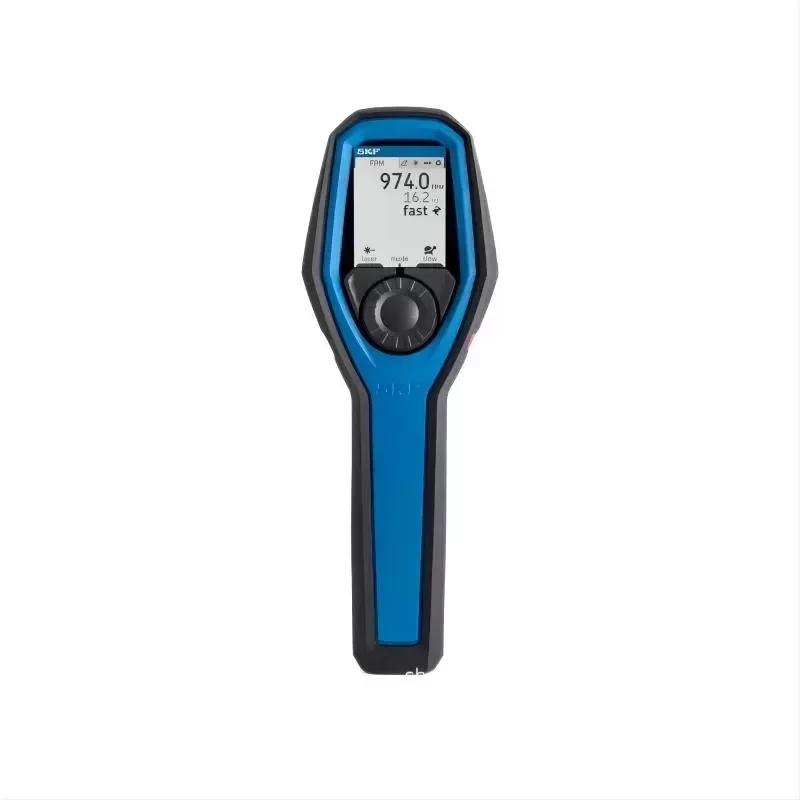

The SKF TKRS 11 is a high-performance handheld stroboscope engineered for the visual inspection of rotating or reciprocating machinery. By synchronizing flash frequency with the speed of moving parts, it creates a stationary image, allowing for the detection of mechanical defects, misalignment, and lubrication issues without stopping production. This instrument is essential for predictive maintenance programs in demanding industrial environments.
Technical Specifications and Parameters
Manufacturer: SKF
Model Number: TKRS 11
Flash Rate Range: 30 to 300,000 flashes per minute (FPM)
Flash Rate Accuracy: ±0.02% of reading or ±1 digit
Light Source: 3 High-intensity LEDs
Light Output: > 2000 Lux at 3° beam angle and 0.3 m (12 in.) distance
Flash Duration: Adjustable from 0.2° to 5.0° (or 2 μs to 500 μs)
Display: Black and White Backlit LCD
Display Resolution: 0.1 FPM (30 to 999.9 FPM); 1 FPM (1000 to 300,000 FPM)
Power Source: 3x AA Internal Batteries (Alkaline or Rechargeable)
Operating Time: Approximately 5.5 hours at 6000 FPM
Dimensions: 225 x 78 x 50 mm (8.9 x 3.1 x 2.0 in.)
Weight: 0.29 kg (0.64 lb) including batteries
Enclosure Rating: IP30
Operating Temperature: 0 to 45 °C (32 to 113 °F)
Storage Temperature: -20 to 50 °C (-4 to 122 °F)
Certifications: CE, RoHS, UKCA
Advanced Features and Engineering
Optical Precision: The TKRS 11 utilizes advanced LED technology to provide a sharp, clear image even at high speeds, significantly outperforming traditional xenon-tube stroboscopes in longevity and energy efficiency.
User Interface: The ergonomic design allows for one-handed operation, featuring a tactile scroll wheel for rapid frequency adjustment and dedicated buttons for phase shifting and pulse width modulation.
Technical Compatibility: Fully compatible with standard industrial vibration analysis tools and laser alignment systems for comprehensive machine health monitoring.
Industrial Application and Problem Solving
In high-speed manufacturing and power transmission, identifying belt slippage or gear mesh irregularities is critical to preventing catastrophic failure. The SKF TKRS 11 solves this by providing a high-density light output that penetrates ambient industrial lighting, allowing technicians to perform non-contact inspections on fans, pumps, and conveyors. Its 0.02% accuracy ensures precise RPM measurement for verifying motor performance against nameplate data.
Ordering Information
Original Engineering: Genuine SKF Maintenance Product
Lead Time: Standard stock item available for global distribution

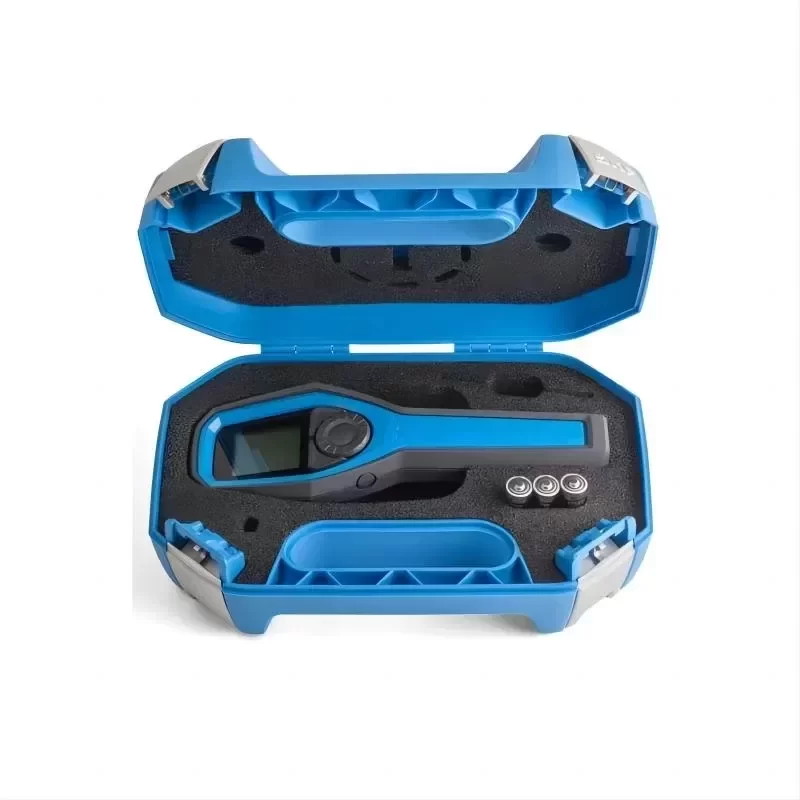

Package Contents: TKRS 11 device, 3x AA batteries, Quick Start Guide, and robust carrying case.
Key Attributes
Place of origin: Sweden
Customized support: OEM, ODM
Brand name: SKF
Warranty: 1 years
Model number: TKRS 11
Product name: SKF
Model: TKRS 11
Light power: >2 000 Lux at 3°
Brightness (flash duration): Adjustable, 0,2° to 5,0°
Accuracy: ±0,02%
Display: Black and White LCD
Size: 260 x 180 x 85 mm
Weight: 0.8kg
Power: Electronic
Packaging and Delivery
Selling Units: Single item
Single package size: 29X21X12 cm
Single gross weight: 2.000 kg
