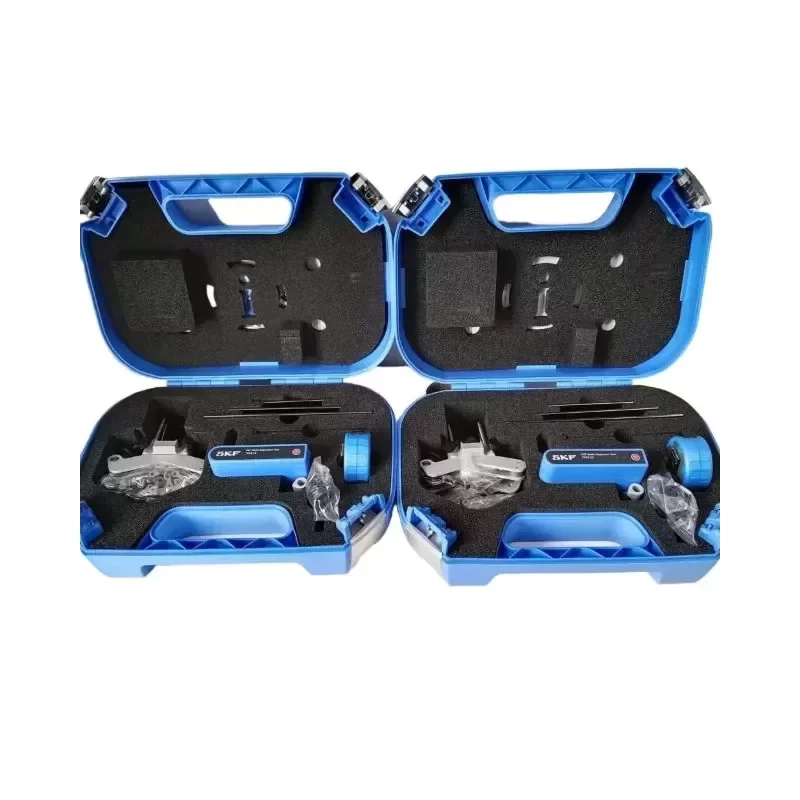

SKF TKSA 11 Affordable Shaft Alignment Tool

Description

The SKF TKSA 11 represents a paradigm shift in precision maintenance, utilizing advanced inductive proximity sensors rather than traditional laser technology to deliver highly accurate shaft alignment. Designed with Original Engineering principles by SKF, this instrument leverages the processing power and display capabilities of standard iOS and Android mobile devices via Bluetooth 4.0 LE. This architecture ensures broad Technical Compatibility while minimizing the hardware footprint, making it an essential diagnostic instrument for condition monitoring and rotating equipment reliability programs.

Technical Specifications:
Manufacturer: SKF
Model Number: TKSA 11
Measurement Technology: Inductive proximity sensors
Shaft Diameter Range: 20 mm to 160 mm (up to 320 mm with optional extension chains)
Maximum Coupling Height: 55 mm
System Accuracy: ± 2% ± 10 µm
Operating Temperature: 0 °C to 45 °C
Storage Temperature: -20 °C to 60 °C
Communication Protocol: Bluetooth 4.0 LE
Power Supply: Rechargeable Lithium-Polymer battery
Operating Time: 18 hours continuous use
Environmental Protection: IP54 (measuring units)
Measuring Unit Weight: 160 g per unit
Total System Weight: 2.9 kg
Carrying Case Dimensions: 360 mm x 110 mm x 260 mm

Industrial Application:
The TKSA 11 is specifically engineered for the alignment of horizontally mounted rotating machinery, such as electric motors coupled to centrifugal pumps, fans, and compressors. In continuous process facilities like water treatment plants or industrial HVAC operations, precise shaft alignment is critical to mitigating severe vibration, reducing mechanical seal wear, and preventing premature bearing failure. By providing real-time, intuitive 3D live views on a mobile interface, maintenance technicians can execute rapid corrections during planned outages. With an optimized Lead Time for procurement, integrating the TKSA 11 into your predictive maintenance workflow ensures immediate improvements in machine uptime and energy efficiency.

Key Attributes
Place of origin: Germany
Brand name: SKF
Color: ,,
Customized support: OEM, ODM
Material: Plastic
Power: Battery powered
Warranty: 1 years
Model: TKSA 11
System measuring distance: 0 to 185 mm
Measuring errors / Displayed resolution: Less than 2% / 10 um (0.4 mils)
Operating system requirements: Apple iOS 7
Shaft diameters: 20 to 160 mm
Alignment measurement: Three position measurement
Alignment report: Automatic PDF report
Carrying case dimensions: 360 x 110 x 260 mm
Total weight: 2.1 kg

Packaging and Delivery
Selling Units: Single item
Single package size: 41X31X13 cm
Single gross weight: 3.000 kg
