Description
The Testo 871 is a high-performance thermography solution engineered for professional building diagnostics and industrial maintenance. It features the Testo ScaleAssist function, which automatically ensures optimum setting of the thermal image scale, preventing interpretation errors by normalizing the color scale for internal and external temperatures. The integrated Testo ε-Assist automatically determines and sets the emissivity and reflected temperature of the measurement object, ensuring high Data Fidelity in complex thermal environments.
Manufacturer: Testo

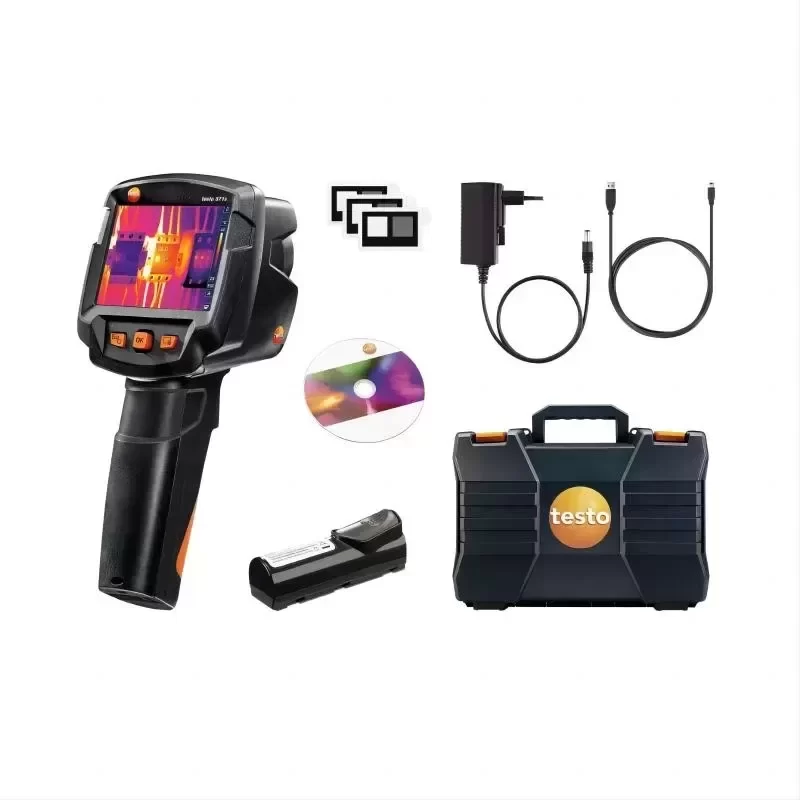

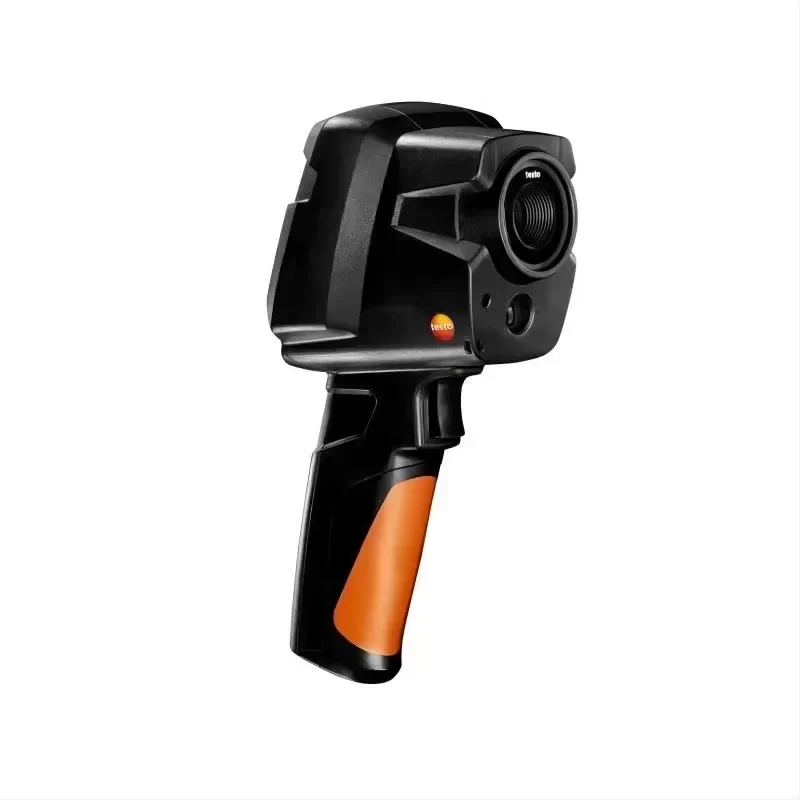

Model: 871 Thermal Imaging Camera
Part Number: 0560 8712
Technical Specifications:

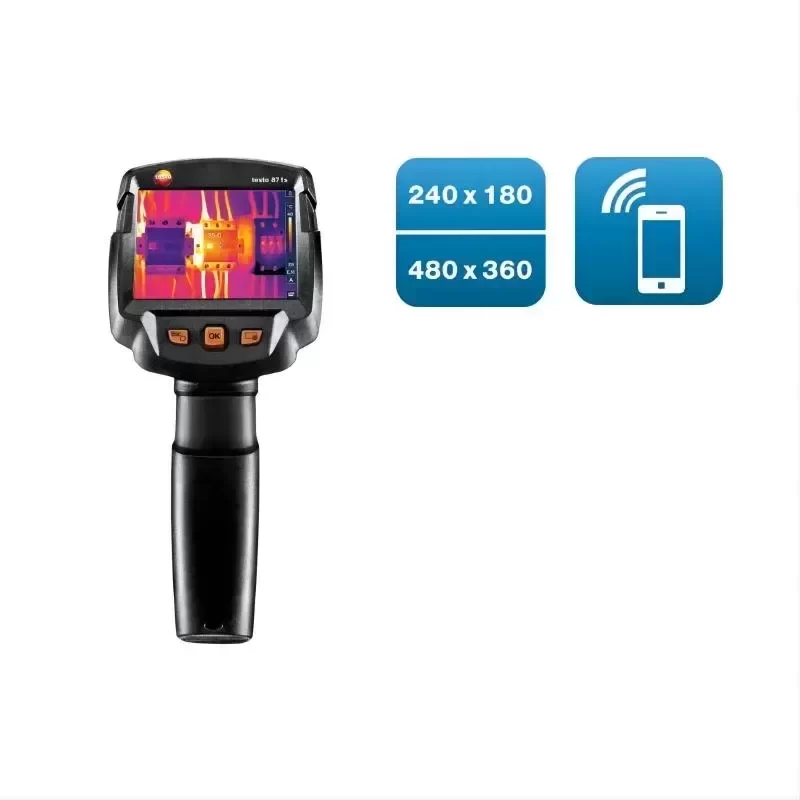

Infrared Resolution: 240 x 180 Pixels
SuperResolution Technology: 480 x 360 Pixels
Thermal Sensitivity (NETD): < 90 mK
Field of View (FOV): 35° x 26°
Minimum Focus Distance: < 0.5 m
Spatial Resolution (IFOV): 2.6 mrad
SuperResolution (IFOV): 1.6 mrad
Image Refresh Rate: 9 Hz
Spectral Range: 7.5 to 14 μm
Measuring Range 1: -30 to +100 °C
Measuring Range 2: 0 to +650 °C
Accuracy: ±2 °C or ±2% of measured value
Emissivity Settings: 0.01 to 1.00
Display: 8.9 cm (3.5 inch) TFT, QVGA (320 x 240 pixels)
Digital Camera Integrated: Yes
Interface: USB 2.0 Micro B, Wireless LAN, Bluetooth 4.0
Battery Type: Li-ion rechargeable (Field replaceable)
Operating Time: 4.0 Hours
Protection Class: IP54
Storage Temperature: -30 to +60 °C
Operating Temperature: -15 to +50 °C
Dimensions: 219 x 95 x 95 mm
Weight: 510 g
Industrial Application:

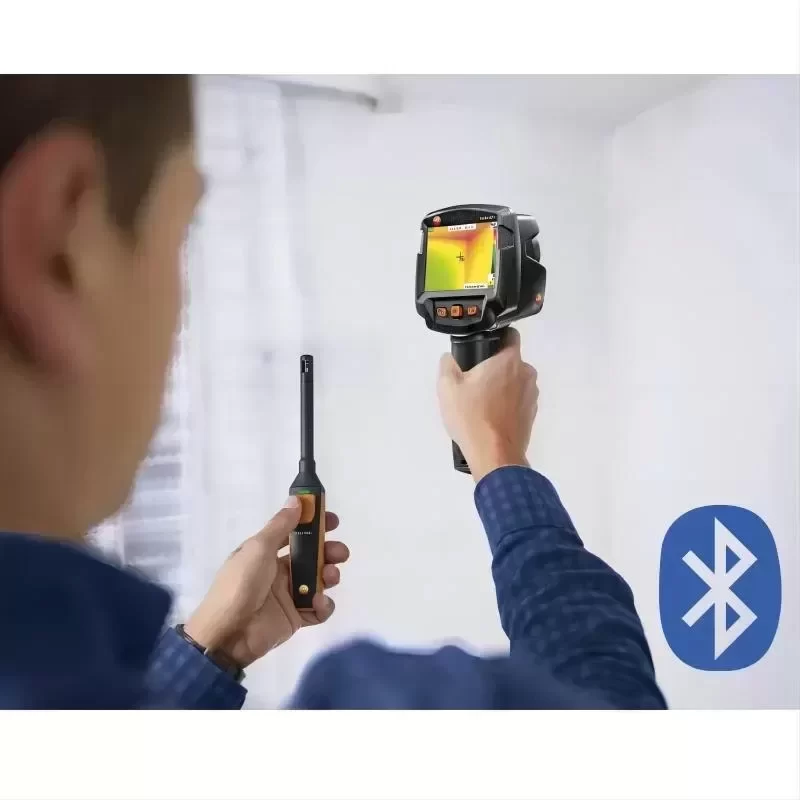

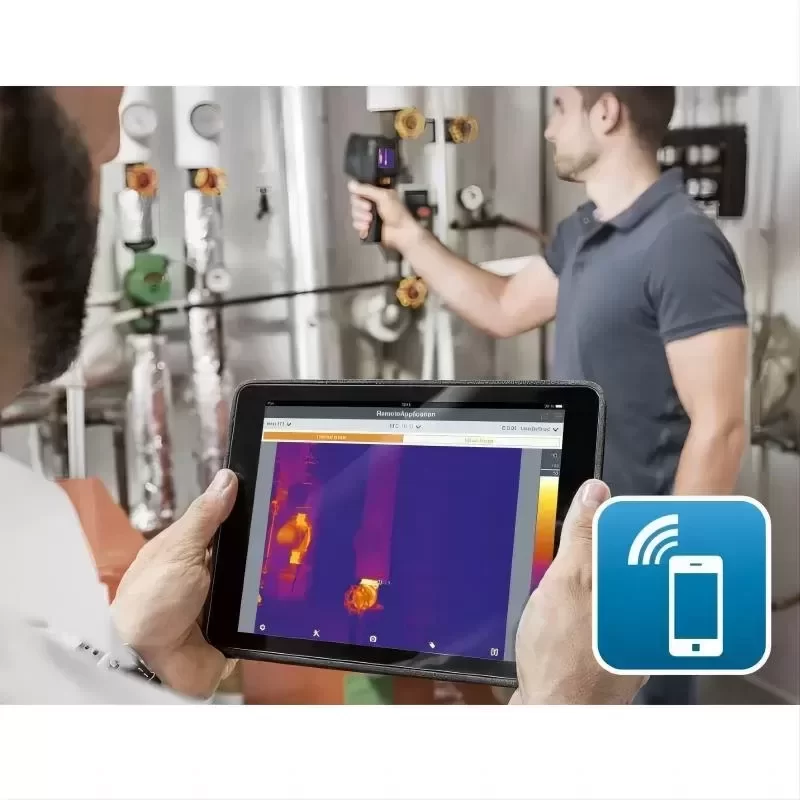

This unit is optimized for detecting structural defects and conducting preventive maintenance on electrical systems. Its Technical Compatibility with the Testo 605i thermohygrometer and 770-3 clamp meter allows for the wireless integration of ambient humidity and electrical load data directly into the thermal image. This multi-parameter analysis is critical for identifying mold risk in HVAC systems or overheating components in high-voltage distribution boards before failure occurs.
Logistics and Quality:
Condition: Original Engineering New-in-Box
Availability: In Stock
Lead Time: Immediate Dispatch
Certifications: CE, 2014/53/EU
Key Attributes
Place of Origin: Germany
Model Number: 871
Brand Name: Testo
Product name: Testo
Model: 871
Detector Size: 240 x 180 Sensor
Thermal Sensitivity: 90 mK (NETD)
Temperature Range Max: 650 C (1202 F)
Temperature Range Min: -30 C (-22 F)
Image Frequency: 9 Hz
Field of View: 35.7 x 26.8 Degrees
Accuracy: ±2 °C, ±2 % of mv
Country of Origin: Germany
Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 48X36X21 cm
Single gross weight: 4.500 kg
