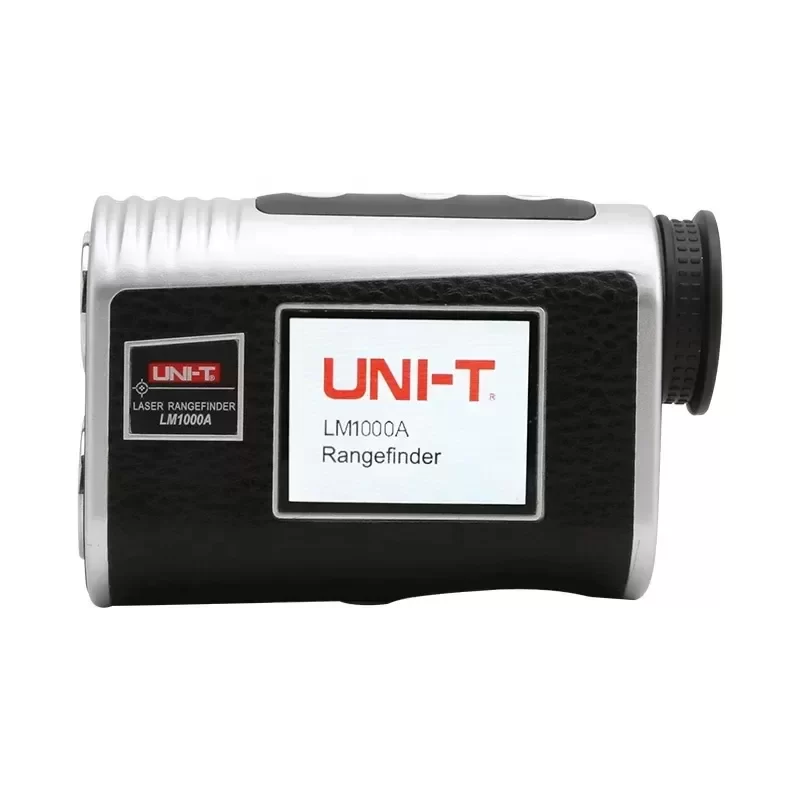

UNI-T LM1000A Laser Rangefinders Including LM600A and LM800A Models

Description

The UNI-T LM series represents professional-grade optoelectronic laser rangefinders engineered for high-accuracy distance, angle, height, and velocity telemetry in demanding industrial, utility, and civil engineering environments. Designed with Original Engineering, these instruments combine multi-coated optical systems with advanced pulse laser emission and detection circuitry to deliver precise spatial calculations under diverse ambient light conditions.

Technical Specifications:
Manufacturer: UNI-TREND Technology (UNI-T)
Model Series: LM600A / LM800A / LM1000A
Measurement Range LM600A: 4m to 600m
Measurement Range LM800A: 4m to 800m
Measurement Range LM1000A: 4m to 1000m
Distance Accuracy: ±1m ± (Dx0.2%)
Speed Measurement Range: 0 to 300 km/h
Laser Class: Class 1 (Eye-safe)
Laser Wavelength: 905 nm

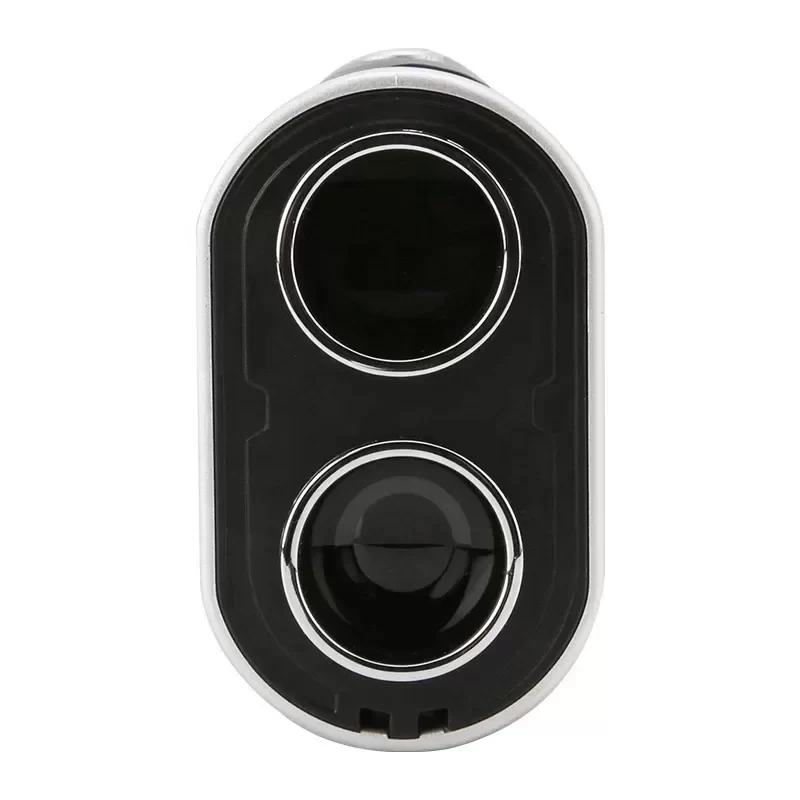

Optical Magnification: 6x
Objective Lens Diameter: 24 mm
Eyepiece Aperture: 16 mm
Exit Pupil Diameter: 4.0 mm
Field of View: 7.0 degrees
Diopter Adjustment Range: ±5
Height Measurement Range: ±600m / ±800m / ±1000m
Height Measurement Accuracy: ±0.5m
Angle Measurement Range: ±60 degrees
Angle Measurement Accuracy: ±1.0 degree
Enclosure Rating: IP54 (Dust-protected and splash-resistant)
Power Supply: 3.7V 1500mAh Li-ion battery (Micro USB rechargeable)
Operating Temperature: -10 °C to 60 °C
Product Dimensions: 113 mm x 78 mm x 41 mm
Weight: 230g

Industrial Application and Scenario:
In utility corridor inspections, surveyors utilize the LM1000A to resolve clearance conflicts between high-voltage power lines and surrounding vegetation. The integrated multi-mode software calculates absolute vertical height, physical distance, and pitch angle simultaneously. This allows maintenance teams to perform precise clearance audits from a safe ground position, preventing localized electrical discharge and ensuring regulatory compliance.

Technical Compatibility and Integration:

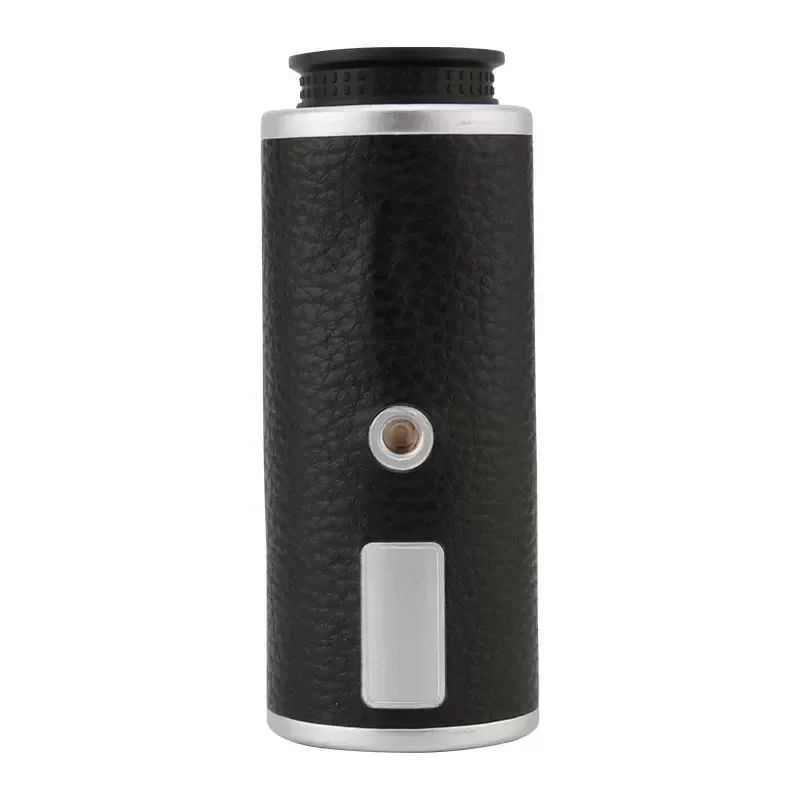

Each unit features direct Technical Compatibility with standard 1/4-inch tripod mounting interfaces, enabling stable stationary monitoring during long-range telemetry operations. The internal firmware contains fast-sweep algorithms that allow seamless transit tracking of moving objects for velocity validation.

Procurement and Logistics:

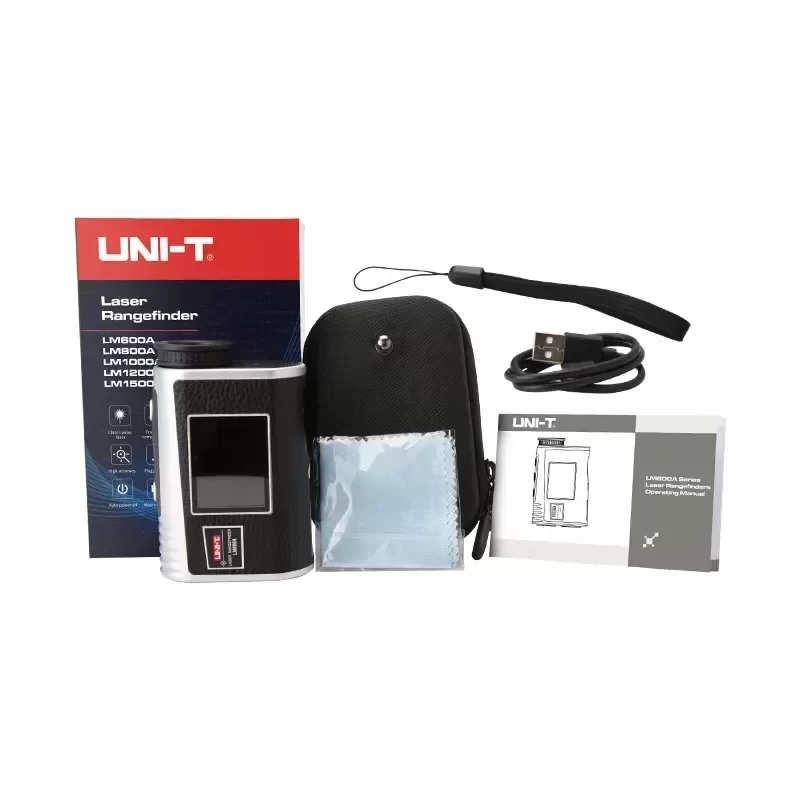

Standard industrial packaging includes the rangefinder unit, a micro USB charging cable, a protective carrying pouch, and a calibration certificate. Contact our regional sales engineering department to confirm current Lead Time details and bulk volume dispatch options.

Key Attributes
Type: Sport Laser Rangefinders
Place of origin: Guangdong, China
Material: Plastic
Size: 22*16*5cm
Weight: 500g
Model number: LM1000A
Brand name: UNI-T
Customized support: OEM, ODM
Warranty: 1 years
Distance range: 3-1000m
Accuracy: ±1m ± range x 0.2%
Magnification: 6X
Speed range: 18~300Km/h

Packaging and Delivery
Selling Units: Single item
Single package size: 35X20X16 cm
Single gross weight: 2.500 kg
