Description

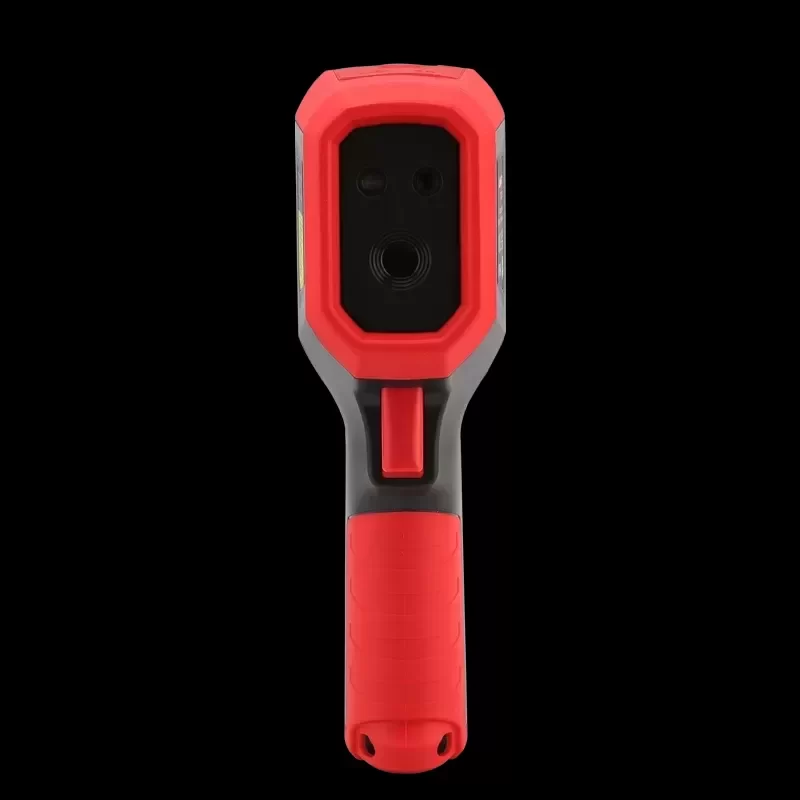

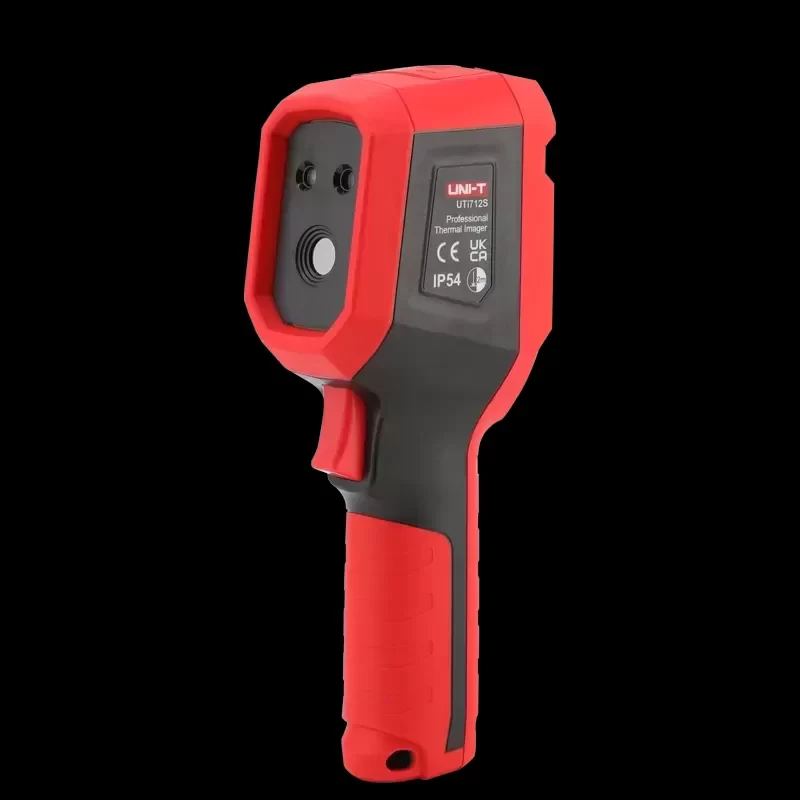

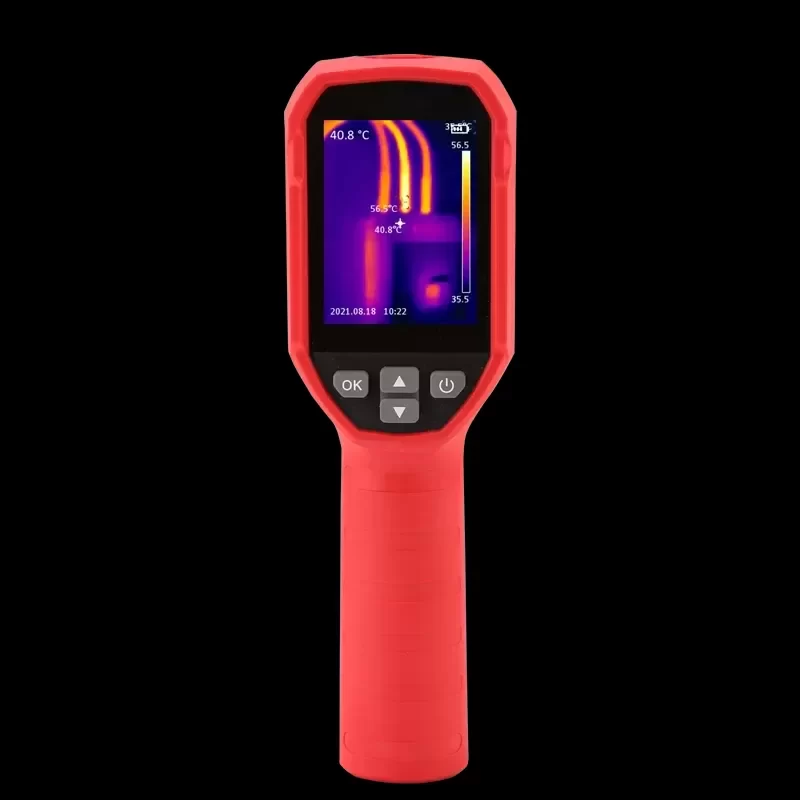

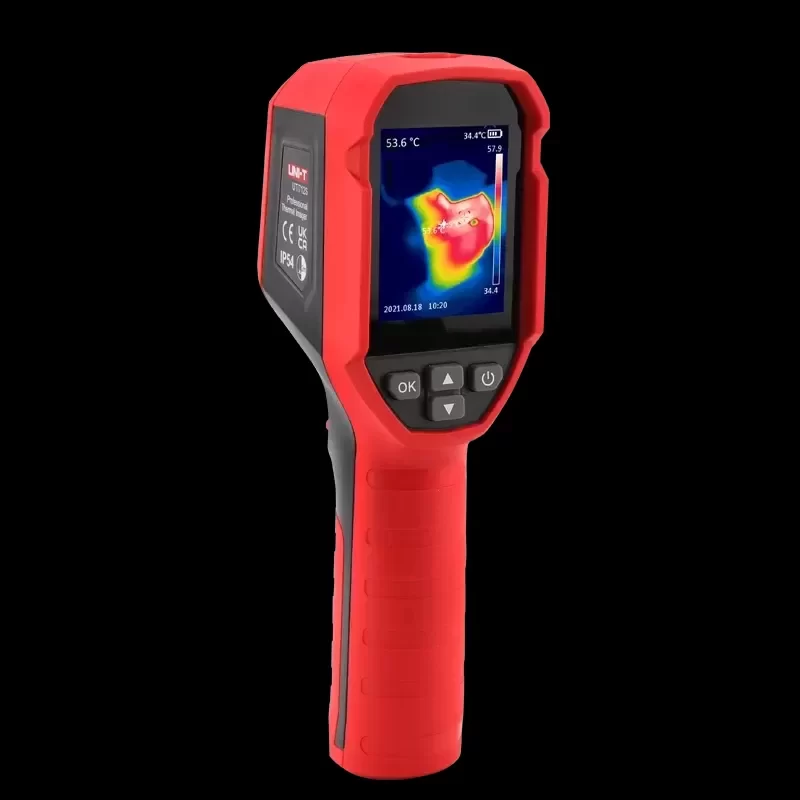

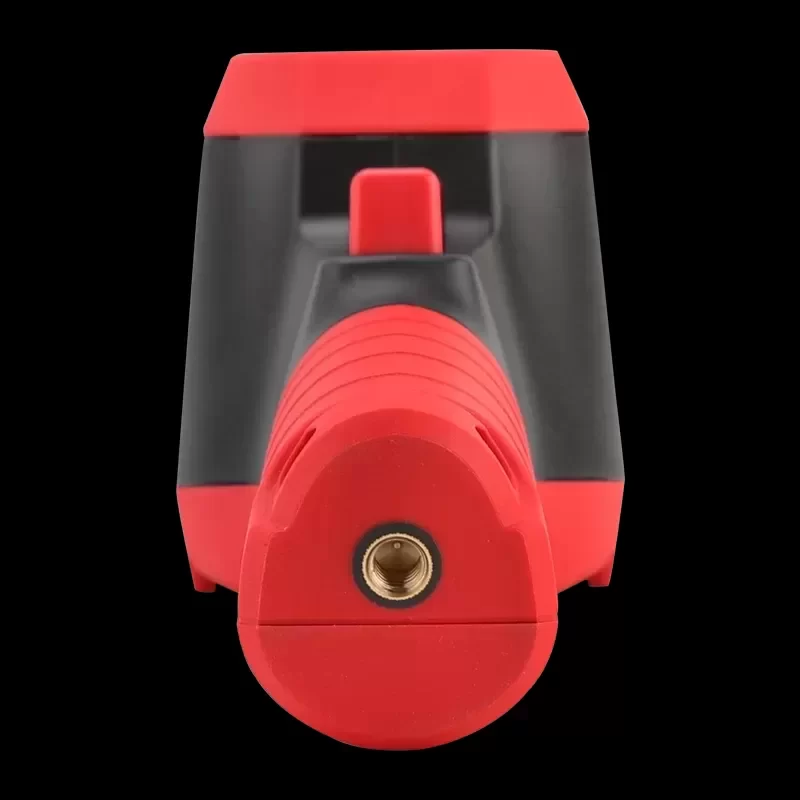

The UNI-T UTi712S is a high-performance, cost-effective infrared thermal camera engineered for predictive maintenance, electrical inspection, and HVAC diagnostics. Utilizing a 120 x 90 pixel detector, this device provides detailed, high-accuracy thermal imaging that enables maintenance professionals to identify anomalies before costly equipment failures occur. The robust construction and user-friendly interface ensure rapid integration into daily maintenance routines.
TECHNICAL SPECIFICATIONS
Manufacturer: UNI-T
Model: UTi712S
IR Resolution: 120 x 90 pixels
Temperature Range: -20°C to 400°C
Thermal Sensitivity (NETD): <= 60mK
Field of View (FOV): 50° x 38°
Spatial Resolution (IFOV): 7.3mrad
Frame Rate: <= 25Hz
Accuracy: ±2°C or ±2%
Display: 2.4 inch TFT LCD
Color Palettes: 6 (Iron, Rainbow, White Hot, Black Hot, Red Hot, Lava)
Emissivity: 0.1 to 0.99 (adjustable)
Interface: USB Type-C
Power: Rechargeable Li-ion Battery (3.7V, 2600mAh)
Battery Life: >= 8 hours continuous operation
Ingress Protection: IP54
Drop Resistance: 2 meters
Storage: Micro SD Card
Weight: 310g
Dimensions: 196mm x 63mm x 75mm
APPLICATION & INTEGRATION
The UTi712S is specifically optimized for industrial scenarios such as monitoring electrical distribution boards, analyzing mechanical wear in bearings, and diagnosing thermal leaks in building envelopes. The high-speed 25Hz frame rate ensures real-time fluid visualization of heating and cooling cycles, which is critical for tracking dynamic thermal variations in moving machinery.
SEO & LOGISTIC DETAILS
Original Engineering: Manufactured to strict factory tolerances by UNI-T, ensuring precise sensor calibration and long-term diagnostic reliability.
Technical Compatibility: Fully compatible with proprietary analysis software via the USB Type-C interface, allowing for advanced processing, report generation, and CSV temperature data extraction.
Lead Time: Please contact our sales engineering division to confirm current lead times and global shipping schedules.
Key Attributes
Thermal color palettes: 4 Color Palettes
Thermal Image Pixel: 120x90
Thermal Sensitivity: ≤60mK
Place of Origin: Guangdong, China
Display resolution: 120x90
Field of View: 50°x 38°
Image Frequency: 25Hz
Model Number: UTi712S
Brand Name: UNI-T
IR resolution (Pixels): 120 x 90
Focus: Focus Free
Battery: Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time: ≥8 hours
USB: Type-C
Packaging and Delivery
Selling Units: Single item
Single package size: 35X21X17 cm
Single gross weight: 3.000 kg
