Description

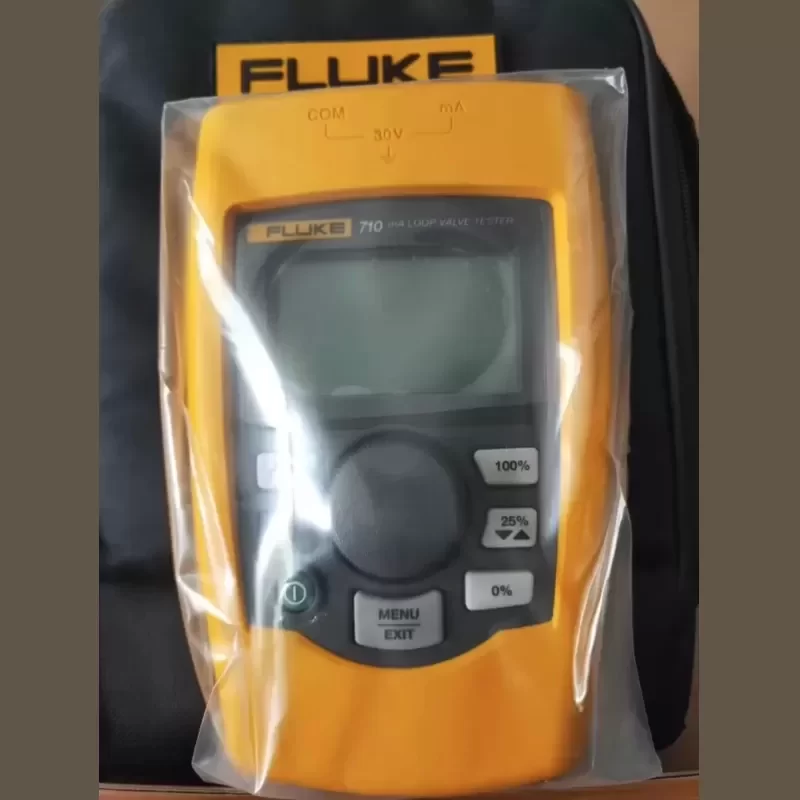

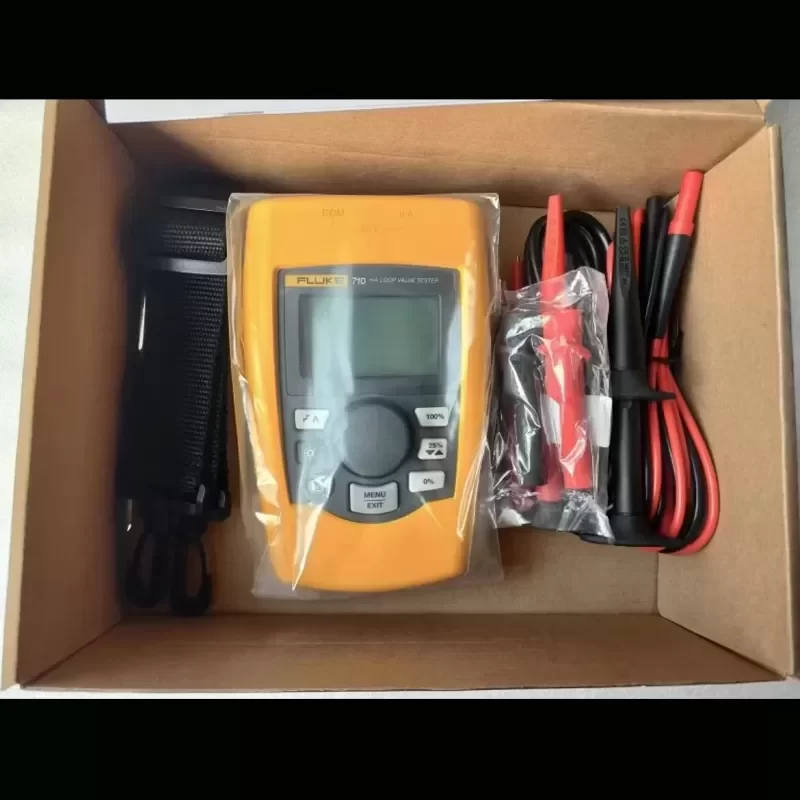

The Fluke 710 mA Loop Valve Tester represents the pinnacle of field-level control valve diagnostics, engineered specifically for process control professionals. This highly specialized, multifunctional instrument bridges the gap between simple loop calibrators and complex HART protocol analyzers. By offering integrated HART communication combined with dedicated valve testing routines, the Fluke 710 enables rapid, decisive assessment of control valve health and performance directly in the field. Our inventory features authentic, factory-new units with Original Engineering integrity, ensuring precise calibration and long-term reliability. We minimize system downtime through optimized Lead Time fulfillment on all global shipments.
TECHNICAL SPECIFICATIONS
Manufacturer: Fluke Corporation
Model Number: 710
Measurement Current Range: 0 mA to 24 mA
Measurement Current Resolution: 0.001 mA
Measurement Current Accuracy: ±(0.01% of Reading + 2 Counts)
Sourcing Current Range: 0 mA to 24 mA
Sourcing Current Accuracy: ±(0.01% of Range)
Loop Power Supply: 24 V DC
HART Protocol Support: Integrated for smart positioner configuration and diagnostics
Pre-configured Valve Tests: Signature, Speed, Step, Bump, Partial Stroke
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -20 °C to 60 °C
Relative Humidity: 95% non-condensing
Safety Rating: CAT I 30 V
Ingress Protection: IP52
Power Source: 6 AA alkaline batteries (LR6)
Dimensions: 200 mm x 96 mm x 47 mm
Weight: 0.95 kg
INDUSTRIAL APPLICATION & TECHNICAL COMPATIBILITY
In continuous process industries such as petrochemical refining, chemical processing, and power generation, control valve degradation is a primary cause of unplanned outages and product quality loss. The Fluke 710 solves this critical challenge during scheduled turnaround maintenance and troubleshooting. For example, in an emergency shutdown system (ESD) loop, a maintenance engineer can deploy the Fluke 710 to perform an in-situ partial stroke test (PST) on a critical control valve. By utilizing the pre-configured valve signature test, the device measures physical valve travel relative to the applied mA control signal. This allows real-time detection of stiction, packing friction, and valve assembly hysteresis without pulling the valve from the process line.
TECHNICAL COMPATIBILITY
The Fluke 710 offers seamless Technical Compatibility with standard smart valve positioners from leading manufacturers including Fisher, Samson, Metso, and ABB. Data captured in the field is easily uploaded via USB to Fluke ValveTrack software, allowing maintenance teams to trend valve performance, predict mechanical failures, and transition from reactive to predictive maintenance strategies.
Key Attributes
Type: Loop Valve Tester
Place of origin: China
Customized support: OEM, ODM
Power: ≥40 hours continuous use
Voltage: 0 to 30 V dc
Brand name: Fluke
Warranty: 1 years
Functions: MA source, mA simulate, mA read,
Ranges: MA (0 to 24 mA)
Resolution: 1uA on mA ranges
Accuracy: 0.01%
Operating Temperature Range: 14 to 131°F (-10 to 55°C)
Display: 128 x 64 pixels, LCD
Voltage Protection: 240 V ac
Overload Current Protection: 28 mA dc
Packaging and Delivery
Selling Units: Single item
Single package size: 32X28X17 cm
Single gross weight: 2.300 kg
