Description

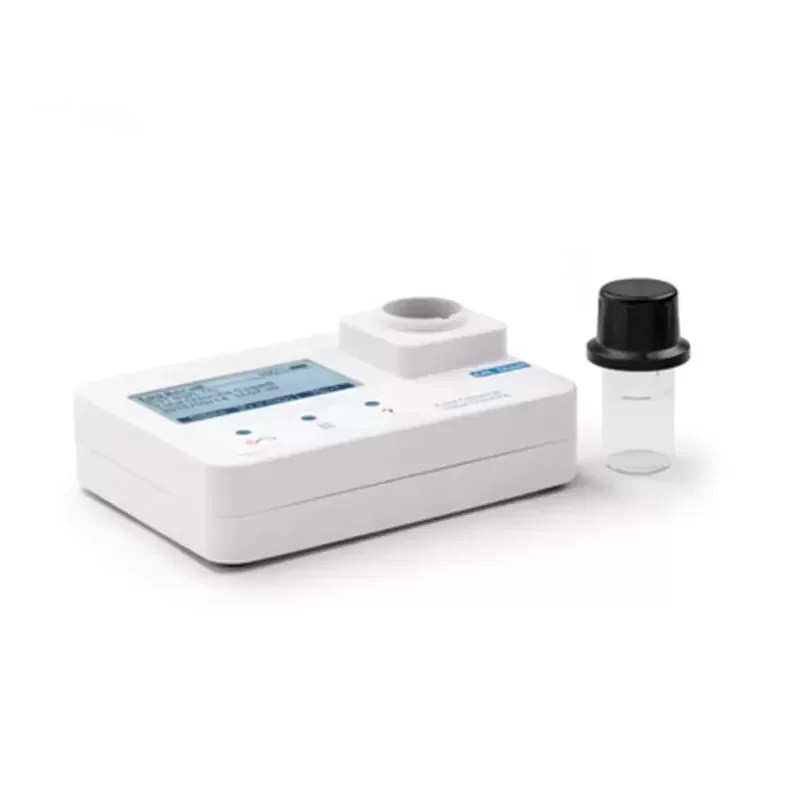

The Hanna Instruments HI97727 is a high-precision, portable photometer engineered for the direct colorimetric determination of water color using the Platinum-Cobalt (PCU) scale. Utilizing an advanced optical system, this instrument integrates a specialized light-emitting diode (LED), a narrow-band interference filter, and a silicon photodetector to ensure highly repeatable and accurate measurements. The rugged IP67-rated waterproof housing makes it ideal for field analysis in municipal drinking water plants, industrial wastewater facilities, and environmental monitoring operations.
Original Engineering features include the CAL Check validation system, allowing users to verify instrument performance and calibrate against NIST-traceable standards at any time. The unit is designed for seamless Technical Compatibility with Hanna CAL Check standards and standard 25 mm cuvettes.
Technical Specifications:
Manufacturer: Hanna Instruments
Model: HI97727
Measurement Parameter: Color of Water (Platinum-Cobalt Scale / PCU)
Measurement Range: 0 to 500 PCU
Resolution: 1 PCU
Accuracy: ±10 PCU ±5% of reading at 25 °C
Light Source: Light Emitting Diode (LED)
Bandpass Filter Wavelength: 420 nm
Bandpass Filter Bandwidth: 8 nm
Bandpass Filter Wavelength Accuracy: ±1.0 nm
Light Detector: Silicon Photocell
Cuvette Type: Round, 25 mm diameter
Logging Capacity: 50 readings (auto-logging)

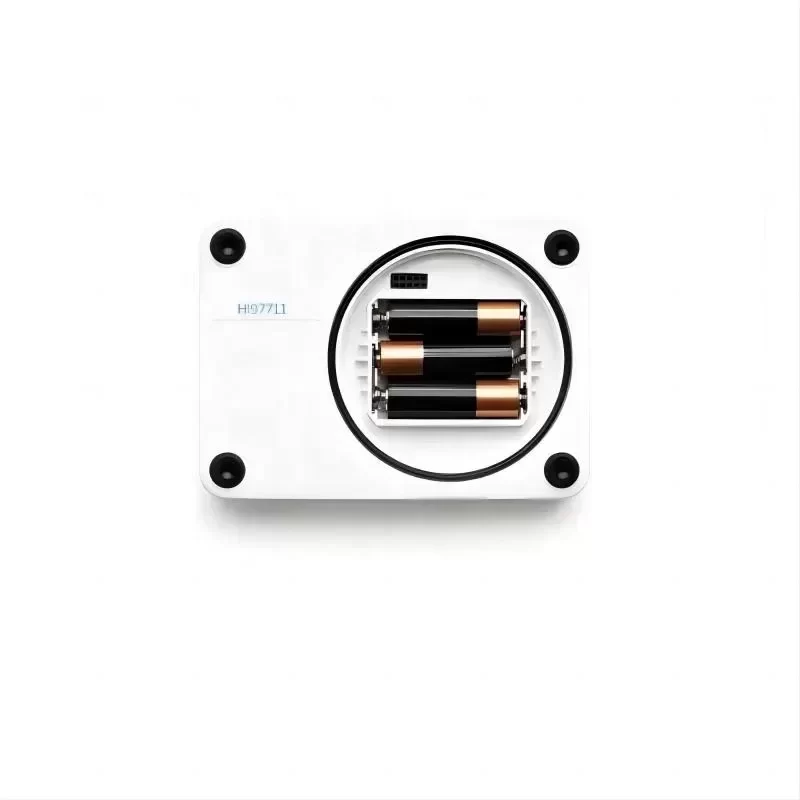

Power Supply: 1.5V AA Alkaline Batteries (3 pcs.)
Battery Life: Minimum 800 measurements without backlight
Auto-off: After 15 minutes of inactivity
Environmental Rating: IP67 Waterproof Casing
Operating Temperature: 0 to 50 °C
Operating Humidity: 0 to 100% RH
Dimensions: 142.5 mm x 102.5 mm x 50.5 mm
Weight: 380 g
Certifications: CE compliant
Application Scenario:
In municipal water treatment facilities, monitoring natural organic matter is critical to preventing the formation of harmful disinfection byproducts. The HI97727 allows field technicians to perform rapid, on-site colorimetric analysis of raw and treated water. By measuring true and apparent color down to 1 PCU, operators can instantly adjust coagulation and filtration processes to optimize chemical dosing, reducing operational costs and maintaining regulatory compliance.
Procurement and Logistics:
Standard Lead Time for this industrial-grade testing equipment is typically 3 to 5 business days, subject to regional distributor stock levels.
Key Attributes
Type: Color of Water Photometer
Accuracy: ±5% of reading
Place of origin: Italy
Customized support: OEM, ODM
Power: 0 to 500 PCU
Protection Class: IP65
Voltage: 1.5V
Logo/graphic design: 3D Printing
Brand name: HANNA
Warranty: 1 years
Color, Water Range: 0 to 500 PCU
Color, Water Resolution: 1 PCU
Color, Water Accuracy: ±10 PCU ±5% of reading at 25 °C
Photometer/Colorimeter Light Detector: Silicon photocel
Bandpass Filter Bandwidth: 8 nm
Logging Type: Automatically logged
Logging Memory: 50 readings
Packaging and Delivery
Selling Units: Single item
Single package size: 40X30X21 cm
Single gross weight: 3.000 kg
