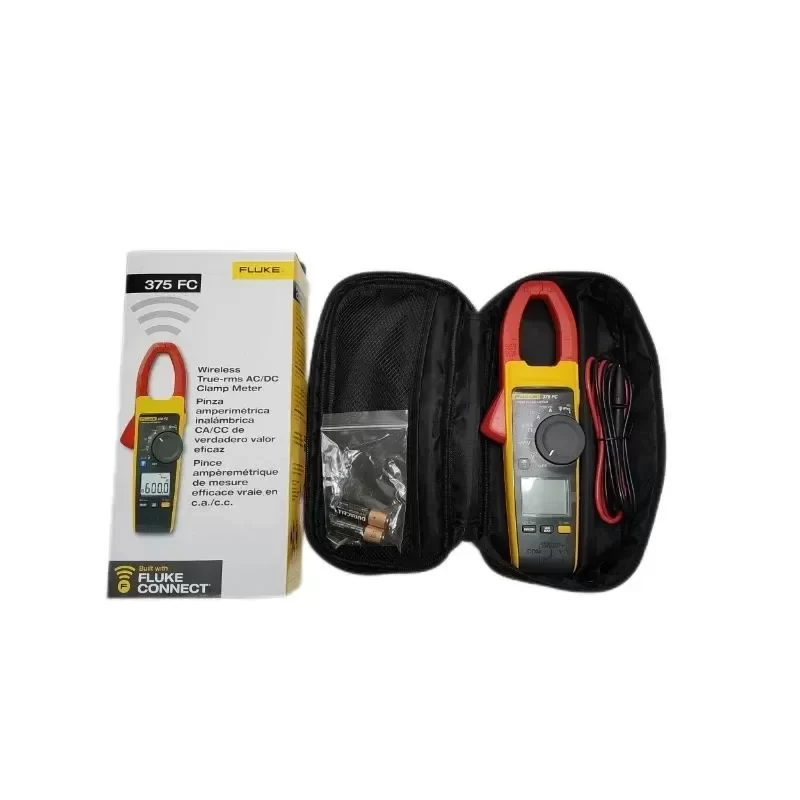

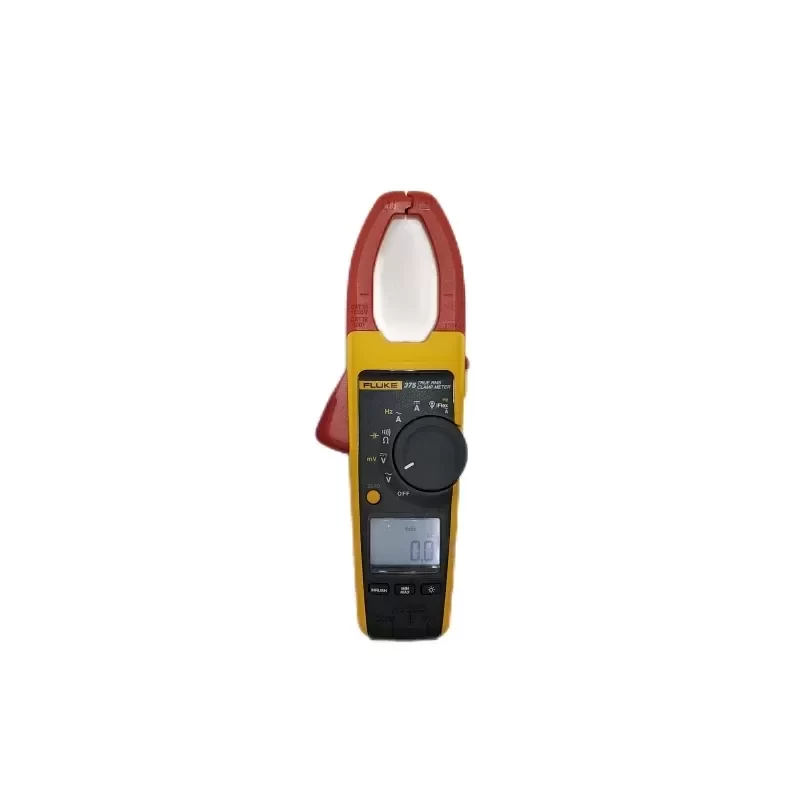

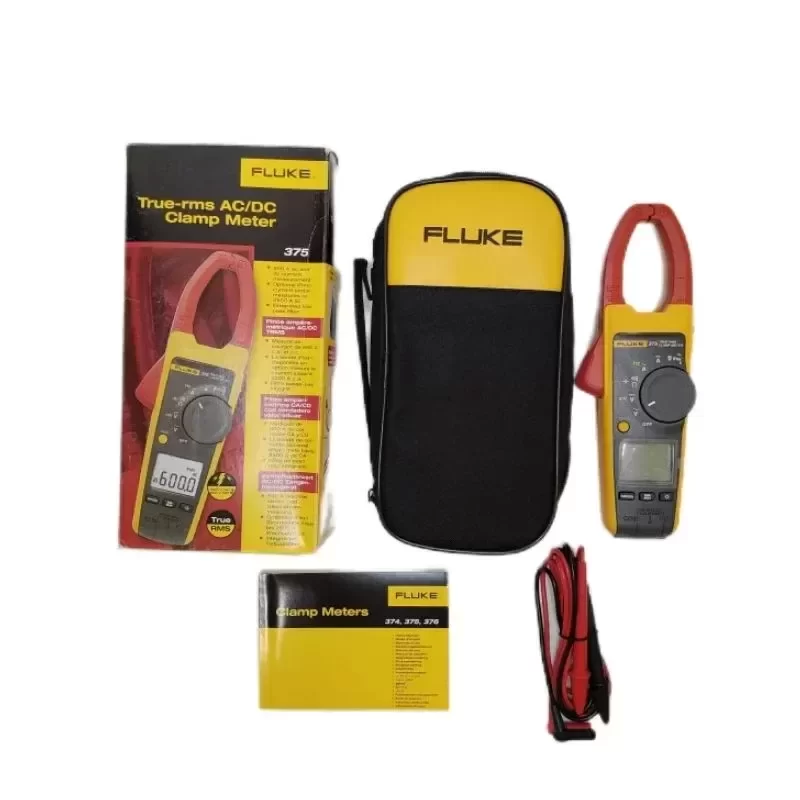

Fluke 375FC Digital Clamp Meter True RMS AC DC Current Measurement 376FC 374FC Series

Description

The Fluke 375FC is a high-performance True-RMS AC/DC clamp meter engineered for advanced industrial troubleshooting, preventative maintenance, and facility management. As a critical component of the Fluke 370 FC Series, which includes the 374FC and 376FC models, this instrument is designed to safely capture highly accurate electrical parameters in high-energy environments. Equipped with Fluke Connect wireless capability, it allows technicians to log and transmit measurements remotely, reducing exposure to hazardous arc-flash environments.

Technical Compatibility and System Integration:
The Fluke 375FC features full Technical Compatibility with the Fluke Connect ecosystem and is compatible with the iFlex flexible current probe (sold separately), which expands the AC measurement range up to 2500 A and improves access to crowded cable runs. Its original engineering ensures seamless calibration alignment with factory standards and certified test benches.

Product Specifications:
AC Current Range via Jaw: 600.0 A
AC Current Resolution: 0.1 A
AC Current Accuracy: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz)
DC Current Range: 600.0 A
DC Current Resolution: 0.1 A
DC Current Accuracy: 2% ± 5 digits
AC Voltage Range: 1000 V
DC Voltage Range: 1000 V
Resistance Range: 60.00 kΩ
Frequency Range: 5.0 Hz to 500.0 Hz
Capacitance Range: 1 μF to 1000 μF
Jaw Opening: 34 mm
Safety Rating: CAT III 1000 V, CAT IV 600 V
Wireless Connectivity: Bluetooth Low Energy (BLE) / Fluke Connect Enabled
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -40 °C to +60 °C
Environmental Protection Rating: IP30
Weight: 395 g

Industrial Application Scenario:
In modern manufacturing plants, diagnosing faults in Variable Frequency Drives (VFDs) and heavy-duty motor controllers is a complex challenge. Standard non-True-RMS meters produce inaccurate readings due to high-frequency noise and non-sinusoidal waveforms generated by VFDs. The Fluke 375FC solves this critical issue by utilizing a built-in low-pass filter and True-RMS processing to accurately measure actual current and voltage loads. This prevents premature motor failures, optimizes energy consumption, and significantly minimizes diagnostic Lead Time during unplanned downtime.

Quality Assurance:
By sourcing this tool, procurement teams receive the benefit of Original Engineering from a global leader in test and measurement. The robust physical design and integrated electronics ensure high-fidelity measurements across a long lifecycle in heavy industrial environments.

Key Attributes
Max. Ac Current: 2500 A
Max. DC Current: 600 A
Measuring Voltage Range: 1000 V
Place of Origin: China
Model Number: 375 FC
Brand Name: Fluke
Dimensions: 249 x 85 x 45 mm
Display Type: Digital Only
Max. Ac Voltage: 1000 V
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 1000 uF
Measuring Current Range: 600 A 2500A
Measuring Inductance Range: ,
Measuring Resistance Range: 60 kΩ
Operating Temperature: 14 to 122°F (-10 to 50°C)
Parameters Measured: DC Current, AC Voltage, DC Voltage, AC Current
Weight: 600g
AC Current via Jaw Range: 600 A
AC Current via Flexible Current Probe: 2500 A
Accuracy: 3%
AC/DC Voltage Range: 1000 V
Frequency via Jaw Range: 5.0 to 500.0 Hz
Resistance Range: 60 kΩ
Capacitance Range: 1000 uF
Dimensions: 9.8 x 3.3 x 1.8" (249 x 85 x 45 mm)

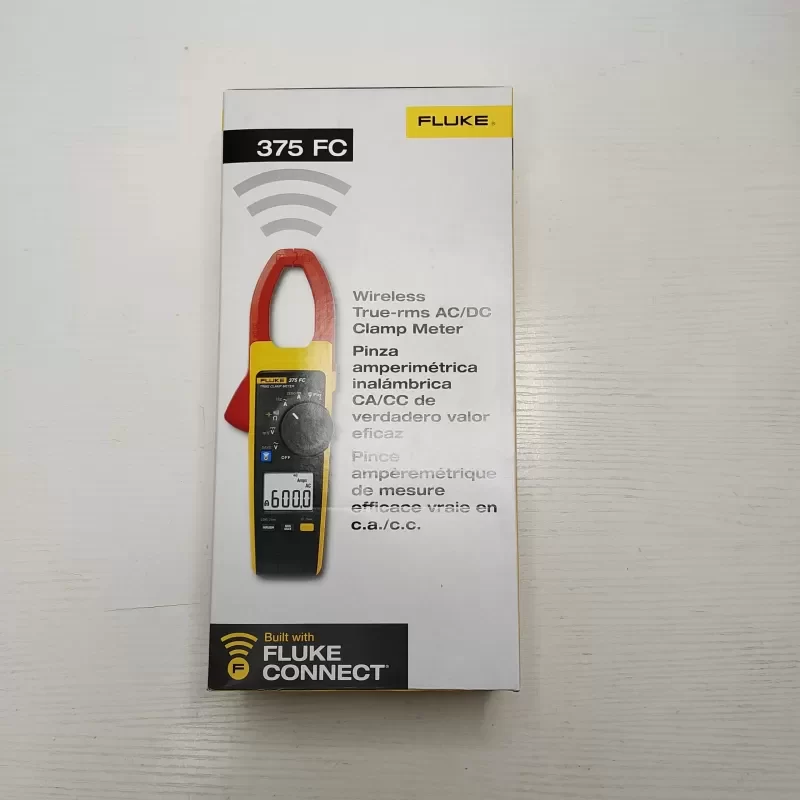

Packaging and Delivery
Selling Units: Single item
Single package size: 30X18X11 cm
Single gross weight: 0.940 kg
