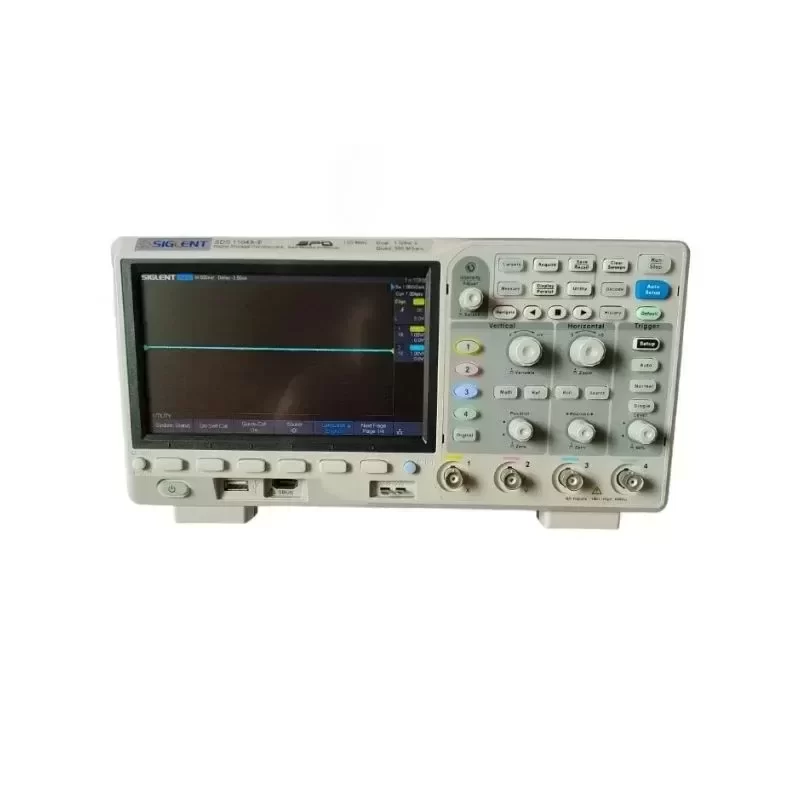

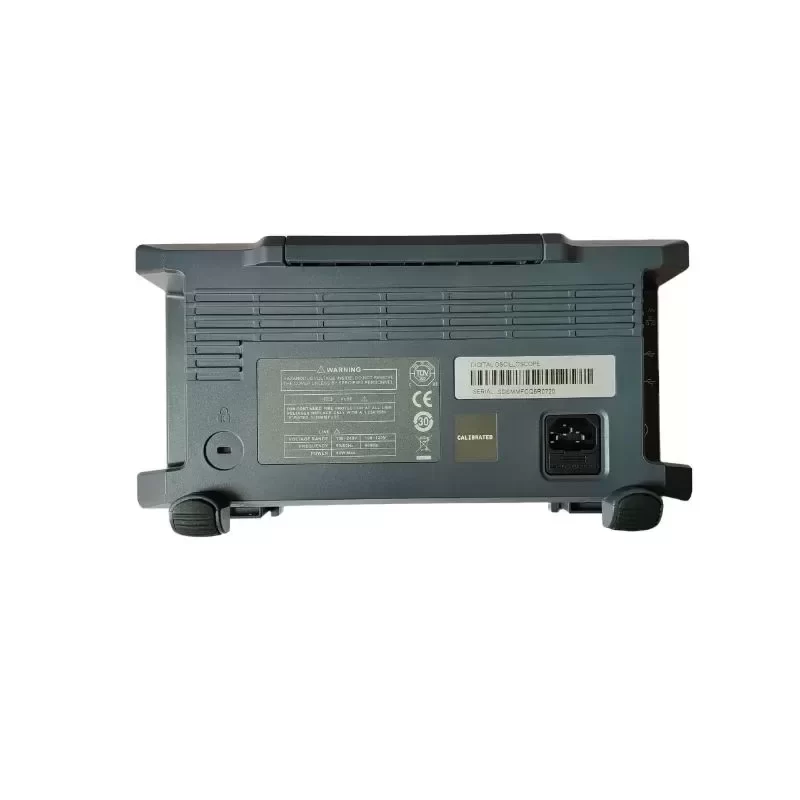

Siglent SDS1104X-E 100 MHz 4-Channel Digital Oscilloscope

Description

The Siglent SDS1104X-E is a high-performance 100 MHz 4-channel digital oscilloscope engineered for rigorous embedded system diagnostics, signal integrity analysis, and automated test environments. Leveraging Siglent proprietary Super Phosphor Oscilloscope technology, this instrument delivers exceptional signal fidelity, low background noise, and advanced triggering capabilities that ensure precise capture of transient anomalies.

Technical Specifications:
Manufacturer: Siglent Technologies
Model: SDS1104X-E
Number of Channels: 4
Bandwidth: 100 MHz
Real-time Sampling Rate: 1 GSa/s (single-channel active), 500 MSa/s (all channels active)
Memory Depth: 14 Mpts (single-channel active), 7 Mpts (all channels active)
Waveform Capture Rate: 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Vertical Resolution: 8-bit
Vertical Scale: 500 microvolts/div to 10 V/div
Input Impedance: 1 M Ohm ± 2% || 18 pF ± 3 pF
Trigger Types: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video, Serial
Serial Bus Decoding: I2C, SPI, UART, CAN, LIN (standard integration)
Mathematical Operations: +, -, *, /, FFT (1 Mpts processing length), d/dt, integrate, square root
Display: 7-inch color TFT-LCD, 800 x 480 resolution with 256-level intensity grading
Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass/Fail, Trigger Out
Power Input: 100 to 240 VAC, 50/60 Hz, auto-selection, 25 W maximum consumption
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -20 °C to 60 °C
Dimensions: 312 mm x 134 mm x 150 mm
Weight: 2.6 kg
Compliance Certifications: CE, cTUVus, RoHS, WEEE

Industrial Application and System Integration:
In automated manufacturing and hardware-in-the-loop validation, signal integrity is non-negotiable. The SDS1104X-E resolves complex debugging bottlenecks in mixed-signal microcontrollers and industrial sensor networks. Its deep memory segment allows long-duration captures without sacrificing sampling rate, which is critical for identifying timing drift and bus contention issues. The standard inclusion of serial bus decoding enables direct verification of physical layer protocol frames (such as I2C, SPI, CAN, and LIN) in automotive and industrial control systems, eliminating the need for external protocol analyzers.

Technical Compatibility and Lifecycle:
With comprehensive SCPI command set support via the integrated LAN interface, this oscilloscope ensures seamless Technical Compatibility with legacy automated test equipment racks, LabVIEW drivers, and customized Python test scripts. The robust mechanical chassis and standardized input terminals ensure drop-in replacement capability in standard B2B laboratory workstations. Built according to Original Engineering standards, each unit maintains strict calibration stability over extended operating cycles. Contact our engineering team for current Lead Time estimates and bulk integration support.

Key Attributes
Sample rate: 500 MSa/s
Type: Digital Oscilloscope
Place of origin: China
Size: 35 * 25 * 15CM
Model number: SDS1104X-E
Brand name: Siglent
Customized support: ODM
Warranty: 1 years
Bandwidth: 100 MHz
Channels: 4
Serial Trigger and decoder (Standard): IIC, SPI, UART, CAN, LIN

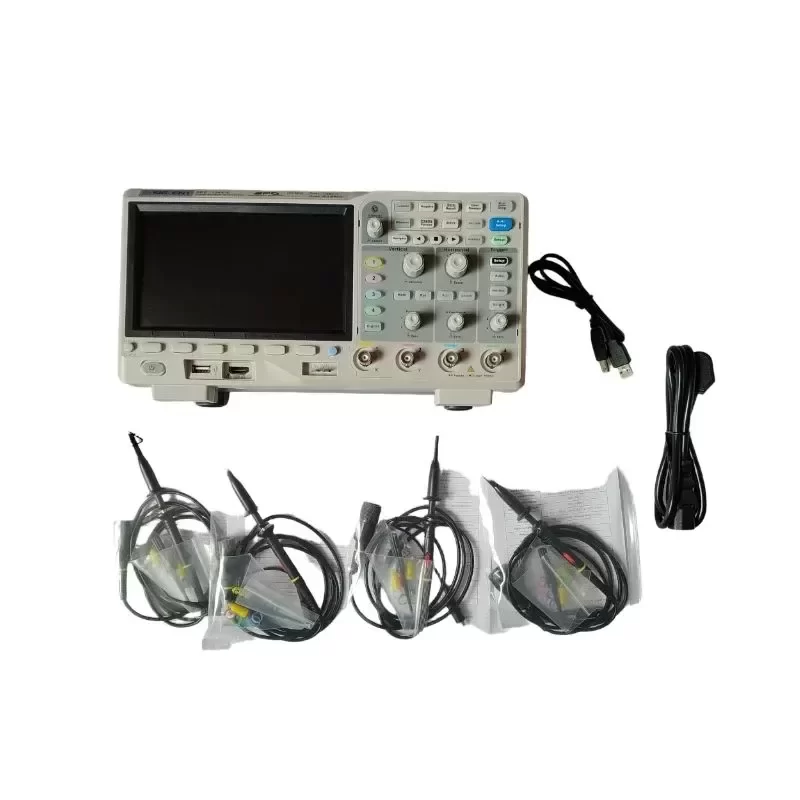

Probe (Std): 4 pcs passive probe PP510
Display: 7 inch TFT -LCD (800x480)

Packaging and Delivery
Selling Units: Single item
Single package size: 46X36X27 cm
Single gross weight: 4.300 kg
