Description

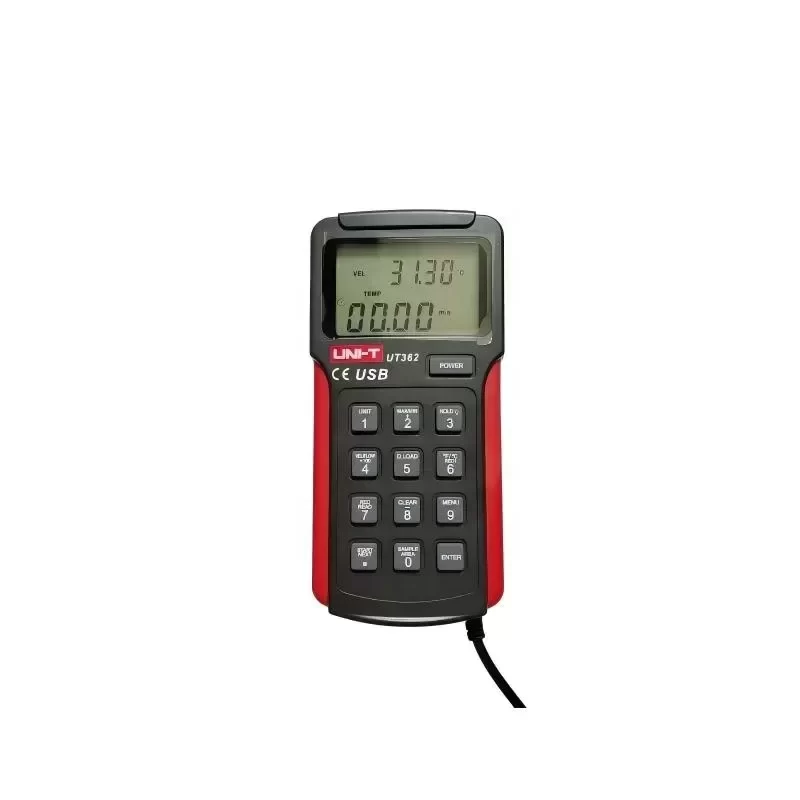

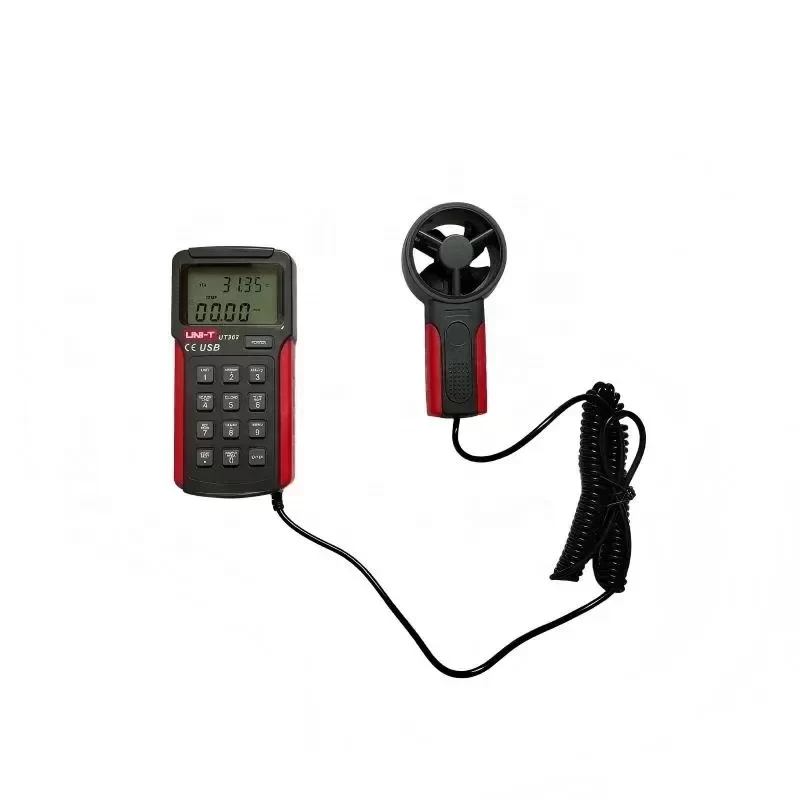

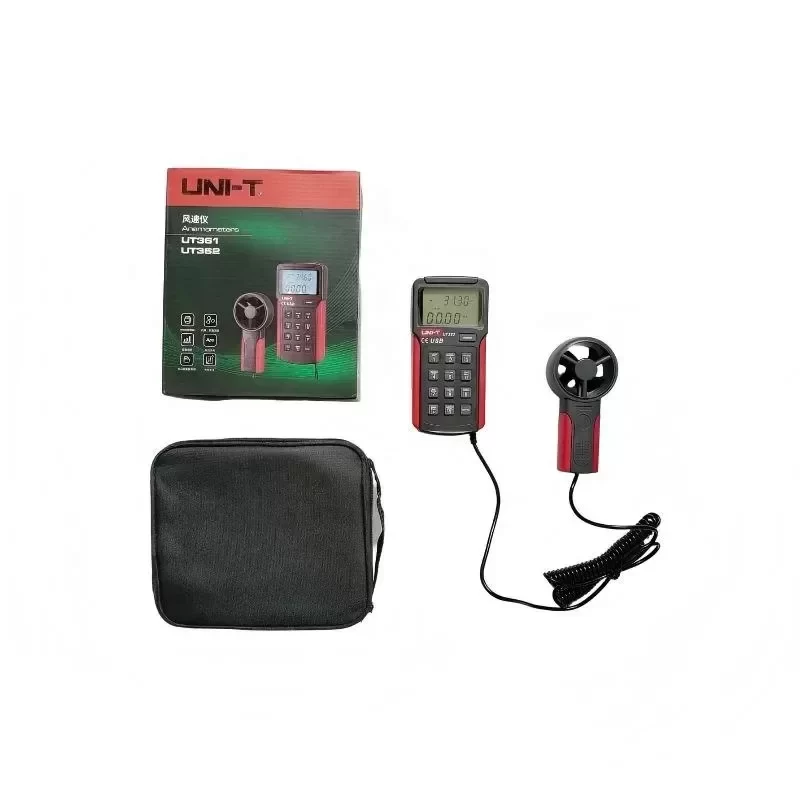

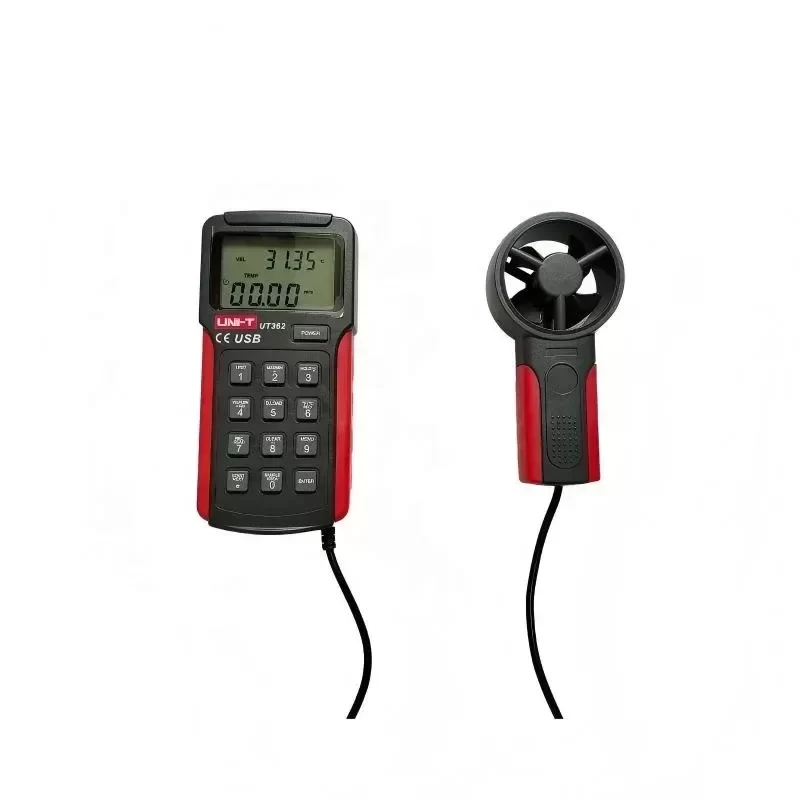

The UNI-T UT361 and UT362 series digital anemometers are high-precision instruments engineered for professional HVAC diagnostics, industrial ventilation monitoring, and environmental assessment. Designed with a split-type vane sensor utilizing low-friction ball bearings, these devices deliver exceptional sensitivity and long-term calibration stability. The dual-display LCD provides simultaneous readings of wind speed/airflow volume and temperature, optimizing field workflow efficiency.
TECHNICAL SPECIFICATIONS
Wind Speed Measurement Range: 2 m/s to 30 m/s
Wind Speed Accuracy: ±(3% + 0.5)
Wind Temperature Measurement Range: 0°C to 40°C (32°F to 104°F)
Wind Temperature Accuracy: ±1°C (±2°F)
Airflow Volume Range (CMM): 0.001 to 999900 m³/min
Airflow Volume Range (CFM): 0.001 to 999900 ft³/min
Display Count: 9999-count dual display with backlight
Data Storage Capacity: 2044 records
PC Interface: USB connection (UT362 model exclusive)
Sensor Type: Split-type vane with high-durability ball bearing
Power Supply: 9V Alkaline Battery (6F22)
LCD Dimensions: 57 mm x 37 mm
Product Dimensions: 162 mm x 78 mm x 30 mm
Weight: 375g (excluding battery)
Certifications: CE, UKCA, RoHS compliant
INDUSTRIAL APPLICATION SCENARIO
In large-scale commercial HVAC commissioning, balancing airflow across multi-zone duct networks is critical to maintaining building energy efficiency and indoor air quality. The UNI-T UT361/UT362 solves the challenge of measuring variable air volume (VAV) terminal boxes in hard-to-reach ceiling plenums. By utilizing the split-vane sensor design, field engineers can position the sensor head directly inside the duct discharge while reading real-time CMM/CFM calculations safely on the handheld console. The UT362’s USB interface allows for continuous data logging during system balancing, ensuring precise compliance with ASHRAE standards.
COMMERCIAL & PROCUREMENT METRICS
Original Engineering: Manufactured by Uni-Trend Technology, ensuring strict adherence to global metrology standards and robust build quality.
Technical Compatibility: Seamlessly integrates with standard HVAC diagnostic protocols and PC-based data acquisition software via the provided USB interface (UT362).
Lead Time: Standard commercial lead times apply, with expedited shipping options available for critical facility maintenance operations.
Key Attributes
Type: Anemometer
Place of origin: Guangdong, China
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating humidity: Up To 90% RH
Protection grade: IP65
Model number: UT362
Brand name: UNI-T
Customized support: ODM
Material: Plastic
Size: 162mm x 78mm x 30mm
Warranty: 2 Years
Wind speed measurement: 10m/s~30m/s
Wind count measurement (CMM): 0.001~9999 x 100
Auto power off: Around 10 minutes
Packaging and Delivery
Selling Units: Single item
Single package size: 28X19X13 cm
Single gross weight: 0.800 kg
