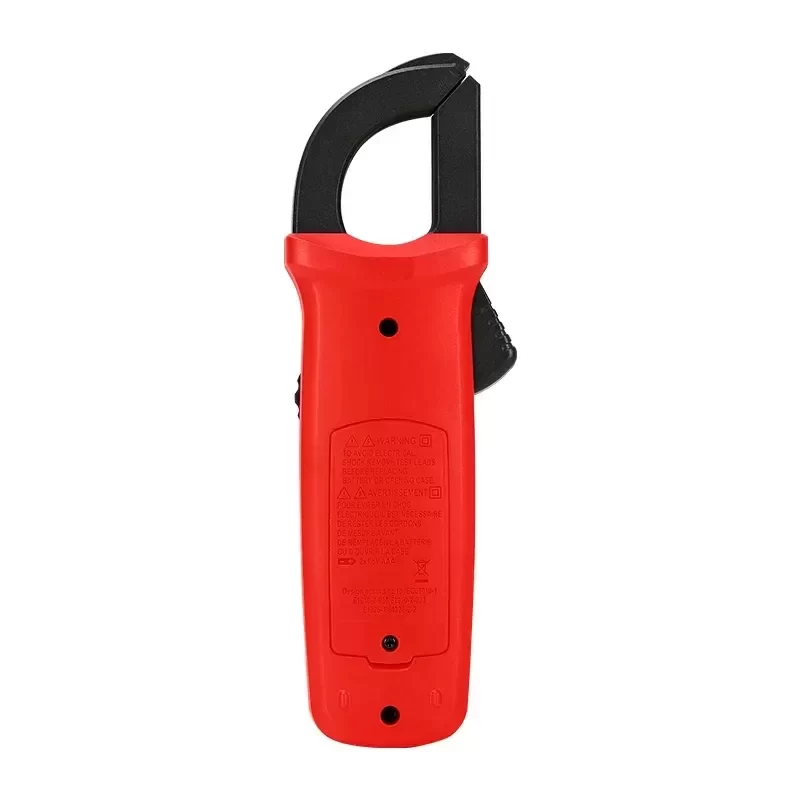

UNI-T UT201+ Digital Clamp Meter NCV 400A to 600A AC/DC Current Temperature Test Measures Resistance Continuity Clamp Meters

Description

The UNI-T UT201+ is a professional True RMS digital AC clamp meter engineered for commercial electrical maintenance, HVAC diagnostics, and industrial facility inspection. Built in accordance with IEC/EN 61010-1, CAT II 600V, and CAT III 300V safety standards, this instrument provides reliable current measurement up to 400A AC and voltage detection up to 600V AC/DC. Its high-speed analog-to-digital processing core delivers accurate evaluations of non-sinusoidal electrical loads across diverse industrial distribution networks.

TECHNICAL SPECIFICATIONS
AC Current Range: 4.000A / 40.00A / 400.0A
AC Current Accuracy: ±(2.0% + 10 digits)
AC Current Frequency: 50Hz to 100Hz
AC Voltage Range: 4.000V / 40.00V / 400.0V / 600V
AC Voltage Accuracy: ±(0.8% + 5 digits)
AC Voltage Frequency Response: 10Hz to 10kHz
DC Voltage Range: 400.0mV / 4.000V / 40.00V / 400.0V / 600V
DC Voltage Accuracy: ±(0.5% + 2 digits)
Resistance Measurement Range: 400.0Ω / 4.000kΩ / 40.00kΩ / 400.0kΩ / 4.000MΩ / 40.00MΩ
Resistance Accuracy: ±(0.8% + 2 digits)
Display Count: 4000 Counts
Measurement Type: True RMS
Jaw Opening Capacity: 28 mm
NCV Detection: Acoustic and visual multi-segment indication
Continuity Test: Acoustic threshold ≤30Ω
Diode Test: Open-circuit voltage approx. 3.0V
Auto-Ranging: Fully automated with manual override option
Data Hold: Integrated push-button freeze
Auto Power-Off: 15 minutes idle threshold
Operating Temperature: 0°C to 40°C
Operating Relative Humidity: ≤80% (0°C to 30°C), ≤50% (30°C to 40°C)
Storage Temperature: -10°C to 50°C
Power Supply: 2 x 1.5V AAA (R03) batteries
Safety Ratings: CAT II 600V, CAT III 300V, Pollution Degree 2
Certifications: CE, UKCA, cETLus, RoHS
Dimensions: 215 mm x 63 mm x 36 mm
Weight: 248 g

ENGINEERING ARCHITECTURE & DESIGN
True RMS Conversion: Minimizes waveform distortion errors generated by variable speed drives, switched-mode power supplies, and automated production controls.
Integrated NCV Sensor: Facilitates rapid live-circuit verification at the jaw tip prior to physical conductor engagement, enhancing operational safety protocols.
Robust Clamp Geometry: The 28 mm jaw profile enables single-handed cable isolation within tightly bundled distribution boards and motor control centers.
Protective Circuit Design: Full-scale overload protection rated to 600V across voltage, resistance, and continuity testing modes prevents component failure during inadvertent operator error.

INDUSTRIAL APPLICATION
The UT201+ solves critical diagnostic challenges in facility power distribution systems containing non-linear loads. In industrial setups where standard average-responding clamp meters miscalculate distorted waveforms, the True RMS capability of this unit provides precise current telemetry. It is utilized by maintenance engineers for monitoring phase balance, verifying motor running current on industrial pumps and conveyors, and diagnosing low-voltage control panel circuitry without breaking active conductors.

PROCUREMENT & COMPLIANCE
Technical Compatibility: Standard 4 mm shrouded safety terminals ensure full compatibility with standard industrial test lead sets, fused probes, and busbar alligator clips.
Original Engineering: Direct UNI-T factory production standard with verified calibration consistency and serialized tracking.
Lead Time: Stock configurations ship within 24 to 48 hours for maintenance, repair, and operations (MRO) provisioning and fleet procurement.

Key Attributes
Clamp Opening Size: 28mm
Max. Ac Current: 600 A
Max. DC Current: 600 A
Measuring Voltage Range: 600V
Place of Origin: Guangdong, China
Model Number: UT201+
Brand Name: UNI-T
Accuracy Class: ±(1%+5)
Dimensions: 193*73*34mm
Display Type: Digital Only
Instrument Safety Rating: CAT II 600V
Max. Ac Voltage: 600 V
Max. DC Voltage: 600V
Measuring Capacitance Range: 60mF
Measuring Current Range: 600A
Measuring Inductance Range: 10Hz~60kHz
Measuring Resistance Range: 60MΩ
Operating Temperature: -40℃~1000℃
Parameters Measured: AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Low Input Impedance, Resistance, Temperature, Temperature (K)
Weight: 260g

Packaging and Delivery
Selling Units: Single item
Single package size: 25X10X5 cm
Single gross weight: 0.700 kg
