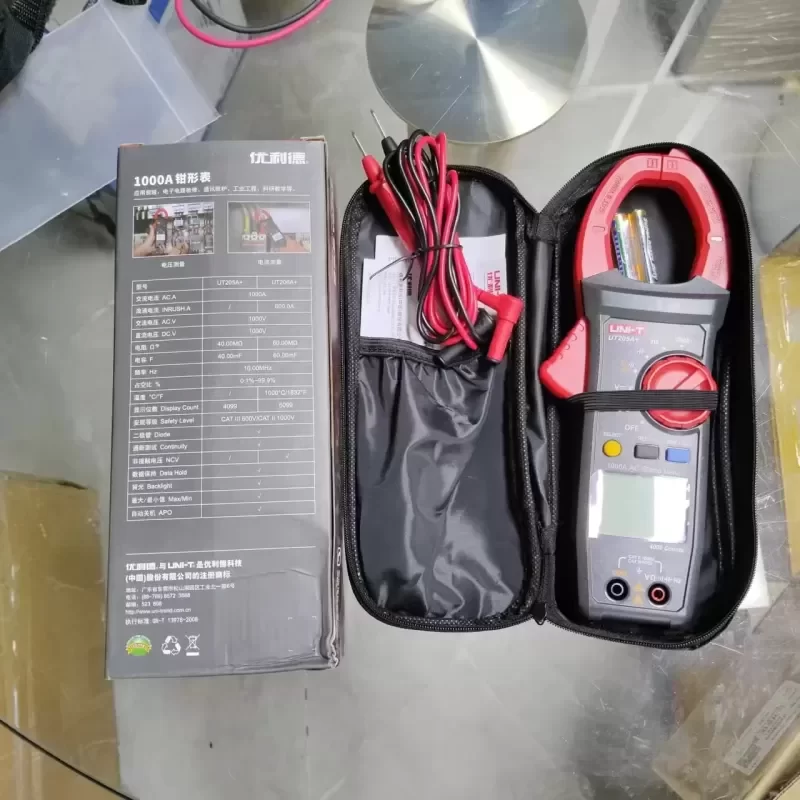

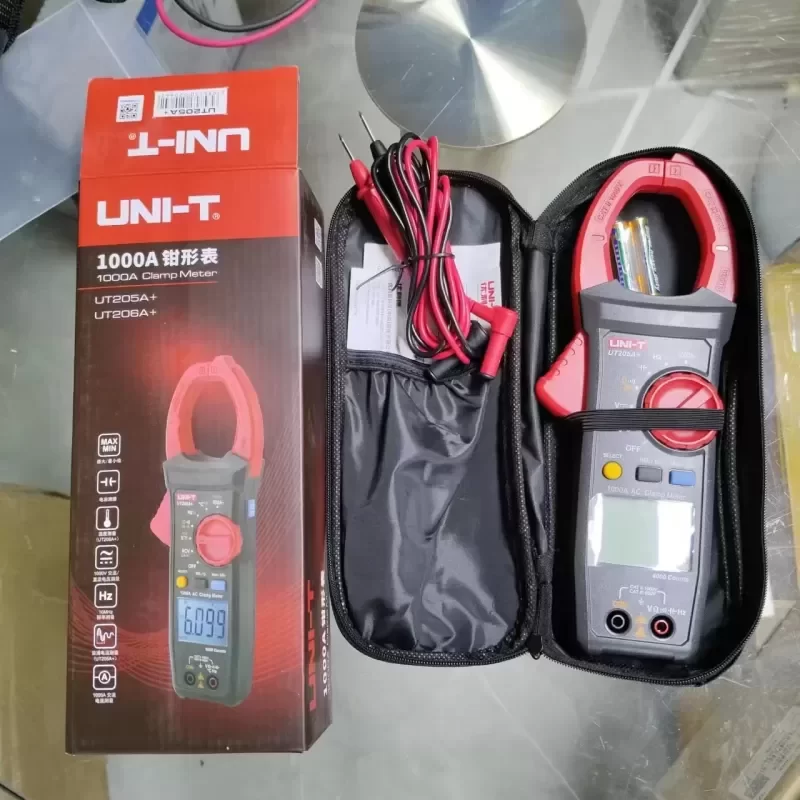

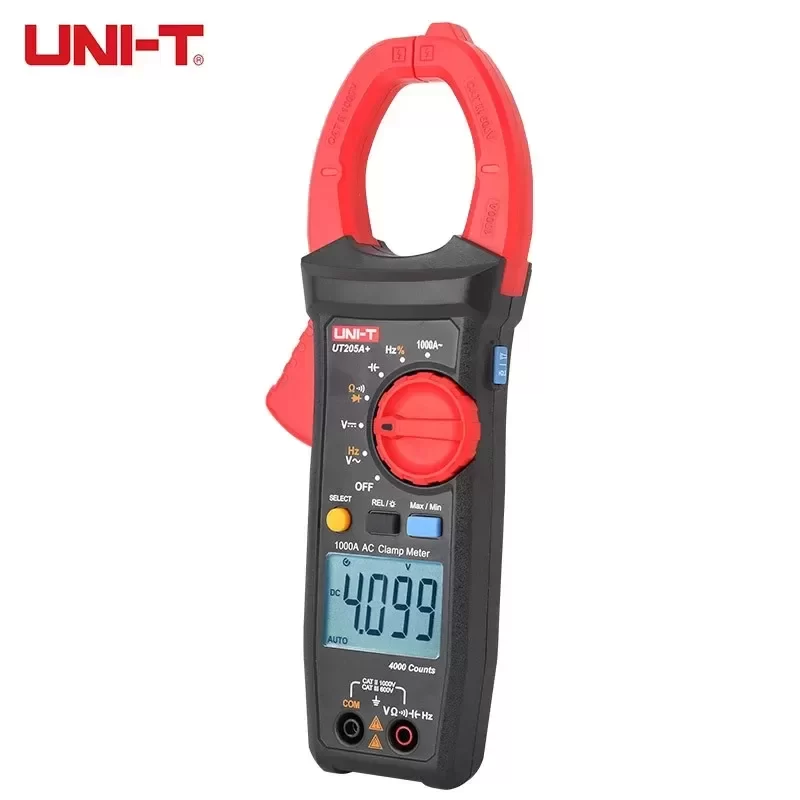

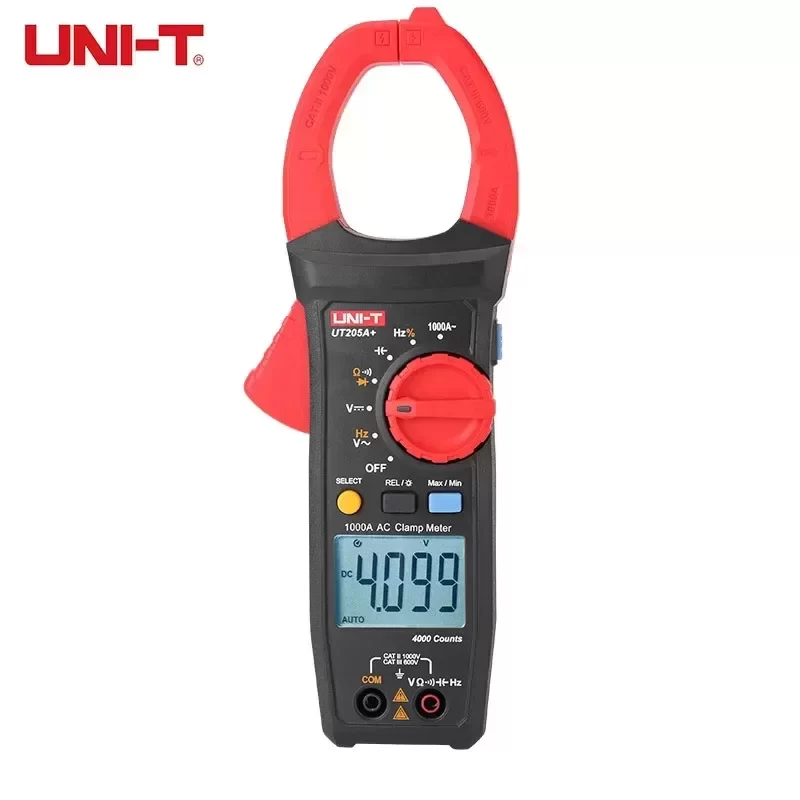

UNI-T UT205A+ UT206A+ 1000A AC Clamp Meters

Description

The UNI-T UT205A+ and UT206A+ are professional-grade 1000A AC clamp meters designed for high-current electrical testing and industrial maintenance. Engineered for precision and safety, these instruments provide True RMS measurements, ensuring accurate readings on non-linear loads. The UT206A+ model further expands diagnostic capabilities with integrated temperature measurement functionality. Built with Original Engineering standards, these meters offer robust Technical Compatibility across heavy-duty electrical panels, HVAC systems, and motor control centers. With Brand New units available, the Lead Time is minimized for immediate deployment in critical infrastructure.

Technical Specifications
Brand: UNI-T
Model Series: UT205A+ / UT206A+
Equipment Type: Digital AC Clamp Meter
AC Current Range: 1000A
AC Voltage Range: 1000V
DC Voltage Range: 1000V
Resistance Range: 40MΩ (UT205A+) / 60MΩ (UT206A+)
Capacitance Range: 40mF (UT205A+) / 60mF (UT206A+)
Frequency Range: 10Hz to 10MHz
Temperature Range (UT206A+ only): -40°C to 1000°C
Display Count: 4000 (UT205A+) / 6000 (UT206A+)
Jaw Opening: 45mm
Measurement Technology: True RMS
Safety Category: CAT III 1000V, CAT IV 600V
Additional Features: NCV, Data Hold, Auto Power Off, LCD Backlight
Power Supply: 1.5V AAA Batteries (x2)
Weight: 235g
Dimensions: 242mm x 76.5mm x 52mm
Certifications: CE, UKCA, cETLus

Industrial Application
These clamp meters are specifically utilized in industrial plant maintenance for diagnosing three-phase motor drives and commercial HVAC power distribution. The 45mm jaw capacity allows technicians to safely clamp around thick industrial cables, while the True RMS capability ensures accurate current profiling in environments with high harmonic distortion caused by variable frequency drives (VFDs).

Key Attributes
Measuring Voltage Range: 1000V
Place of Origin: Guangdong, China
Model Number: UT205A+
Brand Name: UNI-T
Dimensions: 242 x 76.5 x 52mm
Display Type: Digital Only
Measuring Capacitance Range: 40mF
Measuring Current Range: 1000A
Measuring Inductance Range: 40MΩ
Measuring Resistance Range: 40MΩ
Operating Temperature: -10℃~50℃
Weight: 240g
Product name: UNI-T
Model: UT205A+
AC current (A): 1000A
AC voltage (V): 1000V
ACV frequency (Hz): 10Hz~10kHz
Resistance (Ω): 40MΩ
Capacitance (F): 40mF
Frequency (Hz): 10.00Hz~10.00MHz
Safety rating: CAT II 1000V/CAT III 600V

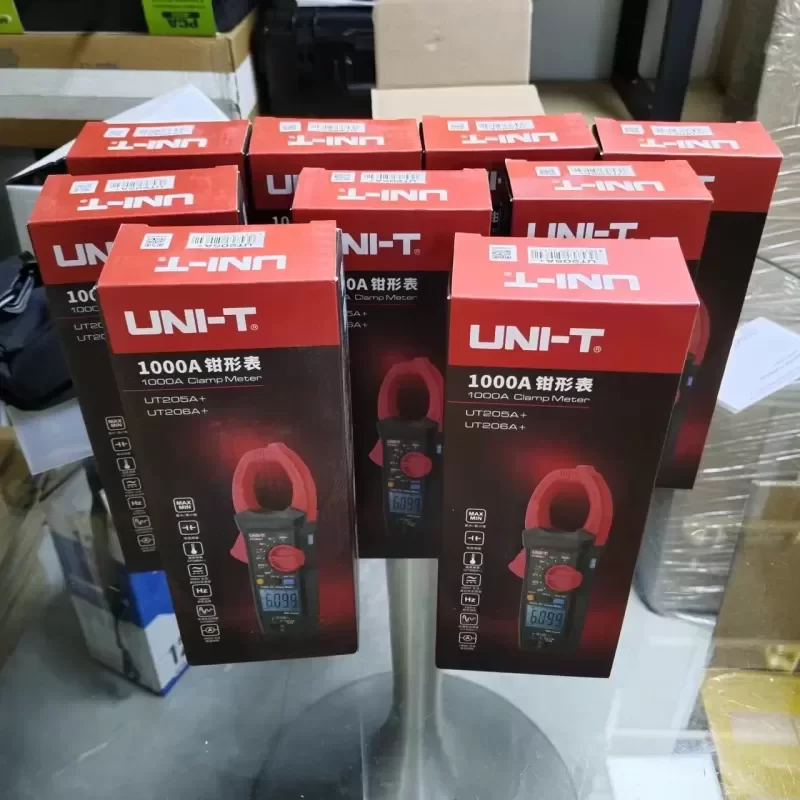

Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 29X14X11 cm
Single gross weight: 1.000 kg
