Description

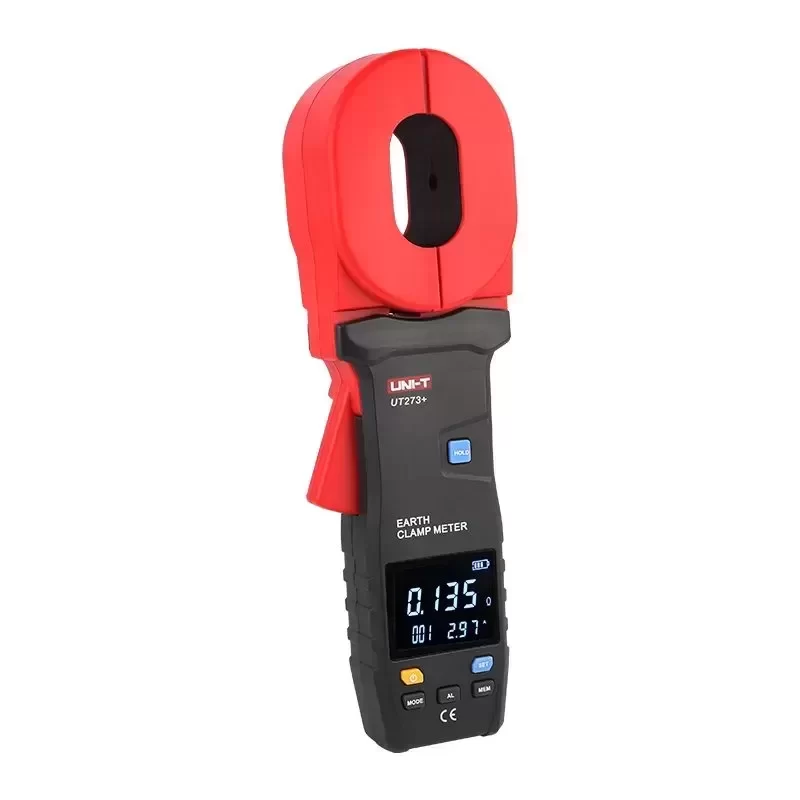

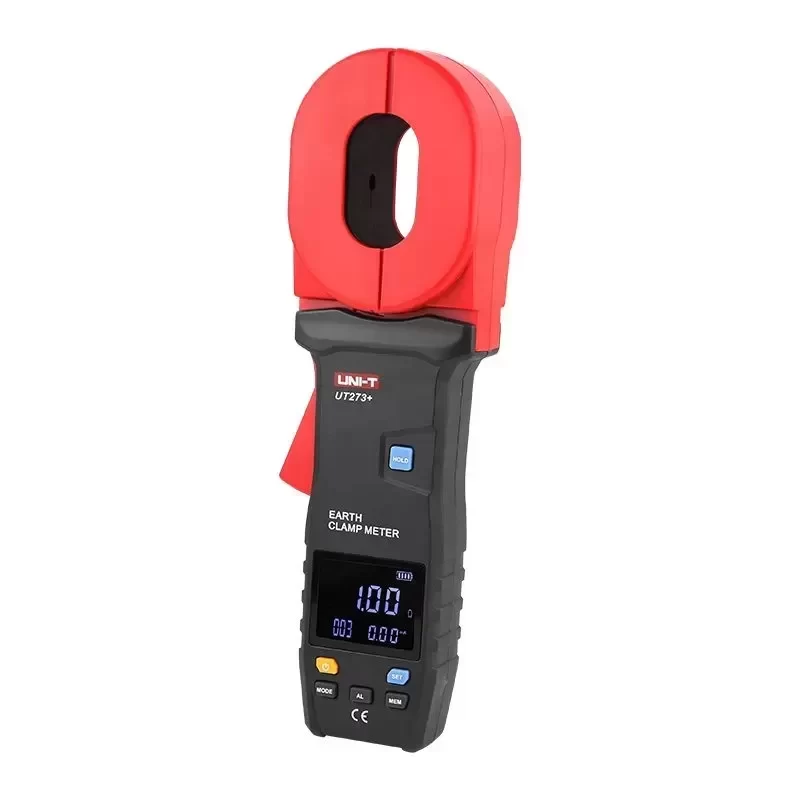

The UNI-T UT273+ is an industrial-grade clamp-on earth ground resistance and AC leakage current tester engineered for direct non-intrusive loop testing. Built upon Original Engineering principles, the instrument utilizes dual-coil magnetic core mutual induction technology to inject a high-frequency test voltage into a closed grounding loop and measure induced return current. This methodology allows accurate verification of grounding network continuity and impedance without disconnecting grounding down-conductors or driving auxiliary ground spikes, eliminating system downtime during critical electrical testing routines.
Technical Specifications:
Manufacturer: UNI-T (Uni-Trend Technology)
Model Designation: UT273+
Product Type: Clamp Earth Ground Resistance and Leakage Current Tester
Earth Resistance Measurement Range: 0.010Ω to 500Ω
Resistance Resolution: 0.001Ω
Resistance Accuracy: ±(1% + 0.01Ω)
Current Measurement Range: 0.00mA to 20.0A AC
Current Resolution: 0.05mA
Current Accuracy: ±(2% + 1mA)

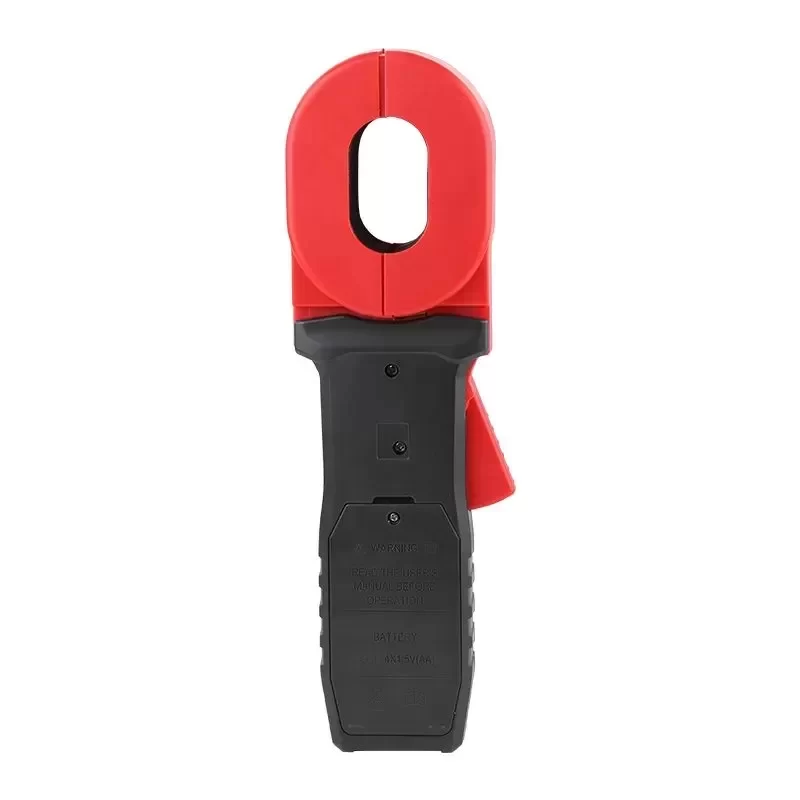

Jaw Dimensions: 55mm × 32mm (Oblong aperture for flat busbars and round conductors)
Display Type: 4-Digit Liquid Crystal Display with Backlight
Memory Capacity: 300 Measurement Groups
Alarm Function: Audible and Visual Threshold Configuration
Measurement Frequency: >1kHz
Safety Standard: IEC 61010-1, CAT III 300V, Pollution Degree 2
Power Supply: 4 × 1.5V AA (LR6) Alkaline Cells
Auto Power-Off: 5 Minutes (Automatic Standby Mode)
Operating Temperature: -10°C to +40°C
Operating Relative Humidity: 10% to 90% RH (Non-condensing)
Storage Temperature: -20°C to +60°C
Dimensions: 285mm × 85mm × 56mm
Weight: 1180g (Including batteries)
Technical Compatibility and Application Engineering:
The UT273+ delivers direct Technical Compatibility across multi-grounded industrial power networks, telecommunications transmission towers, rail transit signaling infrastructure, and petrochemical processing facilities. The instrument addresses the specific engineering challenge of measuring ground loop resistance in dense urban and concrete-paved substation installations where driving external reference rods into earth is physically impossible. Its wide-aperture oblong jaw accepts standard 30mm flat copper grounding busbars as well as high-gauge cabling, facilitating continuous loop integrity monitoring under active field conditions.
Procurement and Availability:
Condition: Brand New in Original Factory Packaging
Inventory Status: In Stock
Lead Time: Standard dispatch within 24 to 48 hours for global industrial supply chains
Included Accessories: Calibration Loop Ring, Rigid Carrying Case, User Manual, Factory Inspection Certificate
Key Attributes
Accuracy Class: ±1%
Current Range: 20.0A
Insulation Resistance: 600Ω
Measuring Range: 600Ω 20.0A
Testing Voltage: 600V
Place of Origin: Guangdong, China
Model Number: UT273+
Brand Name: UNI-T
Dimensions: 285mm x 85mm x 58mm
Display Type: Digital Only
Operating Temperature: -10 to 50
Earth resistance (Ω): 600Ω
Current (AC): 20.0A
Sample rate: 1 time/s
Screen: 4 digits EBTN screen
Data transmission: USB cable
Data storage: 500 set
Overvoltage category: CAT III 300V, CAT IV 150V
Screen size: 46mm x 36mm
Packaging and Delivery
Selling Units: Single item
Single package size: 38X32X16 cm
Single gross weight: 2.600 kg
