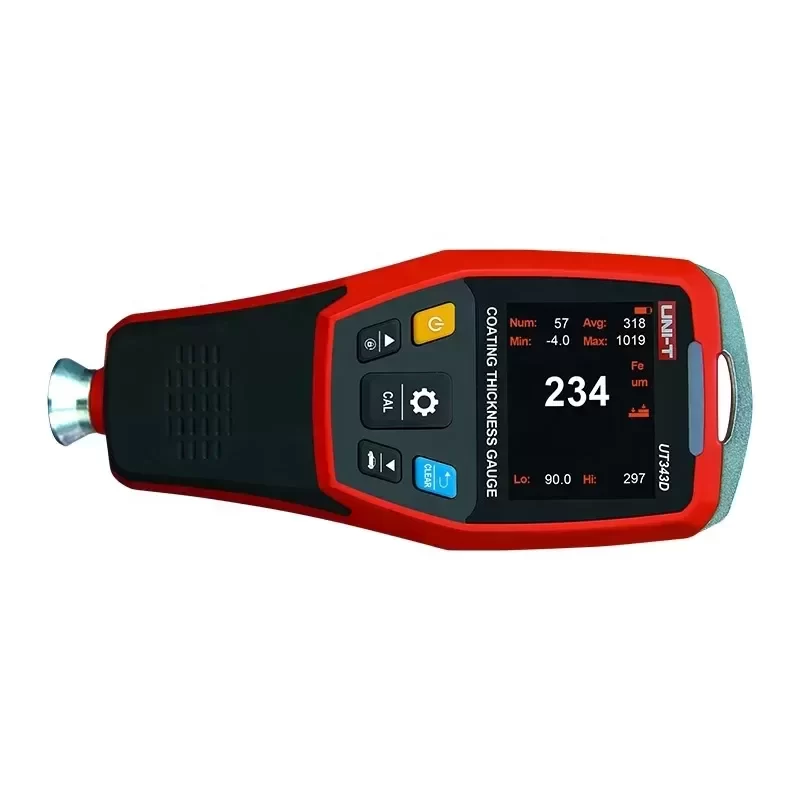

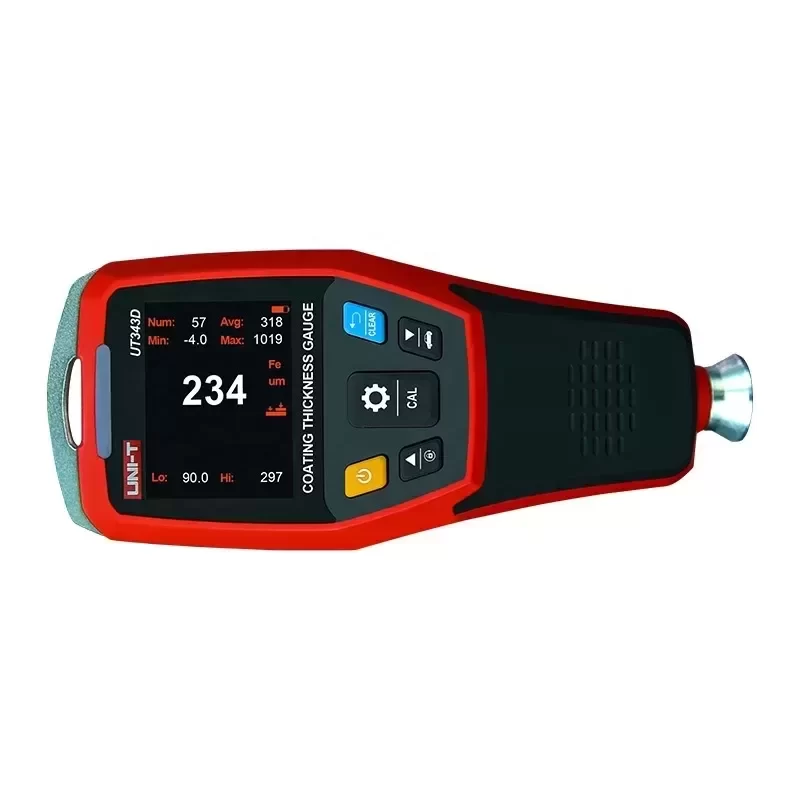

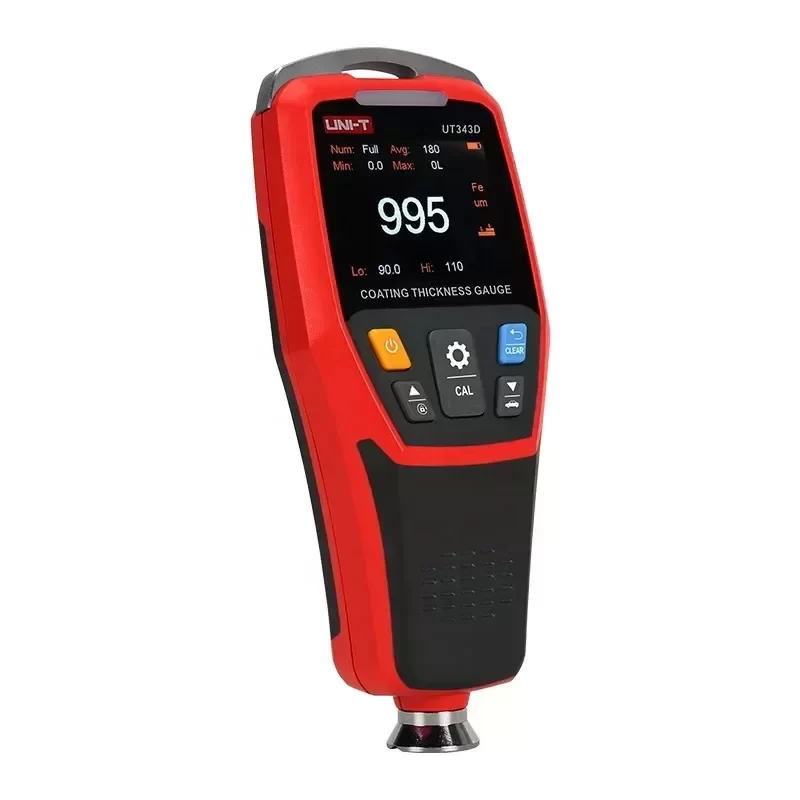

UNI-T UT343D Coating Thickness Gauge Measures Ferrous and Non-Ferrous Materials

Description

The UNI-T UT343D is a high-precision coating thickness gauge engineered for rigorous industrial surface inspection. Utilizing advanced electromagnetic induction and eddy current principles, this device provides instantaneous, non-destructive measurement of non-magnetic coatings on ferrous substrates (Fe) and non-conductive coatings on non-ferrous metal substrates (NFe). The UT343D features an integrated auto-recognition sensor that seamlessly switches between measurement modes, ensuring optimal Technical Compatibility across diverse manufacturing environments.

Technical Specifications

Manufacturer: UNI-T
Model: UT343D
Measurement Range: 0 to 1250μm
Accuracy: ±(3%H+1)μm
Resolution: 0.1μm (0 to 99.9μm), 1μm (100 to 1250μm)
Substrate Recognition: Automatic (Fe / NFe)
Display: 2.0-inch TFT LCD (320 x 240) with Auto-Rotation
Data Storage Capacity: 500 Groups
Communication Interface: USB for PC Software Analysis
Alarm System: Tri-color LED (Red/Green/Yellow) and Audio
Measurement Modes: Single, Continuous, Max, Min, Avg
Power Supply: 2 x 1.5V AAA Batteries
Operating Temperature: 0°C to 40°C
Dimensions: 153.5mm x 64.5mm x 41mm
Weight: 175g
Certifications: CE, RoHS

Industrial Application

The UT343D is critical for quality control in automotive manufacturing, aerospace surface treatment, and heavy industrial anti-corrosion applications. In pipeline manufacturing, precise verification of epoxy or polyurethane coating thickness is mandatory to prevent premature oxidation. The UT343D allows QA engineers to rapidly scan large surface areas, utilizing the continuous measurement mode and tri-color LED alarm to instantly identify out-of-tolerance zones.

Procurement and Lifecycle Value

Sourced through Original Engineering channels, the UT343D guarantees factory-calibrated accuracy and long-term reliability. Our optimized supply chain ensures a minimized Lead Time for bulk industrial procurement, supporting uninterrupted quality assurance operations. The inclusion of PC analysis software facilitates seamless integration into existing digital QA workflows, maximizing data traceability and compliance reporting.

Key Attributes
Accuracy: ±(3%H+1)um
Place of origin: Guangdong, China
Material: Plastic+Iron
Model number: UT343D
Brand name: UNI-T
Customized support: OEM, ODM
Warranty: 1 years
Measuring range: 0~1250um
Accuracy: ±(3%H+1)um
Resolution: 0.1um (0~99.9um); 1um (100~1250um)
Measurement method: Single/Continuous
Measurement mode: Max/Min/Avg
Metal type: Ferrous/ non-ferrous
Display type: 2.0-inches TFT LCD (320 x 240 pixels)
Item Weight: 400g

Packaging and Delivery
Selling Units: Single item
Single package size: 35X35X15 cm
Single gross weight: 2.500 kg
