Description

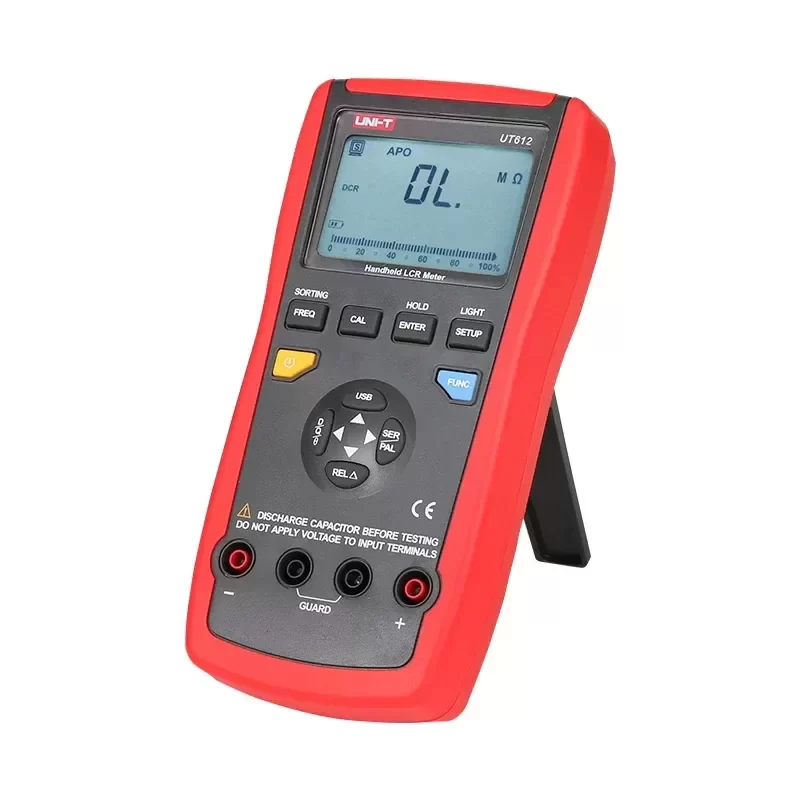

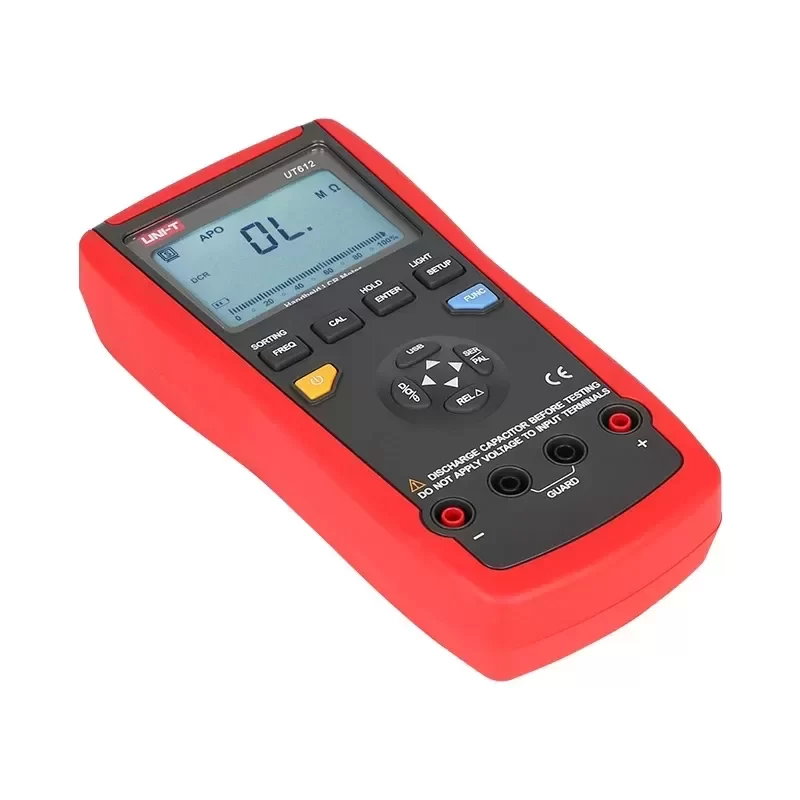

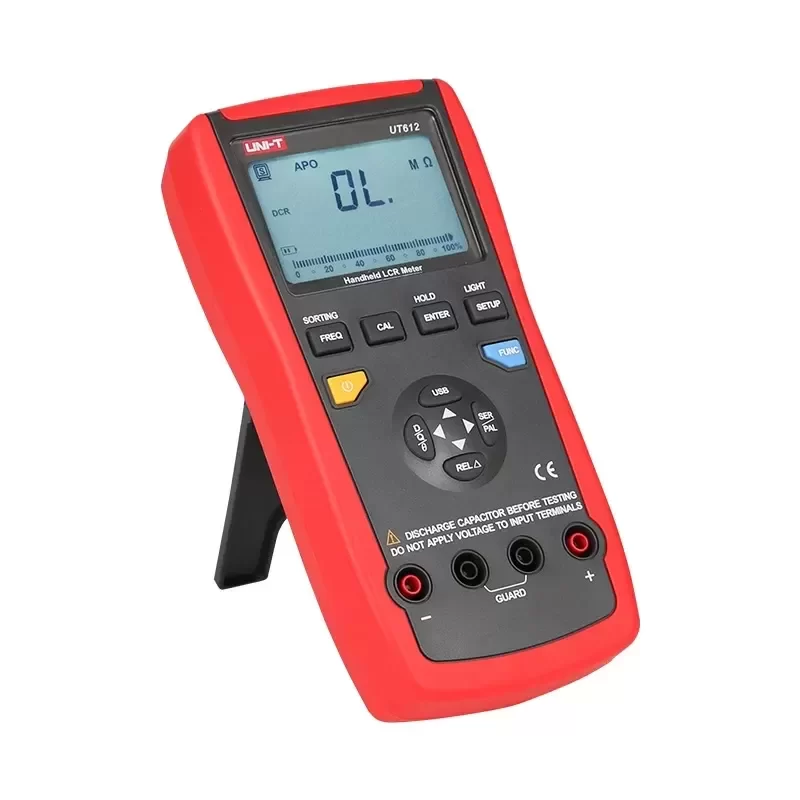

The UNI-T UT612 is an advanced handheld digital bridge LCR meter engineered for high-precision impedance measurements in complex industrial and electronic diagnostic environments. Utilizing Original Engineering from Uni-Trend Technology, this device delivers benchtop-grade accuracy in a portable form factor, enabling rapid and reliable validation of passive components including inductors, capacitors, and resistors.
Technical Specifications
Model: UT612
Manufacturer: UNI-T
Measurement Parameters: L, C, R, DCR, Q, D, θ, ESR
Inductance Range (L): 20µH to 2000H
Capacitance Range (C): 200pF to 20mF
Resistance Range (R): 20Ω to 200MΩ
Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test Voltage: 0.6Vrms
Basic Accuracy: ±0.5%
Display Count: 20,000 (Primary) / 2,000 (Secondary)
Measurement Speed: Fast (5 times/s), Slow (2 times/s)
Power Supply: 9V Battery (6F22) or USB DC 5V
Data Interface: Mini-USB to PC
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 50°C
Dimensions: 96mm x 193mm x 47mm
Weight: 374g
Certifications: CE, RoHS
Industrial Application
The UT612 provides critical Technical Compatibility for field engineers conducting on-site diagnostics of motor windings, transformer inductance, and PCB assembly quality assurance. By offering multi-frequency testing up to 100kHz, it allows technicians to accurately isolate parasitic capacitance and equivalent series resistance (ESR) in high-frequency switching power supply components. This precision prevents premature component failure and minimizes costly system downtime in automated manufacturing facilities.
Procurement Information

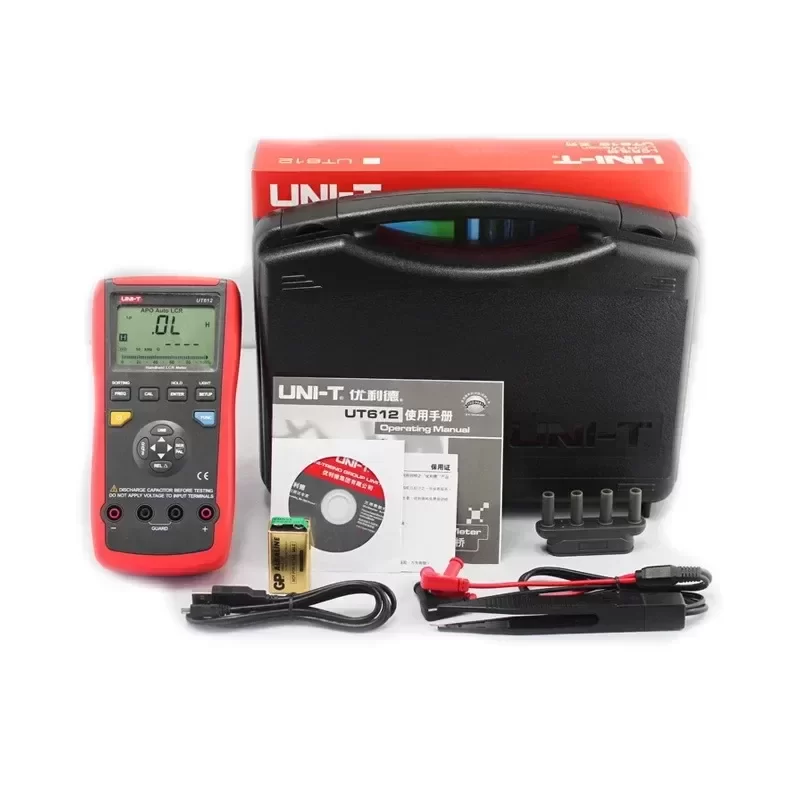

Our optimized global supply chain ensures a minimized Lead Time for the UNI-T UT612. Each unit is supplied with full factory calibration and standard accessories, ensuring immediate deployment for your critical maintenance and quality control operations.
Key Attributes
Accuracy Class: ±(0.3%+5)
Current Range: 0 A ~ 10 A
Insulation Resistance: 20Ω~200MΩ
Measuring Range: 20Ω~200MΩ
Testing Voltage: 5 V
Place of Origin: Guangdong, China
Model Number: UT612
Brand Name: UNI-T
Current Resolution: 1 mA
Dimensions: 370mm x 305mm x 475mm
Display Type: LCD
Operating Temperature: -20°C-50°C
Speed Range: 10 m/s
Time Resolution: 1 ms
Inductance (H): 20uH~2000H
Capacitance (F): 200pF~20mF
Resistance (Ω): 20Ω~200MΩ
Operating voltage: 0.6Vrms
Test parameters: L/C/R/DCR/Q/D/ESR
Packaging and Delivery
Selling Units: Single item
Single package size: 38X32X10 cm
Single gross weight: 1.500 kg
