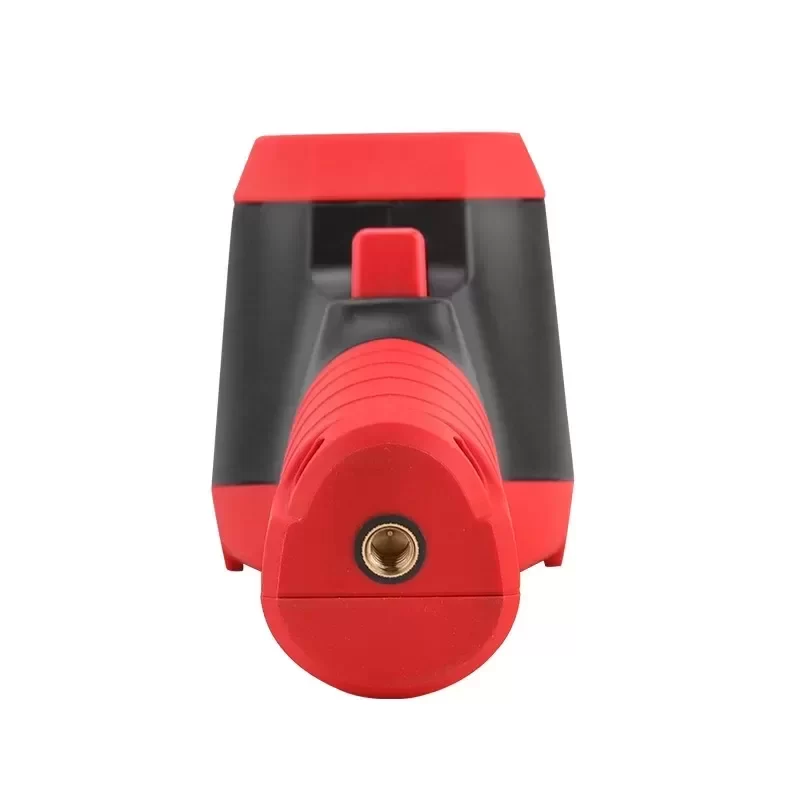

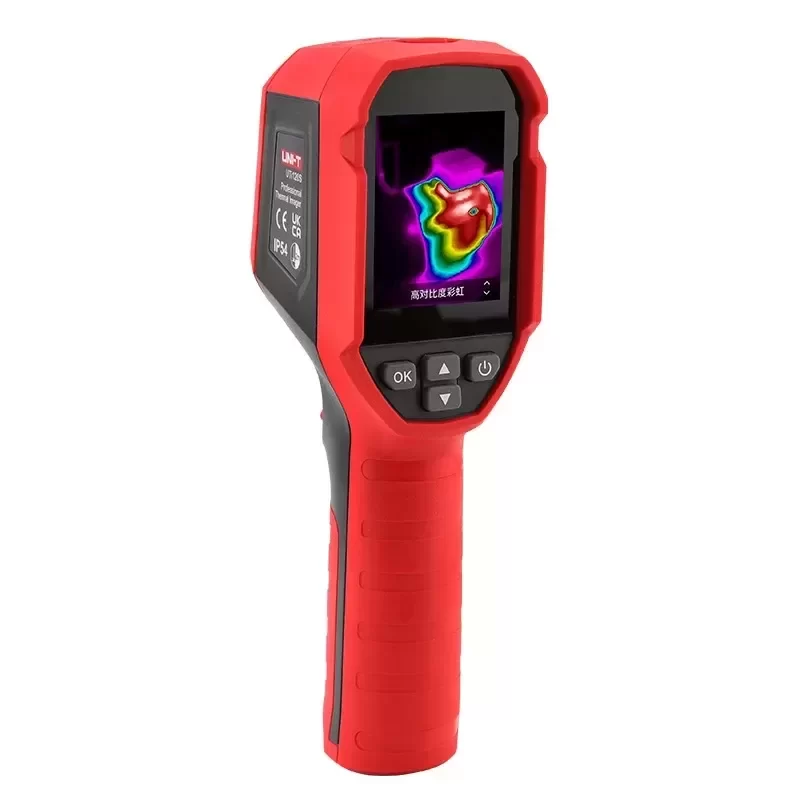

UNI-T UTi120S Infrared Thermal Imager for Power Floor Heating Geothermal Pipe Leak Detection

Description

The UNI-T UTi120S is a professional-grade infrared thermal imager engineered for precision temperature diagnostics in demanding industrial and commercial environments. Designed to bridge the gap between high-performance thermography and rugged portability, this diagnostic tool provides immediate visual identification of thermal anomalies. It is an essential instrument for predictive maintenance, electrical troubleshooting, and structural diagnostics.

Technical Specifications
Model: UTi120S
Brand: UNI-T
IR Resolution: 120 x 90 pixels
Temperature Measurement Range: -20°C to 400°C
Thermal Sensitivity (NETD): < 60mK
Field of View (FOV): 50° x 38°
Spatial Resolution (IFOV): 7.3 mrad
Frame Rate: 25Hz
Emissivity: 0.01 to 1.00 (Adjustable)
Display: 2.4-inch TFT LCD (320 x 240 resolution)
Color Palettes: Iron, Rainbow, White Hot, Lava, Black Hot, Rainbow HC
Image Storage: 16GB Micro SD Card
Battery Capacity: 3.7V 2600mAh Li-ion
Operating Time: Up to 9 hours
Protection Rating: IP54
Drop Test Durability: 2 meters
Weight: 310g
Dimensions: 197mm x 72mm x 60mm
Certifications: CE, RoHS

Industrial Application
The UTi120S is specifically optimized for complex thermal diagnostics including power distribution panel inspections, floor heating grid mapping, and geothermal pipe leak detection. In electrical applications, the < 60mK thermal sensitivity allows technicians to identify high-resistance connections and phase imbalances before catastrophic failure occurs. For HVAC and plumbing professionals, the 50° x 38° FOV provides a wide scanning area to rapidly detect sub-surface geothermal leaks and blocked radiant heating pipes, minimizing destructive diagnostic procedures and reducing system downtime.

Lifecycle and Integration Value
Built with Original Engineering standards by UNI-T, the UTi120S ensures long-term reliability in harsh environments. The device offers seamless Technical Compatibility with UNI-T proprietary PC analysis software, allowing for comprehensive post-inspection reporting and data logging. With an optimized supply chain, we ensure a minimal Lead Time for procurement, enabling maintenance teams to rapidly deploy this critical diagnostic asset across their operational infrastructure.

Key Attributes
Place of Origin: Guangdong, China
Model Number: UTi120S
Brand Name: UNI-T
IR resolution (Pixels): 120 x 90
Thermal sensitivity(NETD): ≤60mK
Frame rate: ≤25Hz
Focus: Focus Free
Temperature measurement range: -20℃~400℃
Battery: Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time: ≥8 hours
USB: Type-C

Packaging and Delivery
Selling Units: Single item
Single package size: 35X21X17 cm
Single gross weight: 3.000 kg
