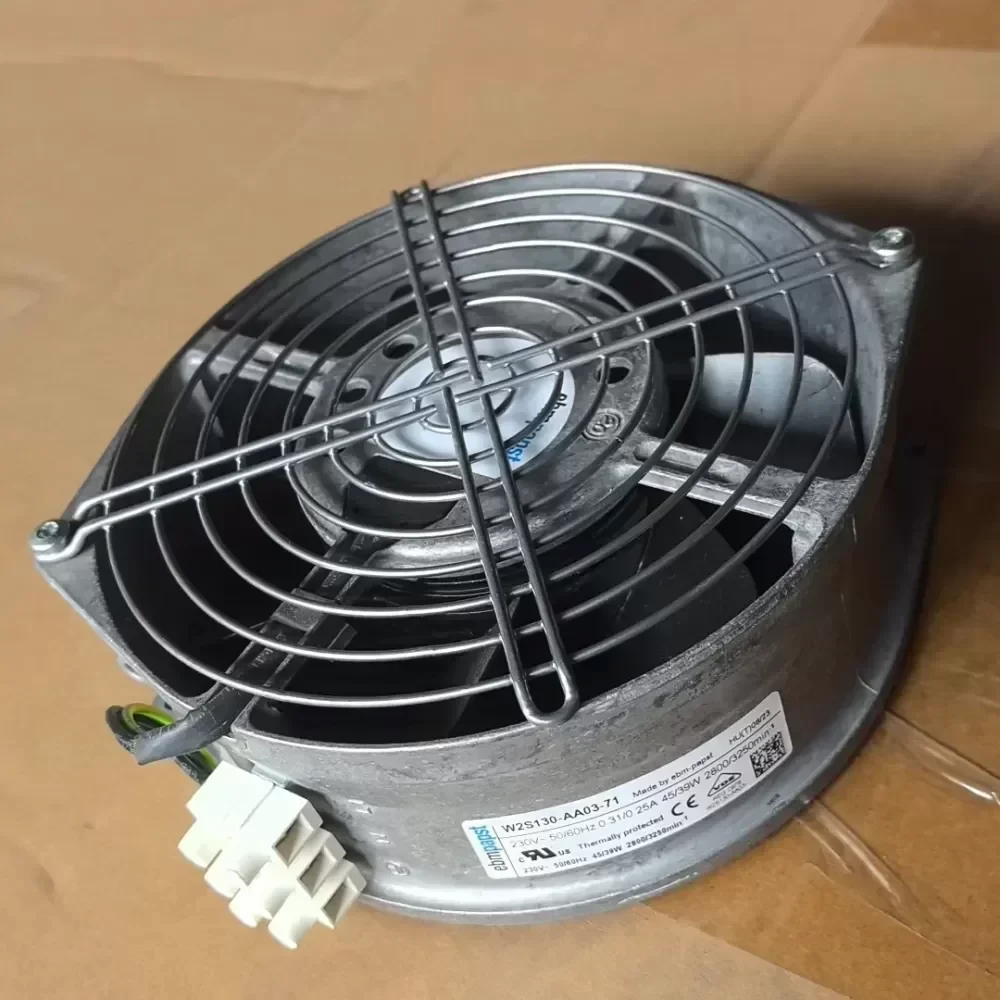

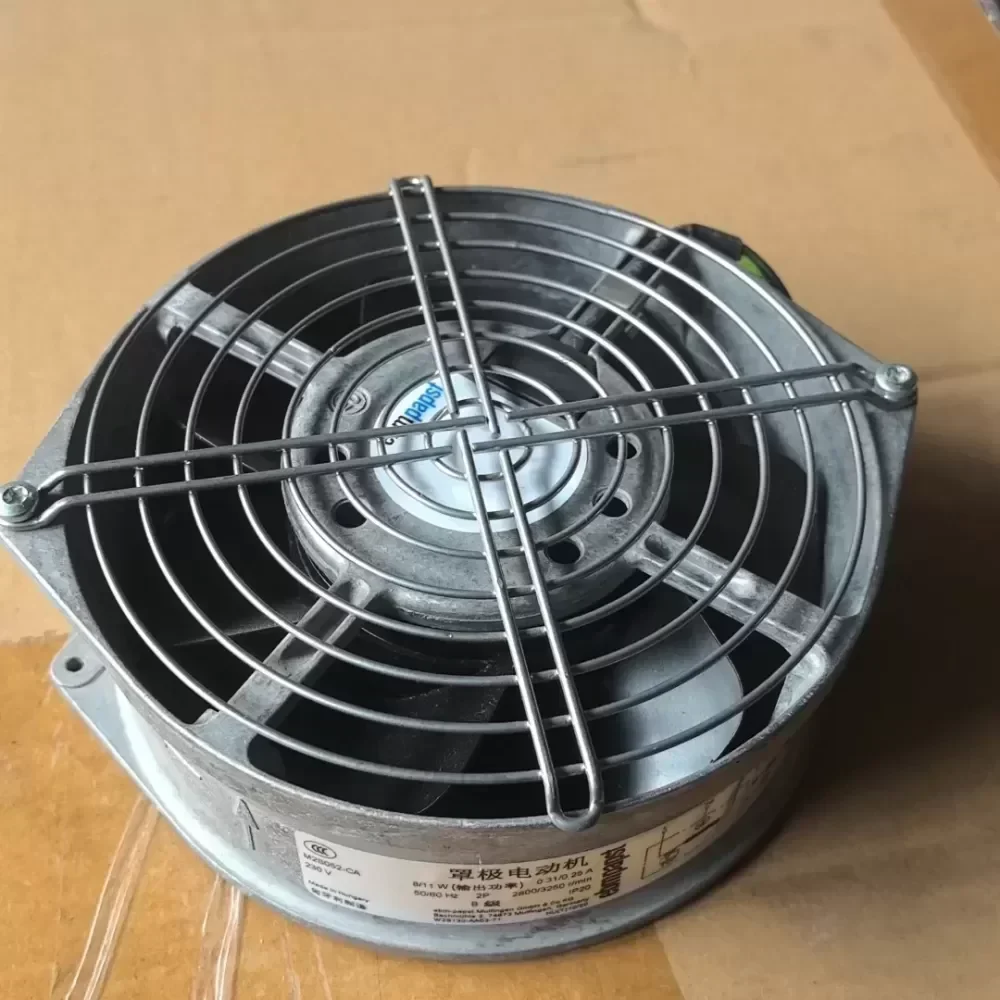

W2S130-AA03-71 ebmpapst industrial fan
W2S130-AA03-71 ebmpapst industrial fan
W2S130-AA03-71 ebmpapst industrial fan
W2S130-AA03-71 ebmpapst industrial fan
W2S130-AA03-71 ebmpapst industrial fan

W2S130-AA03-71 ebmpapst industrial fan

$64.29

SKU: 886128110037 Brand: ,

Description

Manufacturer: ebmpapst
Model Number: W2S130-AA03-71
Motor Designation: M2S052-CA
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2800 min-1 (50Hz) / 3250 min-1 (60Hz)
Power Consumption: 45 W (50Hz) / 39 W (60Hz)
Current Draw: 0.31 A (50Hz) / 0.25 A (60Hz)
Max. Airflow: 325 m³/h (50Hz) / 380 m³/h (60Hz)
Max. Back Pressure: 80 Pa (50Hz) / 120 Pa (60Hz)
Bearing Type: Maintenance-free ball bearings
Housing Material: Die-cast aluminum, black finish
Impeller Material: Sheet steel, black finish
Number of Blades: 7
Direction of Rotation: Counter-clockwise viewed toward rotor
Direction of Airflow: Exhaust over struts
Insulation Class: B
Degree of Protection: IP20
Motor Protection: Thermal overload protector (TOP) internally connected
Operating Temperature Range: -25 °C to +70 °C
Weight: 1.1 kg
Dimensions: 150 x 172 x 38 mm
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Approvals: VDE, CSA, UL, CCC, CE

The ebmpapst W2S130-AA03-71 is a high-performance AC axial fan featuring Original Engineering for precision thermal regulation in heavy-duty industrial applications. This unit is specifically engineered for Technical Compatibility with Rittal cabinet enclosures, UPS power systems, and industrial control chassis where high-density heat dissipation is critical for component longevity. The robust die-cast aluminum housing and sheet steel impeller provide superior structural integrity during continuous S1 duty cycles. By utilizing maintenance-free ball bearings and an integrated thermal overload protection system, the W2S130-AA03-71 ensures stable operation and minimized downtime in mission-critical infrastructure. This model serves as the industry standard for mitigating heat accumulation in confined electronic environments. Please contact our technical department to confirm current Lead Time and bulk procurement specifications for system integration.

W2S130-AA03-71 ebmpapst industrial fan

W2S130-AA03-71 ebmpapst industrial fan

W2S130-AA03-71 ebmpapst industrial fan

W2S130-AA03-71 ebmpapst industrial fan

W2S130-AA03-71 ebmpapst industrial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
