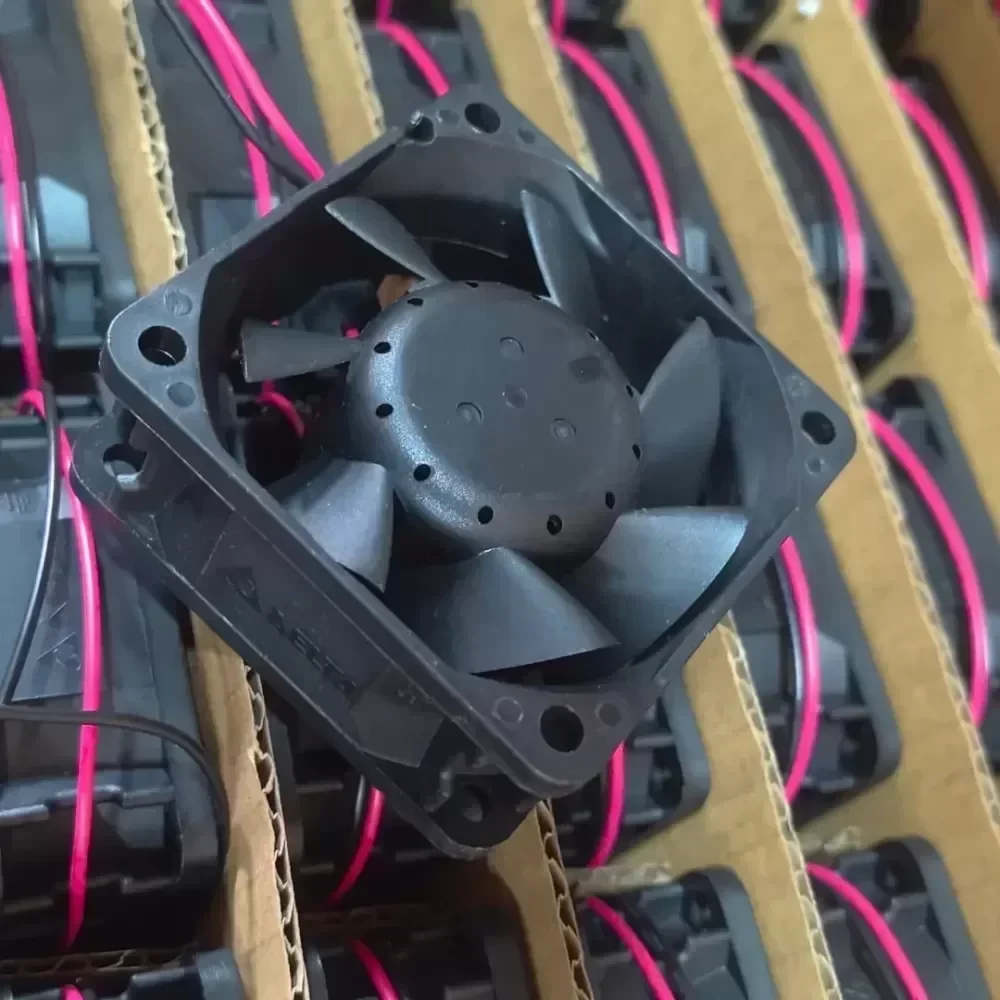

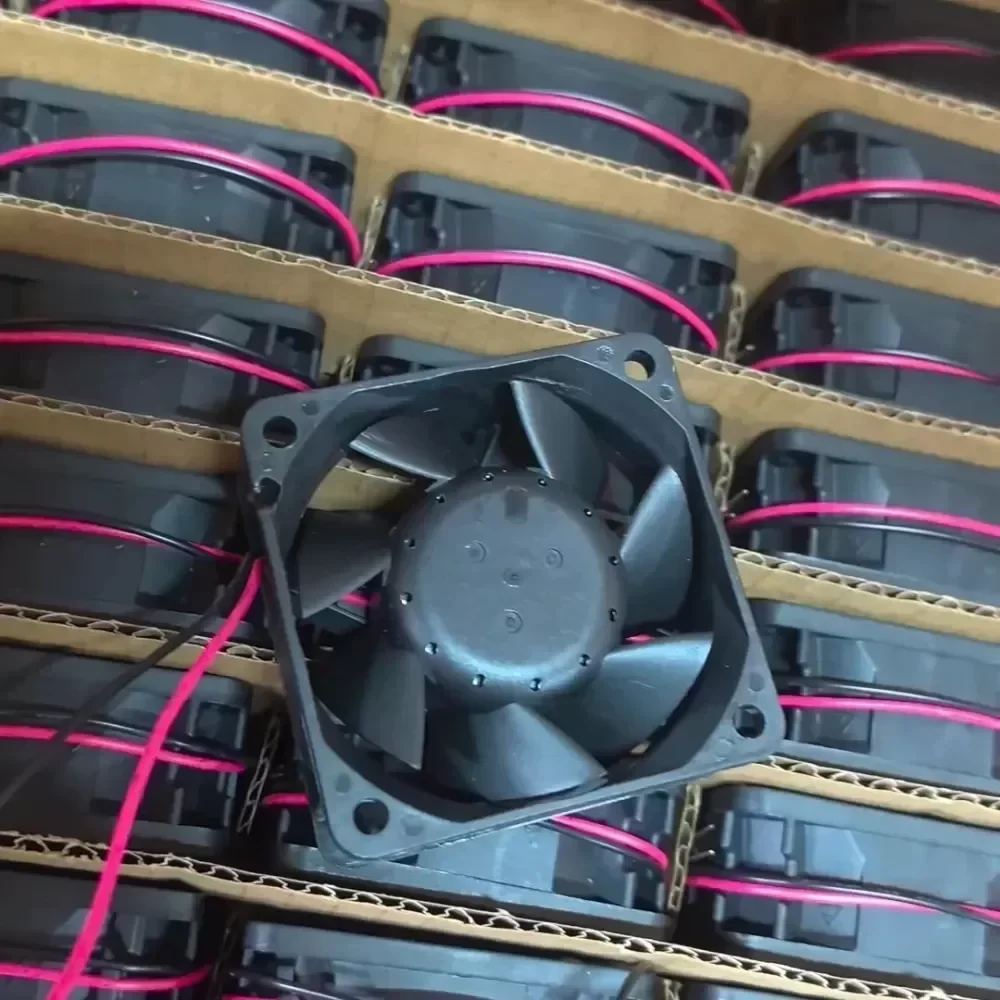

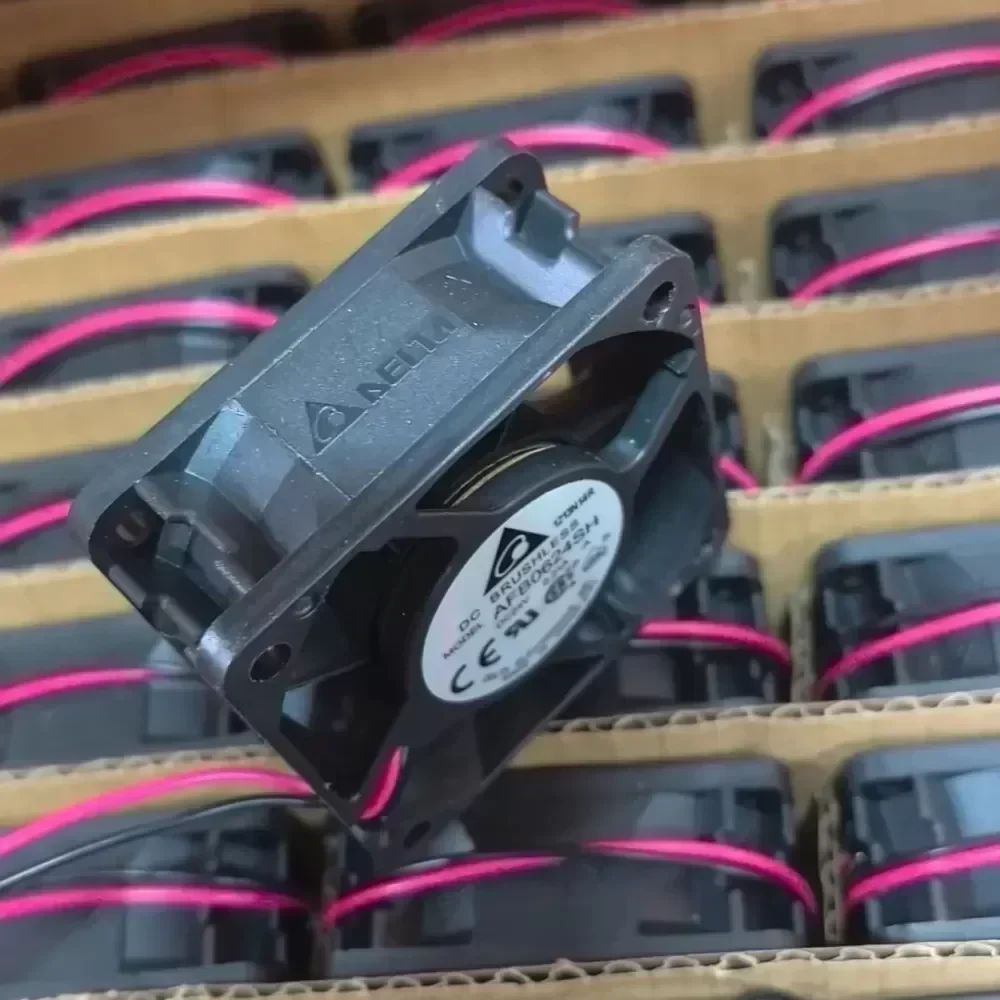

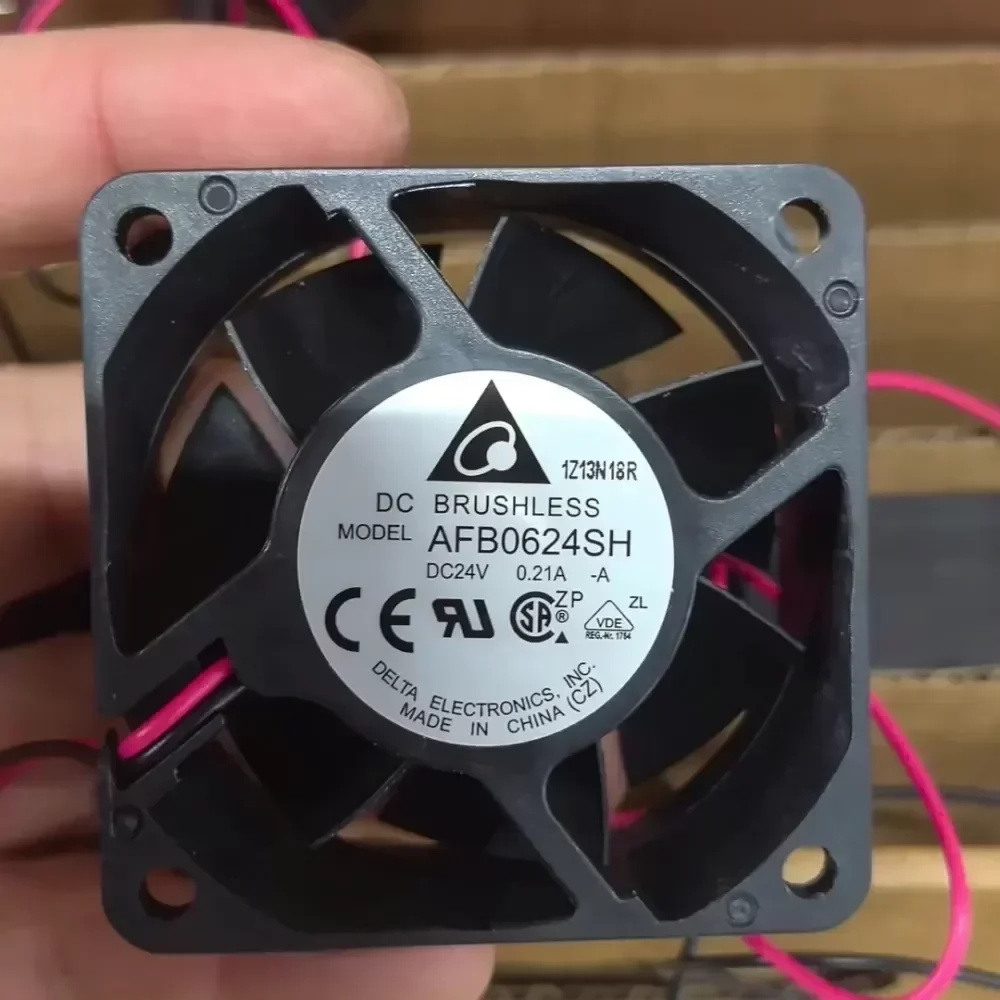

Delta Electronics AFB0624SH is a high-performance 60mm axial cooling fan engineered for critical thermal management in industrial environments. Utilizing Original Engineering standards, this component features a dual ball bearing system designed for continuous 24/7 operation in high-static pressure applications.
Technical Specifications:
Manufacturer: Delta Electronics
Model: AFB0624SH
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 VDC to 27.6 VDC
Rated Current: 0.21 A
Input Power: 5.04 W
Rated Speed: 6000 RPM
Maximum Air Flow: 0.968 m³/min (34.18 CFM)
Maximum Air Pressure: 10.73 mmH2O
Acoustic Noise: 44.5 dB-A
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 °C to +70 °C
Life Expectancy: 70,000 Hours at 40 °C (L10)
Weight: 80 g
Safety Certifications: UL, CSA, VDE, CE
Industrial Application:
The AFB0624SH is specifically optimized for Technical Compatibility with industrial frequency inverters and server rack enclosures. Its high RPM and static pressure profile solve the problem of heat stagnation in densely packed electronic cabinets where airflow resistance is significant. The dual ball bearing construction ensures long-term reliability in vertical or horizontal mounting positions, reducing maintenance Lead Time and preventing system downtime due to thermal throttling.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
