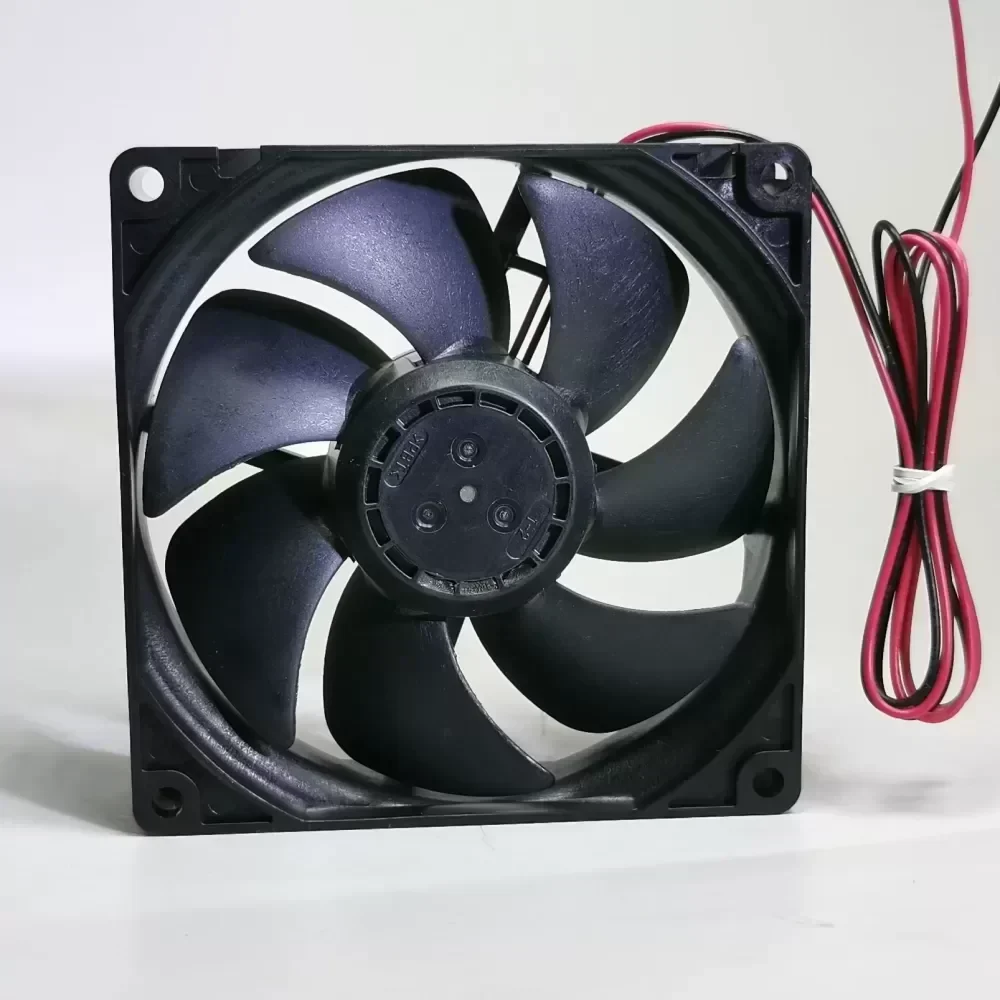

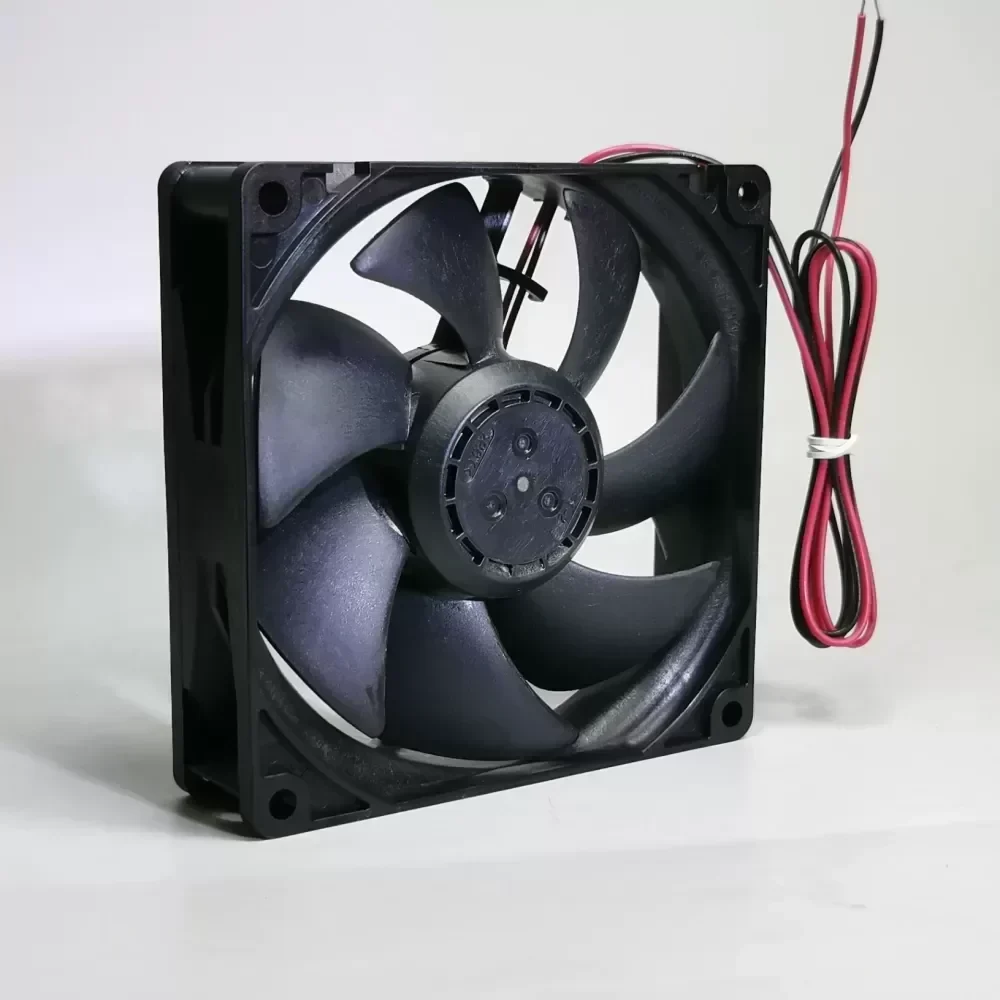

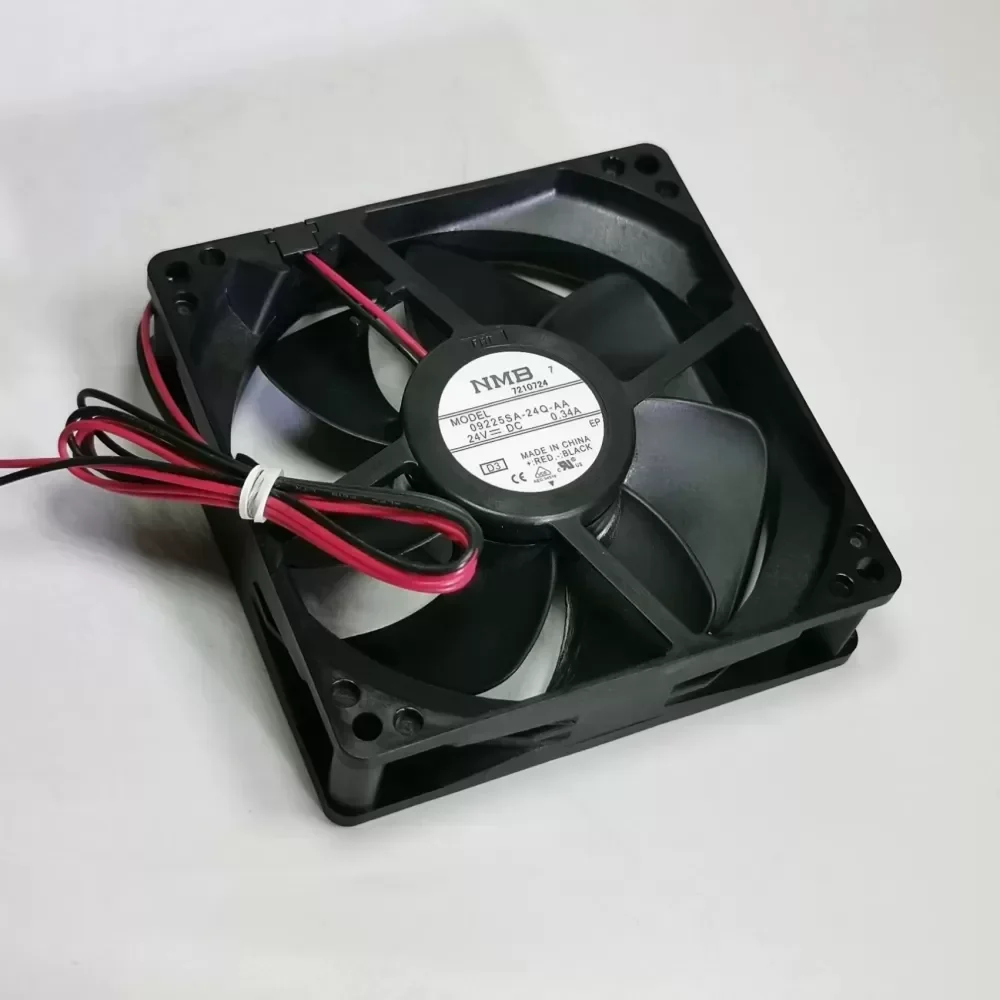

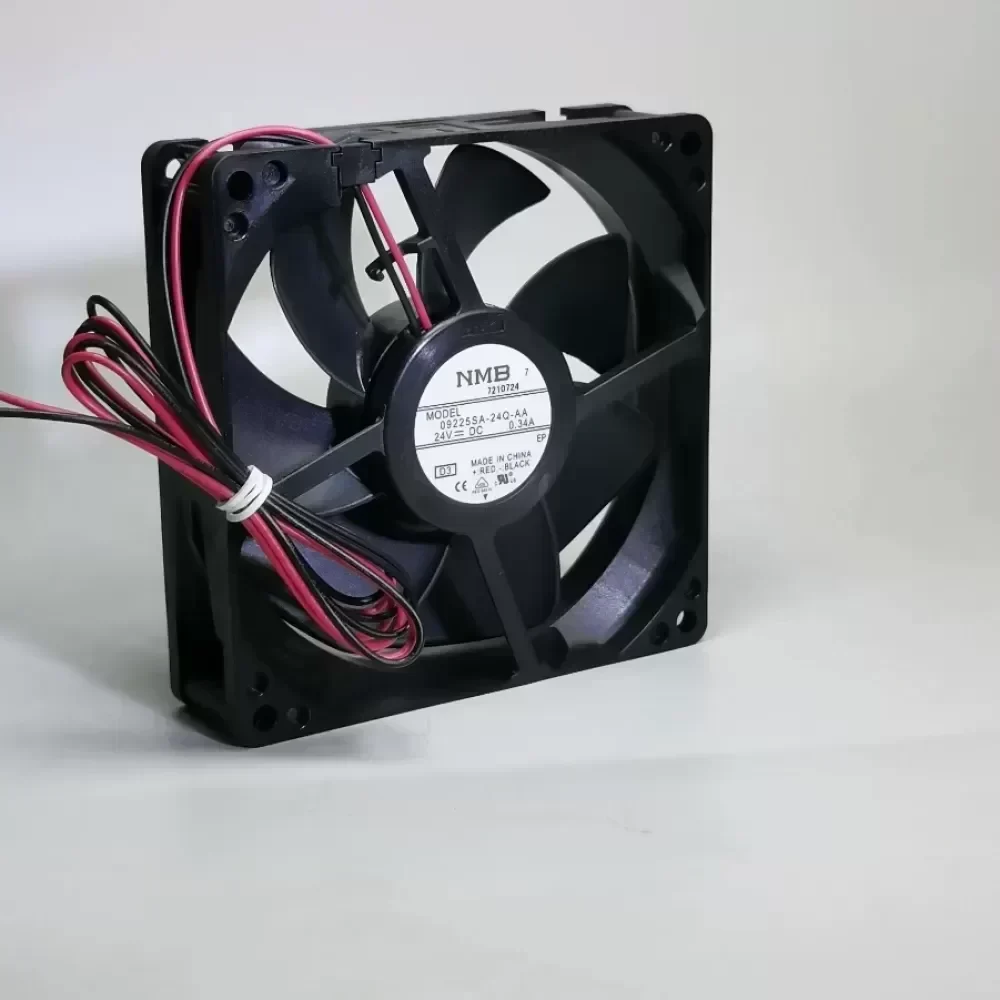

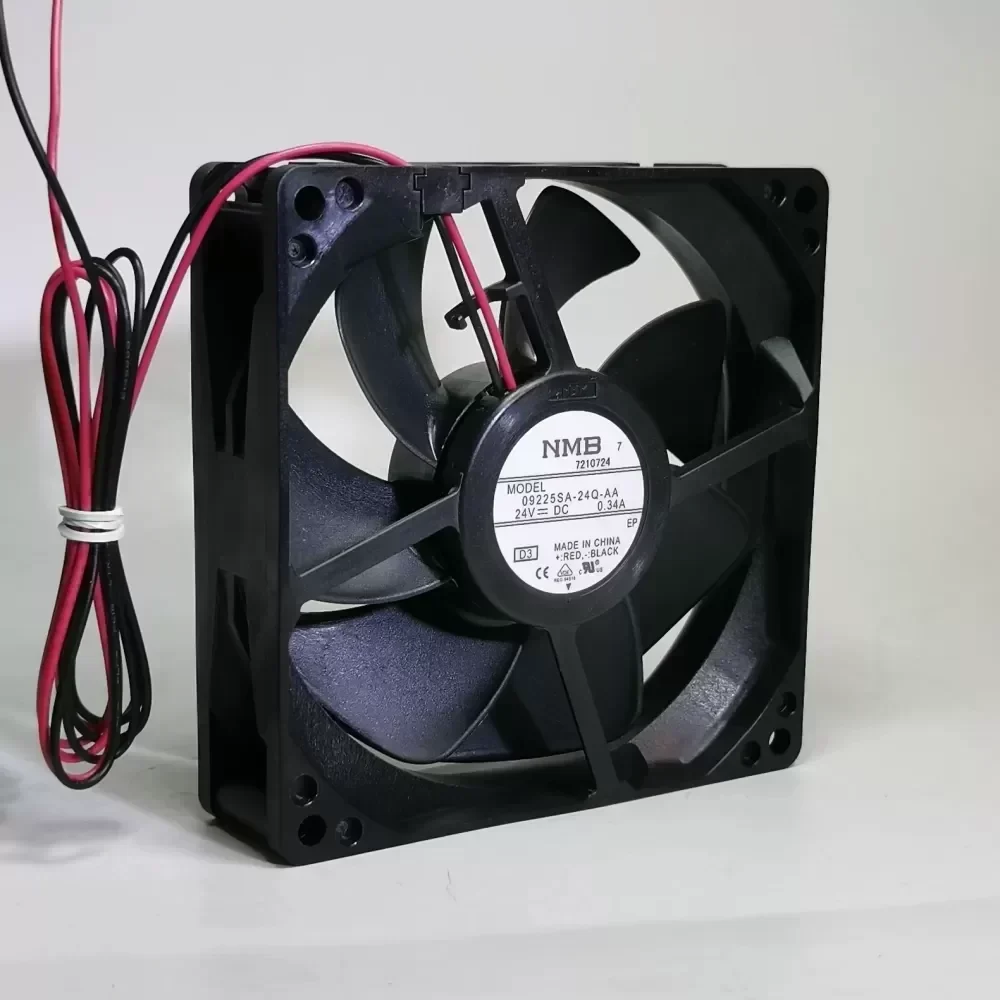

The NMB 09225SA-24Q-AA is a high-performance 24V DC axial cooling fan engineered for rigorous thermal management in industrial environments. Utilizing advanced aerodynamic design, this 92x92x25mm component delivers exceptional airflow and static pressure, ensuring optimal temperature regulation for critical electronic systems.
Technical Specifications
Brand: NMB Technologies
Model Number: 09225SA-24Q-AA
Fan Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Speed Category: High Speed (Q-Class)
Max Airflow: 1.80 m³/min
Static Pressure: 50.0 Pa
Noise Level: 40.5 dB(A)
Bearing Type: Precision Dual Ball Bearing
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: Wire Leads
Weight: 95g
Operating Temperature: -10°C to +70°C
Industrial Application
This fan is specifically designed for variable frequency drives (VFDs), industrial inverters, and telecommunication cabinets. Its high-velocity airflow resolves critical heat accumulation in densely packed control panels, preventing thermal throttling and extending the lifespan of sensitive power electronics. Strict Technical Compatibility ensures seamless integration into existing thermal architectures.
Procurement and Lifecycle
Sourced with guaranteed Original Engineering, this component maintains strict adherence to factory performance metrics. Predictable Lead Time ensures minimal disruption to maintenance schedules and production lines.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
