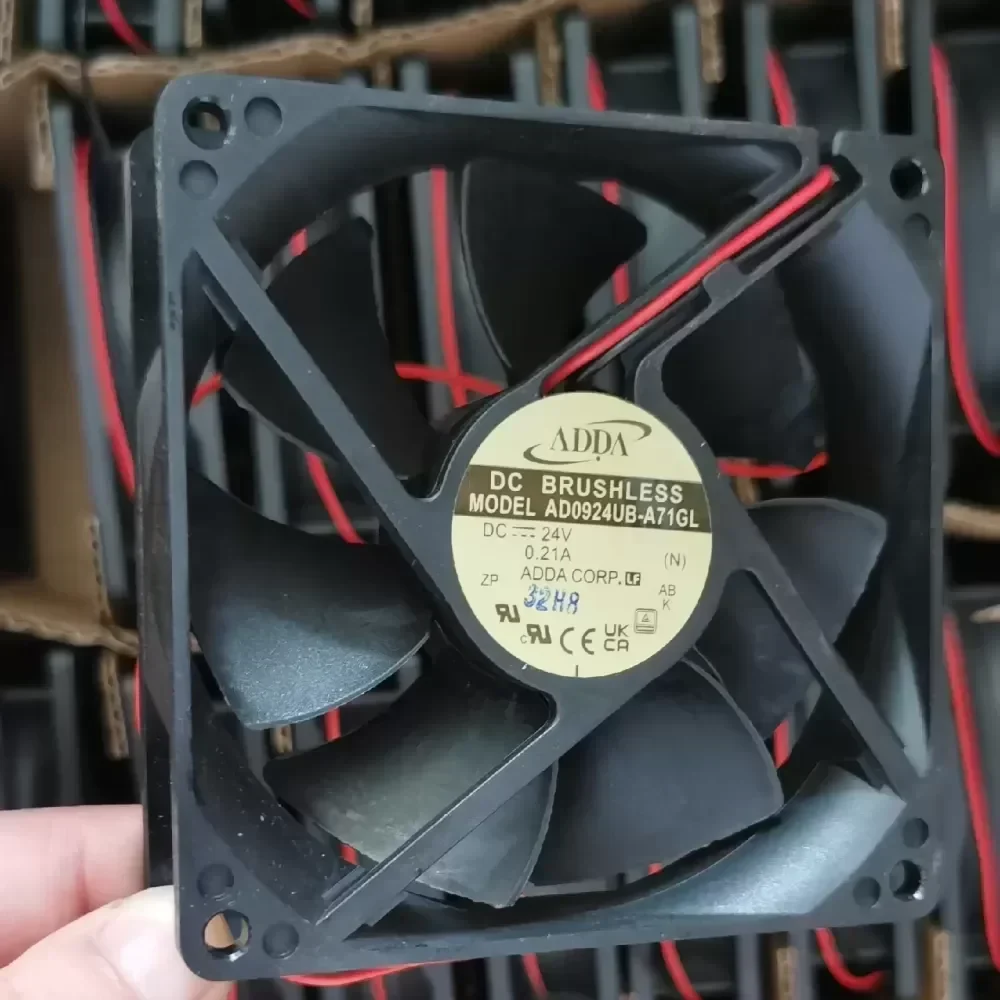

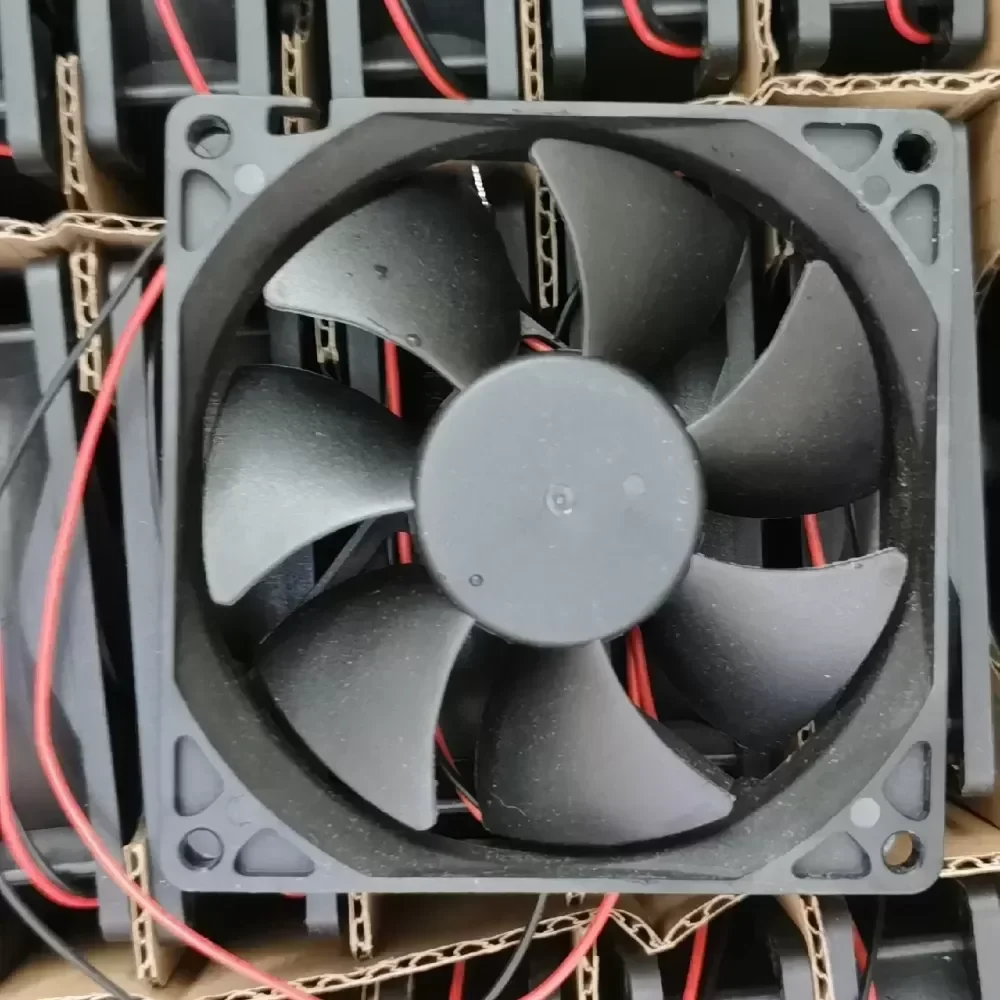

AD0924UB-A71GL ADDA 9225/24V fan
AD0924UB-A71GL ADDA 9225/24V fan
AD0924UB-A71GL ADDA 9225/24V fan

AD0924UB-A71GL ADDA 9225/24V fan

$3.14

SKU: 724605857254 Brand:

Description

Manufacturer: ADDA Corporation
Model Number: AD0924UB-A71GL
Product Category: High-Performance DC Axial Fan

Technical Specifications:
Frame Size: 92mm x 92mm x 25mm
Bearing Type: Dual Precision Ball Bearing
Rated Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V DC
Rated Current: 0.21A
Power Consumption: 5.04W
Rated Speed: 3200 RPM
Airflow: 57.5 CFM (1.628 m³/min)
Static Pressure: 0.210 in-H2O (5.334 mm-H2O)
Noise Level: 39.5 dB(A)
Termination: 2-Wire Lead (UL1007 AWG#24)
Safety Certifications: UL, CUL, TUV, CE
Weight: 95g

Material and Environmental Data:
Frame Material: Reinforced Thermoplastic PBT (UL 94V-0)
Impeller Material: Reinforced Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ohm at 500V DC between frame and terminal
Dielectric Strength: 5mA Max at 500V AC 60Hz for 1 minute
Expected Life (L10): 70,000 hours at 40°C

Industrial Application and Technical Compatibility:
The ADDA AD0924UB-A71GL is engineered for high-reliability thermal management in industrial automation and power electronics. Its 24V DC architecture is optimized for integration into variable frequency drives (VFDs), solar inverters, and telecommunications rack systems. The dual ball bearing system ensures vertical or horizontal mounting versatility without compromising the 70,000-hour MTBF, making it a critical component for mission-critical cooling where downtime is not an option.

Original Engineering and Procurement:
This unit represents Original Engineering quality, ensuring precise fitment and airflow characteristics required by OEM specifications. For procurement and logistics, please note that current Lead Time is subject to stock availability. This component is a direct replacement for 9225-series fans in chassis cooling and server environments requiring high static pressure to overcome internal component density.

AD0924UB-A71GL ADDA 9225/24V fan

AD0924UB-A71GL ADDA 9225/24V fan

AD0924UB-A71GL ADDA 9225/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
