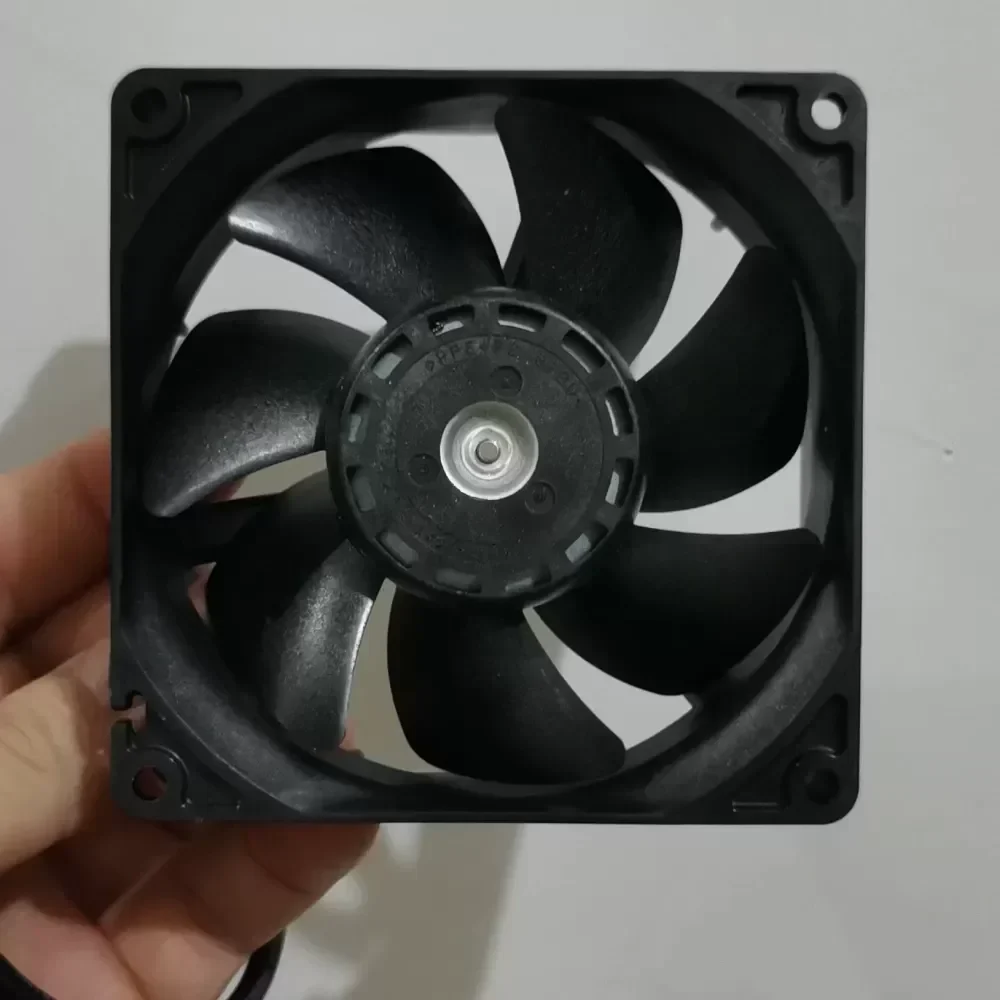

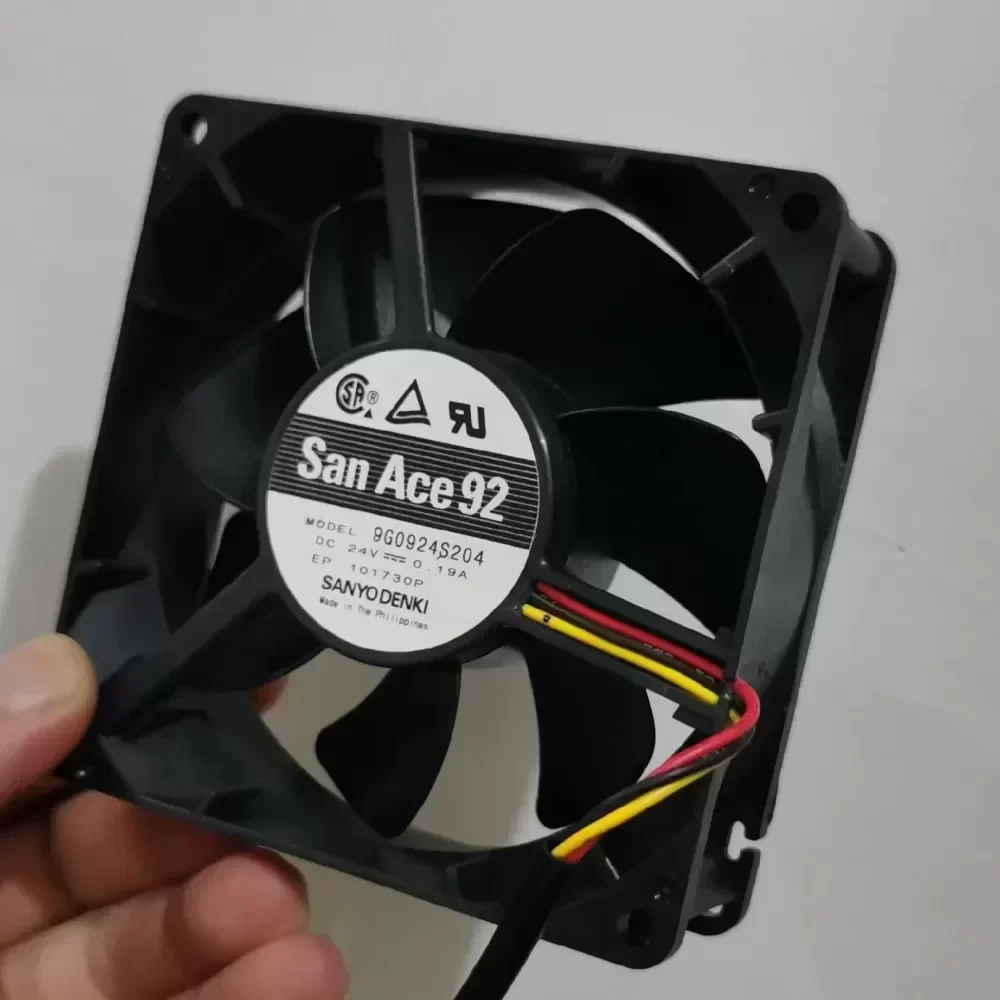

9G0924S2049C Sanyo SanAce92 fan
9G0924S2049C Sanyo SanAce92 fan
9G0924S2049C Sanyo SanAce92 fan

9G0924S2049C Sanyo SanAce92 fan

$7.86

SKU: 683530058988 Brand:

Description

Sanyo Denki San Ace 92 (9G Series) High-Performance DC Cooling Fan
Manufacturer: Sanyo Denki
Model Number: 9G0924S204
Series: San Ace 92

Technical Specifications:
Rated Voltage: 24V DC
Operating Voltage Range: 14V to 27.6V DC
Rated Current: 0.19A
Rated Input: 4.56W
Rated Speed: 3600 RPM
Maximum Airflow: 1.85 m³/min (65.3 CFM)
Maximum Static Pressure: 78.4 Pa (0.315 inchH2O)
Noise Level: 41 dB(A)
Frame Size: 92mm x 92mm x 32mm
Bearing Type: Dual Precision Ball Bearings
Expected Life: 40,000 hours at 60°C (70,000 hours at 40°C)
Weight: 170g
Material Frame: Plastics (Flammability: UL 94V-0)
Material Impeller: Plastics (Flammability: UL 94V-0)
Operating Temperature: -20°C to +70°C

Electrical Interface and Logic:
Wiring Configuration: 3-Wire Lead
Wire Colors: Red (+), Black (-), Yellow (Sensor)
Signal Output: Pulse Sensor / Tachometer (Speed Measurement)
Protection Logic: Locked Rotor Burnout Protection, Reverse Polarity Protection

Industrial Application and Technical Compatibility:
The Sanyo Denki 9G0924S204 is engineered for high-density thermal management where reliability is critical. This model is a standard component for server chassis cooling, industrial power supplies, and telecommunications equipment. The 32mm depth provides superior static pressure compared to standard 25mm fans, making it ideal for pushing air through restrictive heat sinks or dense cable arrays. The integrated speed sensor allows for real-time RPM monitoring and alarm triggering, ensuring system safety in mission-critical CPU or inverter modifications.

Quality Assurance:
Condition: Original Engineering Grade – New Old Stock (NOS)
Lead Time: Immediate Dispatch Available
Certifications: UL, CSA, TUV, CE, RoHS Compliant
Maintenance History: None – Factory Original Condition

9G0924S2049C Sanyo SanAce92 fan

9G0924S2049C Sanyo SanAce92 fan

9G0924S2049C Sanyo SanAce92 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
