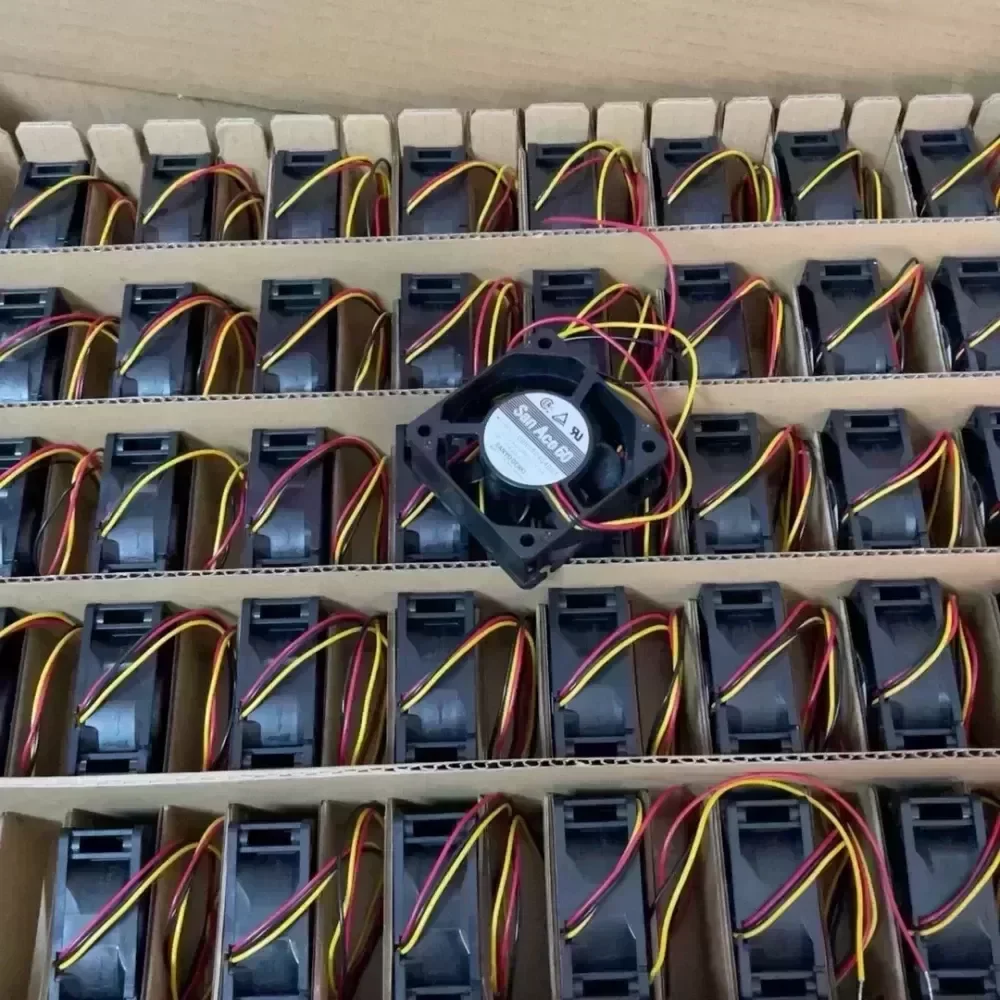

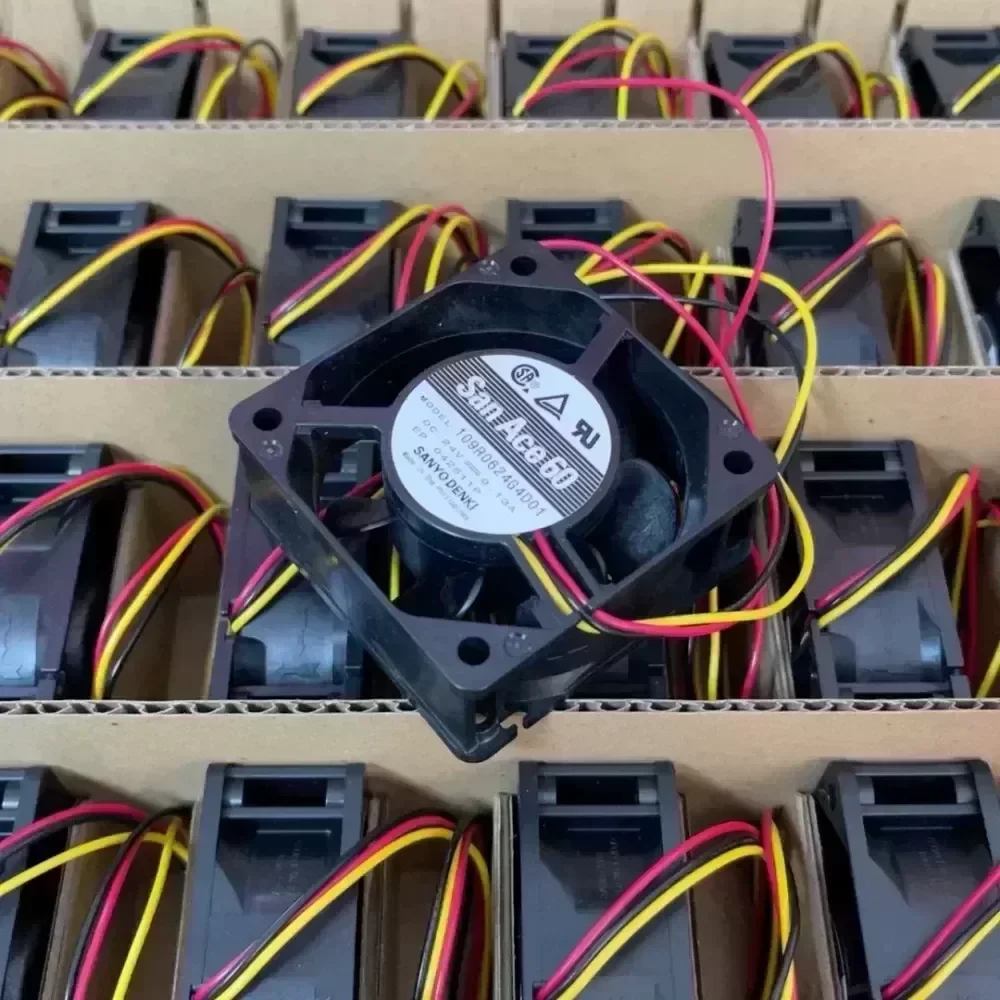

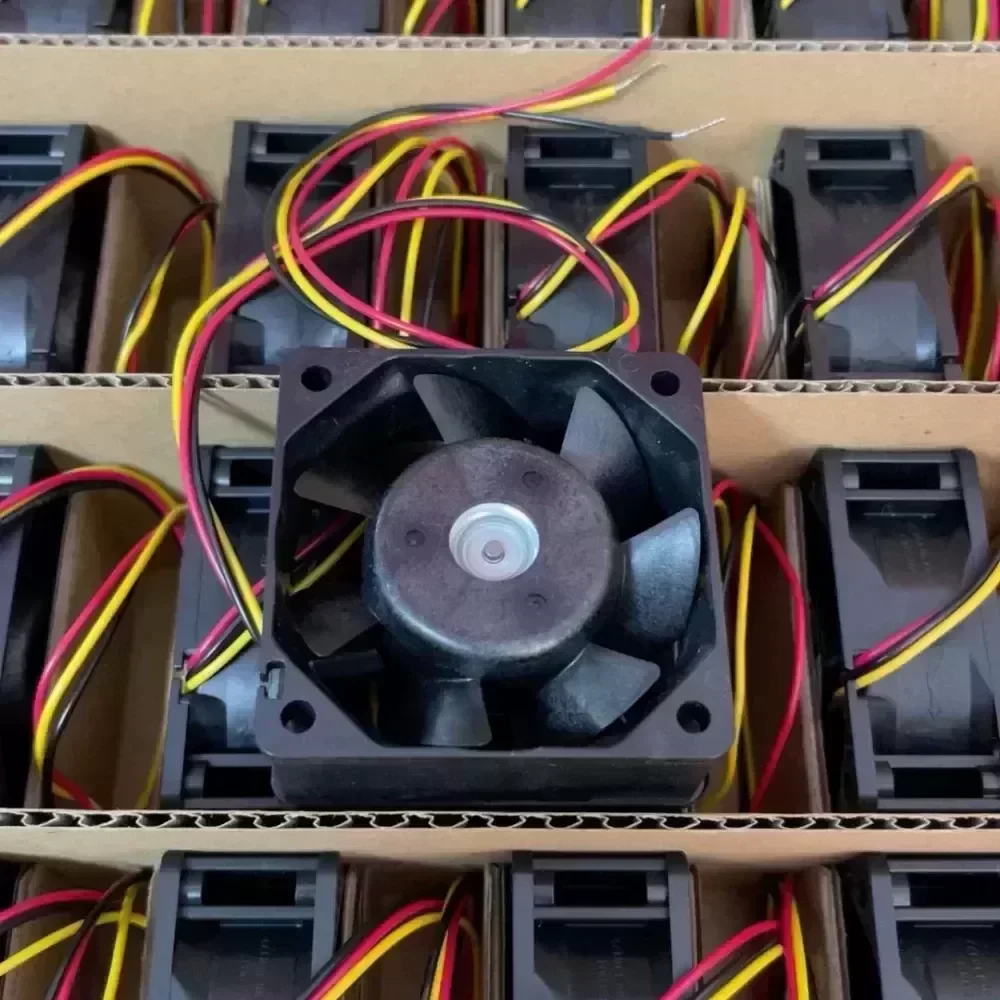

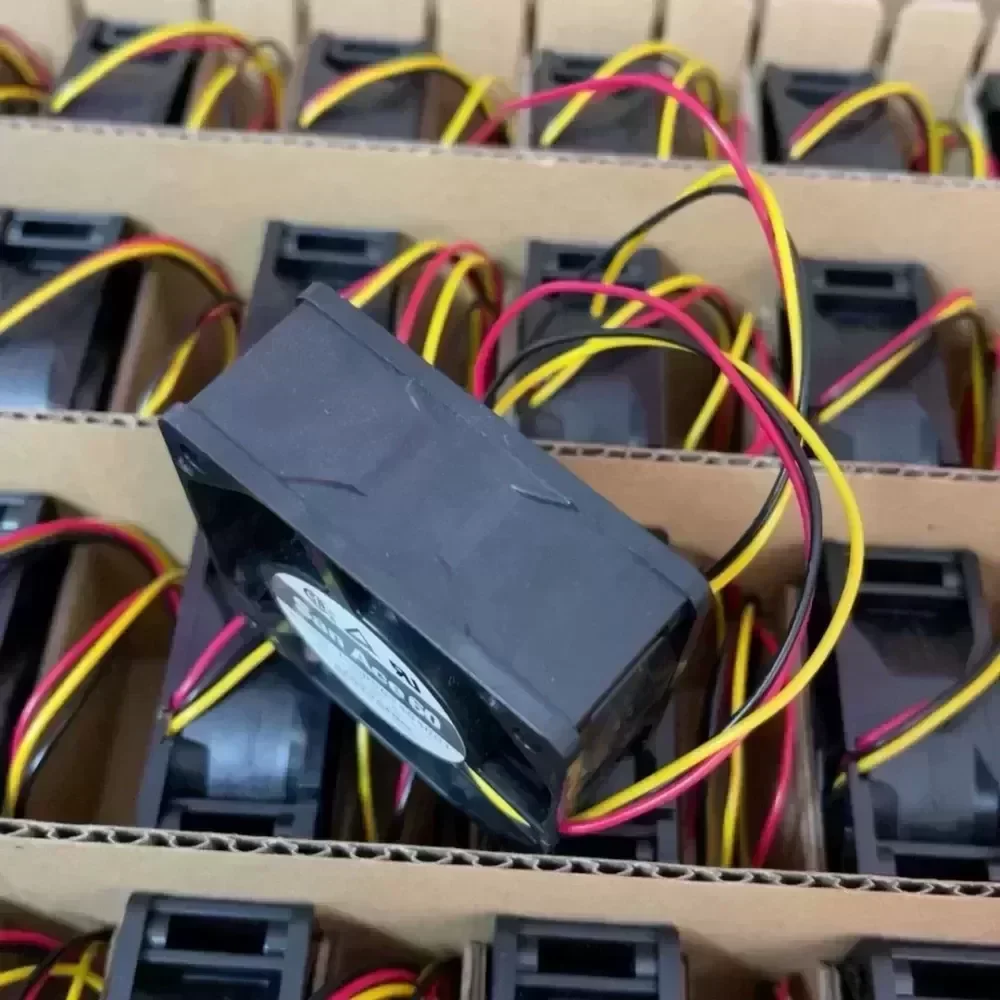

109R0624G4D01 Sanyo 6025 fan

Description

The Sanyo Denki San Ace 60 (Model: 109R0624G4D01) is a high-performance 24V DC axial cooling fan engineered for mission-critical thermal management in demanding industrial environments. Built to Original Engineering standards, this 60 mm x 60 mm x 25 mm square-frame fan integrates precision dual ball bearings and an optimized aerodynamic impeller to deliver high static pressure and continuous volumetric airflow with minimal acoustic signature. Designed for industrial automation, communication systems, and power electronics, the 109R series provides long-term reliability, low operational vibration, and robust electrical isolation across standard industrial temperature gradients.

TECHNICAL SPECIFICATIONS
Manufacturer: Sanyo Denki (San Ace 60 Series)
Model Number: 109R0624G4D01
Fan Type: DC Axial Cooling Fan
Frame Dimensions: 60 mm x 60 mm x 25 mm (Ø mounting hole: 4.3 mm)
Rated Voltage: 24 V DC
Operating Voltage Range: 20.4 V DC to 27.6 V DC
Rated Current: 0.13 A
Rated Input Power: 3.12 W
Nominal Rotational Speed: 4900 RPM (±10%)
Maximum Airflow Volume: 0.75 m³/min (26.5 CFM)
Maximum Static Air Pressure: 62.8 Pa (0.252 inch H2O)
Acoustic Noise Level: 36 dB(A)
Bearing Architecture: Dual Precision Steel Ball Bearings
Frame Material: Flame-Retardant PBT Thermoplastic (UL 94V-0)
Impeller Material: Flame-Retardant PBT Thermoplastic (UL 94V-0)
Motor Protection: Reverse Polarity Protection, Locked Rotor Burnout Protection
Dielectric Strength: 500 V AC, 50/60 Hz for 1 minute (between lead conductors and frame)
Insulation Resistance: 10 MΩ minimum at 500 V DC
Operating Temperature Range: -20 °C to +70 °C
Storage Temperature Range: -30 °C to +70 °C (Non-condensing)
Expected Service Life (L10): 40,000 Hours at 60 °C / 60,000 Hours at 40 °C
Termination / Wiring: Original UL Lead Wires with Sensor Output Function
Weight: 80 g
Compliance & Certifications: RoHS, UL Recognized, CSA, CE

CRITICAL ENGINEERING & INTEGRATION FEATURES
– Advanced Rotor Aerodynamics: Engineered blade geometry minimizes turbulence and optimizes airflow-to-pressure ratios across high-impedance system enclosures.
– Dual Ball Bearing Longevity: High-grade mechanical bearing configuration prevents grease dry-out under elevated operating temperatures, drastically extending MTBF compared to conventional sleeve assemblies.
– Built-In Sensor Integration: The internal monitoring circuitry delivers tachometer/lock status output, facilitating real-time fan speed surveillance and proactive system diagnostics via host controllers.
– Low Electromagnetic Interference: Advanced brushless motor commutation minimizes RF emissions and voltage ripples on shared 24V industrial power buses.

TECHNICAL COMPATIBILITY & INDUSTRIAL APPLICATIONS
The 109R0624G4D01 is specifically engineered to address thermal bottlenecks in compact, high-density hardware installations. Typical integration environments include:
– Industrial Automation & Drives: Thermal dissipation for variable frequency drives (VFDs), servo drives, and programmable logic controller (PLC) rack enclosures.
– Telecommunications & Networking: Forced-air cooling in switchgear, routers, base stations, and optical transmission chassis.
– Power Conversion Equipment: Auxiliary thermal management for industrial switch-mode power supplies (SMPS), solar inverters, and uninterruptible power supply (UPS) modules.
– Medical & Analytical Instrumentation: Continuous active cooling in diagnostic laboratory analyzers and high-precision measurement systems requiring predictable airflow dynamics.

PROCUREMENT, LOGISTICS & QUALITY ASSURANCE
Each unit undergoes strict functional screening to guarantee adherence to factory baseline parameters. Commercial buyers benefit from short Lead Time availability on bulk and spot quantities, complete Technical Compatibility verification support, and standardized protective ESD packaging designed for international freight and plant-level assembly deployment.
