$7.14

SKU: 924836793461 Brand:

Description

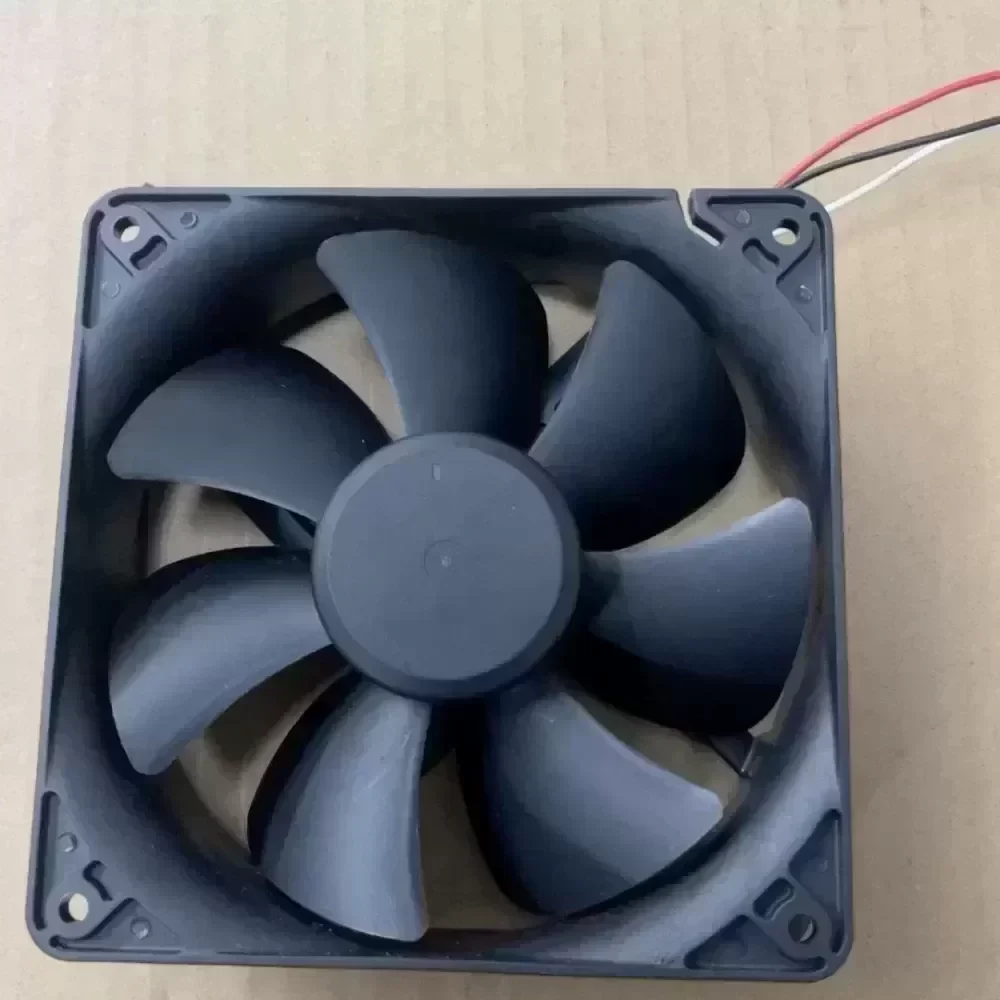

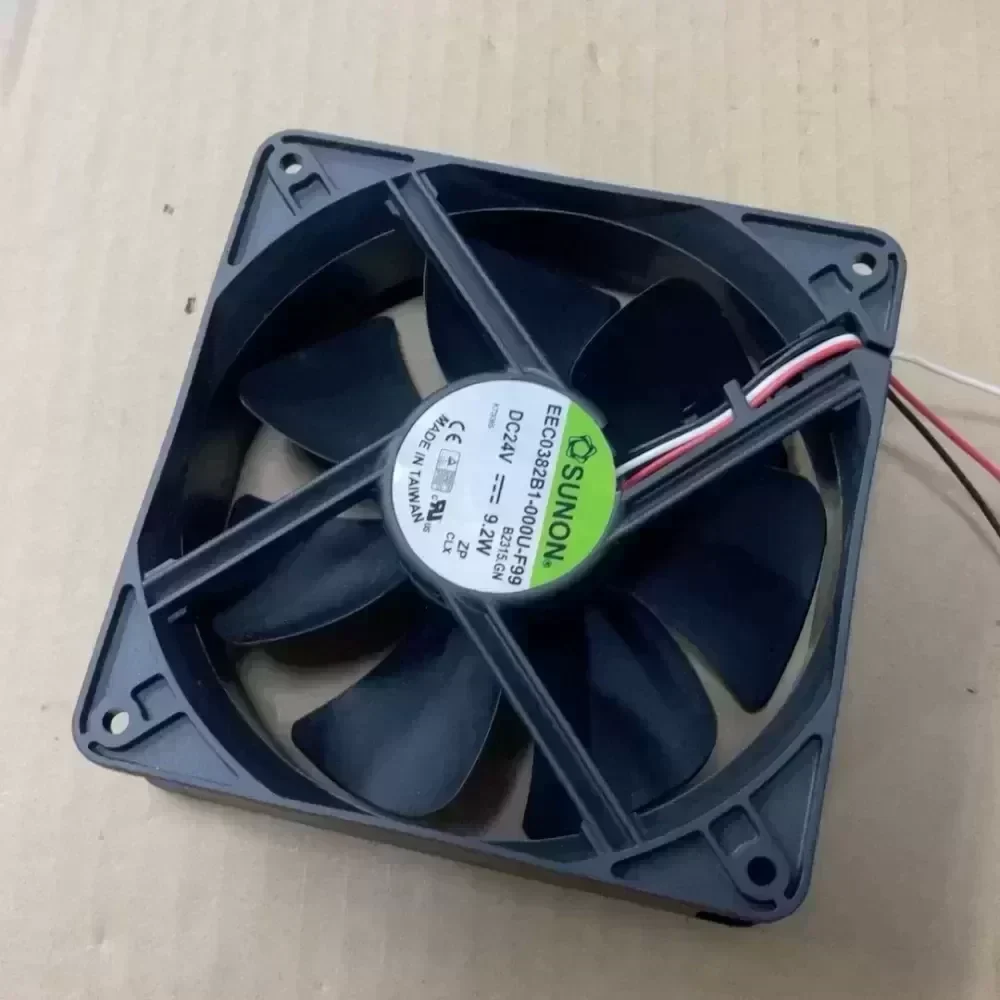

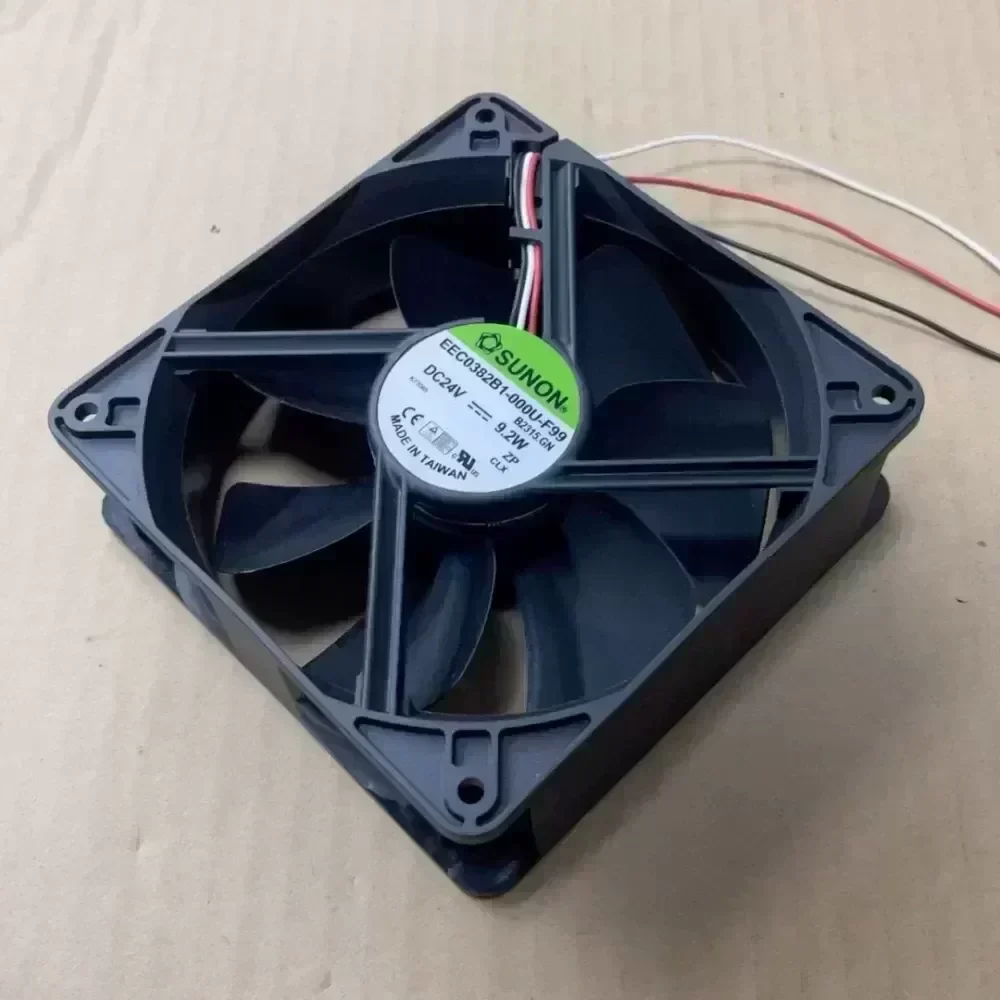

The SUNON EEC0382B1-000U-F99 is an industrial-grade 24 VDC brushless cooling fan designed for high-demand thermal dissipation across mission-critical enclosures and industrial electronics. Built with original engineering from SUNON, this model incorporates a high-efficiency motor with dual precision ball bearings and an integrated frequency generator (FG) signal line for closed-loop speed monitoring, delivering reliable continuous-duty cooling under heavy aerodynamic impedance.

Technical Specifications
Brand: SUNON
Model Number: EEC0382B1-000U-F99
Product Category: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 10.0 VDC to 27.6 VDC
Rated Power Consumption: 9.2 W
Rated Current: 0.38 A
Rated Speed: 3100 RPM ± 10%
Airflow Volume: 138.0 CFM (3.91 m³/min)
Static Air Pressure: 0.36 Inch-H2O (89.6 Pa)
Acoustic Noise Level: 48.0 dBA
Bearing Architecture: Dual Precision Ball Bearing
Signal Interface: 3-Wire with FG (Frequency Generator / Speed Sensor Tachometer Output)
Frame Dimensions: 120 mm x 120 mm x 38 mm
Frame Material: Thermoplastic PBT (UL 94V-0 Rated)
Impeller Material: Thermoplastic PBT (UL 94V-0 Rated)
Motor Protection: Polarity Protected, Auto Restart / Locked Rotor Protection
Dielectric Withstand Voltage: 500 VAC for 1 Minute
Insulation Resistance: 10 MΩ at 500 VDC
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Operational Life Expectancy (L10): 70,000 Hours at 40 °C

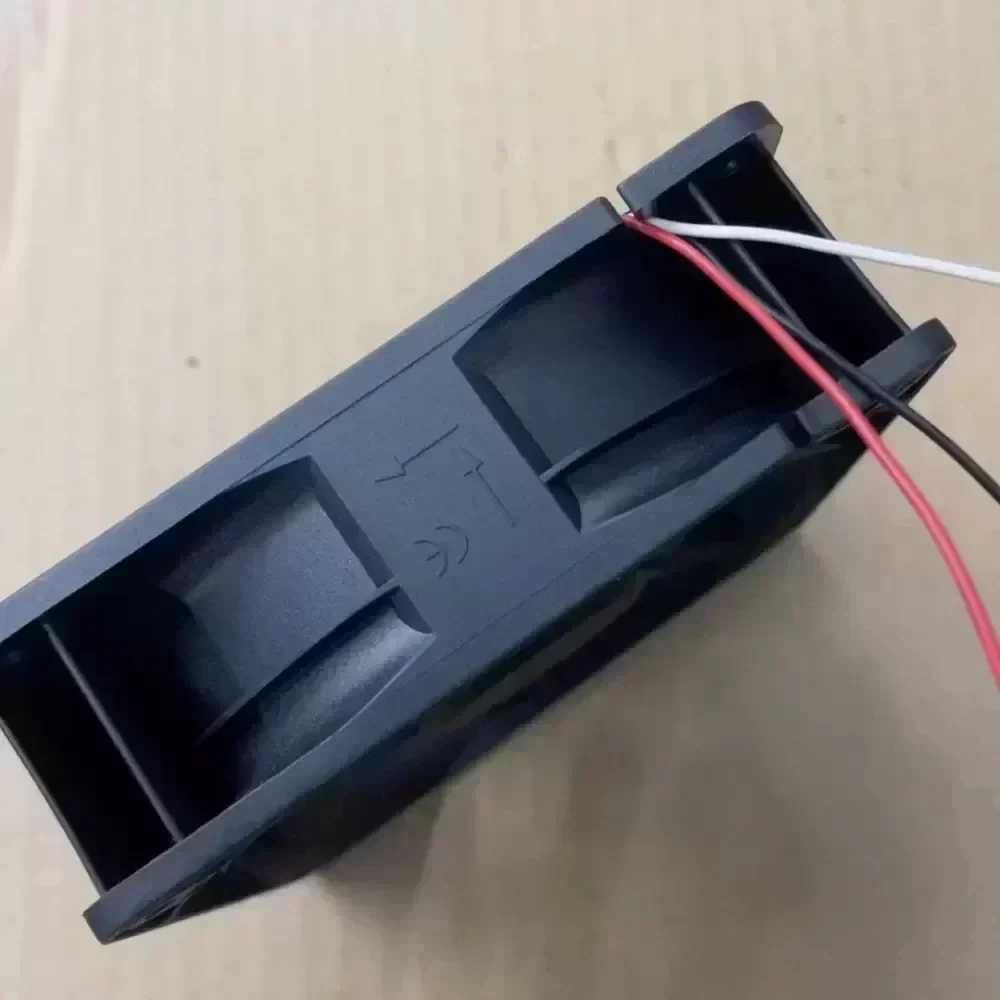

Wiring Configuration: UL 1007, 24 AWG (Red: Positive, Black: Ground, Yellow/Blue: FG Output)
Weight: 214 g

Engineering Features and Thermal Efficiency
The 38 mm frame depth design provides substantial blade pitch and structural rigidity, generating the static pressure necessary to overcome the airflow resistance found in dust-filtered or high-component-density enclosures. The precision dual-ball bearing assembly ensures operational continuity in horizontal, vertical, or angled mounting orientations, extending mean time between failures (MTBF) compared to standard sleeve mechanisms. The embedded FG sensor outputs a digital square wave proportional to motor velocity, allowing the master PLC, industrial PC, or chassis controller to continuously verify fan health and execute emergency shutdowns if thermal boundaries are breached.

Application Scenarios and Technical Compatibility
Technical compatibility encompasses standard 24 VDC power buses in variable frequency drives (VFD), CNC machine control cabinets, telecommunication power chassis, uninterruptible power supply (UPS) systems, and high-power inverter units. In high-density industrial control cabinets where heat-generating power semiconductors cause thermal throttling, the EEC0382B1-000U-F99 maintains high volumetric throughput against system backpressure, ensuring sustained cooling and component longevity.

Supply Chain and Lead Time
Units are verified to original factory standards, providing an exact drop-in replacement for OEM service schedules and new panel builds. Standard inventory channels ensure predictable lead time to support immediate MRO plant requirements and minimize machine downtime.

EEC0382B1-000U-F99 SUNON 9225 fan

EEC0382B1-000U-F99 SUNON 9225 fan

EEC0382B1-000U-F99 SUNON 9225 fan

EEC0382B1-000U-F99 SUNON 9225 fan

EEC0382B1-000U-F99 SUNON 9225 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
