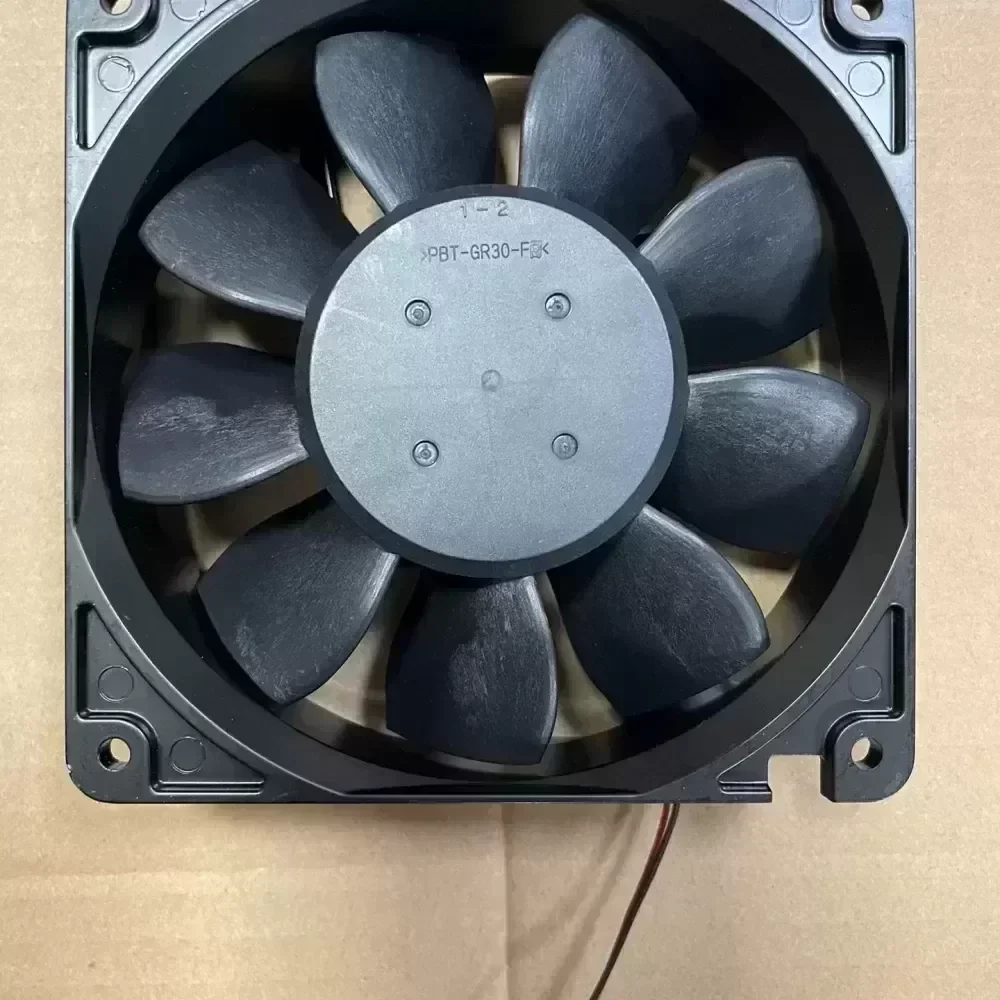

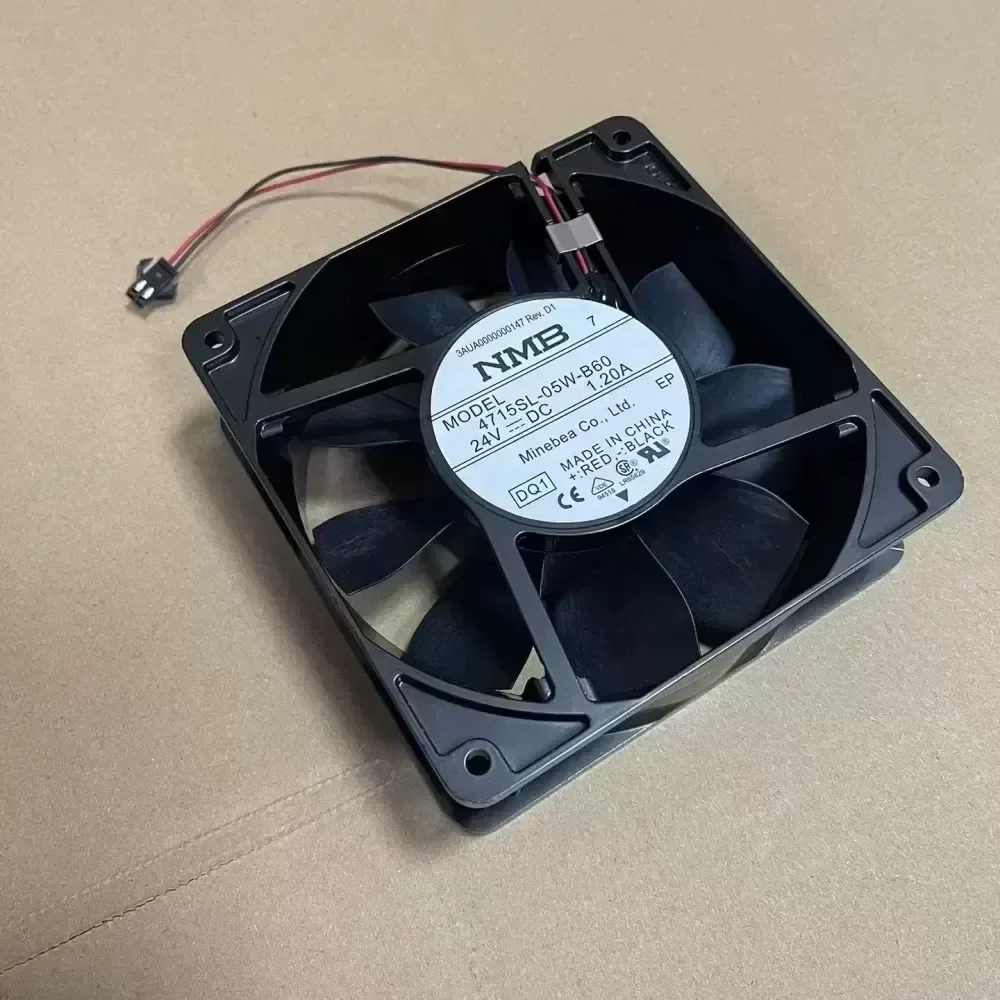

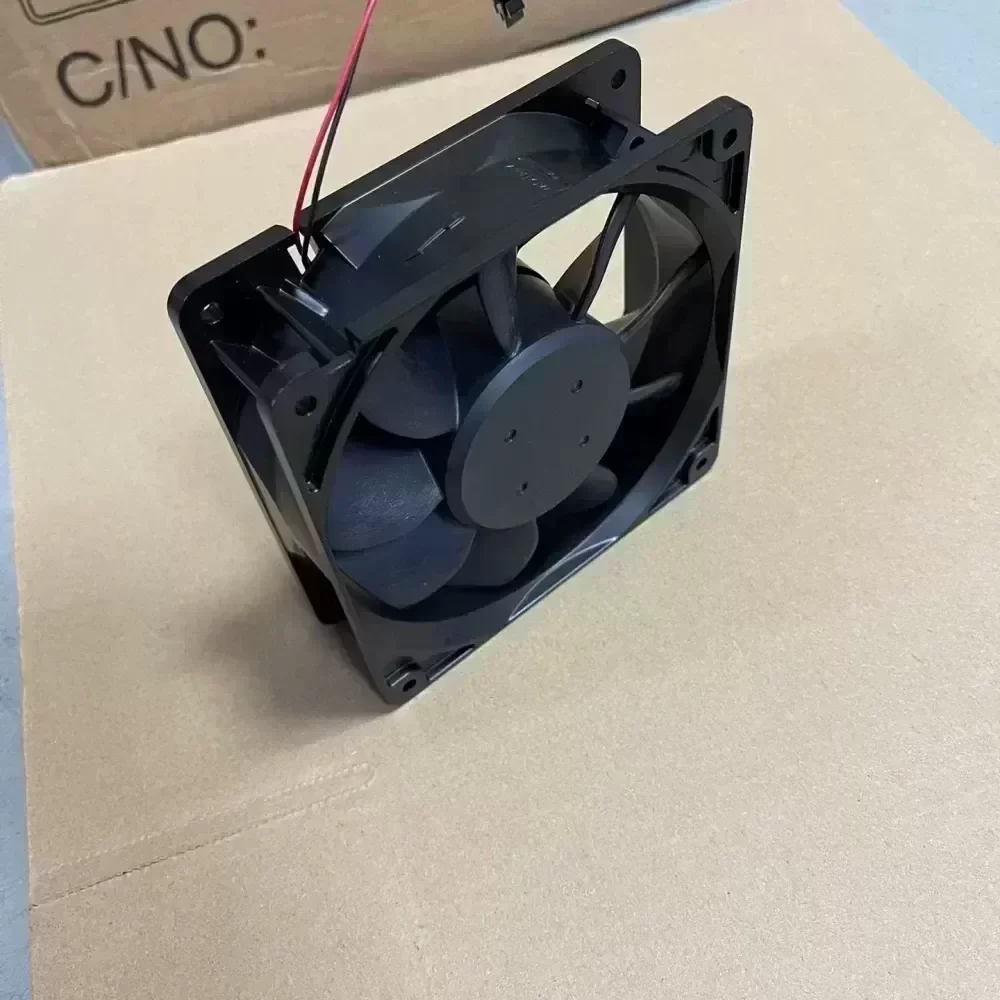

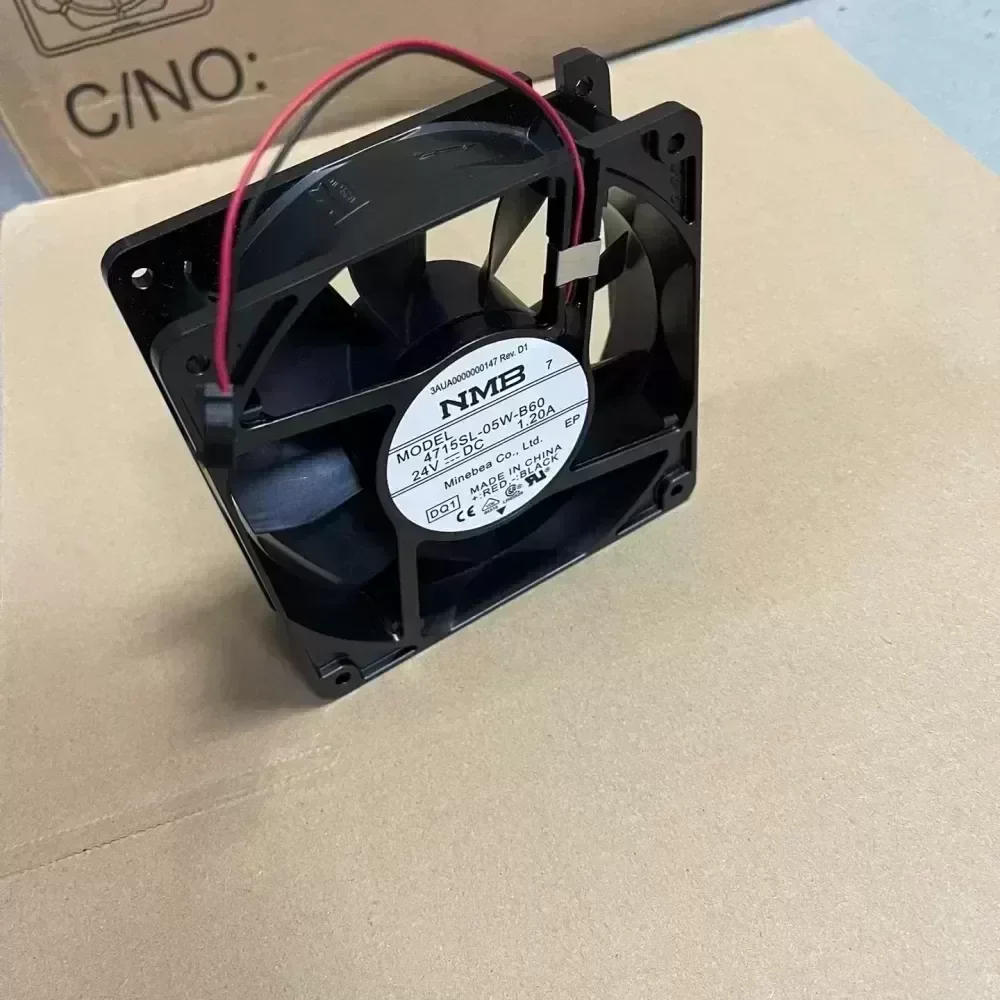

4715SL-05W-B60 NMB 24V 1.20A fan

$19.29

SKU: 825746111869 Brand: , ,

Description

The NMB-MAT 4715SL-05W-B60 is a heavy-duty 24V DC axial cooling fan engineered by MinebeaMitsumi for mission-critical industrial thermal dissipation. Designed to meet Original Engineering specifications, this unit provides maximum static pressure and volumetric airflow for high-density power electronics, notably serving as the primary heatsink cooling assembly across various industrial automation platforms and Yaskawa frequency converter drives.

Model Code Decoding:
47: 119 mm x 119 mm frame profile
15: 38 mm casing depth
S: Aerodynamic housing design
L: High-reliability industrial specification
05: 24 V DC nominal input rating
W: Lead wire interface
B: Dual precision ball bearing configuration
60: Speed rank 6 (Ultra-high airflow classification with specialized drive pinout)

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)

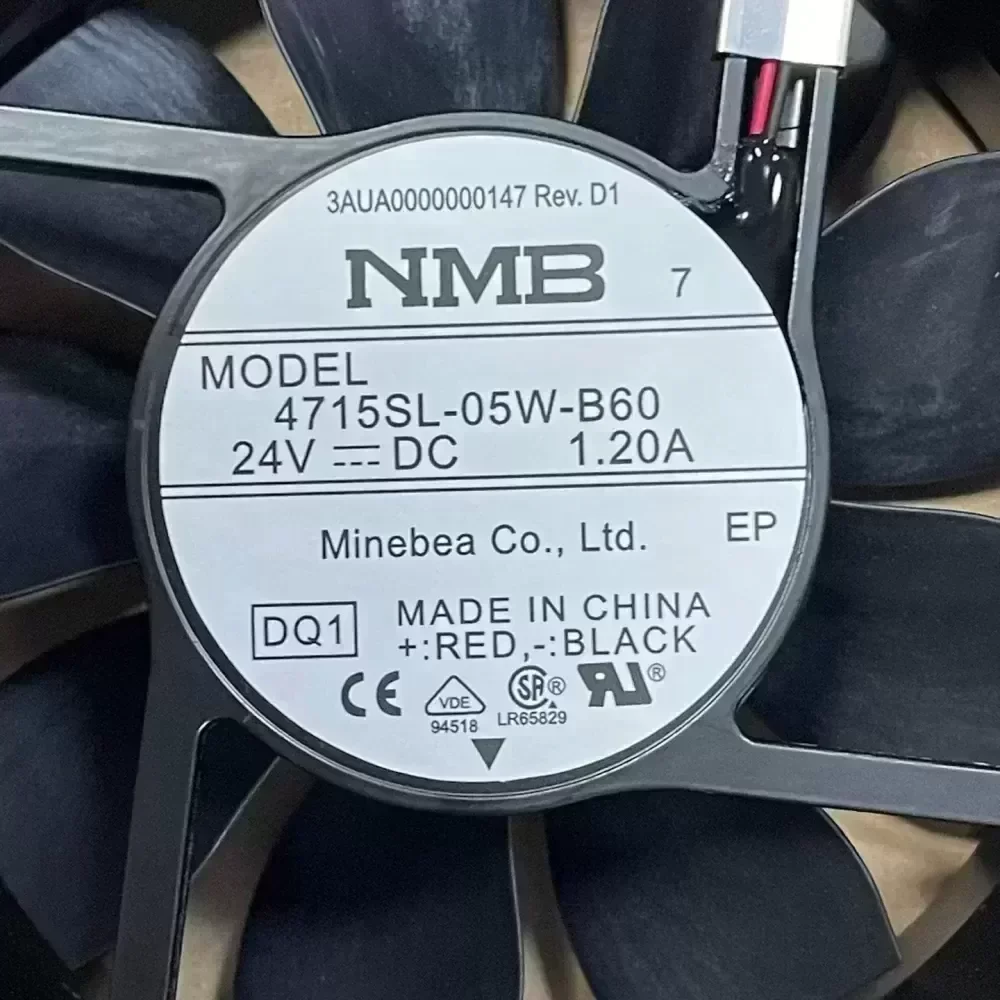

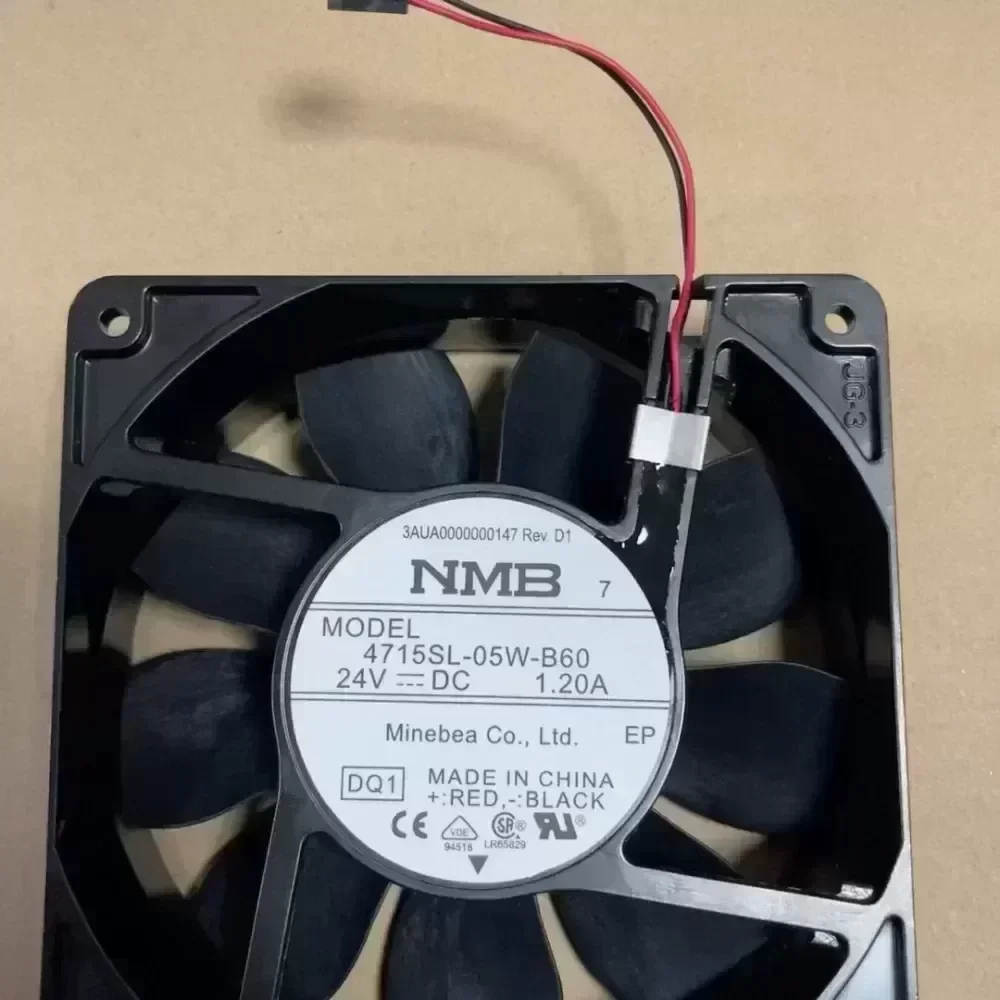

Model: 4715SL-05W-B60

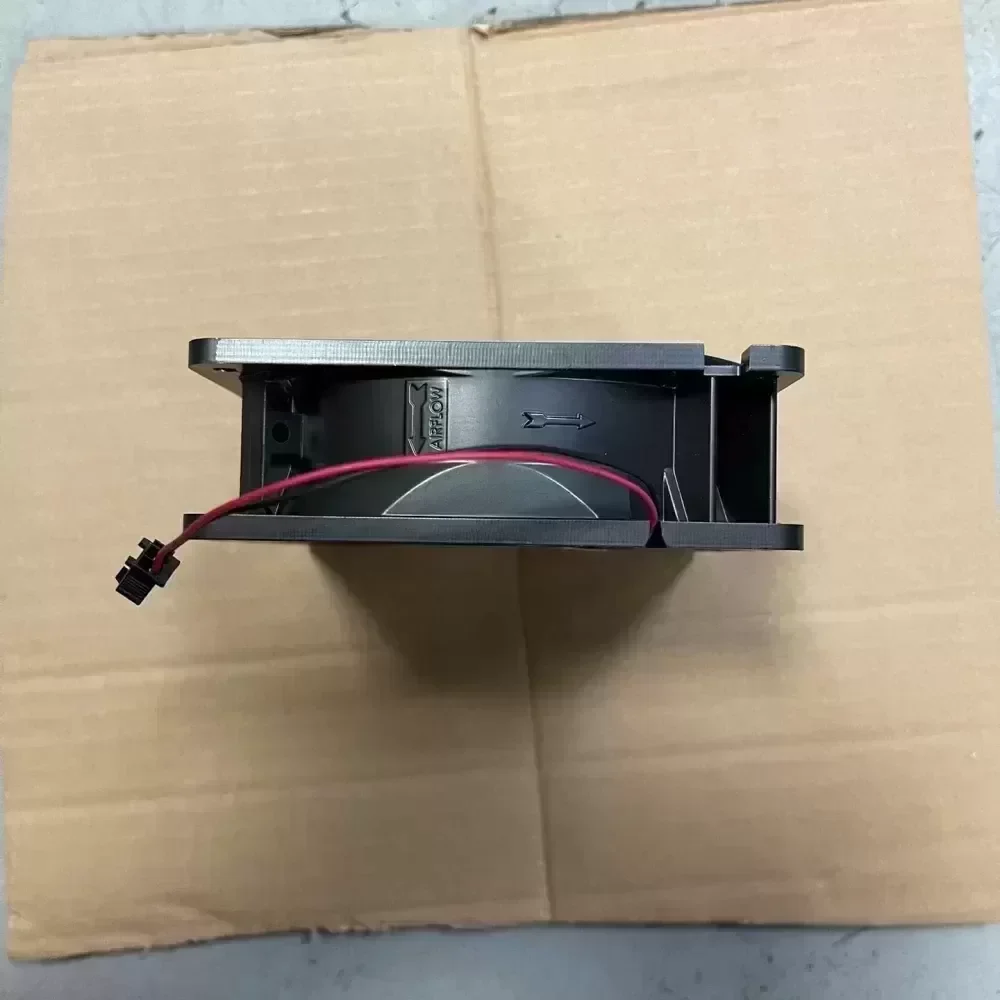

Frame Size: 119 mm x 119 mm x 38.4 mm
Rated Voltage: 24 V DC
Operating Voltage: 18.0 V DC to 27.6 V DC
Rated Current: 1.20 A
Input Power: 28.8 W
Nominal Speed: 4600 RPM
Maximum Airflow: 185 CFM (5.24 m³/min)
Maximum Static Pressure: 196 Pa (0.78 in H₂O)
Bearing Type: Dual Precision Ball Bearings
Housing Material: Die-Cast Aluminum / Reinforced PBT Resin
Impeller Material: Glass Fiber Reinforced Plastic (UL94V-0)
Dielectric Strength: AC 700 V, 1 Minute
Insulation Resistance: 10 MΩ or higher at DC 500 V
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +75 °C
Life Expectancy (L10): 100,000 Hours at 25 °C
Termination: Dedicated multi-conductor industrial lead wire assembly
Weight: 260 g
Certifications: UL, CE, RoHS compliant

Application and Technical Compatibility:
This unit delivers optimal performance in sealed control cabinets and heavy-load variable frequency drives (VFDs). In high-capacity Yaskawa inverters, thermal throttling and IGBT module failure are direct consequences of degraded airflow across internal cooling fins. The 4715SL-05W-B60 provides the precise backpressure curve required to maintain thermal equilibrium within the power module array during continuous 100% duty cycle operations. Its low acoustic profile and dual-bearing structural design prevent premature mechanical fatigue under high ambient vibration and variable thermal cycles.

Commercial and Procurement Information:
Condition: 100% Original Authentic Factory Stock
Testing: Verified functional integrity and bench-tested electrical parameters prior to dispatch
Lot Size: 150 pieces available
Lead Time: Immediate dispatch within 24 to 48 hours for global express distribution

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

4715SL-05W-B60 NMB 24V 1.20A fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
