$228.57

SKU: 748787328060 Brand: ,

Description

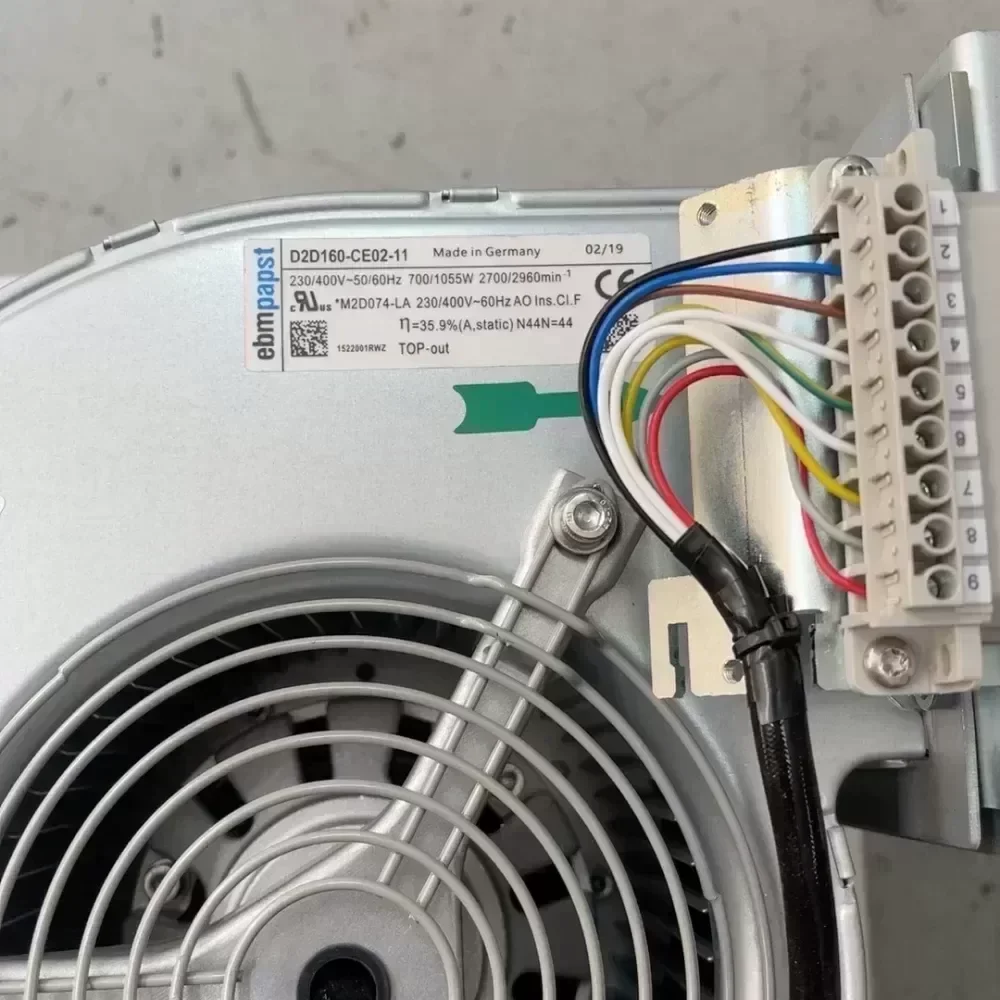

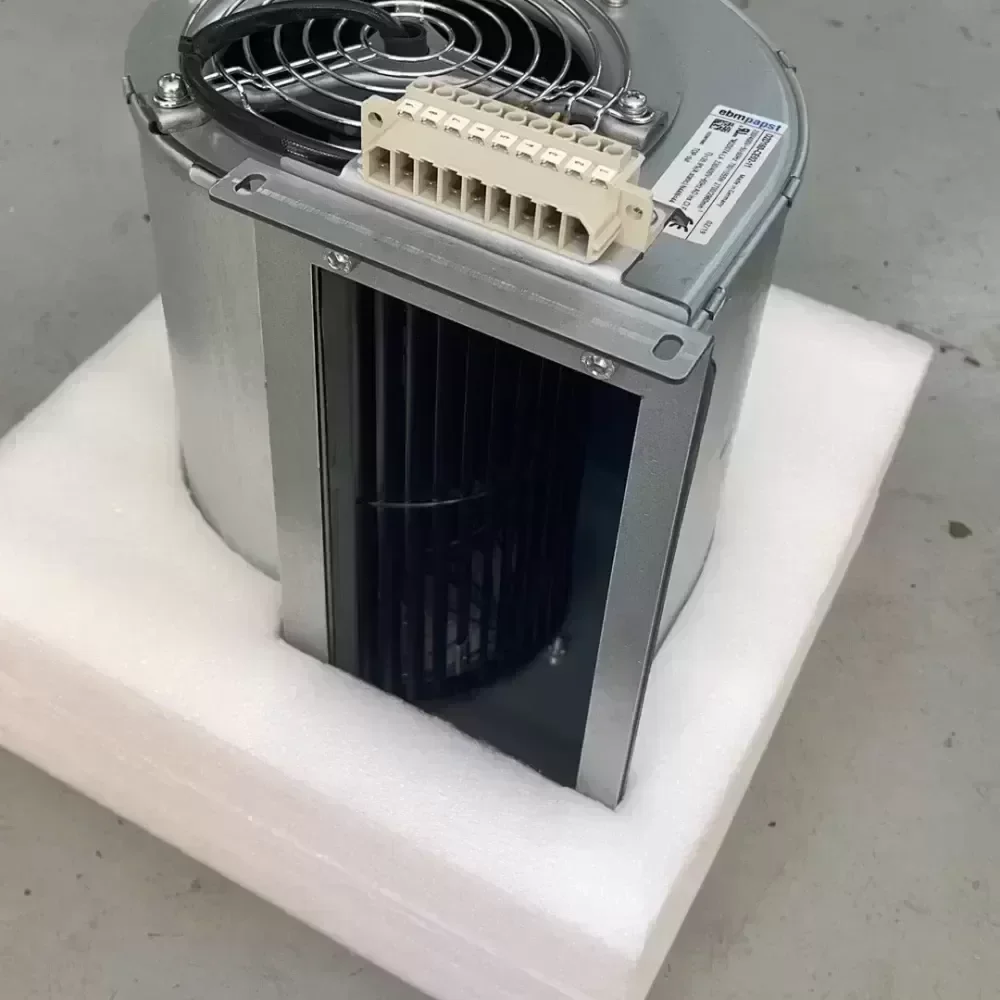

The ebm-papst D2D160-CE02-11 is a heavy-duty, dual-inlet centrifugal blower assembly engineered specifically for thermal management inside high-power variable frequency drive (VFD) enclosures. Designed as an Original Engineering component for ABB industrial drives, this assembly integrates an external rotor motor directly inside the forward-curved scroll impeller to optimize aerodynamic efficiency, minimize mechanical footprint, and deliver stable static pressure under restrictive airflow conditions.

Technical Compatibility and Application Profile:
Technical Compatibility: ABB ACS800, ACS880, and related high-power inverter modules and drive cabinet lineups.
Critical Role: Thermal regulation of IGBT modules, DC bus capacitor banks, and power switching stages. In high-ambient industrial environments, rapid heat extraction is essential to prevent thermal derating and unintended drive tripping. This unit provides continuous high-volume forced convection to ensure uninterrupted plant operations in automated manufacturing, process industries, and marine drive configurations.

Technical Specifications:
Manufacturer: ebm-papst
OEM Cross Reference: ABB D2D160-CE02-11
Component Type: Dual-Inlet Centrifugal Fan / Scroll Blower
Impeller Design: Forward-curved, double inlet
Impeller Diameter: Ø 160 mm
Nominal Voltage: 230 VAC
Operating Frequency: 50 / 60 Hz
Nominal Input Power: 420 W (50 Hz) / 580 W (60 Hz)
Current Rating: 1.85 A (50 Hz) / 2.55 A (60 Hz)
Nominal Speed: 1550 RPM (50 Hz) / 1850 RPM (60 Hz)
Maximum Airflow: 1100 m³/h
Direction of Rotation: Clockwise, viewed toward rotor
Housing Material: Sheet steel, galvanized
Impeller Material: Sheet steel, galvanized
Bearing System: Heavy-duty maintenance-free sealed ball bearings
Motor Protection: Integrated thermal overload protector (TOP)
Insulation Class: Class F
Motor Protection Class: IP44
Operating Temperature Range: -25 °C to +55 °C
Weight: 6.2 kg
Certifications: CE, UL Recognized, CSA, RoHS compliant

Procurement and Lifecycle Details:
Condition: New Unused (Project Remaining Surplus)
Available Inventory: 18 units
Lead Time: Immediate dispatch (1 to 2 business days)
Logistics: Freight included / Free standard shipping

D2D160-CE02-11 ebmpapst ABB Fan

D2D160-CE02-11 ebmpapst ABB Fan

D2D160-CE02-11 ebmpapst ABB Fan

D2D160-CE02-11 ebmpapst ABB Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
