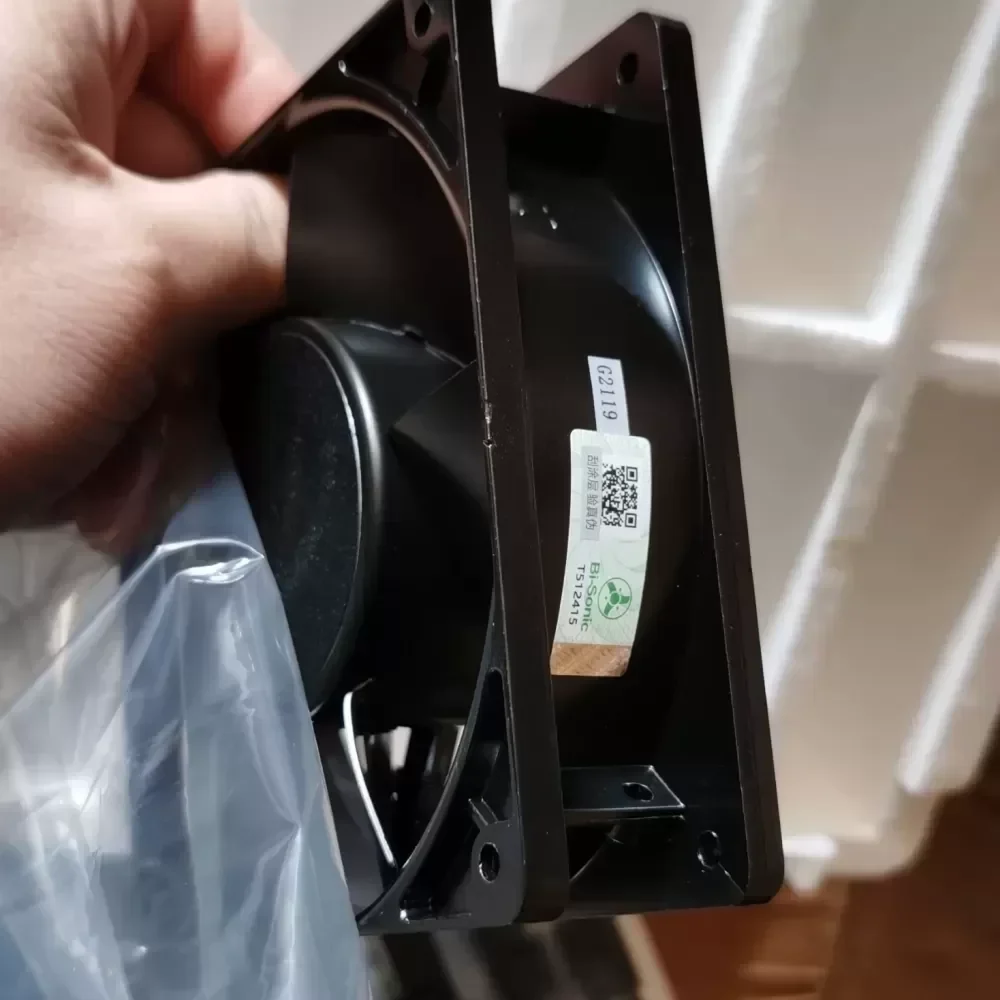

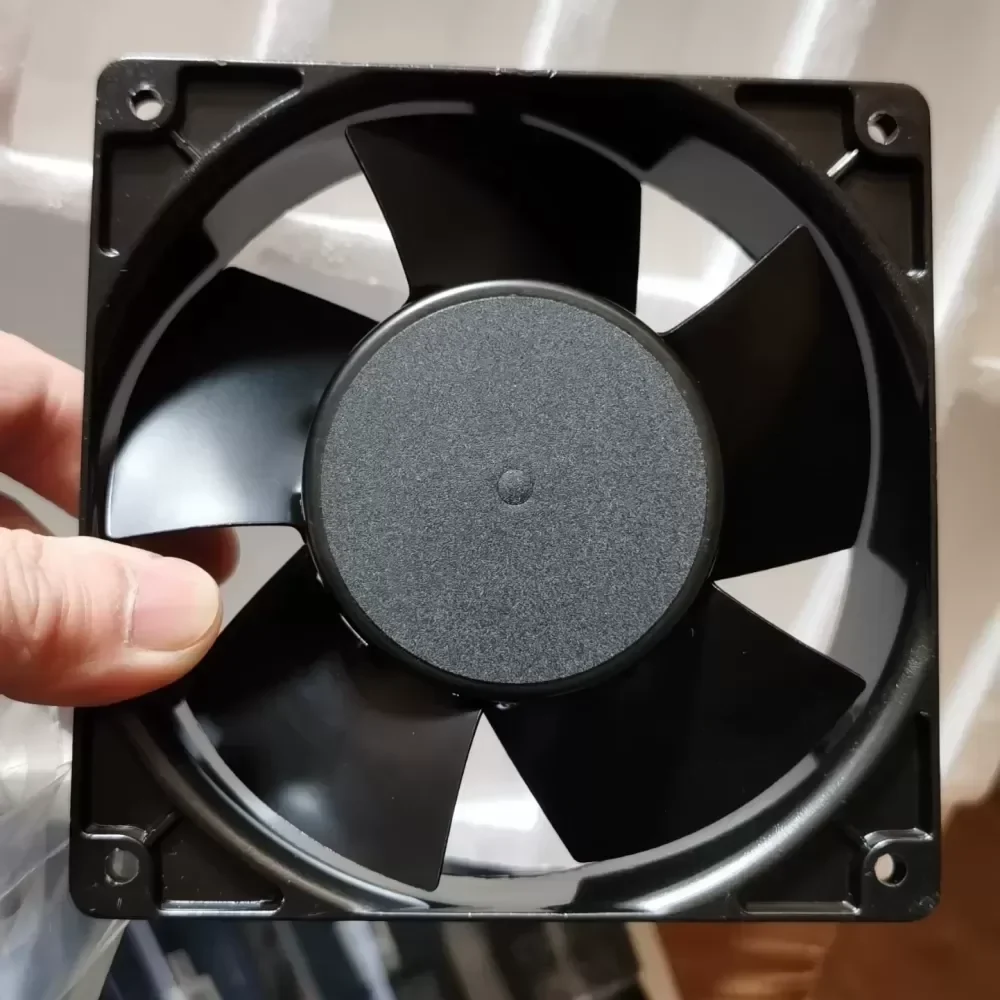

4E-230B02 Bi-Sonic All-metal 12038/220 fan
4E-230B02 Bi-Sonic All-metal 12038/220 fan
4E-230B02 Bi-Sonic All-metal 12038/220 fan

4E-230B02 Bi-Sonic All-metal 12038/220 fan

$10.71

SKU: 680679145523 Brand:

Description

The Bi-Sonic 4E-230B02 is a heavy-duty, all-metal AC axial flow cooling fan engineered for extreme thermal management in industrial enclosures. Manufactured in Taiwan, this 120x120x38mm unit guarantees Original Engineering quality and is designed to maintain optimal operating temperatures within high-density chassis and control cabinets. With a robust metal impeller and frame, it ensures Technical Compatibility with legacy and modern machinery requiring continuous, high-temperature resistant ventilation. We offer competitive Lead Time for bulk and replacement orders.

Technical Specifications
Manufacturer: Bi-Sonic
Model Number: 4E-230B02
Fan Type: AC Axial Flow Cooling Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 220V – 240V AC
Frequency: 50/60 Hz
Bearing System: High-Temperature Dual Ball Bearing
Airflow Capacity: 2.54 – 3.02 m³/min
Speed: 2600 – 3000 RPM
Noise Level: 42 – 46 dB(A)
Mounting Hole: Ø 4.3mm ± 0.2mm
Weight: 0.55 kg

Material and Environmental Profile
Frame Material: Die-cast Aluminum Alloy
Impeller Material: Stamped Steel / Metal Alloy
Operating Temperature: -30°C to +85°C
Motor Protection: Impedance Protected
Insulation Resistance: 100 Megohms minimum at 500V DC
Dielectric Strength: 1500V AC for 1 minute

Industrial Application
The 4E-230B02 is specifically deployed in harsh industrial environments where standard plastic fans fail. Its all-metal construction makes it the definitive choice for CNC machine control cabinets, welding equipment, server chassis, and high-temperature industrial ovens. The metal leaf design prevents deformation under extreme heat, ensuring uninterrupted airflow and protecting critical electronic components from thermal degradation.

4E-230B02 Bi-Sonic All-metal 12038/220 fan

4E-230B02 Bi-Sonic All-metal 12038/220 fan

4E-230B02 Bi-Sonic All-metal 12038/220 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
