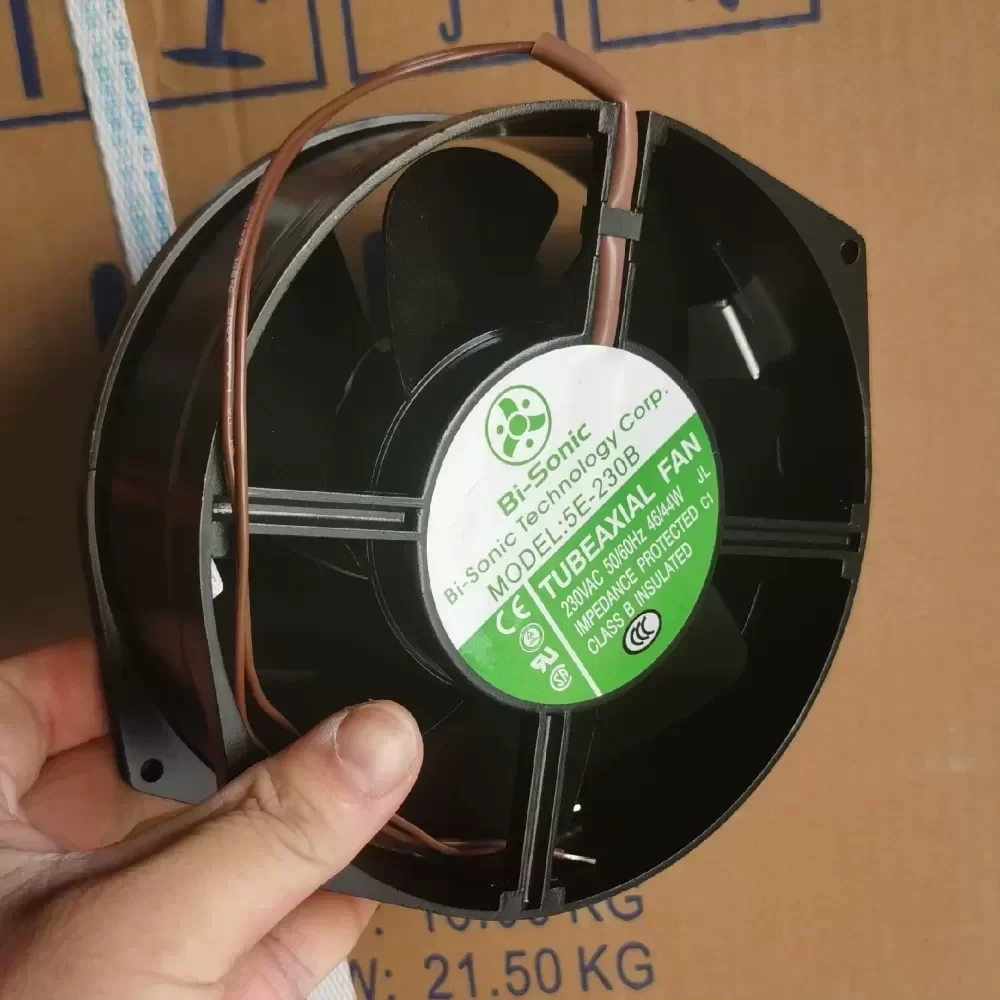

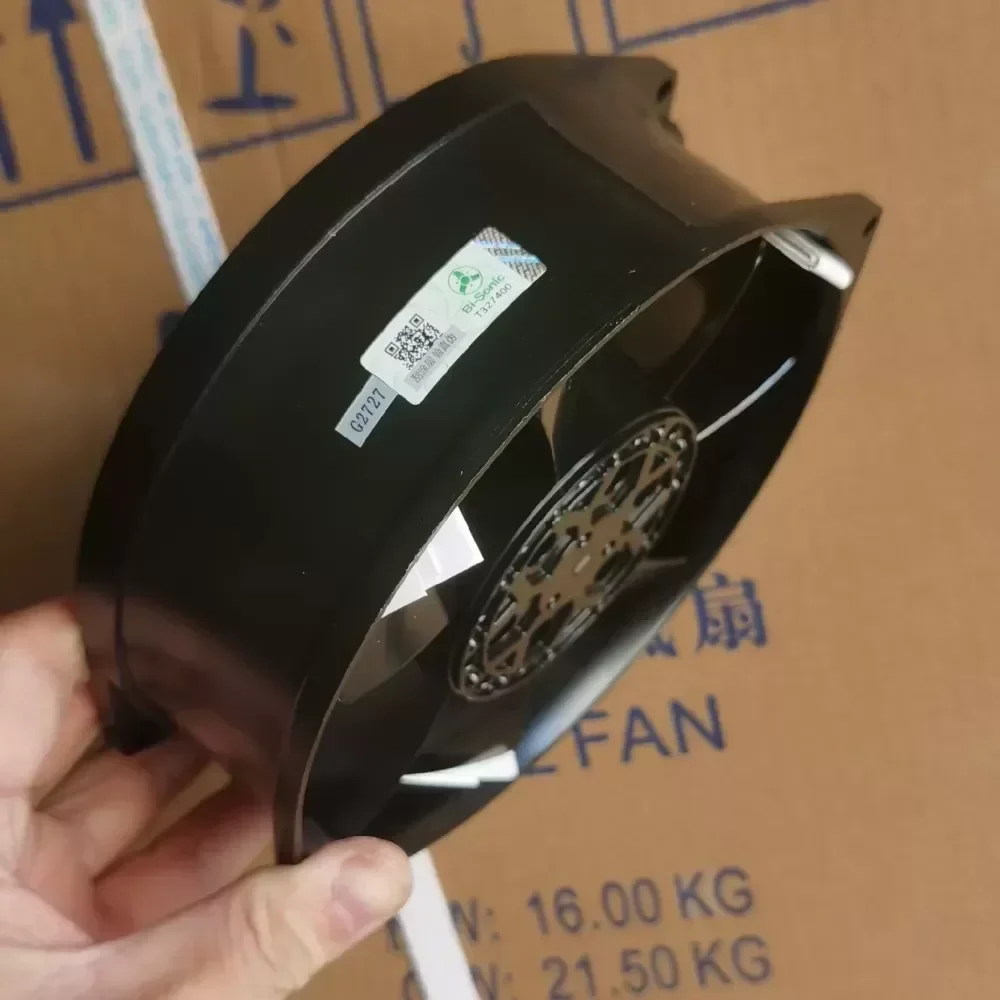

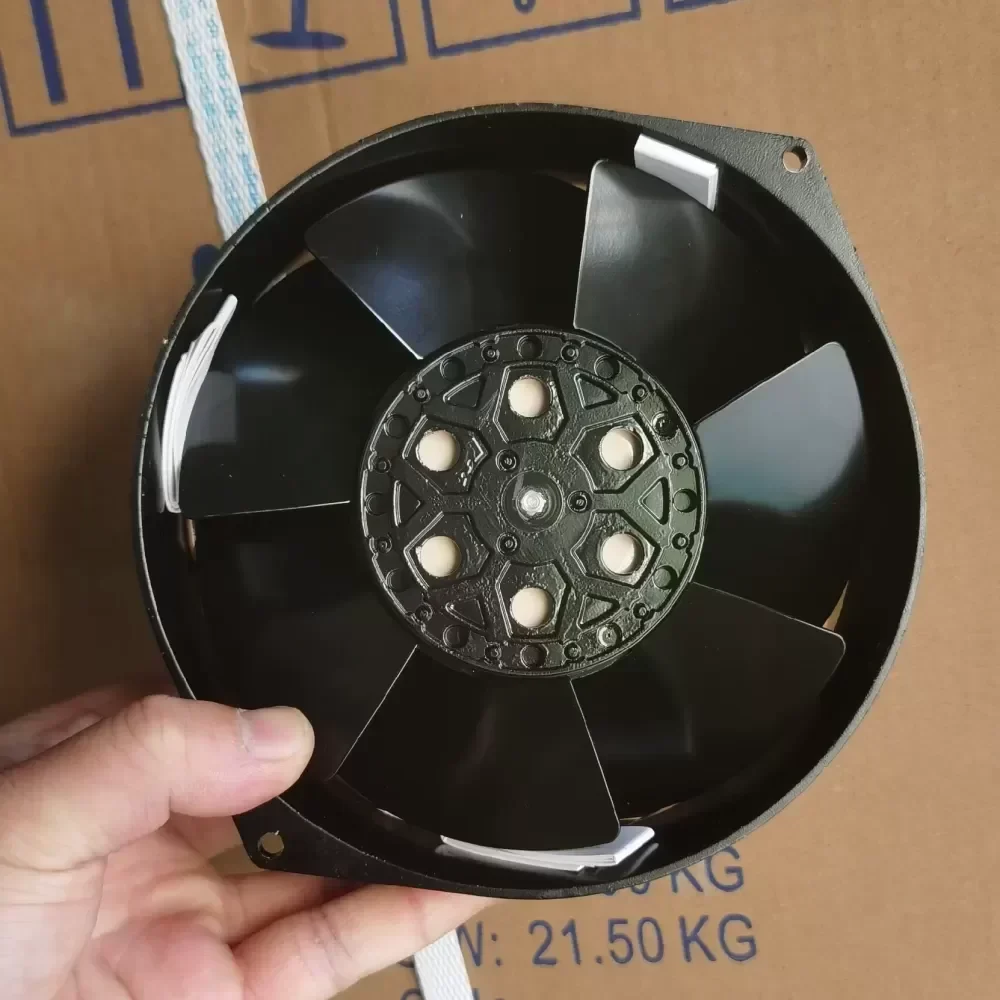

The Bi-Sonic 5E-230B is an industrial-grade, all-metal AC axial cooling fan engineered for high-temperature and continuous-duty applications. Designed with Original Engineering standards, this unit provides exceptional thermal management for critical infrastructure, ensuring optimal Technical Compatibility with standard UPS systems, industrial control cabinets, and server chassis.
Technical Specifications:
Manufacturer: Bi-Sonic
Model Number: 5E-230B
Fan Type: AC Axial Fan
Dimensions: 172 x 150 x 55 mm
Mounting Hole Diameter: Ø 4.3 mm
Rated Voltage: 220 / 230 VAC
Frequency: 50/60 Hz
Airflow: 5.66 to 6.79 m³/min
Bearing System: Precision Dual Ball Bearing
Frame Material: Die-cast Aluminum Alloy
Impeller Material: Stamped Metal
Operating Temperature: -30°C to +85°C
Dielectric Strength: 1500 VAC for 1 minute
Insulation Resistance: >100M Ohm at 500 VDC
Motor Protection: Thermal Protected
Weight: 1.15 kg
Industrial Application:
The all-metal construction and high-temperature tolerance of the 5E-230B solve critical thermal accumulation issues in enclosed industrial systems. It is specifically deployed in heavy-duty uninterruptible power supplies (UPS), variable frequency drive (VFD) enclosures, and CNC machine control cabinets where ambient temperatures exceed standard operational limits. The robust metal impeller prevents deformation under continuous high-heat stress, ensuring stable volumetric airflow to protect sensitive power electronics from thermal degradation. Predictable Lead Time and standardized mounting dimensions facilitate seamless integration into existing maintenance cycles.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
