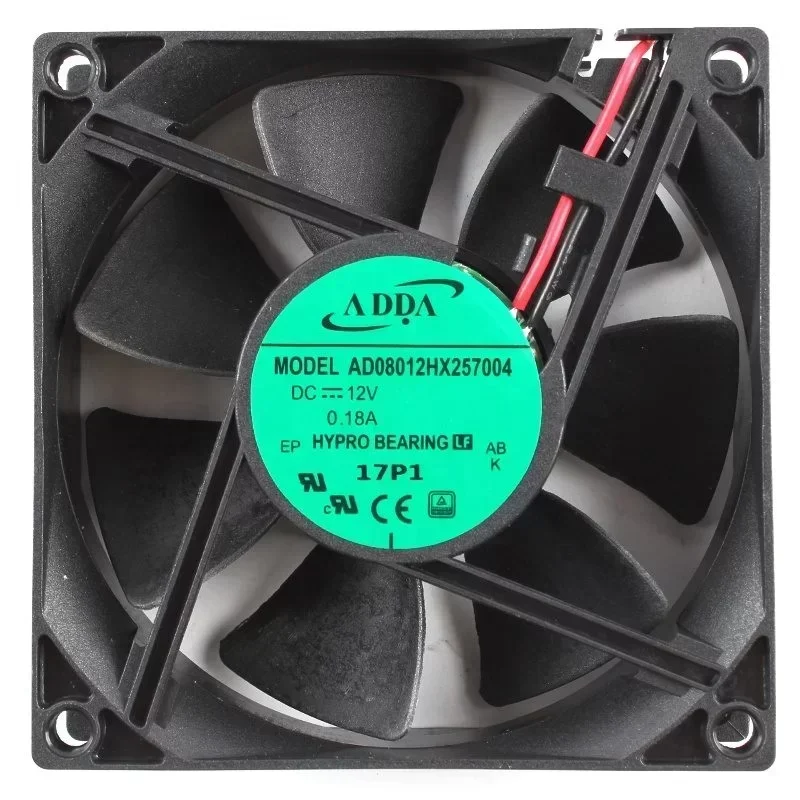

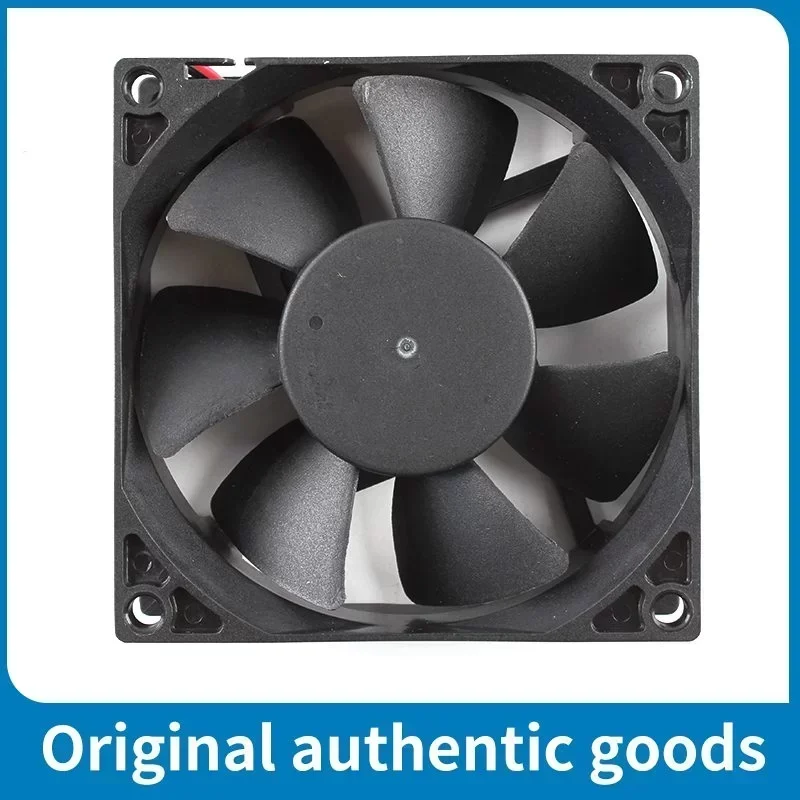

AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan
AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan
AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan

AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan

$3.50

SKU: 1600585595263 Brand:

Description

The ADDA AD08012HX257004 is a precision-engineered DC axial cooling fan designed for continuous thermal management in demanding industrial environments. Utilizing a standard 80x80x25mm form factor, this 12V DC component delivers optimal volumetric airflow while maintaining a strictly controlled acoustic profile. Built to Original Engineering standards, this fan ensures seamless Technical Compatibility with existing OEM thermal management systems, specifically targeting inverter and drive cooling applications.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AD08012HX257004
Equipment Type: DC Axial Exhaust Cooling Fan
Dimensions: 80 mm x 80 mm x 25 mm
Mounting Hole Diameter: Ø 4.3 ± 0.2 mm
Operating Voltage: 12V DC
Rated Current: 0.18A
Power Consumption: 2.16 W
Bearing Architecture: Precision Hypro Bearing
Speed Classification: High Speed (H-Series)
Maximum Airflow: 1.13 m³/min
Acoustic Noise Level: < 35 dB(A)
Operating Temperature Range: -10°C to +70°C
Frame Material: Thermoplastic P.B.T. (UL94V-0)
Impeller Material: Thermoplastic P.B.T. (UL94V-0)
Weight: 86 g
Termination: Standard Wire Leads
Lead Time: In Stock, ready for immediate deployment

Industrial Application Scenario:
The AD08012HX257004 is critically deployed within variable frequency drives (VFDs), solar power inverters, and high-density telecommunication racks where localized heat dissipation is a strict operational requirement. In enclosed inverter cabinets, the rapid accumulation of thermal loads can severely degrade semiconductor switching efficiency and lifespan. This ADDA axial fan provides targeted, continuous exhaust capabilities, actively drawing ambient heat away from sensitive PCB components. Its specialized low-noise architecture ensures acoustic interference is minimized in populated control rooms, while the robust 12V, 0.18A electrical profile guarantees stable, uninterrupted operation during prolonged industrial duty cycles.

Key Attributes:
Voltage: 12V
Electric current type: DC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: ADDA
Model number: AD08012HX257004
Current: 0.18A
Number of blades: 7
Operating Temperature: -10℃ to 70℃
Bearing Type: Ball bearing
Selling Units: Single item
Single package size: 21X14X20 cm
Single gross weight: 1.000 kg

Packaging and Delivery:
Selling Units: Single item
Single package size: 21X14X20 cm
Single gross weight: 1.000 kg

AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan

AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan

AD08012HX257004 ADDA 80x80x25mm 12V 0.18A Inverter Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
