$6.43

SKU: 706588387792 Brand:

Description

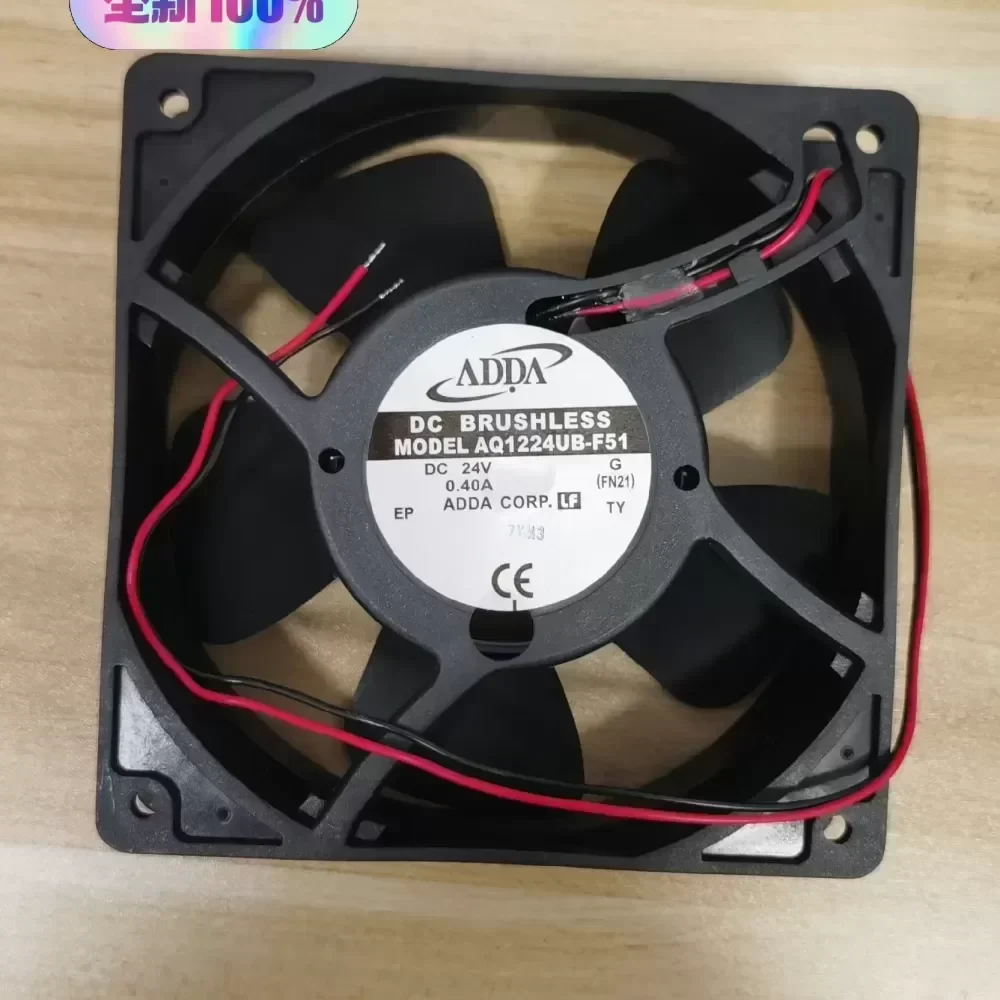

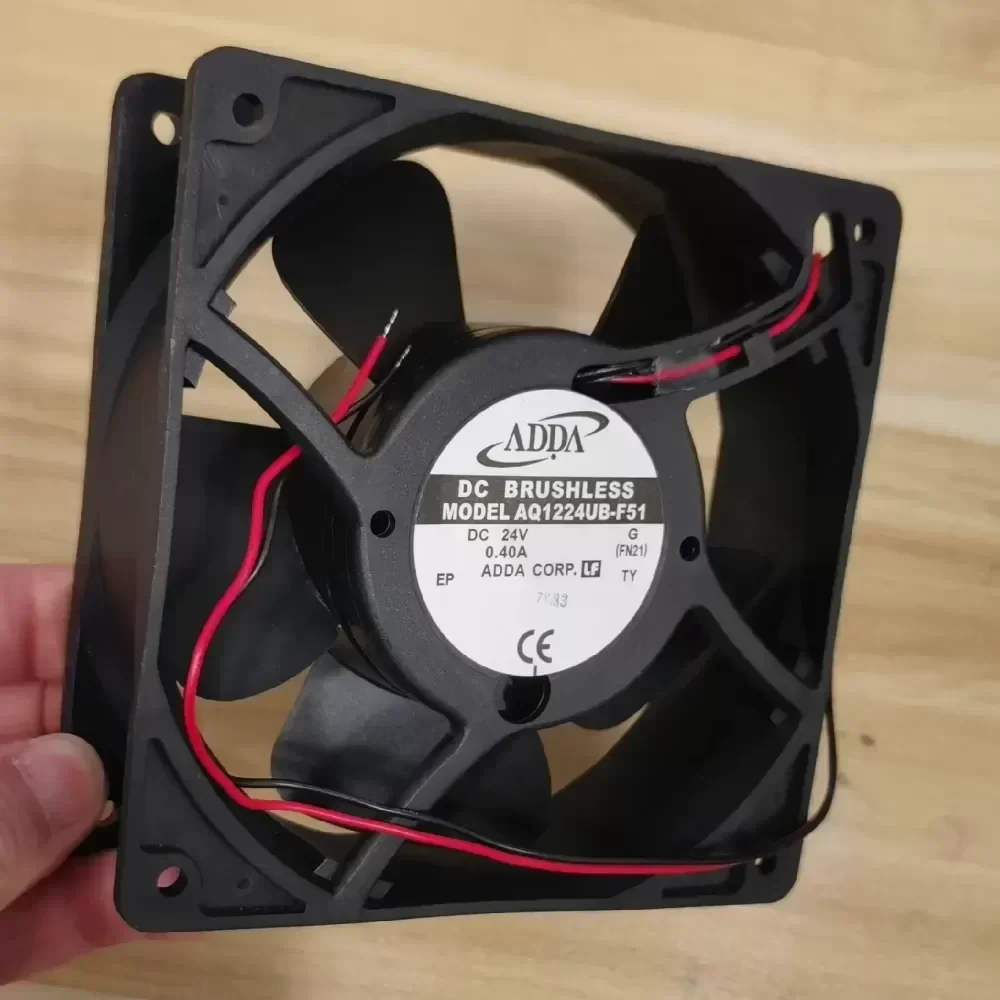

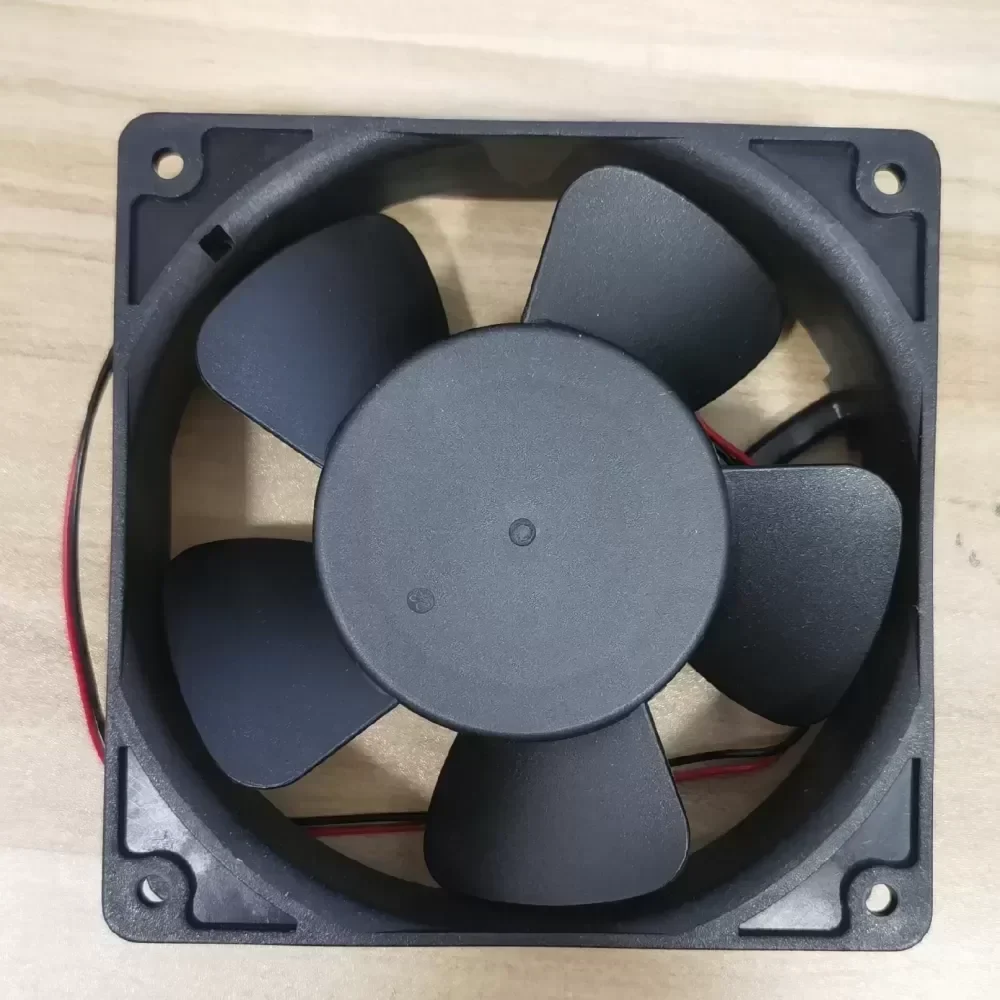

The ADDA AQ1224UB-F51 is an industrial-grade DC axial cooling fan engineered for severe environmental conditions. Manufactured in Taiwan, this Original Engineering component delivers exceptional thermal management for high-density electronic enclosures. The AQ1224UB-F51 features a fully encapsulated, rubber-filled motor design, achieving a stringent IP68 ingress protection rating. This makes it completely impervious to dust ingress and capable of continuous submersion in water, ensuring uninterrupted cooling in harsh industrial environments.

Technical Specifications
Brand: ADDA
Model Number: AQ1224UB-F51
Dimensions: 120 x 120 x 38 mm (12038)
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Bearing System: Precision Dual Ball Bearing
Motor Design: Brushless DC, Rubber-filled Encapsulation
Speed Classification: Ultra High Speed (U)
Nominal Speed: 3200 RPM ± 10%
Maximum Airflow: 122.0 CFM (3.45 m³/min)
Static Pressure: 0.35 In-H2O
Acoustic Noise: 48.0 dB(A)
Ingress Protection Rating: IP68 (Waterproof and Dustproof)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 250 g
Termination: Wire Leads

Industrial Application and Technical Compatibility
The AQ1224UB-F51 is specifically designed for integration into heavy-duty chassis cabinets, outdoor telecommunication enclosures, and industrial frequency inverters. In scenarios such as offshore wind power inverters, CNC machining centers, or outdoor solar converters, standard cooling fans fail rapidly due to moisture, coolant mist, and particulate contamination. The IP68 rubber-filled encapsulation of the AQ1224UB-F51 isolates the stator and PCB from corrosive elements, preventing electrical shorts and mechanical seizure. Its ultra-high-speed dual ball bearing system ensures maximum volumetric airflow to dissipate high thermal loads generated by power electronics, thereby extending the lifecycle of critical machinery.

Procurement and Lifecycle Value
Sourcing Original Engineering ADDA components guarantees exact Technical Compatibility with your existing thermal management architecture. Our streamlined supply chain ensures an optimized Lead Time for both single-unit spare parts replacement and bulk OEM integration, minimizing system downtime and maximizing operational reliability.

ADDA AQ1224UB-F51 12038/24V chassis

ADDA AQ1224UB-F51 12038/24V chassis

ADDA AQ1224UB-F51 12038/24V chassis

ADDA AQ1224UB-F51 12038/24V chassis

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
