Description

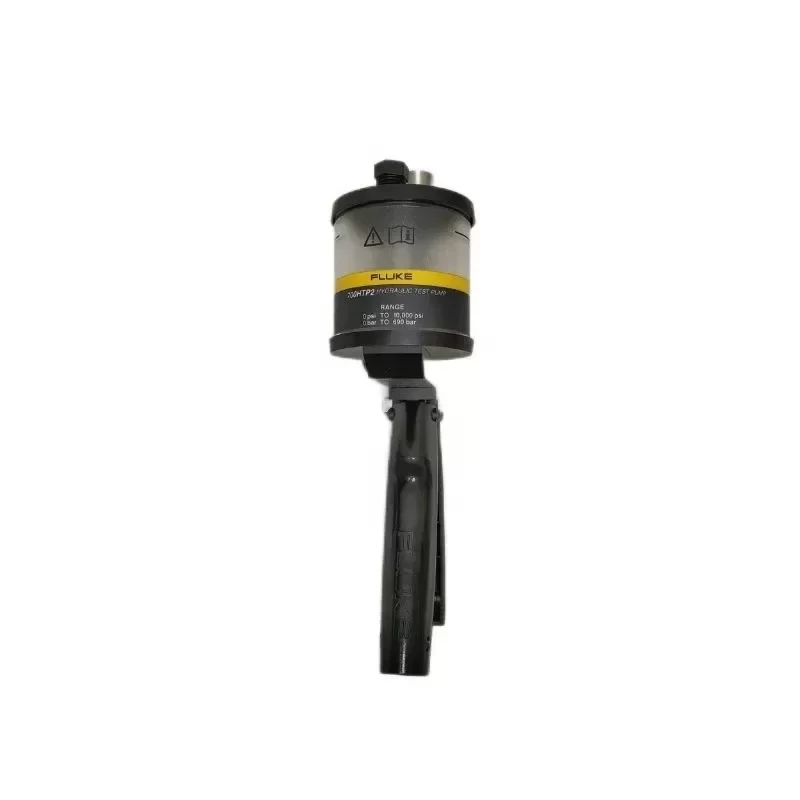

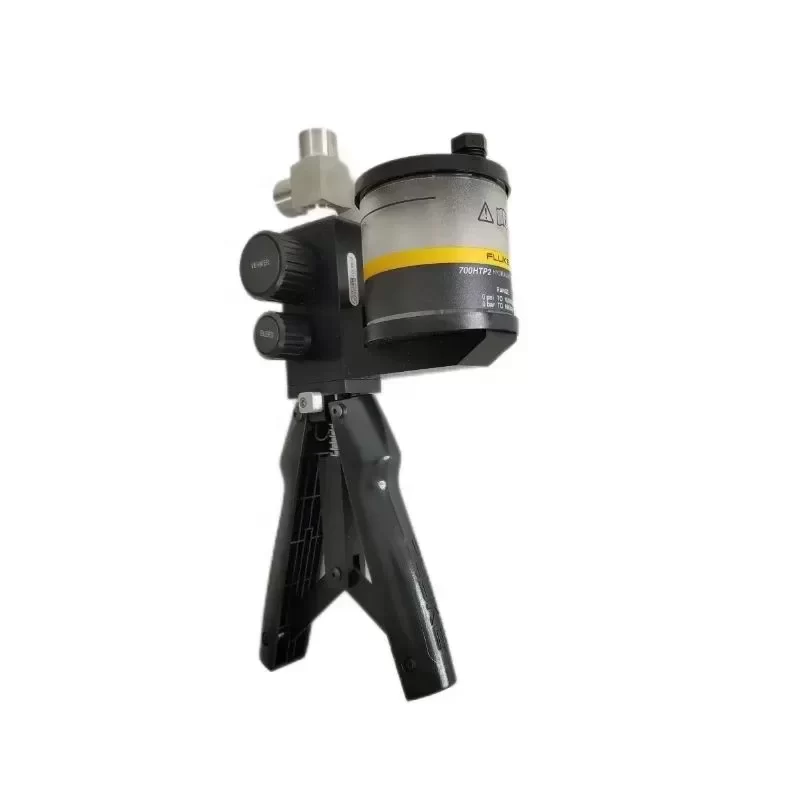

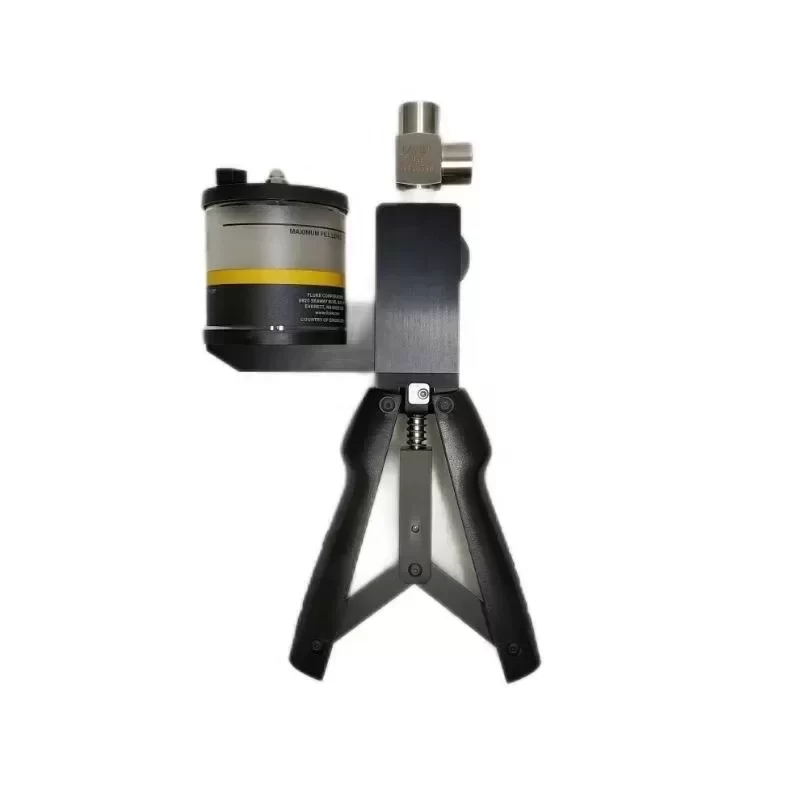

The Fluke 700HTP-2 is a professional-grade manual hydraulic test pump designed to generate calibration pressures up to 10,000 psi (690 bar). Engineered for precision and durability, this high-performance instrument is essential for calibrating pressure transmitters, gauges, and switches in demanding industrial environments.
Technical Specifications:
Manufacturer: Fluke Corporation
Model Number: 700HTP-2
Equipment Type: Manual Hydraulic Test Pump
Maximum Pressure: 10,000 psi (690 bar / 69 MPa)
Operating Media: Distilled water, mineral-based hydraulic oil, or standard hydraulic fluid
Port Configuration: Dual 1/4-inch NPT female ports (Reference gauge and Unit Under Test)
Fine Adjustment: Integrated vernier control for precise pressure targeting
Stroke Adjustment: Variable stroke to limit maximum pressure and protect sensitive instruments
Wetted Materials: 303 Stainless Steel, Aluminum, Polyurethane, PTFE, Nitrile, Nylon
Dimensions: 241 mm x 155 mm x 66 mm
Weight: 0.58 kg
Industrial Application:
The Fluke 700HTP-2 is critical for field calibration of high-pressure process instrumentation in petrochemical refineries, power generation plants, and heavy manufacturing facilities. By utilizing its fine vernier adjustment and variable stroke control, technicians can safely isolate and test high-pressure transmitters without risking over-pressurization of the unit under test.
Lifecycle and Integration:
Technical Compatibility: Seamlessly integrates with Fluke 700 series pressure modules (such as the 700P09, 700P29, 700P30, and 700P31) and Fluke 717 pressure calibrators.
Original Engineering: Built to Fluke’s exacting OEM standards, ensuring long-term reliability, leak-free operation, and consistent pressure generation.
Lead Time: Available for immediate global dispatch to minimize facility downtime during critical maintenance cycles.
Key Attributes
Place of origin: China
Model number: 700HTP-2
Brand name: FLUKE
Customized support: OEM, ODM
Type: Hydraulic Test Pump
Warranty: 1 years
Maximum Pressure: 10,000 psi (690 bar)
Hydraulic Media: Distilled water, hydraulic oil
Wetted Materials: 303 stainless steel
Weight: 1kg
Packaging and Delivery
Selling Units: Single item
Single package size: 35X35X16 cm
Single gross weight: 2.500 kg
